MST FA24 2.4L Cold Air Intake — Toyota GR86 (ZN8, 2022); Subaru BRZ (ZD8, 2022) (TY-GR8602)
$503.80
MST FA24 2.4L Cold Air Intake — Toyota GR86 (ZN8, 2022); Subaru BRZ (ZD8, 2022) (TY-GR8602)
$503.80
Please note, MST Performance Intakes/Inlets are NOT CARB COMPLIANT and are for off road and racing use only. By purchasing an MST Performance intake, you understand that these may only be used for off road and racing use only for unregistered vehicles. Please check with your local, state, and federal laws to see if these products are legal for use in your area. By purchasing an MST Performance product, you understand and agree to these terms and accept all liability.
Vehicle Fitment
Part number: TY-GR8602
Match every detail in the same row. Listed years follow the stated manufacturer or market basis; an engine code by itself does not confirm fitment. Where no full range is established, confirm the model year and engine-bay layout before ordering.
| Vehicle | Chassis | Engine / specification | Supported years | Application details |
|---|---|---|---|---|
| Toyota GR86 | ZN8 | FA24 2.4L | 2022 | Manufacturer application start; confirm later years. |
| Subaru BRZ | ZD8 | FA24 2.4L | 2022 | Manufacturer application start; confirm later years. |
Confirm fitment with Kies using your model year, engine, production date and a photo of the intake area when a restriction or unconfirmed application is listed.
+ 10
horsepower*
@ 5500 RPM
+ 13
Torque (Nm)*
@ 5500 RPMThis intake kit is specifically designed for the GR86 and BRZ equipped with the FA24 engine.
In our V2 version, we’ve made a significant design overhaul. The newly designed airbox features an additional intake port to significantly increase the volume of incoming cold air, optimizing overall intake efficiency. Cold air has a higher density and oxygen content, which promotes more complete combustion, resulting in enhanced engine power and throttle response.

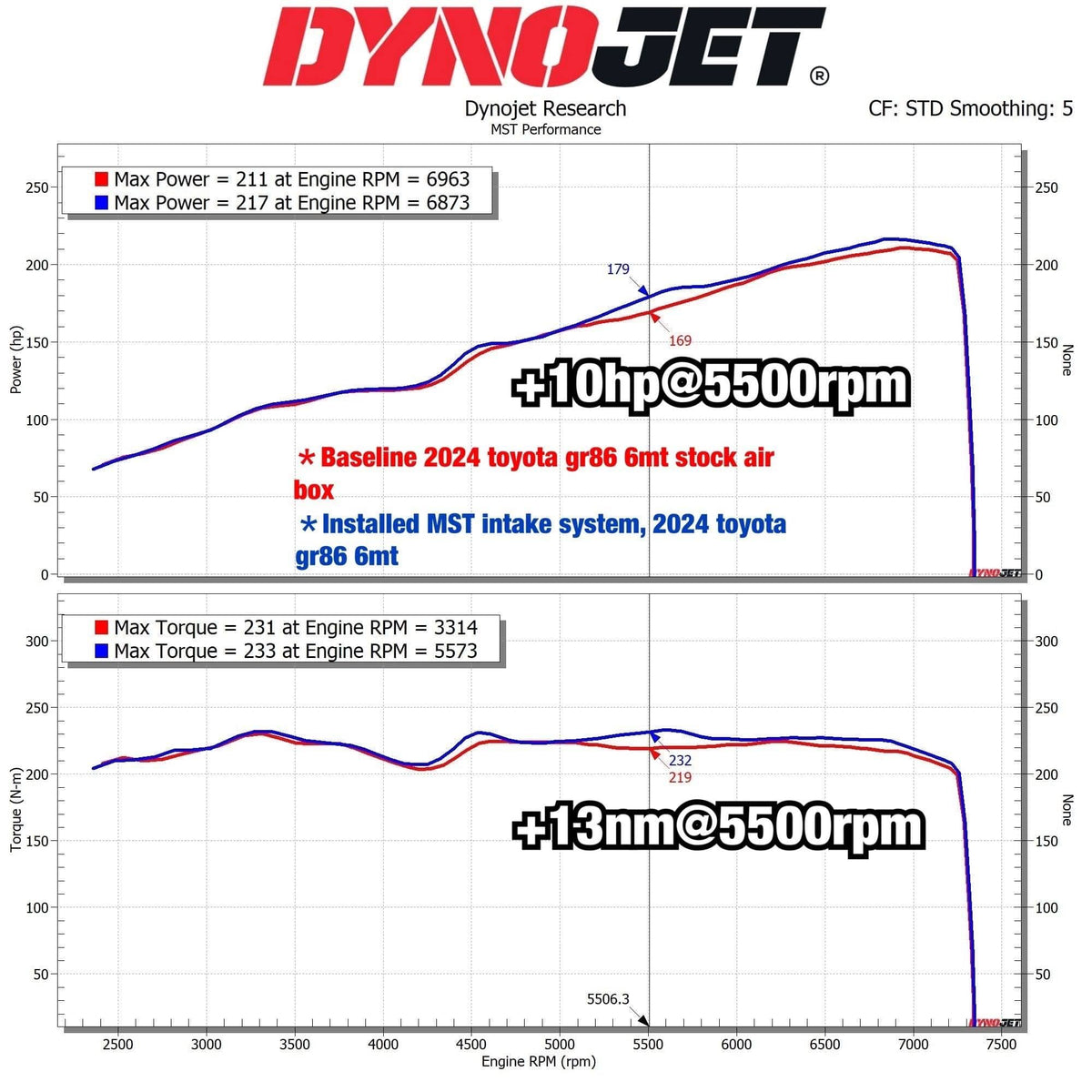

This system is paired with a large-diameter 152mm high-flow air filter which allows for greater air intake and a larger filtration surface area. The reduced intake resistance ensures a stable air supply, even at high RPMs. Based on our dyno testing, we saw a peak horsepower gain of approximately 8–10 hp and a torque increase of 12 Nm. A specially designed wide-mouth intake duct further enhances airflow, allowing cold air to enter the system with minimal obstruction—delivering a noticeable improvement in intake performance and engine responsiveness.
Visually, the GR8602 boasts a fuller, more aggressive appearance, enhancing the overall aesthetics of the engine bay while expressing a bold sense of functional performance.
Features
- PE closed design airbox with the added opening for more airflow
- Clear top cover
- Wide-mouth intake duct: Enhances airflow for maximum efficiency to the intake
- 152mm reusable high airflow filter
- Improved performance & better throttle response
- Performance Gains: Approximately +8-10 hp, +12 Nm torque
- Louder air suction noises
- Direct fit for stock vehicle
⚠️ Please ensure our product is compatible with your car before placing an order.
If you have any questions, please contact us.
*Due to potential variations in model years (especially transitional years) and different regional specifications by country, we highly recommend contacting us and providing a photo of your engine bay for verification before purchasing to ensure accuracy.
Video Reviews & Installation
Product videos
MST Filters Reference Chart
MST Replacement Filters
| Vehicle | MST Intake | Filter | Heat Shield |
|---|---|---|---|
| 2012-15 A5 B8 1.8 2.0 | AD-A401 | OFI-76115 | - |
| 2012-15 A4 /A5 B8.5 1.8 2.0 | AD-A402 | OFI-76130 | - |
| 2015+ A4/ A5 B9 1.8 2.0 | AD-A403 | OFI-70115 | - |
| 2015+ A4/A5 B9 1.4 | AD-A404 | OFI-89115 | - |
| A4 B9 2.0 Quattro | AD-A405 | OFI-89115 | - |
| 2019+ S4 S5 B9 3.0T | AD-A406 | OFI-89115 | - |
| 2018+ Q5 B9 2.0t 45tfsi | AD-Q501 | OFI-89115 | - |
| 2016+ TTRS 8S 2.5TSFI | AD-TTRS01 | OFI-100165OP | - |
| Vehicle | MST Intake | Filter | Heat Shield |
|---|---|---|---|
| GOLF MK7 GTI R6 | VW-R6 | OFI-89145 | |
| GOLF MK7 GTI/R/Tiguan MK2 380 | VW-MK777 | OFI-89145 | CCMK777 |
| GOLF MK7 GTI/R HYBRID | VW-MK777V2 | OFI-89145 | CCMK777 |
| Polo Gti AW/ Tiguan 2.0L EA888 / Tiguan MK2 330 | VW-PG01 | OFI-89115 | CCMK777 |
| GOLF MK7 2.0 GTD/ Tiguan MK2 400 | VW-MK704 | OFI-89115 | |
| GOLF MK6 GTI 2.0 TSI (Close Pod) | VW-MK666 | OFI-89115 | - |
| GOLF MK6 1.4 TSI Single | VW-MK602 | OFI-76115 | - |
| GOLF MK5 GTI | VW-MK501 | OFI-76130 | - |
| GOLF MK5 1.4TSI / Twin Charge | VW-MK502 | OFI-76130 | - |
| GOLF MK5 R32 | VW-MK5R32 | OFI-89145 | - |
| GOLF MK7 1.4 TSI | VW-MK706L | OFI-70115AT | - |
| GOLF MK7 1.4 TSI Closed-Pod | VW-MK707 | OFI-70115AT | - |
| EA888 R Gen4 EVO (For RHD) | VW-MK802R | OFI-100115 | - |
| EA888 R Gen4 EVO (For RHD) | VW-MK803R | OFI-100115 | - |
| EA211 1.5 TSI EVO | VW-MK801 | OFI-76115 | - |
| 2021+ VW Golf Mk8 R 2.0 2021+ Skoda Superb 280 | VW-MK802 | OFI-100115 | CCMK777 |
| 2021+ VW Tiguan R 2.0 | VW-MK803 | OFI-100115 | CCMK777 |
| 2020+ VW Golf 8 GTI 2020+ Audi A3 2.0 TSI 8Y 2020+ Cupra Leon IV 245 TSI 2020+ Cupra Formentor 2020+ Skoda Octavia RS IV 2.0 TSI | VW-MK888 | OFI-89115 | CCMK777 |
| Vehicle | MST Intake | Filter | Heat Shield |
|---|---|---|---|
| Supra A90, A91 / BMW Z4 | TY-SUP01 | OFI-100145 | CCSUP01 |
| Supra A90, A91 / BMW Z4 | TY-SUP01L | OFI-100145 | CCSUP01 |
| 2017-2020 C-HR | TY-CHR01 | OFI-70115 | - |
| 2019-2021 Corolla 2.0L Hatchback | TY-AUS01 | OFI-89115 | - |
| 2020+ GR YARIS 1.6T | TY-GRY01 | OFI-8990 | - |
| 2020+ GR YARIS 1.6T | TY-GRY01L | OFI-8990 | - |
| Supra B48 2.0L / BMW Z4 | TY-SUP03L | OFI-89115 | CCSUP01 |
| 2022+ GR Corolla 1.6L | TY-GRC01 | OFI-89115OP | - |
| 2022+ Toyota GR86/ Subaru BRZ 2.4L | TY-GR8601 | OFI-89115OP | - |
| Vehicle | MST Intake | Filter | Heat Shield |
|---|---|---|---|
| 2012-2016 ELANTRA 1.8 / 1.6 | HYN-EL18 / EL16 | OFI-76115 | - |
| 2018 + ELANTRA 1.6 | HYN-EL16T | OFI-8990 | - |
| 2016-2020 TUCSON 1.6T | HYN-TUS01 | OFI-89115OP | - |
| Vehicle | MST Intake | Filter | Heat Shield |
|---|---|---|---|
| 2015 WRX 2.0L | WRX-15012 | OFI-76130 | - |
| 2015 SUB Forester XT 2.0 | SUB-XT01 | OFI-76130 | - |
| 2015 STI 2.5L | SUB-STI1501 | OFI-76130 | - |
| 2016 LEVORG 1.6 | SUB-LEV01 | OFI-76130 | - |
| Vehicle | MST Intake | Filter | Heat Shield |
|---|---|---|---|
| FOCUS 08-16 | FO-MK309 | 309F | - |
| FIESTA MK7 1.6 | FD-FI701 | OFI-7080AT | - |
| FIESTA MK7 1.0 | FD-FI702 | OFI-7080AT | - |
| FIESTA MK7 1.0 | FD-FI7021 | OFI-7080AT | - |
| FOCUS MK4 1.5T | FO-MK401 | OFI-8990 | CCFO401 |
| 2020+ FOCUS MK4 1.5T | FO-MK4020 | OFI-89145AT | - |
| 2019+ FOCUS MK4 ST | FO-MK4021 | OFI-89145AT | - |
| 2019+ FOCUS MK4 ST | FO-MK4021L | OFI-89145AT | - |
| Vehicle | MST Intake | Filter | Heat Shield |
|---|---|---|---|
| MAZDA 3 SKYACTIV | MZ-302 | OFI-7690 | - |
| 2020 Mazda 3 2.0 | MZ-305 | OFI-7690 | - |
| Vehicle | MST Intake | Filter | Heat Shield |
|---|---|---|---|
| 2018-2020 S60 / V60 / XC60 / S90 / XC90 / T4 / T5 / T6 / T8 | VOL-6005 | OFI-89115 | - |
| 2014-2018 S60/V60 Drive-E T4/T5/T6 | VOL-6006 | OFI-89115 | - |
| 2018+ S60 / V60 POLESTAR | VOL-6007 | OFI-89115 | - |
| B4R B5R 2021+ S60 / V60 / XC60 / S90 / XC90 B4R B5R | VOL-6008 | OFI-89115 | - |
| 2015-2020 V40 / T3 / T4 / T5 / D4 | VOL-V4001 | OFI-8990 | - |
| Vehicle | MST Intake | Filter | Heat Shield |
|---|---|---|---|
| 2018+ SWIFT SPORT 1.4 ZC33S | SUZ-SW03 | OFI-70115AT | - |
| SWIFT 1.0 | SUZ-SW05 | OFI-7080AT | - |
| 2019+ VITARA/SX4 1.4T | SUZ-VT01 | OFI-70115AT | - |
| 2021 SWIFT SPORT 1.4 HYBRID | SUZ-SW06 | OFI-70115AT | - |
| Vehicle | MST Intake | Filter | Heat Shield |
|---|---|---|---|
| 2015-2018 W205, W212, W213, M274, C300, C180, C200, E200, E300, GLC250, GLC300 | MB-C3001 | OFI-70145AT | - |
| 2019-2021 W205, M264, C300, C180, C200, E200, E300 | MB-C3002 | OFI-89145AT | - |
| C43, E43, E400, M276, C400, C450, C43AMG, GLC43 | MB-C4301L | OFI-70145ATx2 | - |
| C43, E43, E400, M276, C400, C450, C43AMG, GLC43 | MB-C4301L | OFI-70145ATx2 | - |
| 2013-2019 A180, A200, A250, CLA250 | MB-A2502 | OFI-89145 | MB-A2502 |
| 2019+ A35, A250, W177, CLA35, GLB35(X247) | MB-A2505 | OFI-89145AT | - |
| 2019+ A35, A250, W177, CLA35, GLB35(X247) | MB-A2505 | OFI-89145AT | - |
| 2019+ A180 / A200 (W177) 1.3T | MB-A2506 | OFI-8990 | - |
| AMG A45 / CLA45 / GLA45 | MB-A4501 | OFI-100145 | - |
| Vehicle | MST Intake | Filter | Heat Shield |
|---|---|---|---|
| 2018+ X3 X4 3.0T B58 M40i | BW-X301 | OFI-89115 | - |
| G80/G82 S58 | BW-S5801 | - | - |
| 2018+ X3 X4 2.0T B48 | BW-X302 | OFI-8990 | - |
| 140i/240i/340i/440i | BW-B5801 | OFI-89145 | CCB4801 |
| 2019+ 440i, M340i, M240i | BW-B5802 | OFI-100115 | CCB5802 |
| 2019+ 440i, M340i, M240i | DBW-B5802L | OFI-100115 | - |
| 2019+ 440i, M340i, M240i | BW-B5805L | OFI-100145 | - |
| 120i/230i/320i/330i/125i | BW-B4801 | OFI-89115 | CCB4801 |
| 2019+ 320i/330i | BW-B4802 | OFI-89115 | CCB5802 |
| M2 Competition M3/M4 | BW-M3401 | OFI-89115OPx2 | - |
| 135i/335i/435i/M235i | BW-MK3351 | OFI-89145 | - |
| 320i/328i | BW-N2001 | OFI-8990 | - |
| 2014+ 328i | BW-N2003 | OFI-8990 | CCB4801 |
| 2012-2016 520i/528i | BW-N2051 | OFI-8990 | - |
| MINI F56 | BW-MIF5601 | OFI-76130 | - |
| 2018+ MINI F56 | BW-MIF5602 | OFI-76130 | - |
| 116i/118i/120i/316i/318i/320i | BW-N1301L | OFI-8990 | - |
| 2011-2016 F10 F11 535i N55 | BW-53501 | OFI-8990 | - |
| 2017+ G30/G31 530i B48 | BW-G5301 | OFI-89115 | - |
| 2017+ G30/G31 540i B58 | BW-G5401 | OFI-89115 | - |
| 2021+ G80/G82 M3 M4 Competition | BW-S5801 | OFI-89115OPx2 | - |
| 2018+ F90 M5, M5 Competition, G30/G31 M550, F91/F92/F93 M8, M8 Competition, G14/G15/G16 M850 | BW-F90M5 | OFI-100115x2 | - |
| Vehicle | MST Intake | Filter | Heat Shield |
|---|---|---|---|
| 2017 CIVIC 1.5T | HD-CI1501 | OFI-70115 | - |
| 2017 CR-V 1.5 TCP | HD-CR1501 | OFI-70115 | - |
| 2017+ Honda Civic Si | HD-SI1501 | OFI-70115 | - |
| 2012-2015 Honda Civic 1.8L i-VTEC | HD-CI901 | OFI-10075 | - |
| Vehicle | MST Intake | Filter | Heat Shield |
|---|---|---|---|
| 2017+ Stinger 2.0 T-GDI | KIA-STG01 | OFI-100115 | - |
