1000cc FIC Toyota Supra 5th Gen J29/DB Fuel Injector Clinic Injector Set (High-Z)
- $741.00 USD
- $741.00 USD
- Unit price
- per
Hurry up! only 0 left
Subtotal:
$741.00

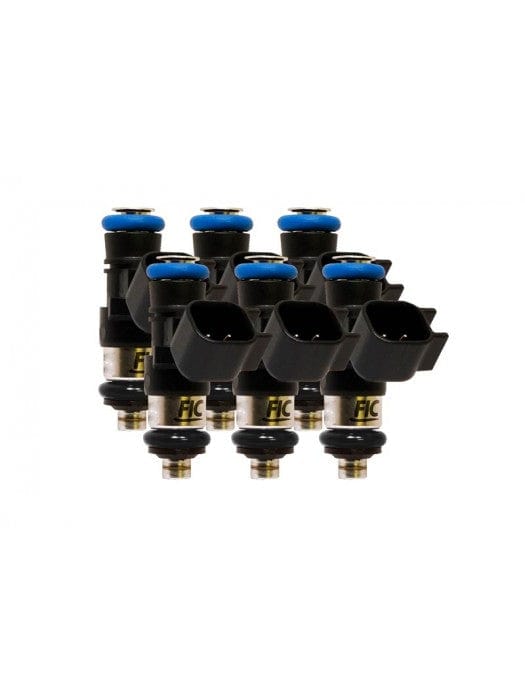

Toyota Supra 5th Gen J29/DB Fuel Injector Clinic Injector Set to fit OEM Fuel Rail: 6x1000cc High Impedance Ball & Seat Injectors. These injectors utilize the latest technology and provide great linearity and short pulse width repeatability. Includes pigtails PGT USC6.
This injector set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector is individually serial numbered and the results are provided on the Data Match Sheet providing the most complete flow matching and latency value information available in the industry today.
Fuel Injector Clinic injectors are flow tested and rated at 43.5psi (3Bar) at 90deg F fuel temperature using CF-16B calibration fluid.
Superior short pulse width control and state of the art matching make these injectors easy to tune and provide great drivability.
Please note that Fuel Injector Clinic injectors are specifically designed to work with aftermarket port injection plates and fuel rails for the listed vehicle. They come with all the necessary o-rings for installation. However, these injectors are not compatible with the stock direct injector fitment and should not be used as replacements for them.
Every injector is covered against failure caused by defects in original manufacture by our lifetime warranty.
| Fitment Specifications | |
| Bottom O-ring Outer Diameter | 14mm |
| Cylinder Quantity | 6 |
| Height | 38mm |
| Impedance | High-Z |
| Top O-ring | 14mm |
| Horsepower supported | |
| Engine Aspiration | turbocharged |
| Fuel Pressure | 43.5 |
| WHP on E85 at 43psi 90%DC NA | 672.53 |
| WHP on E85 at 43psi 90%DC Supercharged | 611.39 |
| WHP on E85 at 43psi 90%DC Turbo | 560.44 |
| WHP on E85 at 58psi 90%DC NA | 776.77 |
| WHP on E85 at 58psi 90%DC Supercharged | 706.15 |
| WHP on E85 at 58psi 90%DC Turbo | 647.31 |
| WHP on Gas at 43psi 90%DC NA | 874.29 |
| WHP on Gas at 43psi 90%DC Supercharged | 794.81 |
| WHP on Gas at 43psi 90%DC Turbo | 728.57 |
| WHP on Gas at 58psi 90%DC NA | 1009.80 |
| WHP on Gas at 58psi 90%DC Supercharged | 918.00 |
| WHP on Gas at 58psi 90%DC Turbo | 841.50 |
