2020+ M340i/A90/91 Supra B58 Gen 2 5-Piece Ultimate-Spec Cooling Package

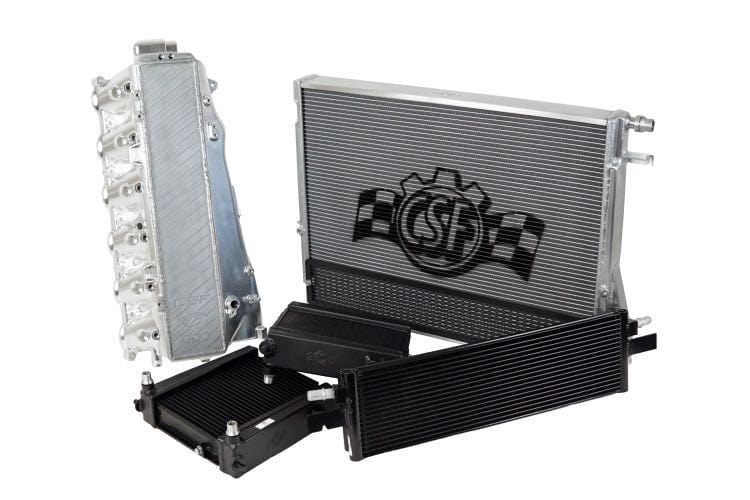

CSF 5-Piece High-Performance Cooling Package

This ultimate 5-piece cooling solution from CSF includes everything needed to dramatically enhance your vehicle's thermal efficiency and performance. The package includes:

• High-Performance Front Mount Heat Exchanger (CSF #8154)

• Two Auxiliary Radiators (CSF #8179)

• Transmission Oil Cooler (CSF #8183)

• Charge-Air Cooler Manifold (CSF #8200)

High-Performance Front Mount Heat Exchanger – CSF #8154

• Drastically reduces Intake Air Temperatures (IAT) for peak performance and faster heat soak recovery

• Enhances airflow across the cooling system, reducing engine water and oil temperatures

• Features a 2-row, 42mm ultra high-performance core

• Equipped with 6.5mm multi-louvered fins and CSF’s exclusive B-Tube technology

• CNC-machined brackets and OEM-style “quick connect” fittings

• Fully TIG-welded all-aluminum construction

• Direct “drop-in” fit with OEM compatibility

• OEM Reference: Toyota 16400-WAA03 / BMW 17118666811

Auxiliary Radiators (Left & Right) – CSF #8179

• Dual 2-row, 42mm high-performance cores with CSF B-Tube tech

• Thermal black protective coating for added durability

• Includes industry-exclusive detachable aluminum rock guards

• CNC-machined brackets with OEM-style “quick connect” fittings

• 100% aluminum TIG-welded construction

• Direct-fit installation with no modifications required

• Rigorously tested by top tuners, time attack teams, and turbo kit manufacturers

• OEM Reference: Toyota 16400-WAA04 / BMW 17118672237

• 2-year limited warranty

Transmission Oil Cooler – CSF #8183

• Features CSF’s A/C condenser tech with a 1-row, 16mm high-pressure microtube design for superior oil flow and heat dissipation

• 129mm height vs. OEM 125mm, allowing better cooling without obstructing airflow

• Enhanced with 5.4mm multi-louvered fins (vs. OEM 7mm)

• OEM rubber seals and ducting compatible for optimal airflow

• Plug-and-play “drop-in” fit; no modifications required

• Compatible with both CSF and OEM heat exchangers

• Ideal for high-performance, tuned, or track-driven vehicles

• 2-year limited warranty

Charge-Air Cooler Manifold – CSF #8200

• Built around a motorsports-grade, bar-and-plate air-to-water intercooler core

• Double the cooling capacity of OEM (12-row vs. 6-row)

• Lower pressure drop and higher flow for increased performance

• Designed in SolidWorks with CFD for optimized airflow

• Integrated air divider ensures even distribution across the core

• Easy spin-off oil filter access without removing the manifold

• Counterbalanced design for smoother airflow

• Sensor pad with three 1/8" NPT ports for additional monitoring

• Included fuel rail for top-feed port injection (optional use)

• Individual port injection bungs and 1/8" NPT ports per cylinder for nitrous or meth injection

• Breather ports for easy bleeding of the water system

• Fully plug-and-play with OEM engine cover compatibility

• Installation hardware and detailed picture guide (28-piece kit) included
