APR Part Number: MS100140

Fits Audi A3 15-18, A3 Quattro 15-18, S3 15-17, TT Quattro 16-17, TTS Quattro 16-17; Volkswagen Golf 15-18, Golf Alltrack 17-19, Golf R 15-24, Golf SportWagen 15-19, GTI 15-24

Overview

Features:

• Reduces transmission movement
• By removing the factory rubber bushing, the APR system reduces slop in the driveline to improve shifts, and transmission of power to the ground.
• Expect a sportier feel during acceleration, deceleration and gear changes without an excessive increase in NVH when paired with the factory sub-frame mount.

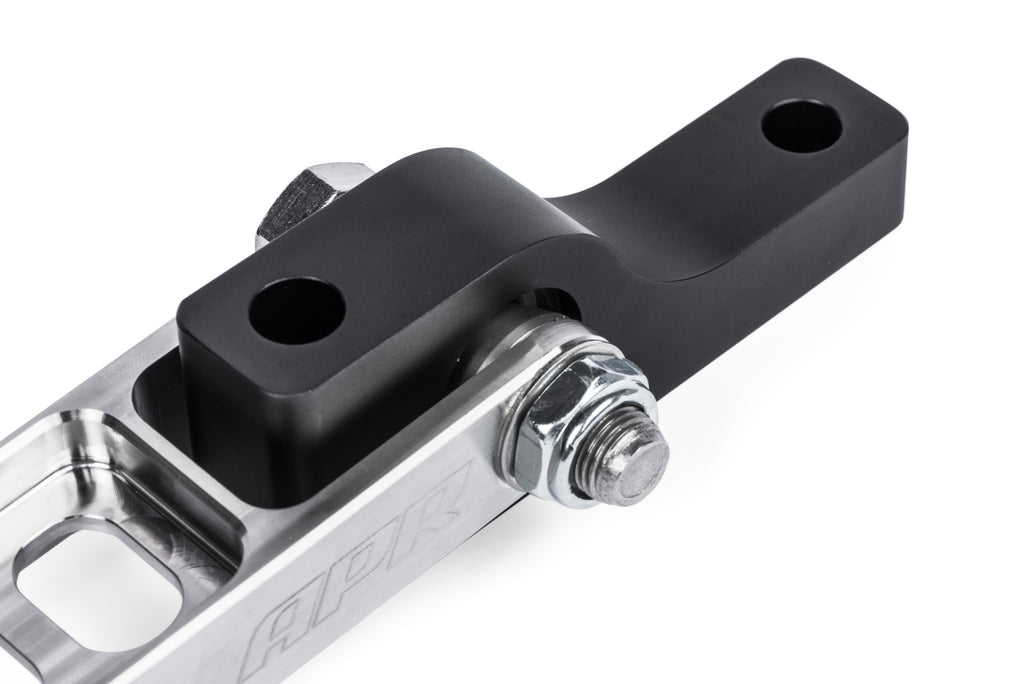

• Spherical bearing
• Spherical bearings offer far less unwanted movement over rubber and polyurethane inserts.
• As such, the APR mount uses a spherical bearing, made possible by upgrading the rear mounting hardware.
• The bearing is fully-serviceable, features a heat-treated race and precision-ground ball, with a self-sealing and self-lubricating PTFE lining.

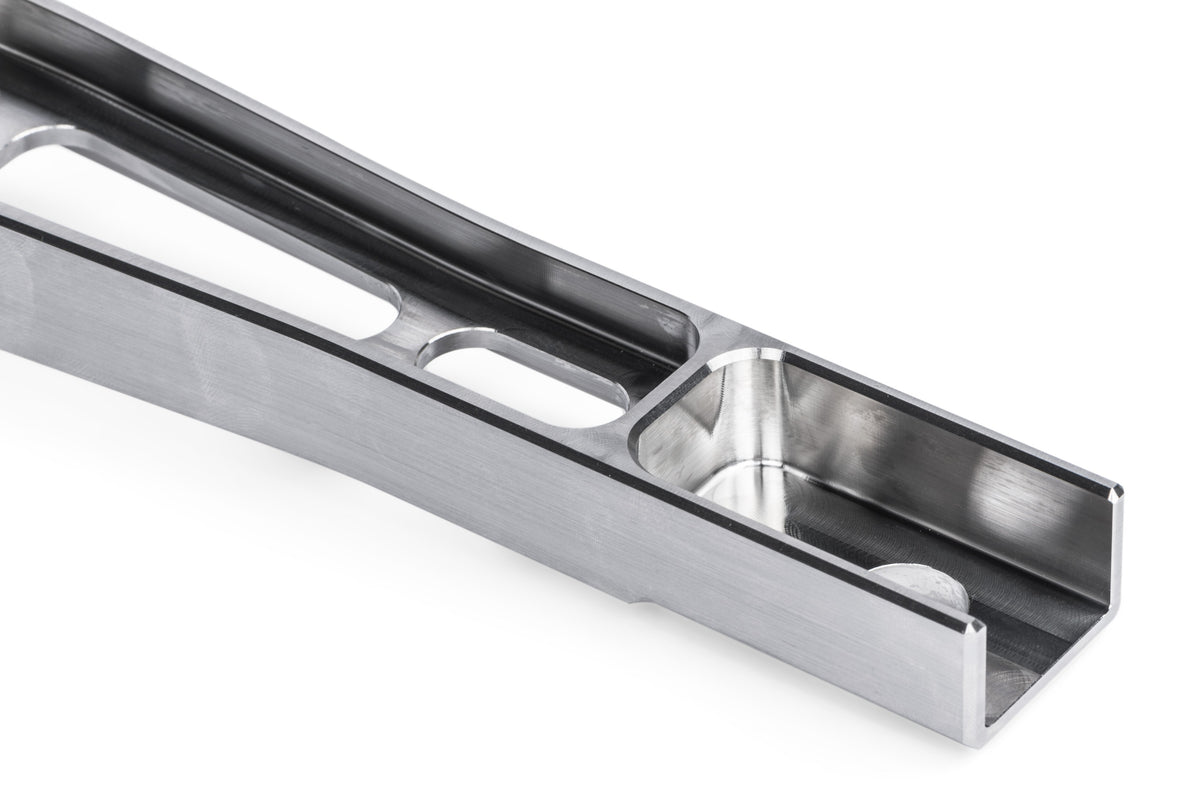

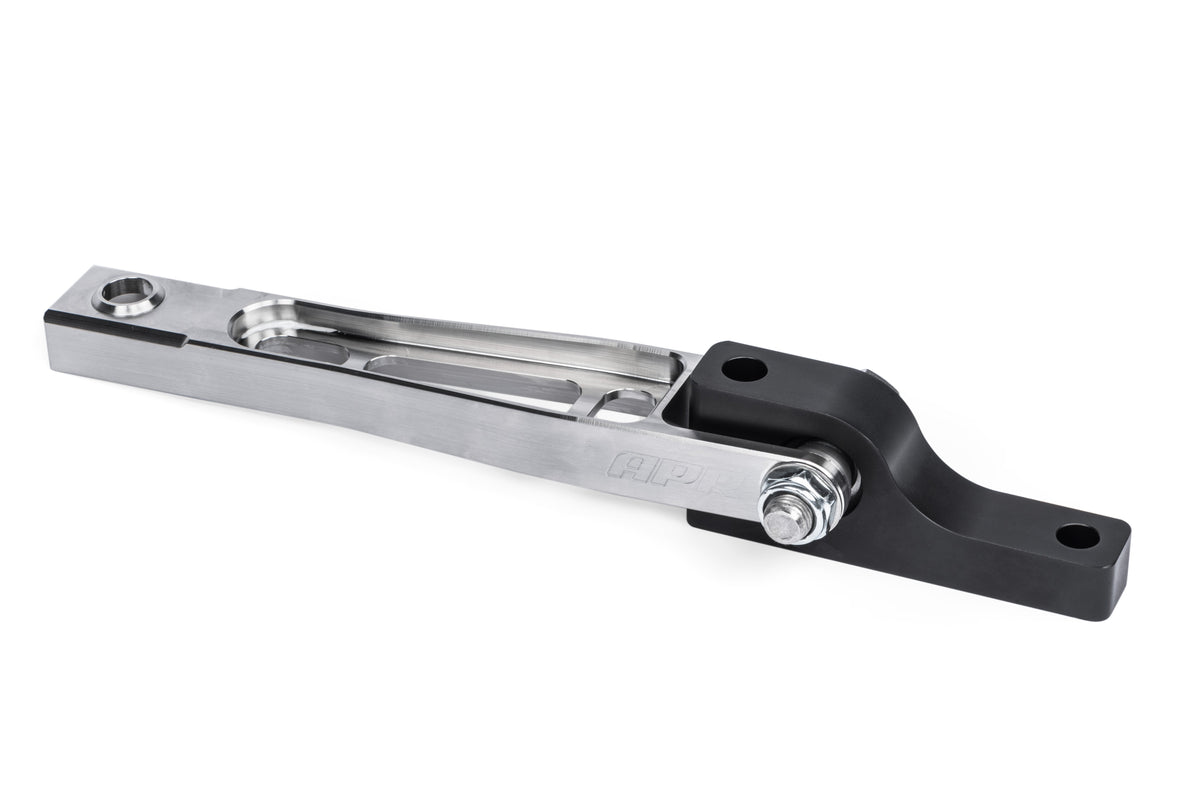

• Billet-aluminum and billet-stainless-steel construction
• The front and rear pieces replace the factory cast aluminum and stamped steel pieces with precisely machined, billet-aluminum and billet-stainless-steel pieces that are strong.
• The aluminum piece is anodized black and the stainless piece is electropolished to provide corrosion resistance and the APR logo is laser etched on each side.

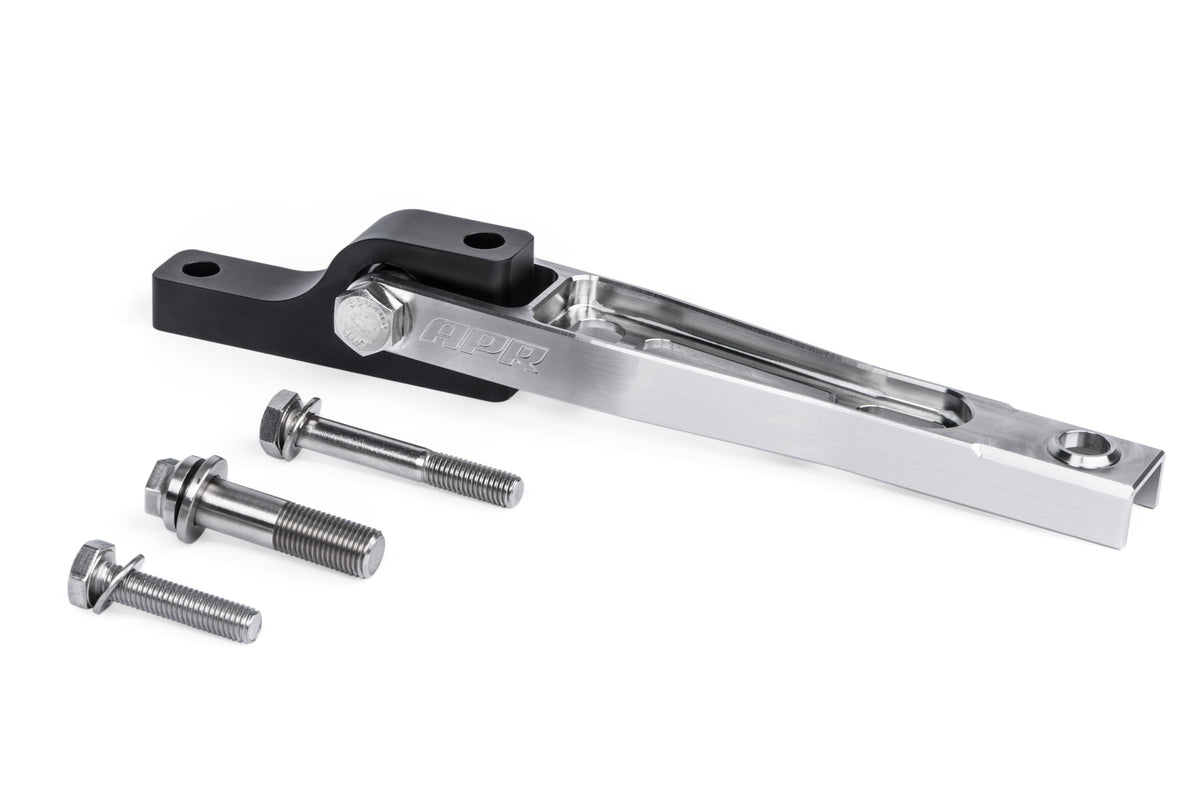

• Replacement bolts
• The factory bolts are one-time-use, and must be replaced when installing a new mount.
• The APR system includes non-one-time-use bolts for their strength, quality and longevity over the factory bolts.
• Easy to install
• The system is easy to install, doesn't require dropping the sub-frame and is compatible with the factory and factory-like modified sub-frame mounts.
• Full install directions are included with each system.

Specifications

Tech Resources

Vehicle Applications

• 2015–2015 Audi A3 — 2.0L; United States
• 2016–2018 Audi A3 (8V) — 2.0L; United States
• 2016–2017 Audi TTS (8S, FV) — 2.0L; United States
• 2015–2015 Audi A3 — 1.8L; United States
• 2016–2016 Audi A3 (8V) — 1.8L; United States
• 2017–2018 Audi A3 (8V) — 2.0L; United States
• 2015–2015 Audi S3 — 2.0L; United States
• 2016–2017 Audi S3 (8V) — 2.0L; United States
• 2016–2017 Audi TT (8S, FV) — 2.0L; United States
• 2015–2015 Volkswagen Golf SportWagen — 1.8L; United States
• 2016–2019 Volkswagen Golf SportWagen (5G, MQB) — 1.8L; United States
• 2015–2015 Volkswagen Golf R — 2.0L; United States
• 2016–2017 Volkswagen Golf R (5G, MQB) — 2.0L; United States
• 2018–2019 Volkswagen Golf R (5G, MQB) — 2.0L; Manual Transmission; United States
• 2022–2024 Volkswagen Golf R (CD, MQB-EVO, Mk8) — 2.0L; Manual Transmission; United States
• 2017–2019 Volkswagen Golf Alltrack (5G, MQB) — 1.8L; United States
• 2015–2015 Volkswagen Golf GTI — 2.0L; United States
• 2016–2017 Volkswagen Golf GTI (5G, MQB) — 2.0L; United States
• 2018–2021 Volkswagen Golf GTI (5G, MQB) — 2.0L; Manual Transmission; United States
• 2022–2024 Volkswagen Golf GTI (CD, MQB-EVO, Mk8) — 2.0L; Manual Transmission; United States
• 2015–2015 Volkswagen Golf — 1.8L; United States
• 2016–2018 Volkswagen Golf (5G, MQB) — 1.8L; United States

Fitment Requirements

Instructions - ms100140_mqb_pendulum_mount.pdf
