APR Charge Pipes - Throttle Body Pipe - MQB 1.8T/2.0T

APR Charge Pipes - Throttle Body Pipe - MQB 1.8T/2.0T

Vendor: APR
SKU: MS100194
Product type: Charge Air Systems
$173.95 $156.55
Product subtotal: $156.55
APR Charge Pipes - Throttle Body Pipe - MQB 1.8T/2.0T
$156.55
$173.95 $156.55
Version: Throttle Body Pipe
Kies-Motorsports APR APR Charge Pipes - Throttle Body Pipe - MQB 1.8T/2.0T Throttle Body Pipe
APR Charge Pipes - Throttle Body Pipe - MQB 1.8T/2.0T
$173.95 $156.55

APR Part Number: MS100194

Fits Audi A3 15-20, A3 Quattro 15-20, Q3 19-24, S3 15-20, TT Quattro 16-23, TTS Quattro 16-23 VW Arteon 19-21, Golf 15-18, Golf Alltrack 17-19, Golf R 15-19, Golf SportWagen 15-19, GTI 15-21, Jetta 19-24, Tiguan 18-24

Overview

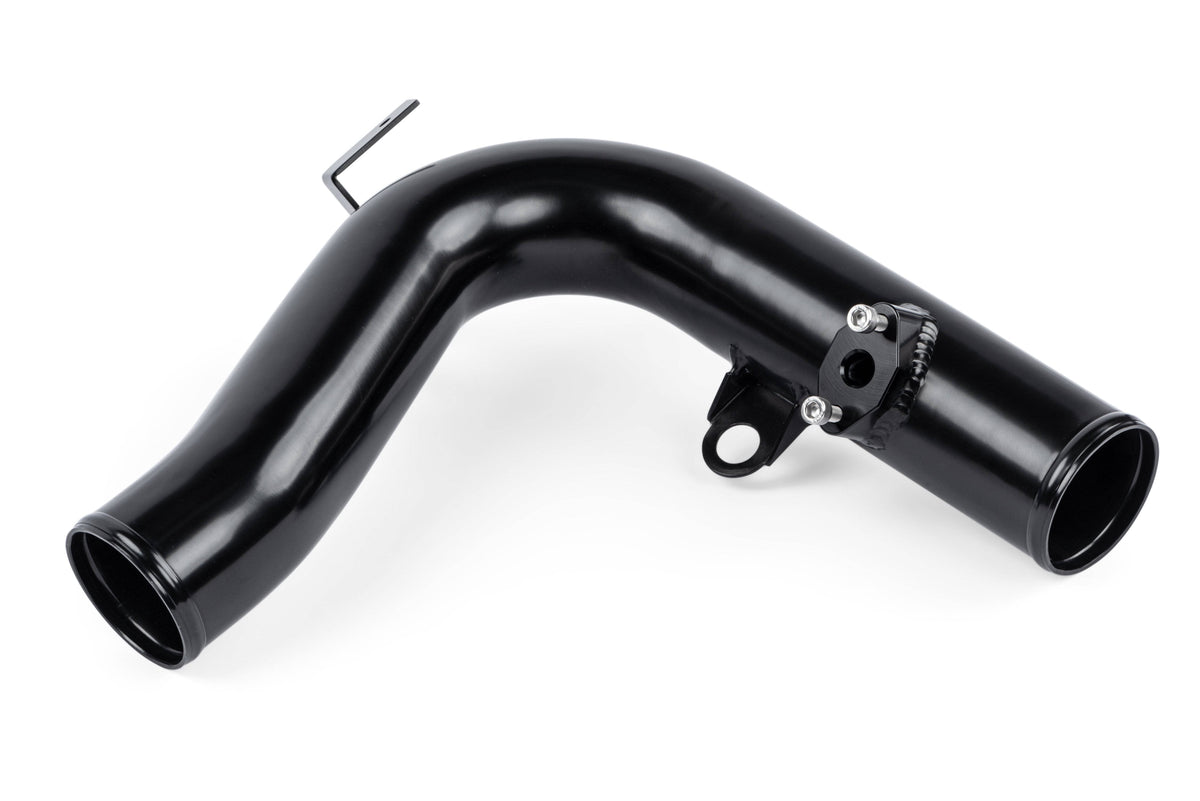

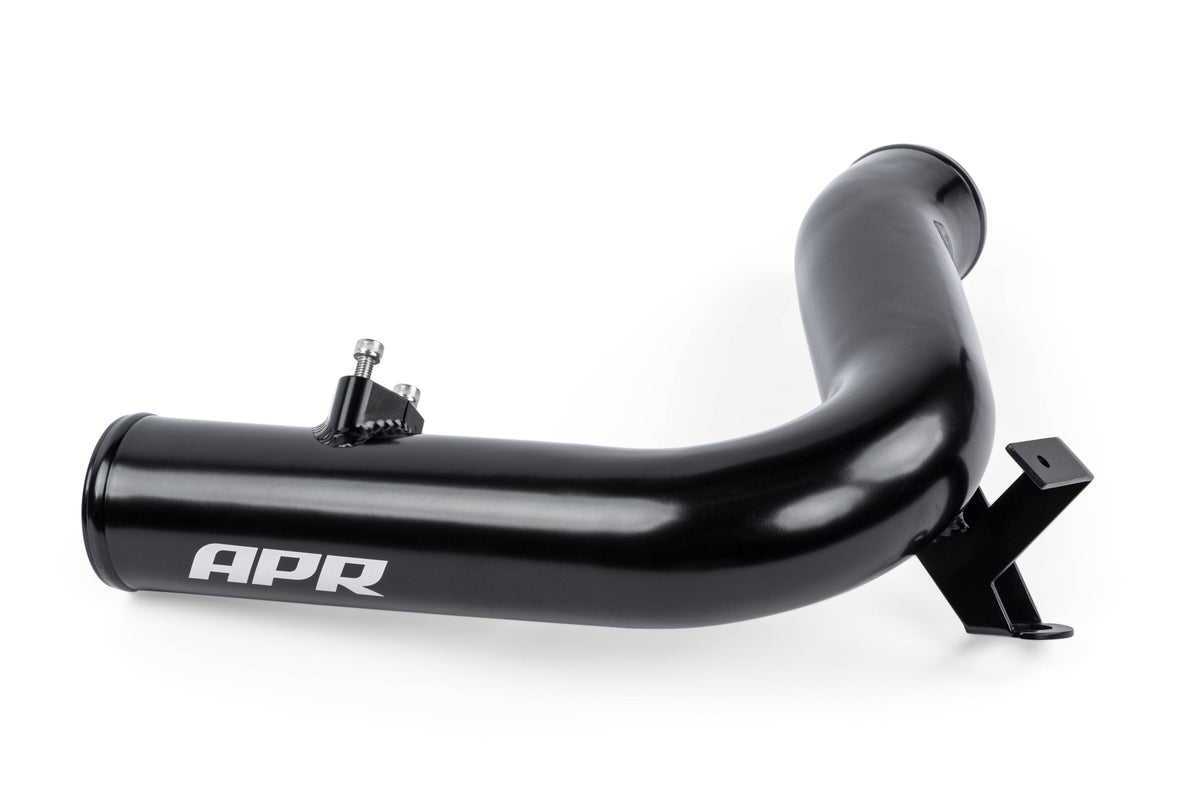

The OEM charge path is built around a small, restrictive pipe and plastic components that can melt, deform, or develop boost leaks under extreme conditions. APR’s Charge Pipe System was built to perform, replacing the factory components with larger 60mm aluminum piping and a reinforced, multi-ply turbocharger outlet hose. This creates a stronger and less restrictive airflow path from the OEM turbocharger to the throttle body. Thin-wall aluminum construction maximizes the internal diameter without compromising strength, while bead-rolled pipe ends prevent hose slippage under boost. TIG-welded brackets and a billet-aluminum MAP sensor bung ensure precise, factory-style fitment. Finished in black, the system installs directly with the OEM turbocharger and APR or OEM intercooler and throttle body hoses. APR recommends upgrading both the intercooler and throttle body hoses/pipes for maximum performance and reliability.

Features:

  • Larger 60mm Piping: Replaces the restrictive factory charge path to support improved airflow.
  • Aluminum Construction: Heat-resistant aluminum replaces plastic components prone to melting, deformation, and boost leaks.

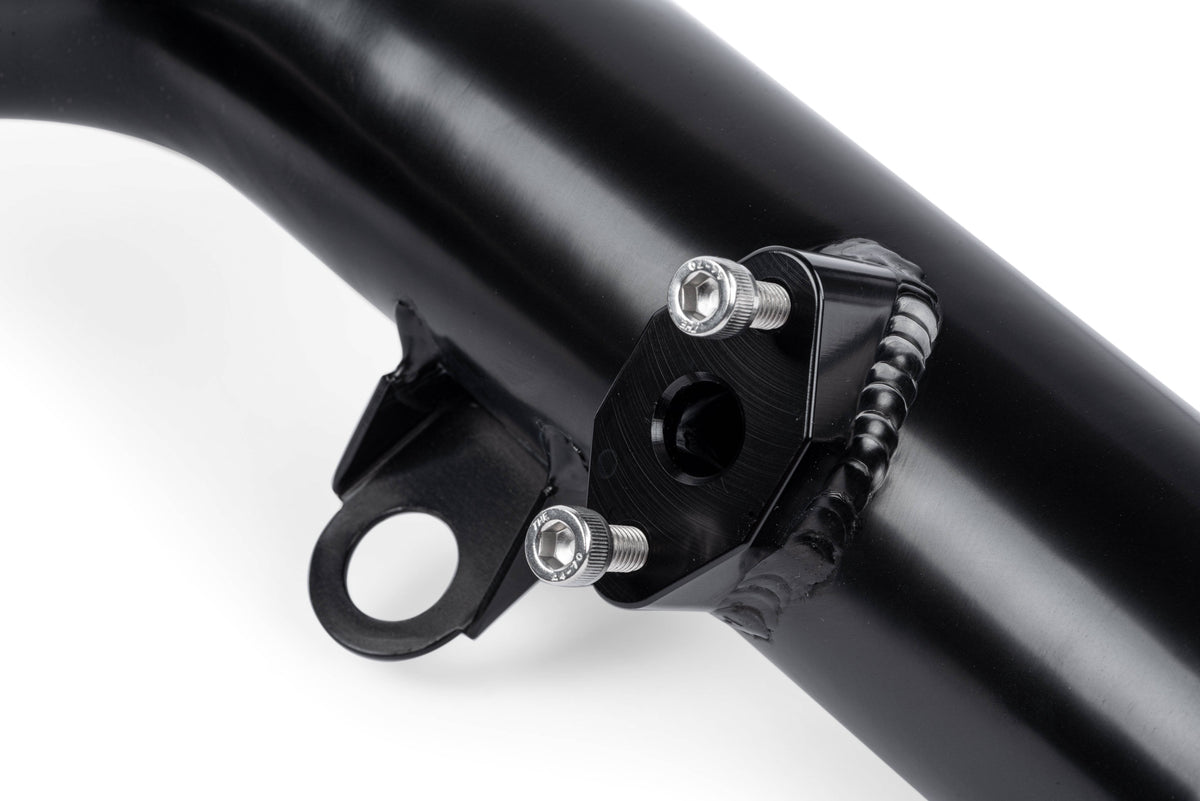

  • Billet MAP Sensor Fitting: Precision-machined aluminum construction ensures proper sensor fitment and accurate pressure readings.

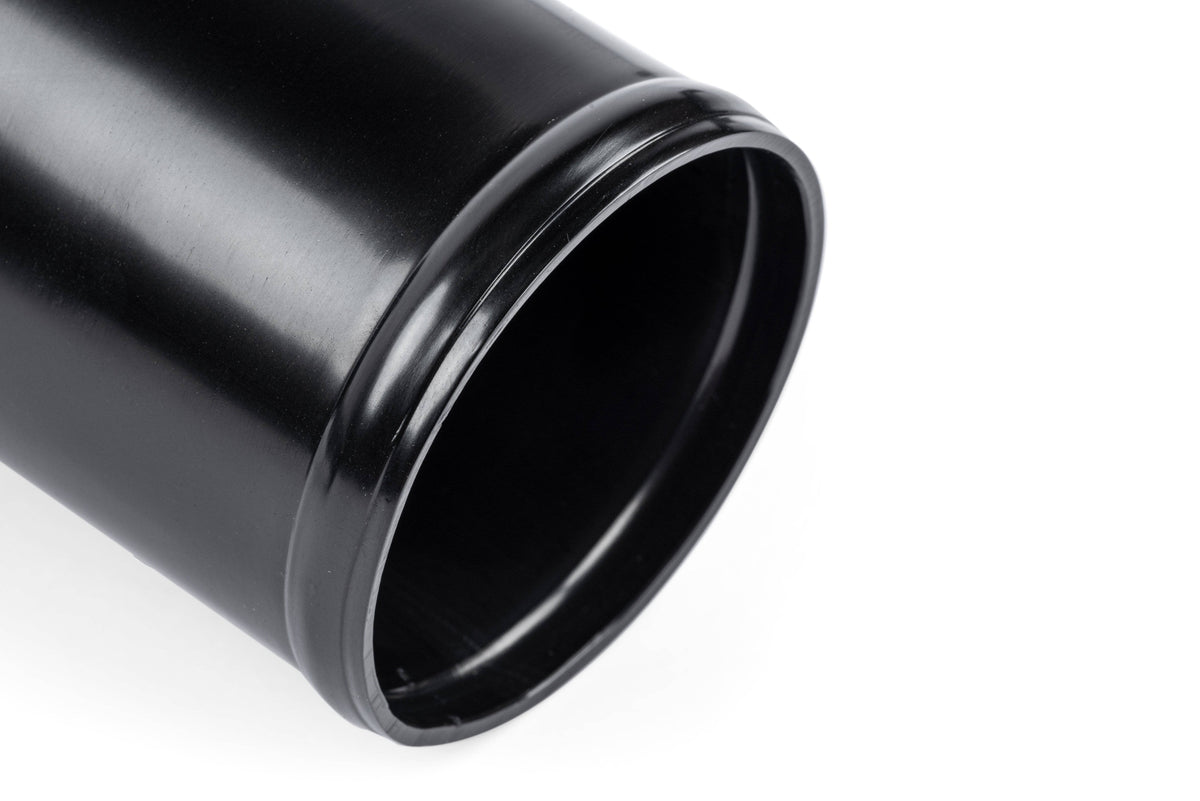

  • No-Slip Bead-Rolled Ends: Raised pipe lips secure the hoses under boost to help prevent blow-offs and leaks.

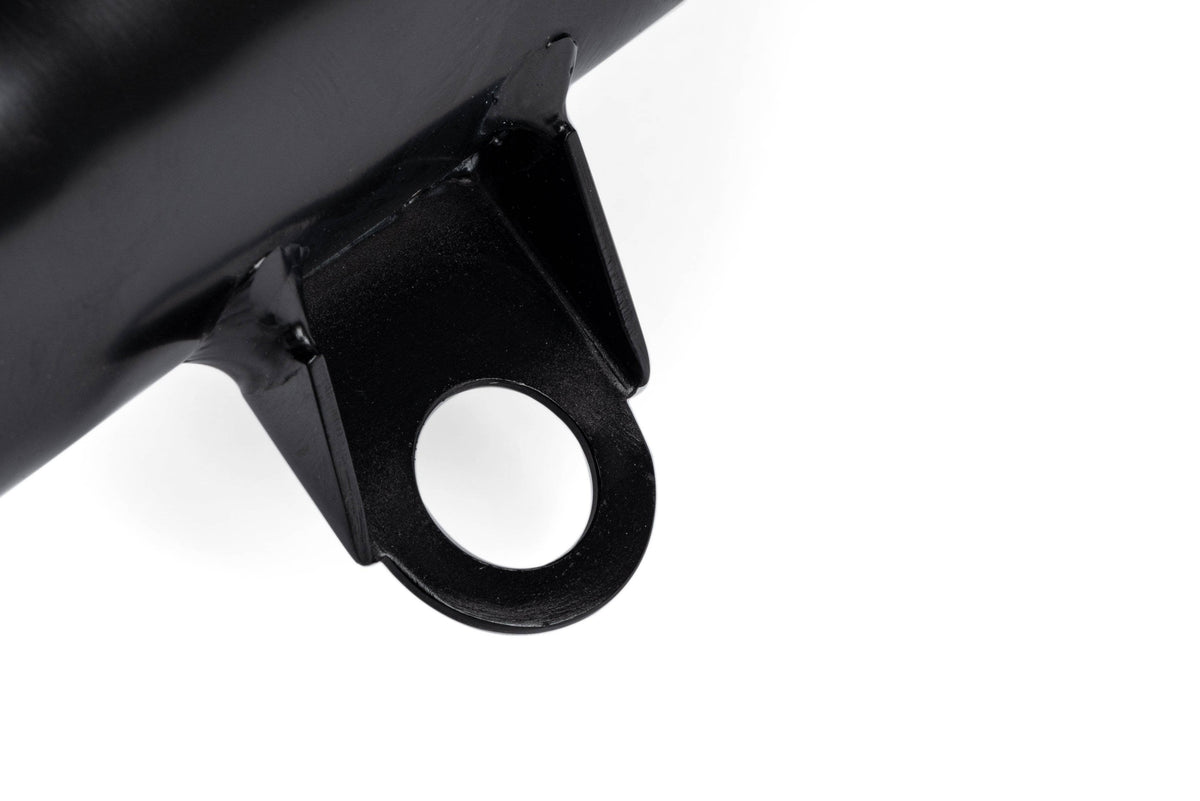

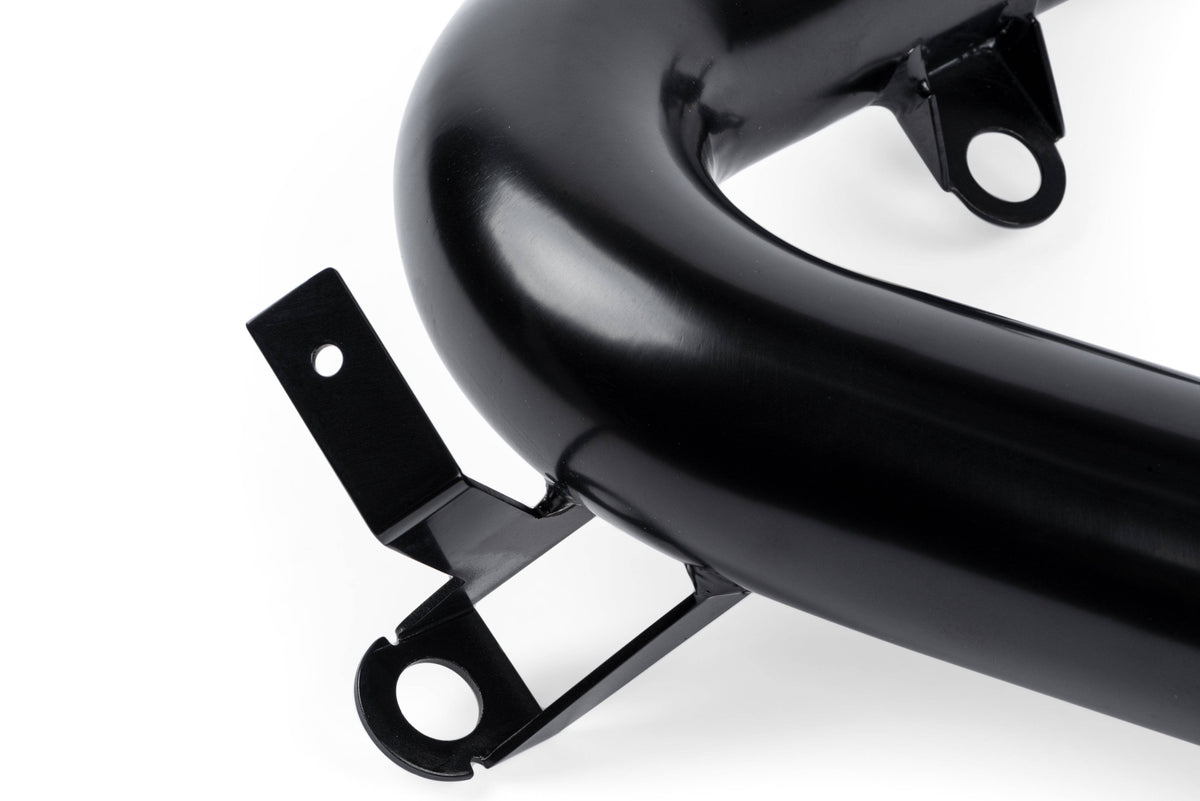

  • TIG-Welded Mounting Brackets: Precision-welded brackets provide strong, secure, and factory-style fitment.

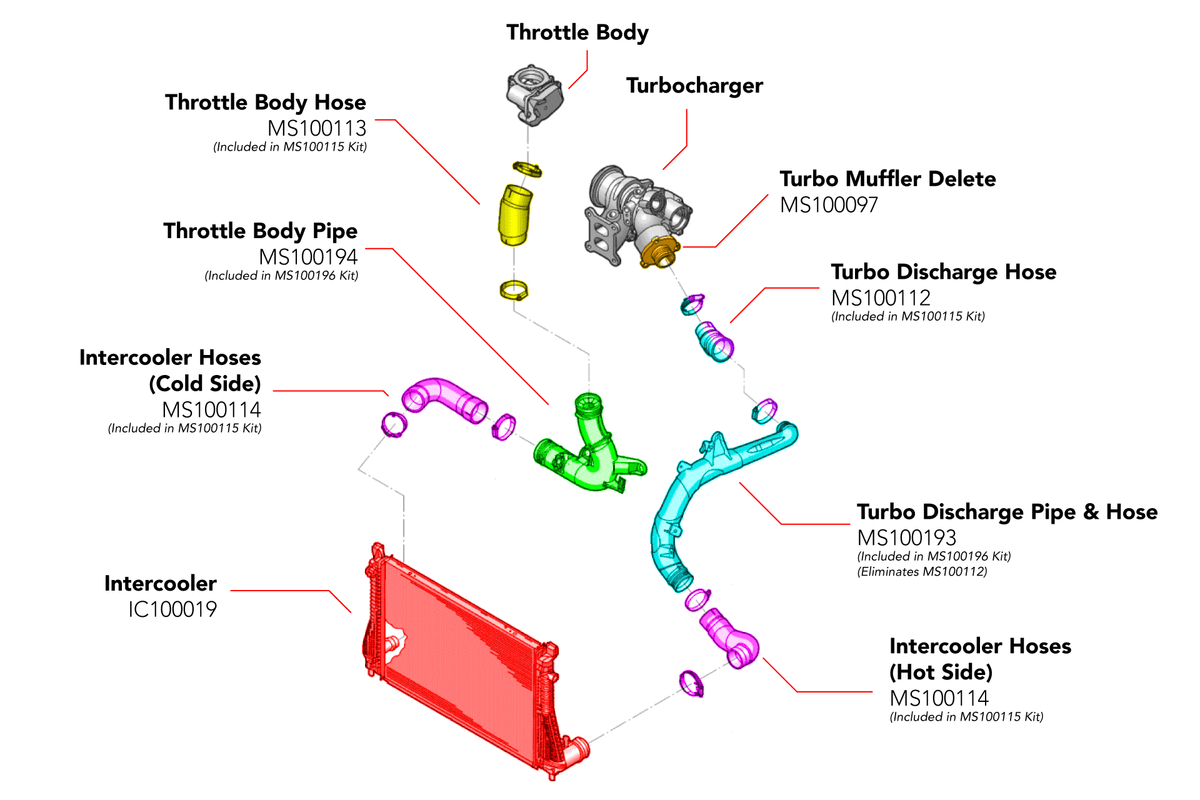

  • Direct-Fit Design: Installs with the OEM turbocharger and APR or OEM intercooler and throttle body hoses.
  • Black Finish: A durable black coating provides a clean, understated appearance in the engine bay.

Specifications

Brand APR
Category Forced Induction
Clamps T-Bolt
Color Black
Emission Code 7
Material Aluminum
Product Type Charge Air Systems
Version Throttle Body Pipe
UPC 810009932505
Part Number MS100194

Emissions

7

This part is legal under the provisions of EPA’s Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.

Tech Resources

Vehicle Applications

  • 2019–2024 Audi Q3 (F3) — 2.0L; United States
  • 2015–2015 Audi A3 — 2.0L; United States
  • 2016–2020 Audi A3 (8V) — 2.0L; United States
  • 2016–2023 Audi TTS (8S, FV) — 2.0L; United States
  • 2015–2015 Audi A3 — 1.8L; United States
  • 2016–2016 Audi A3 (8V) — 1.8L; United States
  • 2017–2020 Audi A3 (8V) — 2.0L; United States
  • 2015–2015 Audi S3 — 2.0L; United States
  • 2016–2020 Audi S3 (8V) — 2.0L; United States
  • 2016–2023 Audi TT (8S, FV) — 2.0L; United States
  • 2015–2015 Volkswagen Golf SportWagen — 1.8L; United States
  • 2016–2019 Volkswagen Golf SportWagen (5G, MQB) — 1.8L; United States
  • 2015–2015 Volkswagen Golf R — 2.0L; United States
  • 2016–2019 Volkswagen Golf R (5G, MQB) — 2.0L; United States
  • 2017–2019 Volkswagen Golf Alltrack (5G, MQB) — 1.8L; United States
  • 2019–2021 Volkswagen Arteon (3H, MQB) — 2.0L; United States
  • 2018–2024 Volkswagen Tiguan (BW, MQB) — 2.0L; United States
  • 2015–2015 Volkswagen Golf GTI — 2.0L; United States
  • 2016–2021 Volkswagen Golf GTI (5G, MQB) — 2.0L; United States
  • 2019–2019 Volkswagen Jetta — 2.0L; United States
  • 2021–2024 Volkswagen Jetta — 2.0L; United States
  • 2020–2020 Volkswagen Jetta (A7, BU, MQB) — 2.0L; United States
  • 2015–2015 Volkswagen Golf — 1.8L; United States
  • 2016–2018 Volkswagen Golf (5G, MQB) — 1.8L; United States

Fitment Requirements

Instructions - tl100135_mqb_charge_pipes_web.pdf
