Select your APR part number using the options above.

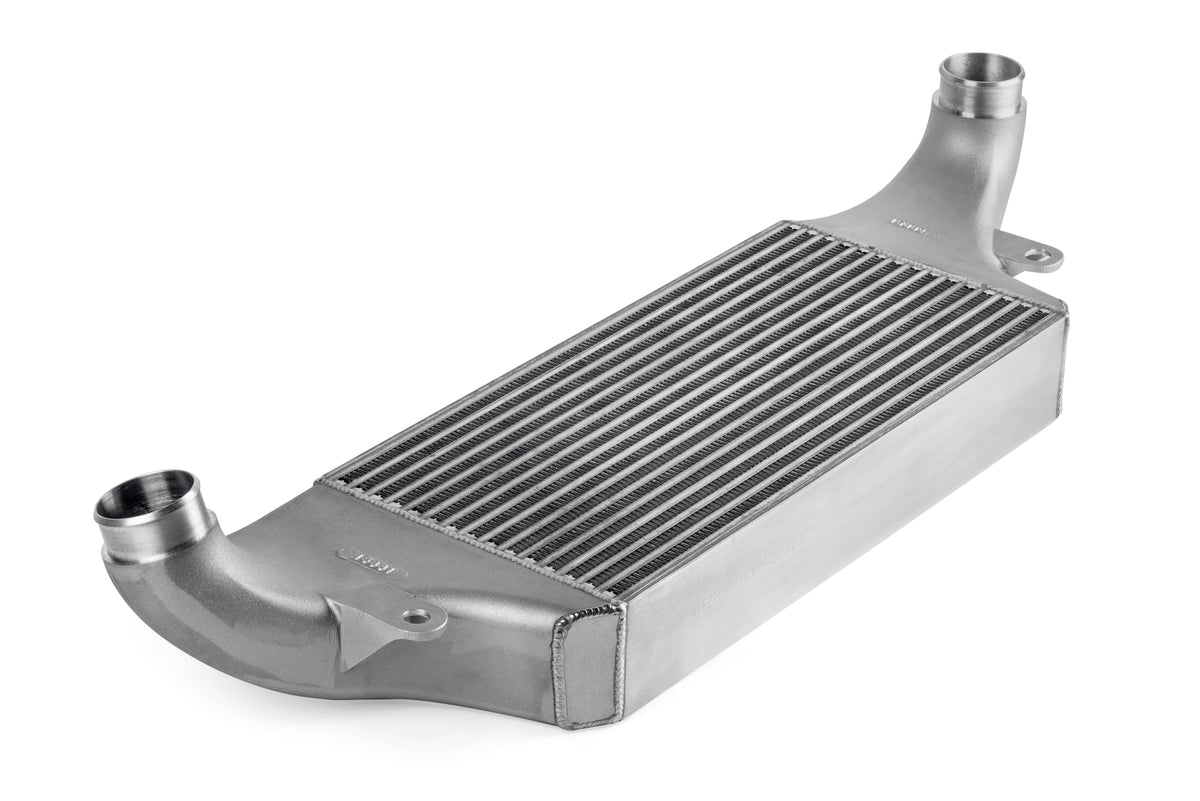

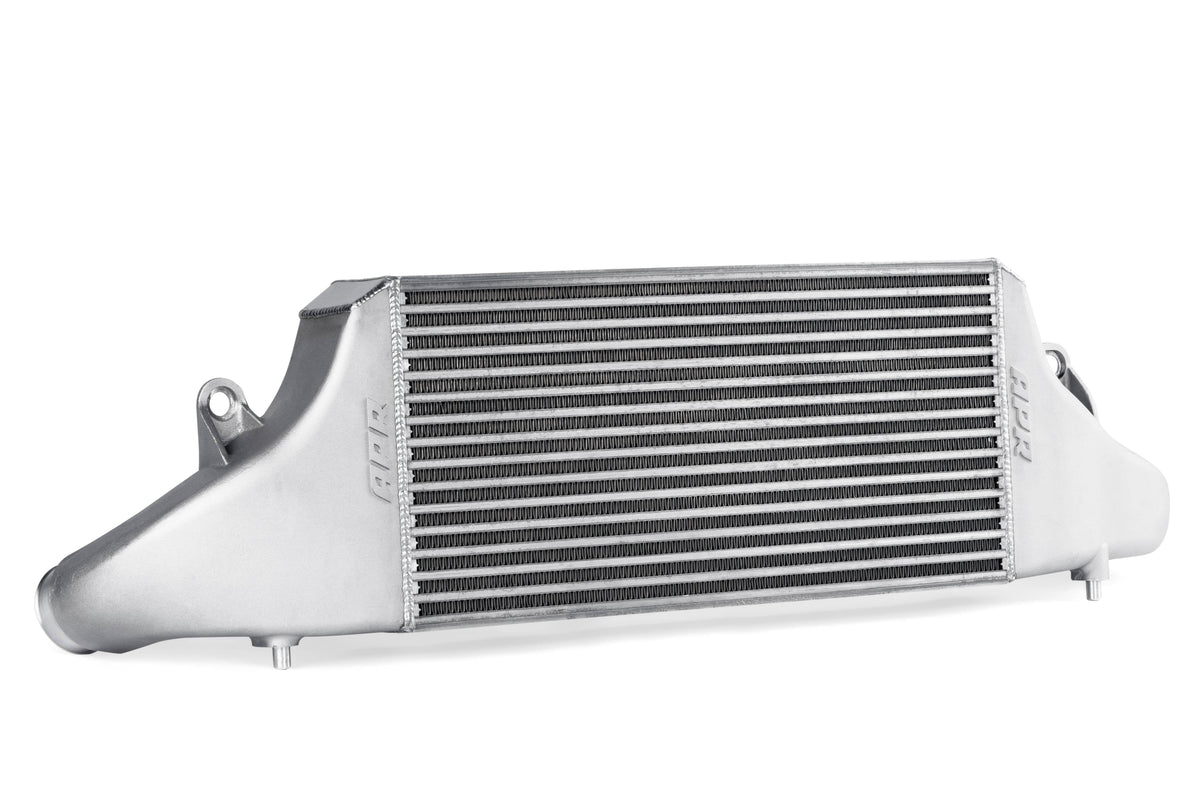

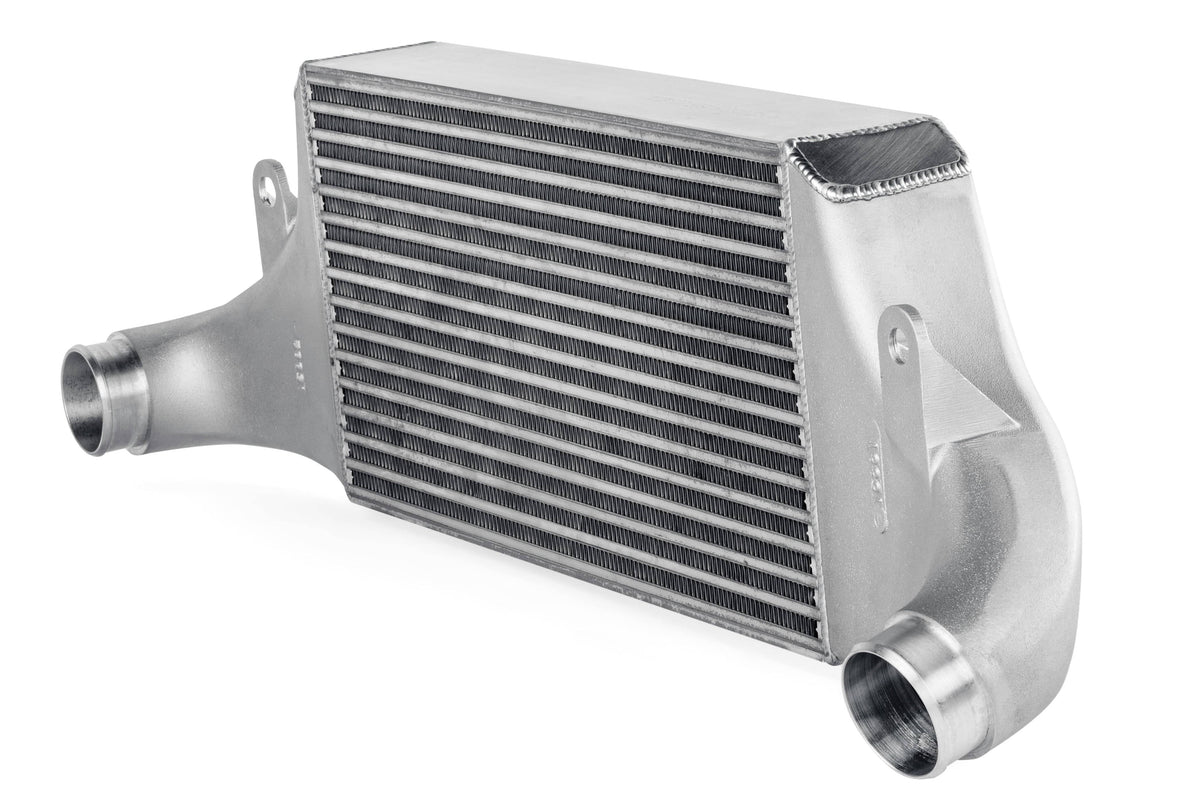

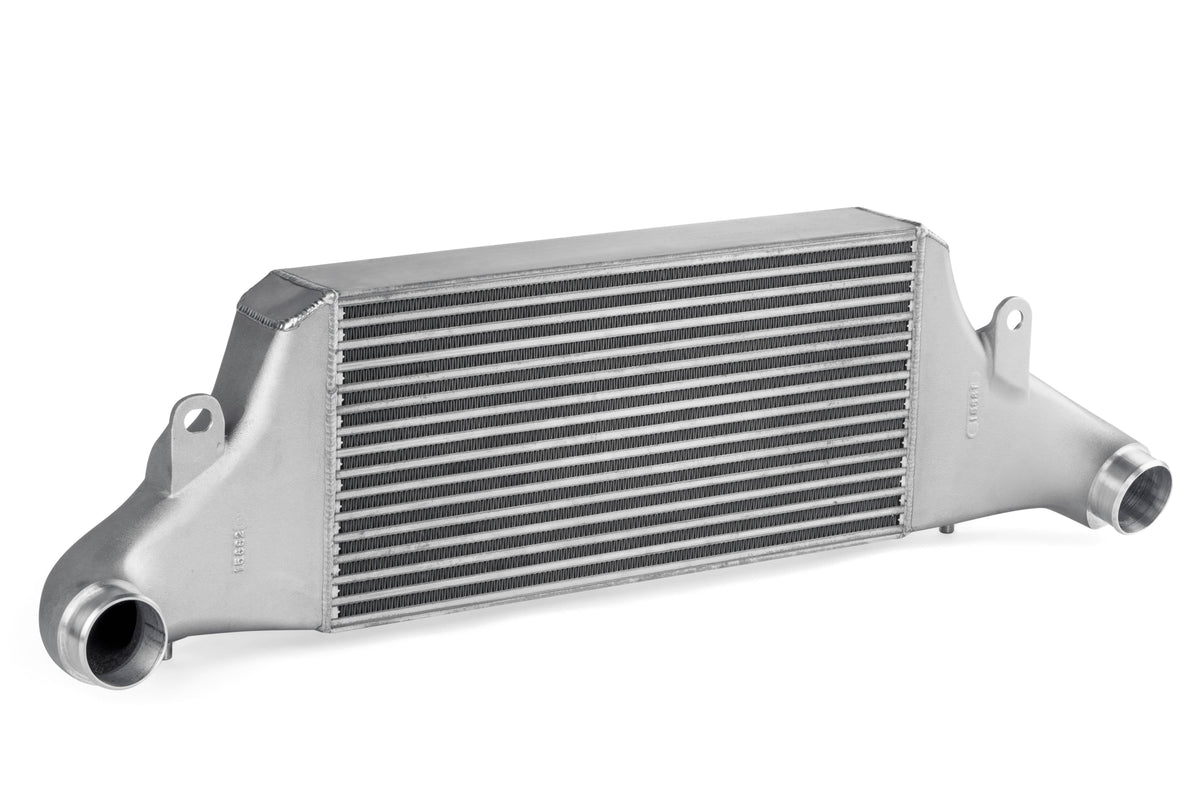

IC100024 — APR Intercooler System - 2.5 TFSI EVO (RS3)

APR Part Number: IC100024

Fits Audi RS3 17-20, 22-24

Overview

Features:

• Dramatically lowers intake air temp (IAT)
• Increases HP while minimizing power-robbing heat soak!
• Dynoed 26 AWHP over to the factory system (STG 1 93)!
• Effective cooling for more than double factory horsepower levels!
• Massive frontal surface area and core volume
• 6.38" x 25.33" x 3.16" - 161.6 in² front. & 510.67 in³ volume - OEM
• 11.7" x 22.00" x 3.50" - 257.4 in² front. & 900.90 in³ volume - APR
• Highly effective core design
• Bar-and-plate core with staggered and louvered fins.
• Rigorous testing determined core style, fin density, and size.
• Low pressure drop + highly effective cooling = high performance!

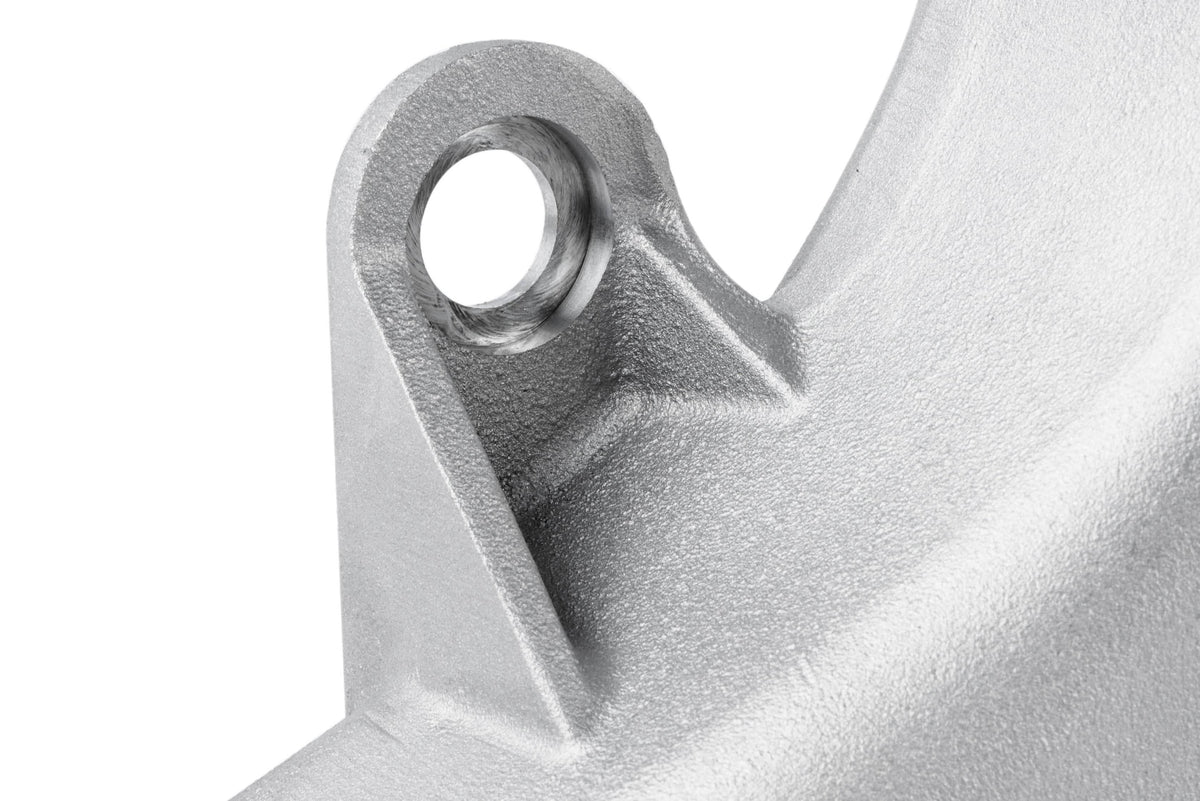

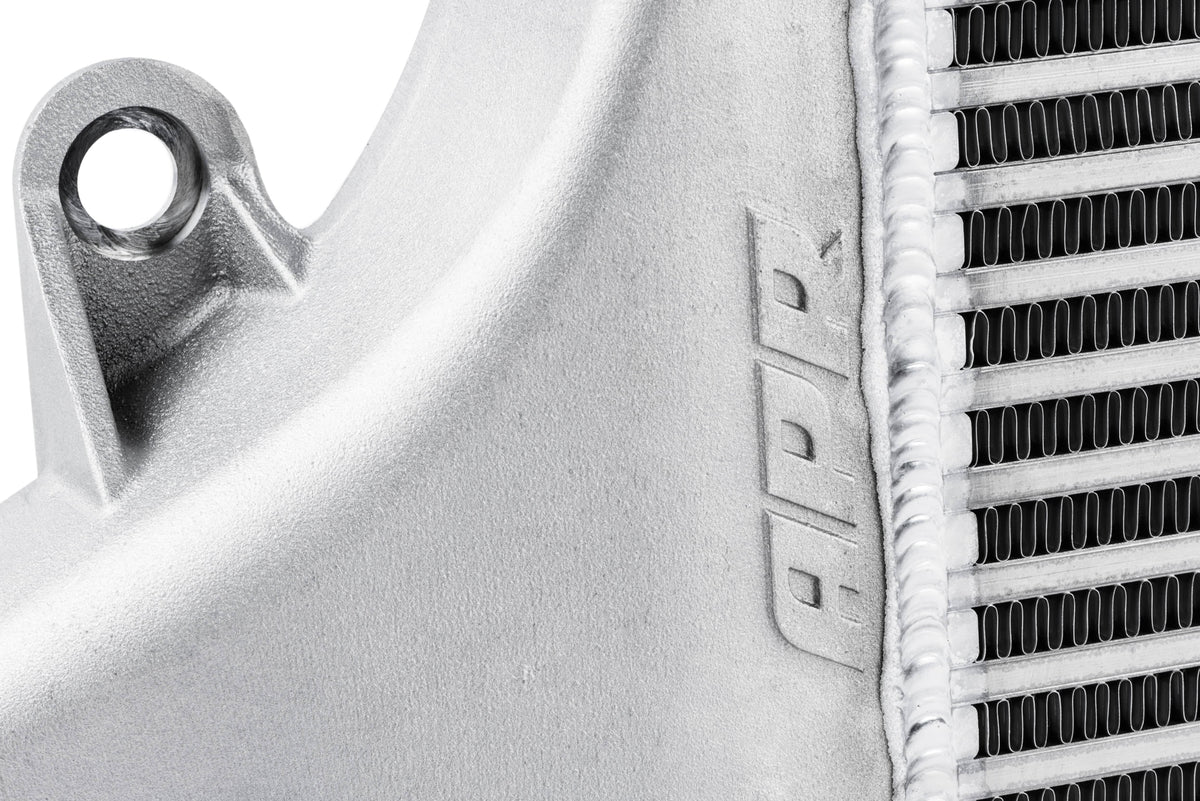

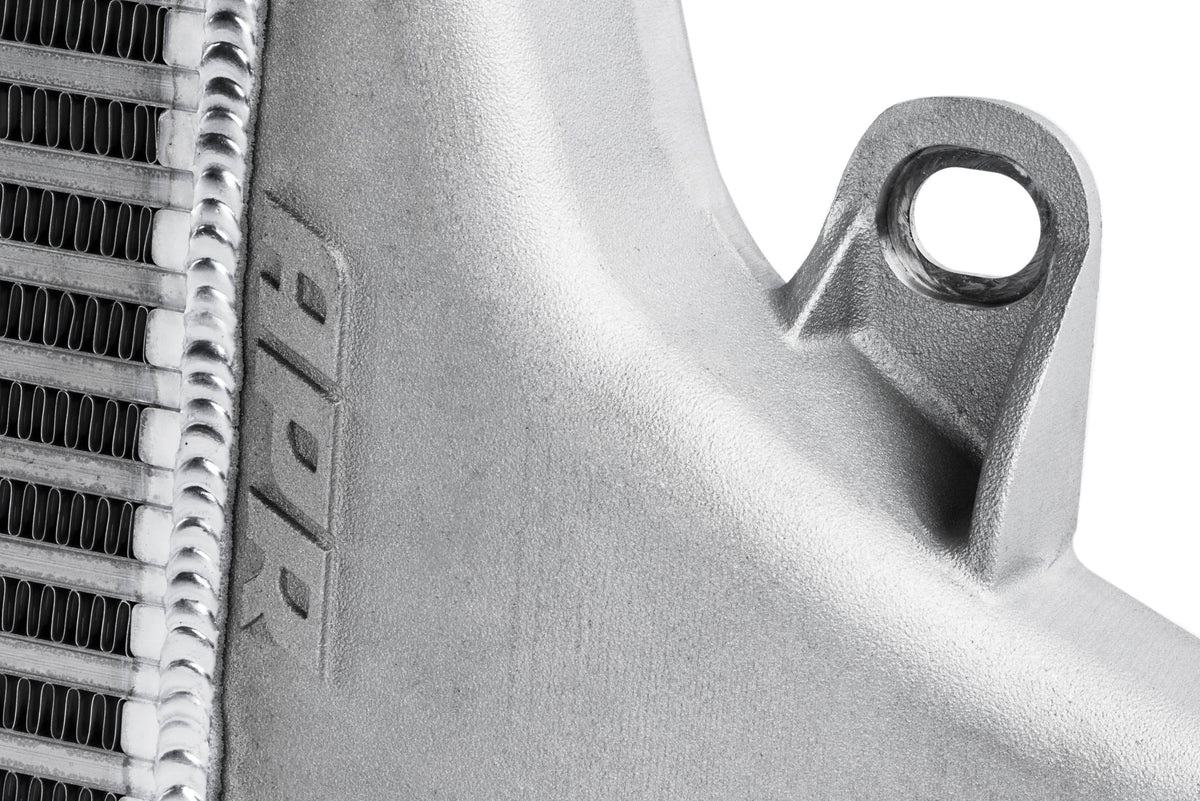

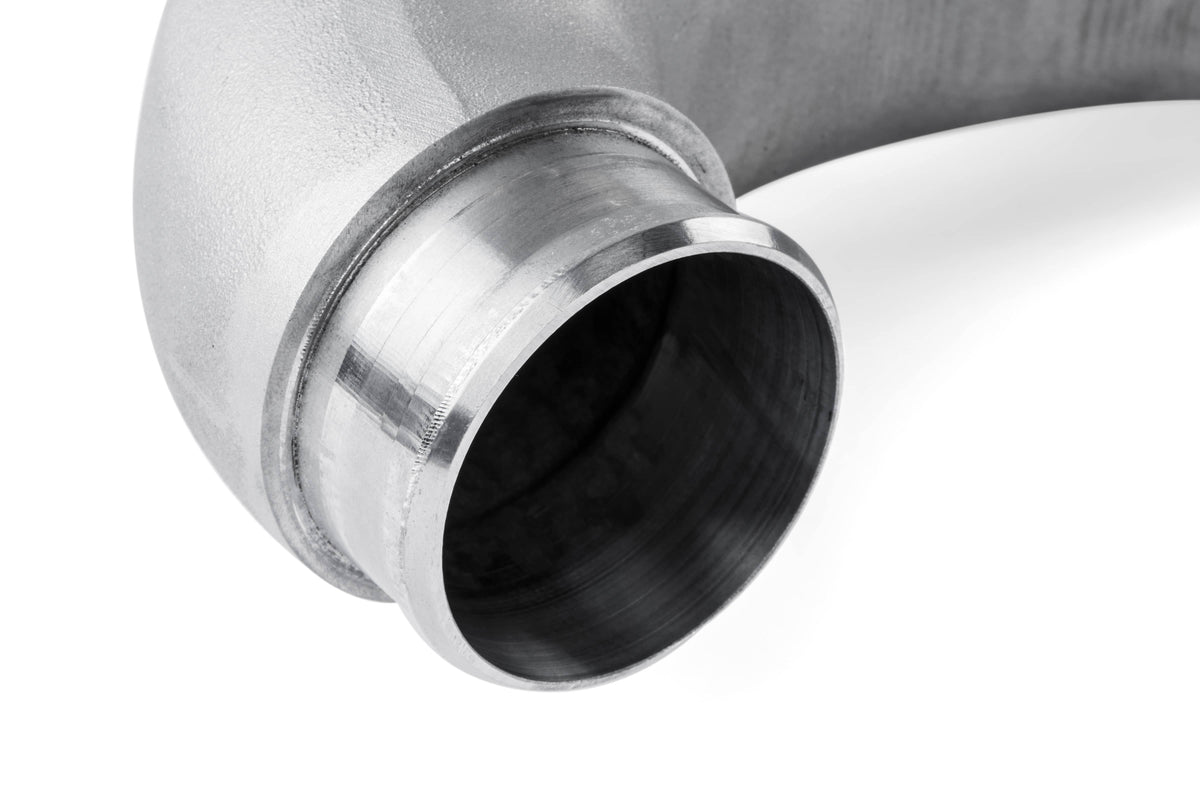

• Smooth cast end tanks
• Engineered for low turbulence/restriction and maximum flow.
• Organically shaped to promote airflow across entire core.
• Pressure tested to prevent power robbing boost leaks.

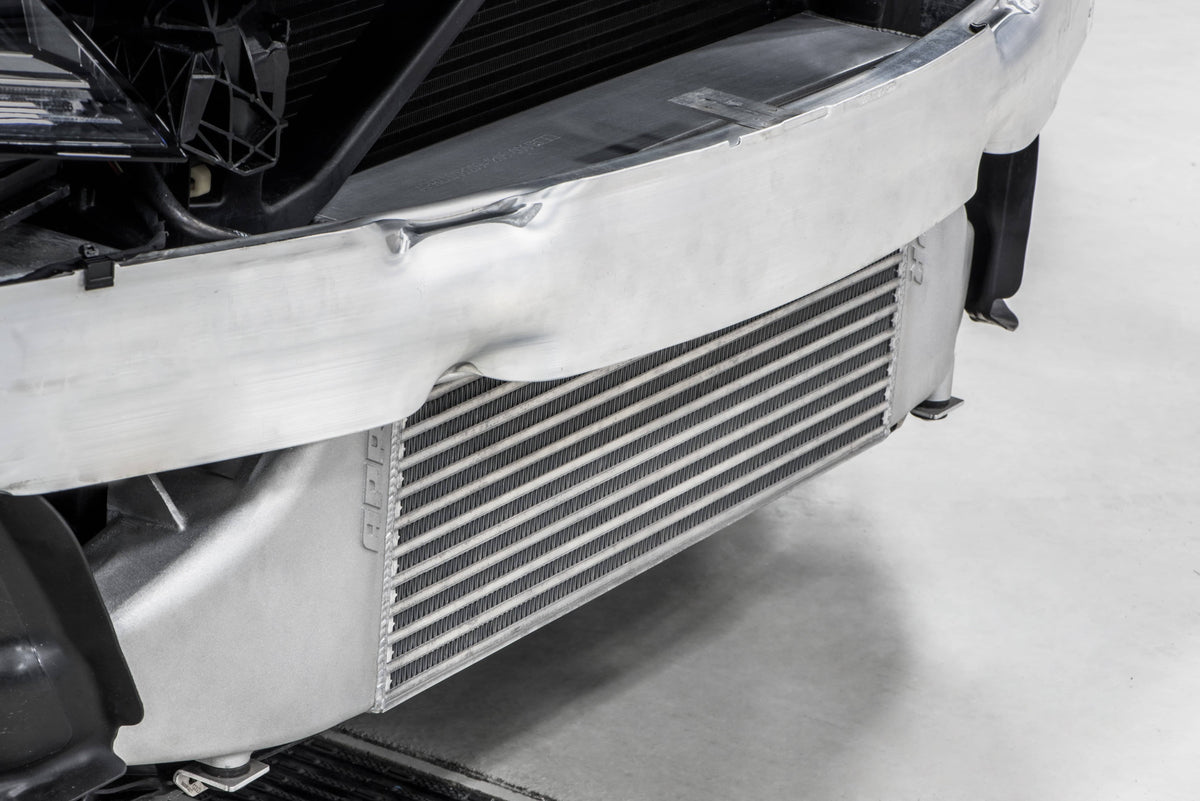

• Easy to install
• Simple plug-and-play design with no trimming or drilling necessary!
• Designed by engineers with lasers
• With the best equipment and smartest engineers, it just works!

Specifications

Brand	APR
Category	Belts and Cooling
Color	Silver / Natural
Cooler Type	Air to Air
Core Frontal Area	257.40 SI
Core Height	11.7 IN
Core Type	Bar and Plate
Core Volume	900.90 CI
Core Width	22, 3.5 IN
Direct Fit	Yes
Emission Code	7
End tank Construction	Cast
End tank Material	356-F Aluminum
Product Type	Intercooler Systems
Sub Category	Radiators, Coolers and Related Components
Version	RS3
Welding Type	TIG
UPC	810009930969
Part Number	IC100024

Emissions

This part is legal under the provisions of EPA’s Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.

Tech Resources

Vehicle Applications

• 2017–2020 Audi RS 3 (8V) — 2.5L; United States
• 2022–2024 Audi RS 3 (8Y) — 2.5L; United States

Fitment Requirements

Please note, this system will not directly fit the ROW vehicles with the shorter crash bar. A US spec setup is needed. Crash Bar: 8V5807190D, Foam: 8V5807550B, ACC Adapter: 8V0907574H.

Instructions - ic100024-rs3_intercooler.pdf Please note, this system will not directly fit the ROW vehicles with the shorter crash bar. A US spec setup is needed. Crash Bar: 8V5807190D, Foam: 8V5807550B, ACC Adapter: 8V0907574H.

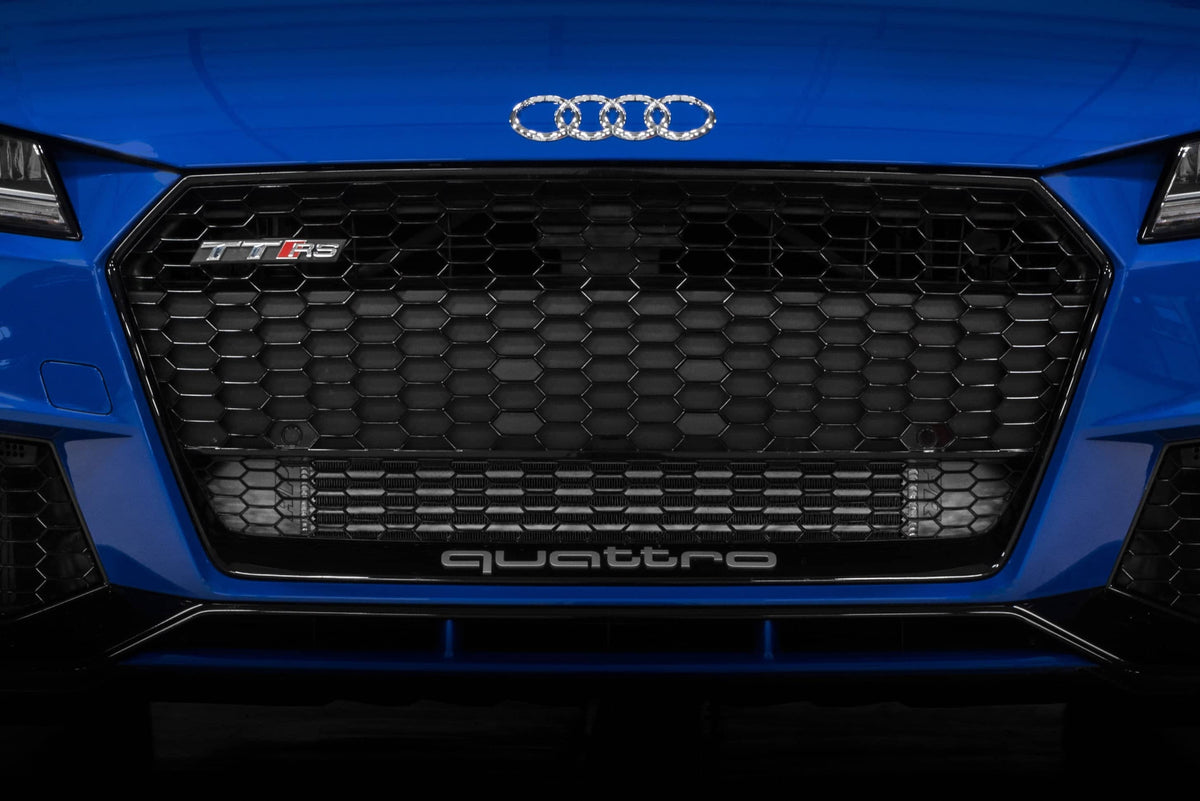

IC100025 — APR Intercooler System - 2.5 TFSI EVO (TT RS)

APR Part Number: IC100025

Fits Audi TT RS Quattro 18-22

Overview

Features:

• Dramatically lowers intake air temp (IAT)
• Increases HP while minimizing power-robbing heat soak!
• Dynoed 26 AWHP over to the factory system (STG 1 93)!
• Effective cooling for more than double factory horsepower levels!
• Massive frontal surface area and core volume
• 6.38" x 25.33" x 3.16" - 161.6 in² front. & 510.67 in³ volume - OEM
• 10.4" x 22.00" x 3.50" - 228.8 in² front. & 800.8 in³ volume - APR
• Highly effective core design
• Bar-and-plate core with staggered and louvered fins.
• Rigorous testing determined core style, fin density, and size.
• Low pressure drop + highly effective cooling = high performance!
• Smooth cast end tanks
• Engineered for low turbulence/restriction and maximum flow.
• Organically shaped to promote airflow across entire core.
• Pressure tested to prevent power robbing boost leaks.
• Easy to install
• Simple plug-and-play design with no trimming or drilling necessary!
• Designed by engineers with lasers
• With the best equipment and smartest engineers, it just works!

Specifications

Brand	APR
Category	Belts and Cooling
Color	Silver / Natural
Cooler Type	Air to Air
Core Frontal Area	228.80 SI
Core Height	10.4 IN
Core Type	Bar and Plate
Core Volume	800.80 CI
Core Width	22, 3.5 IN
Direct Fit	Yes
Emission Code	7
End tank Construction	Cast
End tank Material	356-F Aluminum
Product Type	Intercooler Systems
Sub Category	Radiators, Coolers and Related Components
Version	TT RS
Welding Type	TIG
UPC	810009930976
Part Number	IC100025

Emissions

This part is legal under the provisions of EPA’s Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.

Tech Resources

Vehicle Applications

• 2018–2022 Audi TT RS (8S, FV) — 2.5L; United States

Fitment Requirements

Please note, this system will not directly fit the ROW vehicles with the shorter crash bar. A US spec setup is needed. Crash Bar: 8S0807190D, Foam: 8S0807550C, 8S0807573C, & 8S0807574C.

Instructions - ic100024-rs3_intercooler.pdf Please note, this system will not directly fit the ROW vehicles with the shorter crash bar. A US spec setup is needed. Crash Bar: 8S0807190D, Foam: 8S0807550C, 8S0807573C, & 8S0807574C.
