APR Part Number: IC100029
Fits Audi Q3 19-24, VW Arteon 19-21, and Tiguan 18-24
APR availability: Est. Ship Date: 11/06/2026
Overview

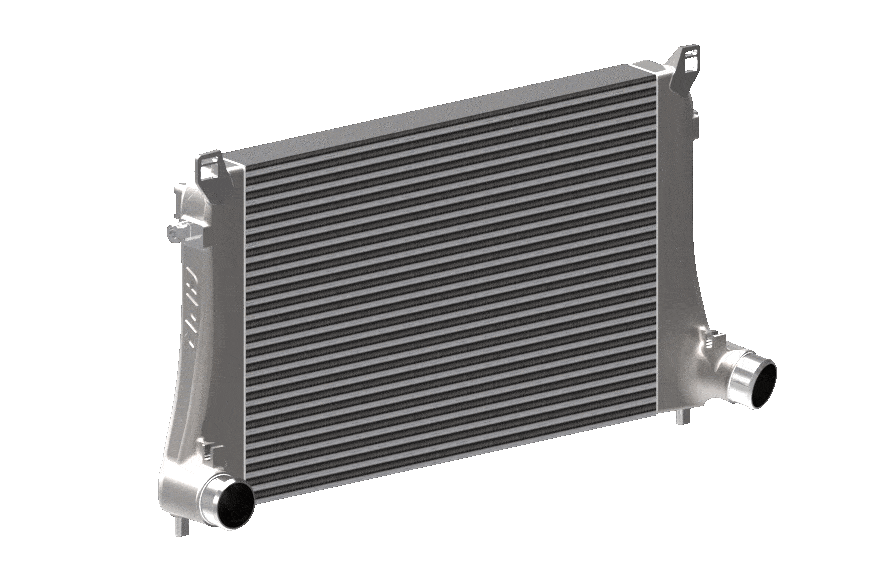

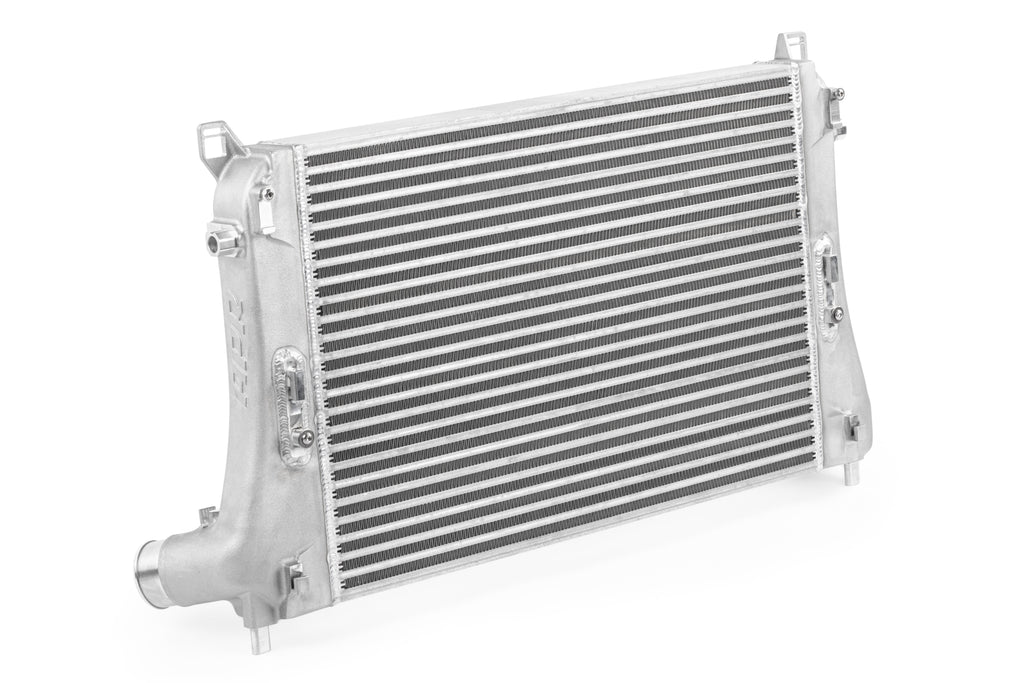

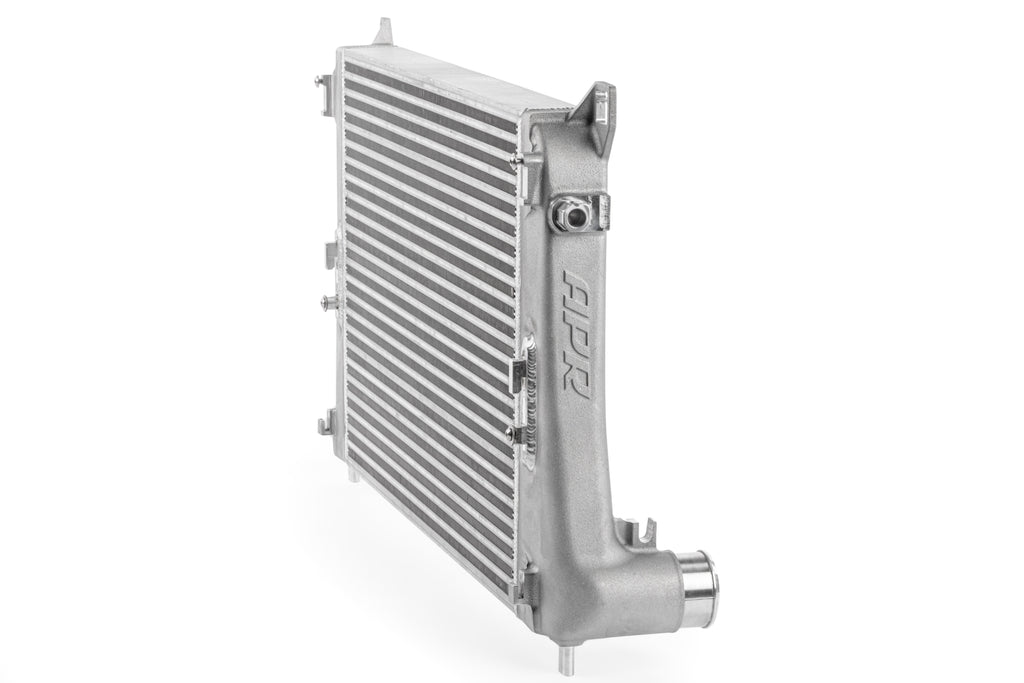

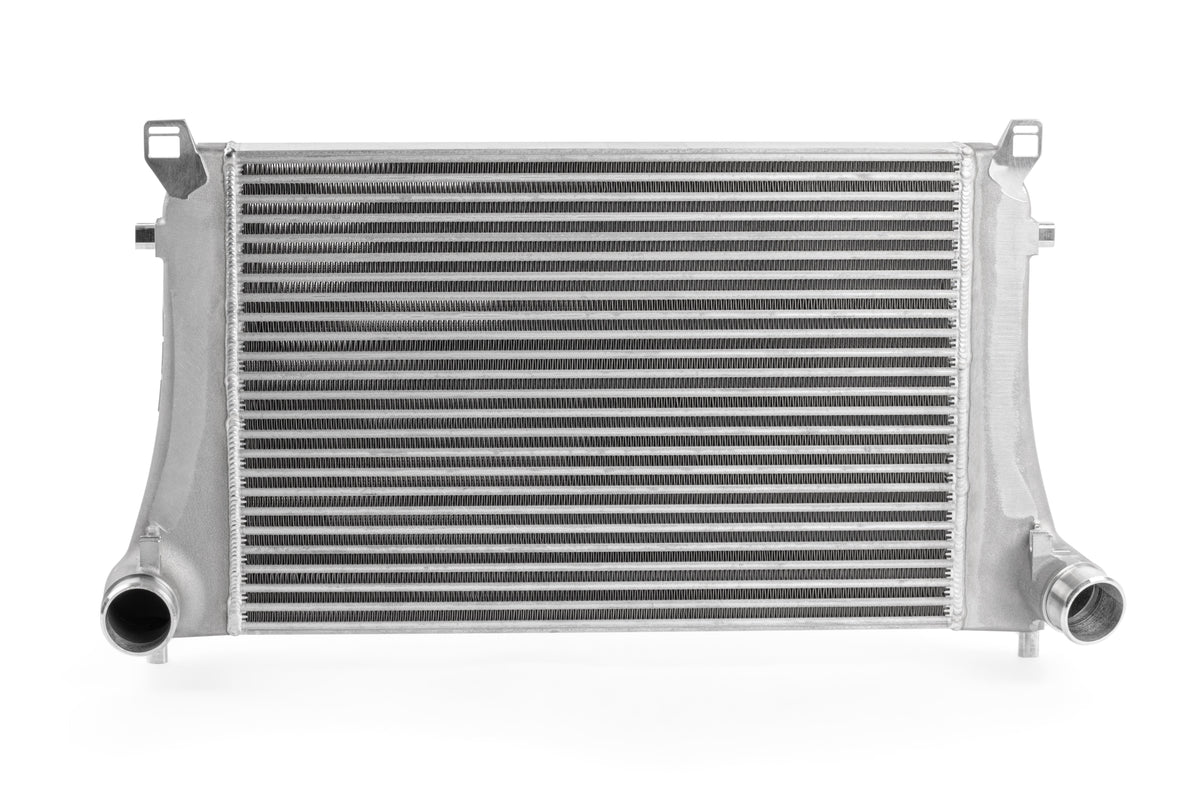

The APR Intercooler System is a OEM-location upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is a direct bolt-on upgrade that requires no trimming and is recommended at every stage of performance.
Features:

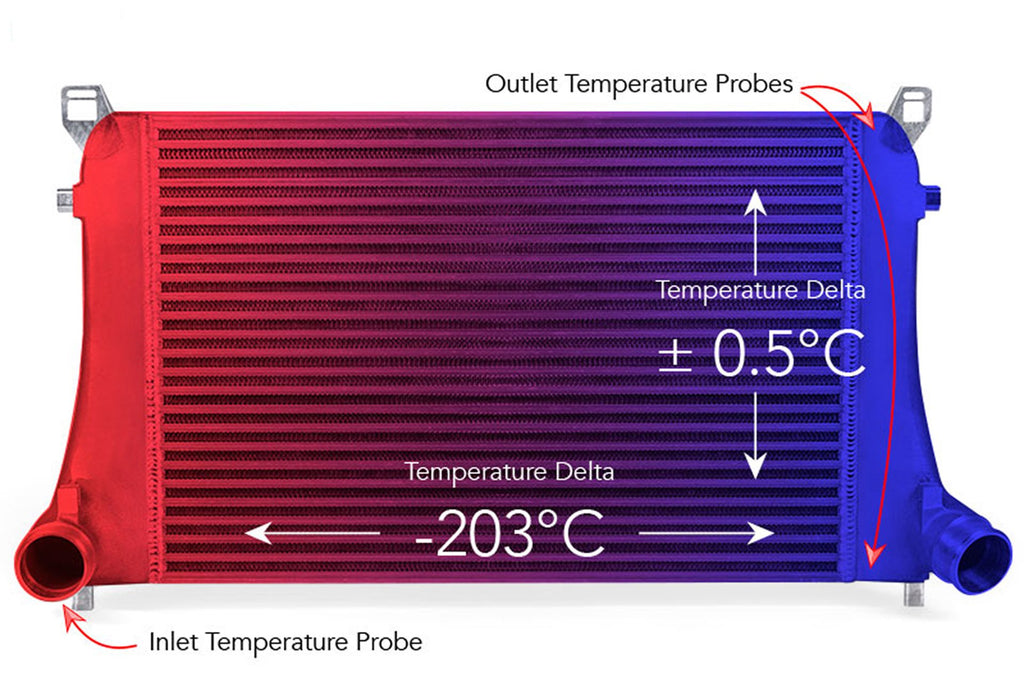

- Dramatically lowers intake air temp (IAT)
- -- Increases horsepower while minimizing power-robbing heat soak!
- -- Effectiveness tested to over 500 HP!
- -- 21 horsepower gain over the factory system!
- Massive core size
- -- Use of the OEM-location allows for a massive intercooler core.
- -- 24.25" x 16.25" x 1.16" - 457.1 in³ - OEM Tiguan
- -- 24.25" x 16.25" x 1.25" - 492.5 in³ - OEM MK7 GTI
- -- 24.25" x 16.25" x 1.37" - 529.8 in³ - OEM MK7 Golf R (Similar to Arteon)
- -- 24.00" x 16.25" x 2.25" - 877.5 in³ - APR
- Intercooler installed in the best location for this platform
- - Utilizes factory air dams for exceptional airflow across the core.
- - 100% compatible with the Adaptive Cruise Control (ACC) system.
- Highly effective core design

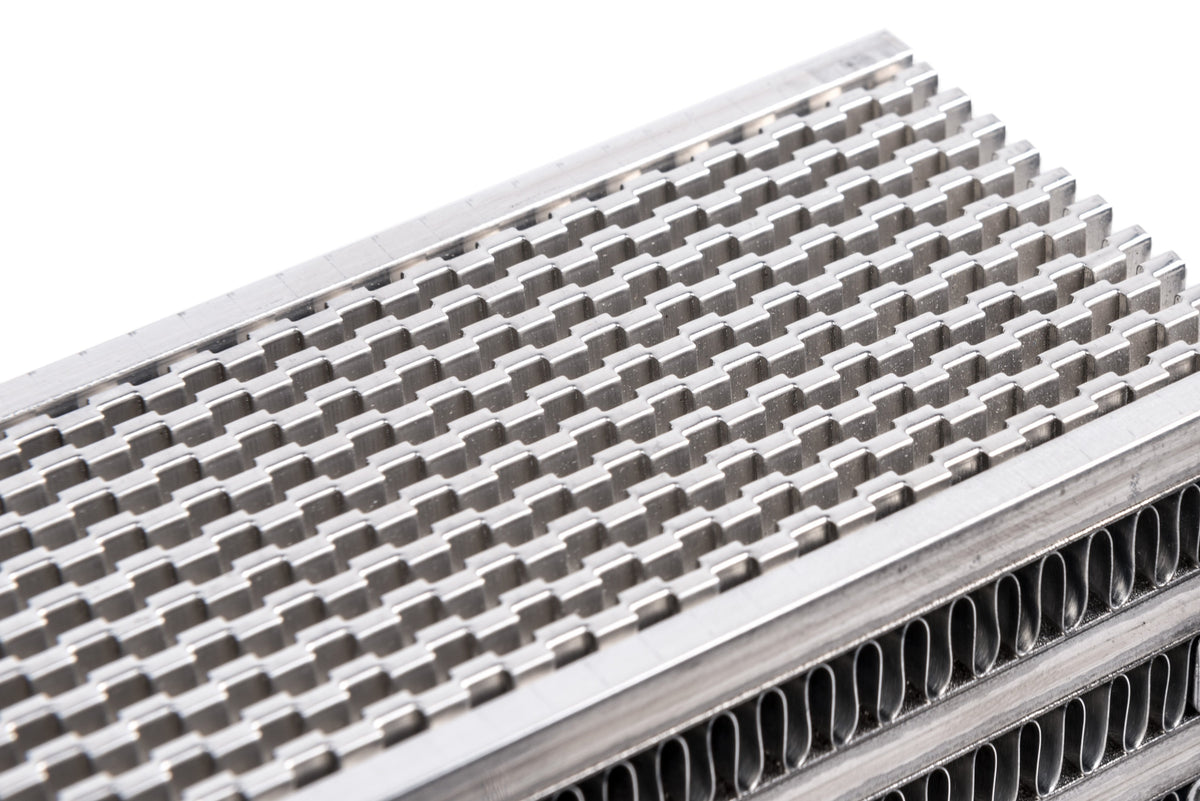

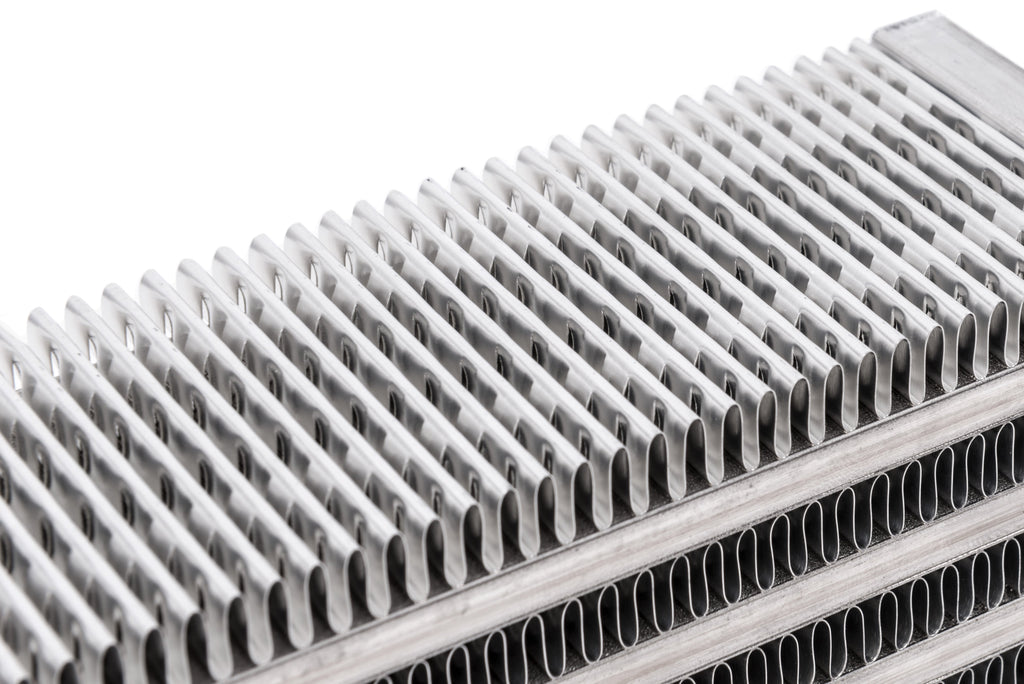

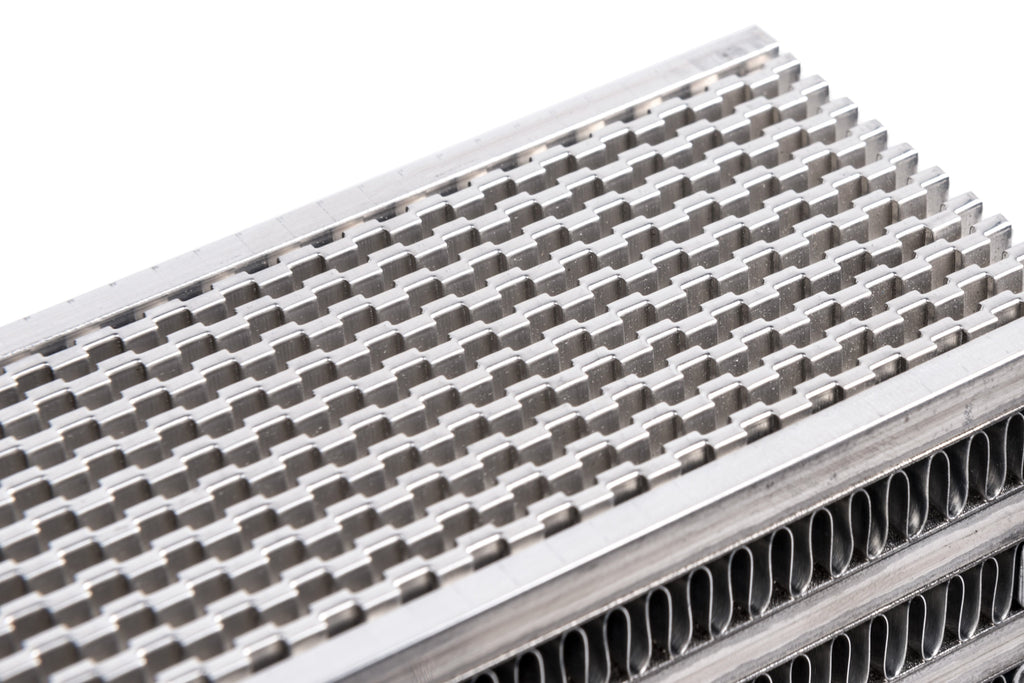

- -- Bar-and-plate core with staggered and louvered fins.
- -- Rigorous testing determined core style, fin density, and size.
- -- Low pressure drop + highly effective cooling = high performance!

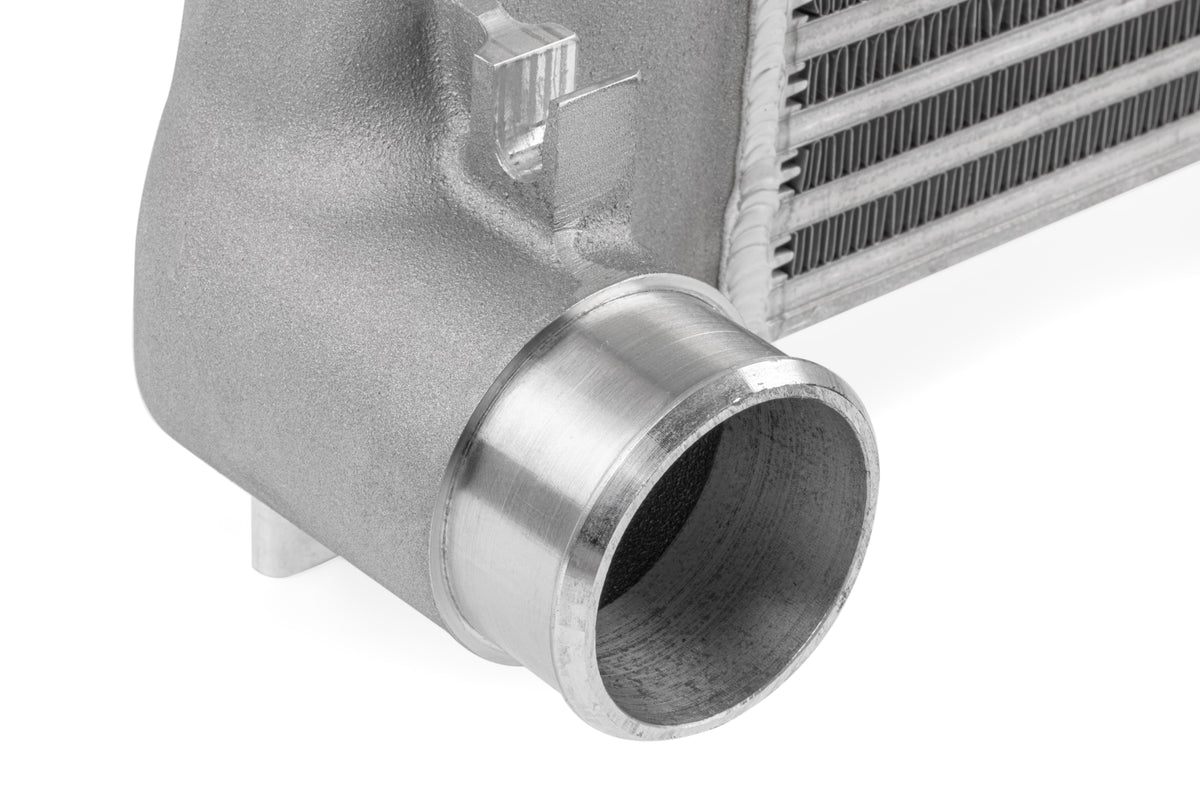

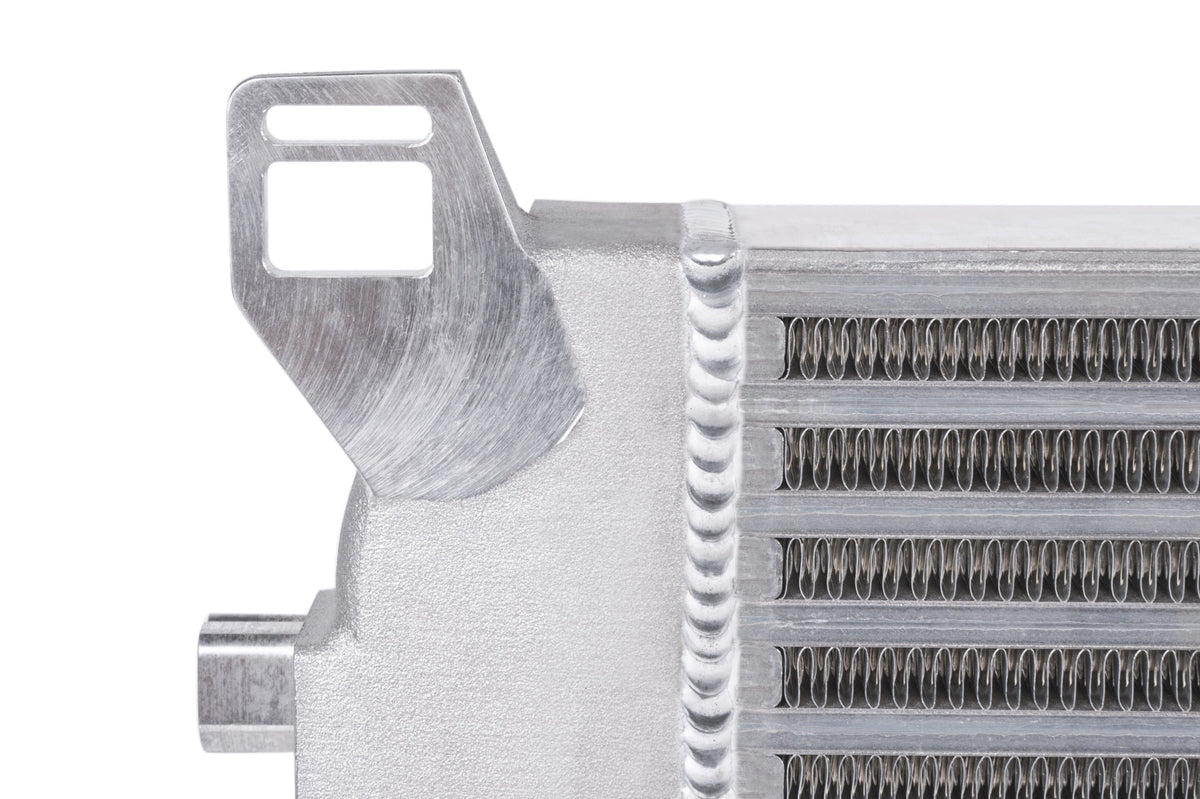

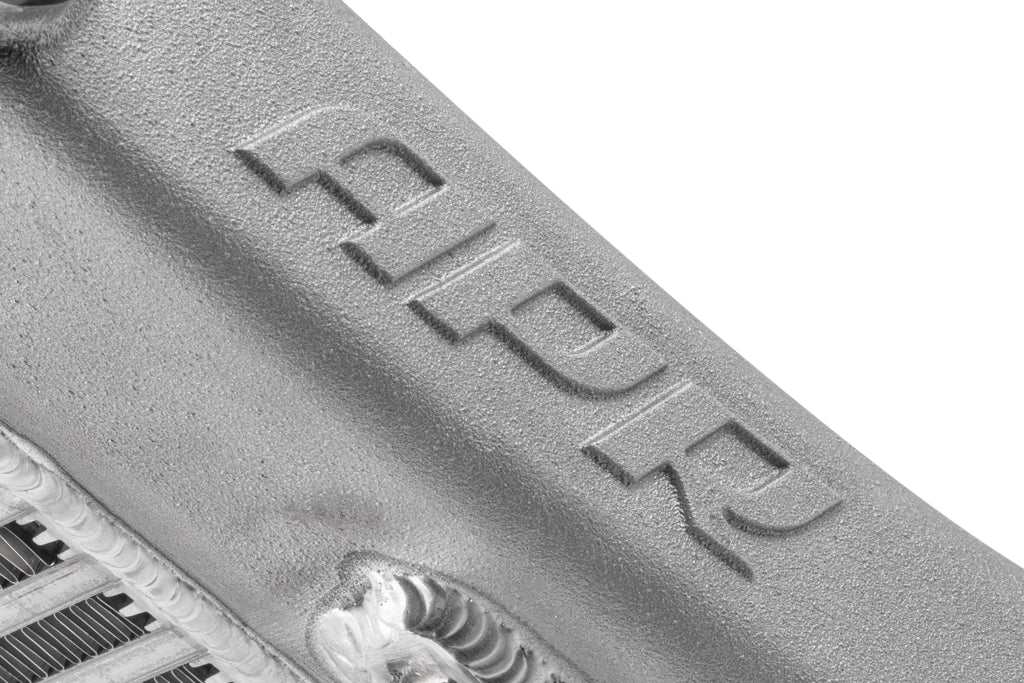

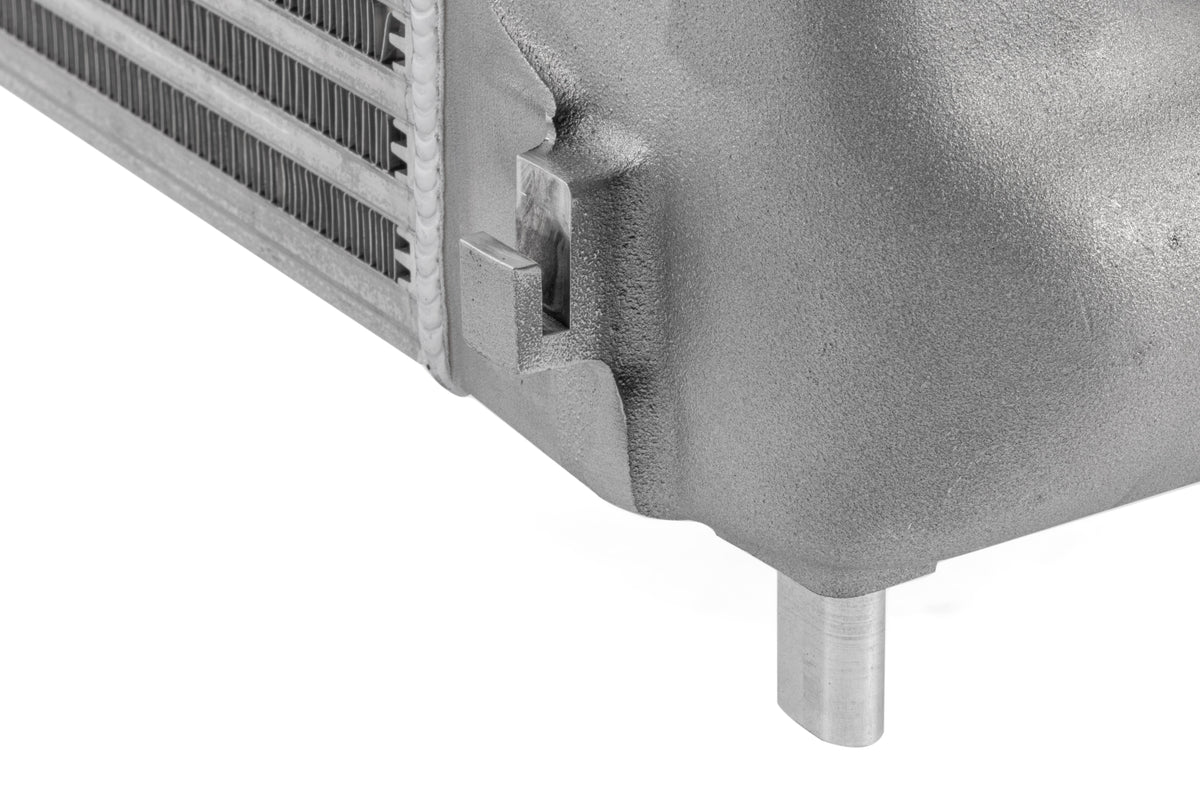

- Smooth cast end tanks
- -- Engineered for low turbulence/restriction and maximum flow.
- -- Organically shaped to promote airflow across entire core.
- -- Pressure tested to prevent power robbing boost leaks.
- -- No hidden labor costs or permanent modifications
- No trimming, cutting, or other costly modification required.
- -- No modification to the Adaptive Cruise Control System required.
- -- Full directions and APR world-renowned customer support included.
- Designed by engineers with lasers
- -- With the best equipment and smartest engineers, it just works!
Specifications
| Brand | APR |
|---|---|
| Category | Belts and Cooling |
| Color | Silver / Natural |
| Cooler Type | Air to Air |
| Core Frontal Area | 390.00 SI |
| Core Height | 16.25 IN |
| Core Type | Bar and Plate |
| Core Volume | 877.50 CI |
| Core Width | 2.25, 24 IN |
| Direct Fit | Yes |
| Emission Code | 7 |
| End tank Construction | Cast |
| End tank Material | 356-F Aluminum |
| Product Type | Intercooler Systems |
| Sub Category | Radiators, Coolers and Related Components |
| Version | 8 Speed Tiptronic |
| Welding Type | TIG |
| UPC | 810009934998 |
| Part Number | IC100029 |
Emissions
7
This part is legal under the provisions of EPA’s Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.
Tech Resources
Vehicle Applications
- 2019–2024 Audi Q3 (F3) — 2.0L; 09P; United States
- 2019–2021 Volkswagen Arteon (3H, MQB) — 2.0L; 09P; United States
- 2018–2024 Volkswagen Tiguan (BW, MQB) — 2.0L; 09P; United States
Fitment Requirements
Instructions - ic100019_20t_mqb.pdf
