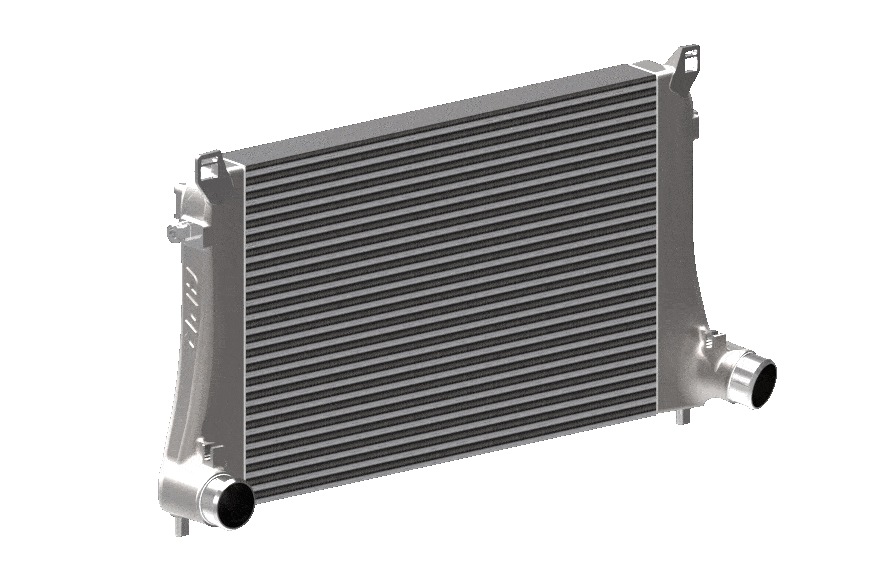

APR Intercooler System - MQB/MQB EVO 1.8T/2.0T
Regular price
$1,065.95
Sale price
$958.95
APR Intercooler System - MQB/MQB EVO 1.8T/2.0T
Regular price
$958.95
Regular price
$1,065.95
Sale price
$958.95
Unit price
per
APR Intercooler System - MQB/MQB EVO 1.8T/2.0T
Regular price
$1,065.95
Sale price
$958.95
APR Part Number: IC100019
Fits 2015-2024 Audi A3/S3/TT/TTS - 2022-2023 VW Arteon 22-23 - 2015-2018 VW Golf - 2017-2019 Golf Alltrack - 2015-2024 VW Golf R/GTI - 2019-2024 VW Jetta
Overview

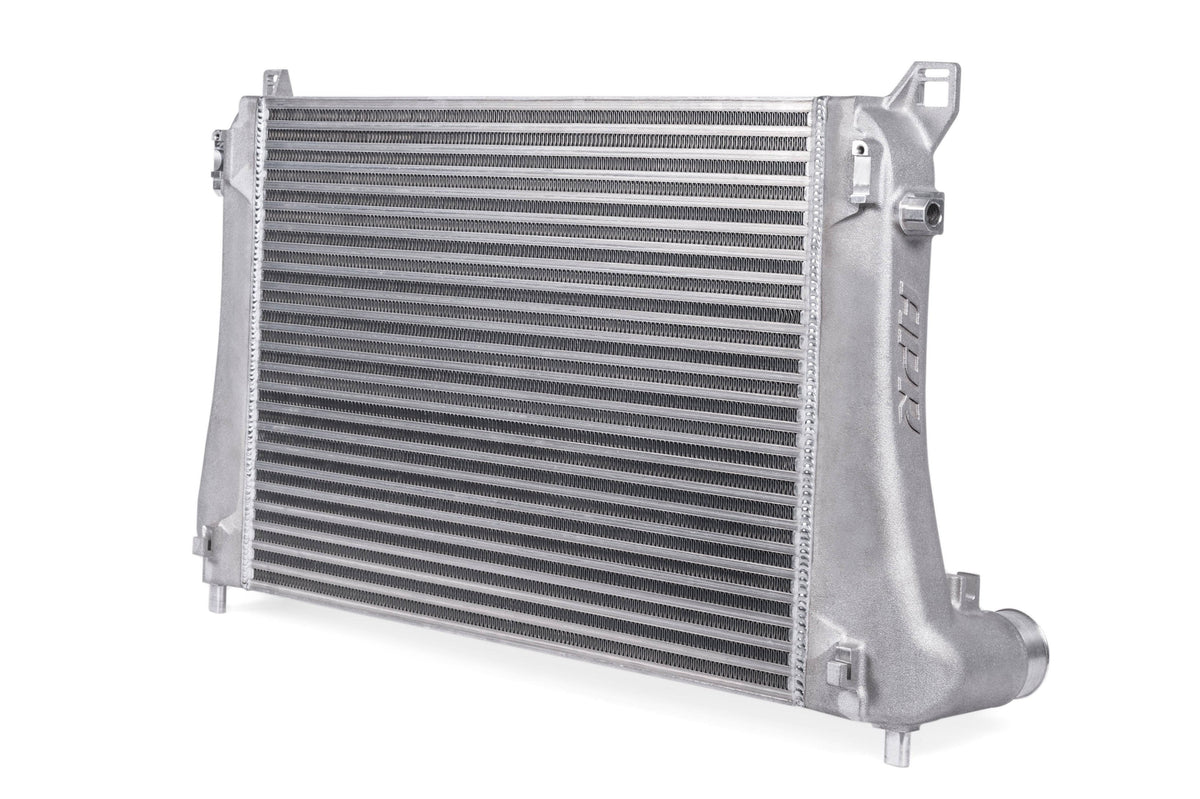

The APR Intercooler System is a OEM-location upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is a direct bolt-on upgrade that requires no trimming and is recommended at every stage of performance.
Features:

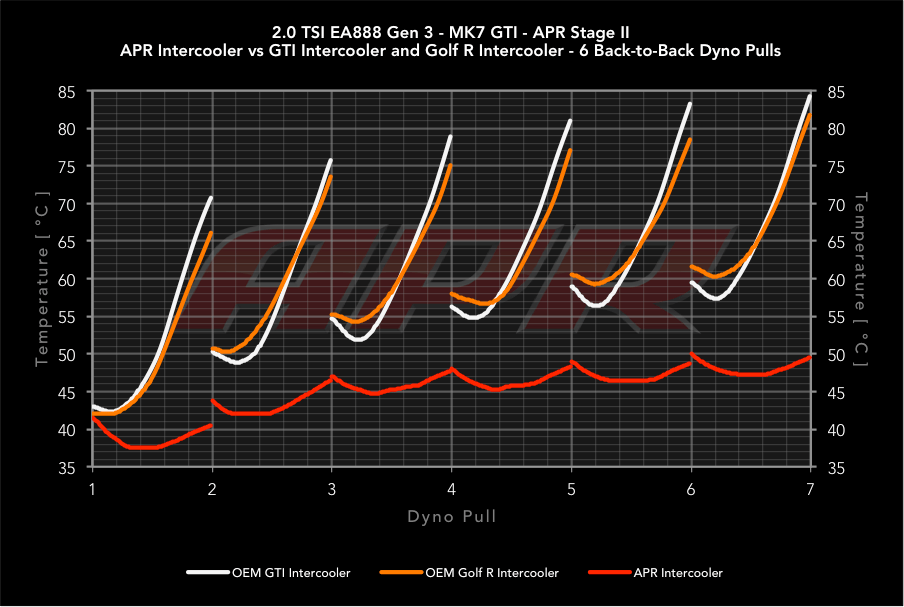

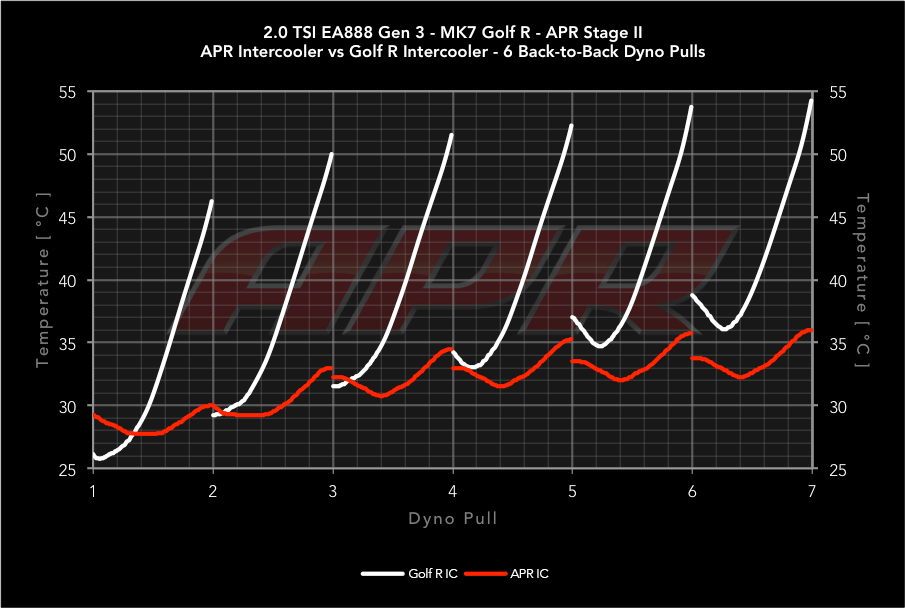

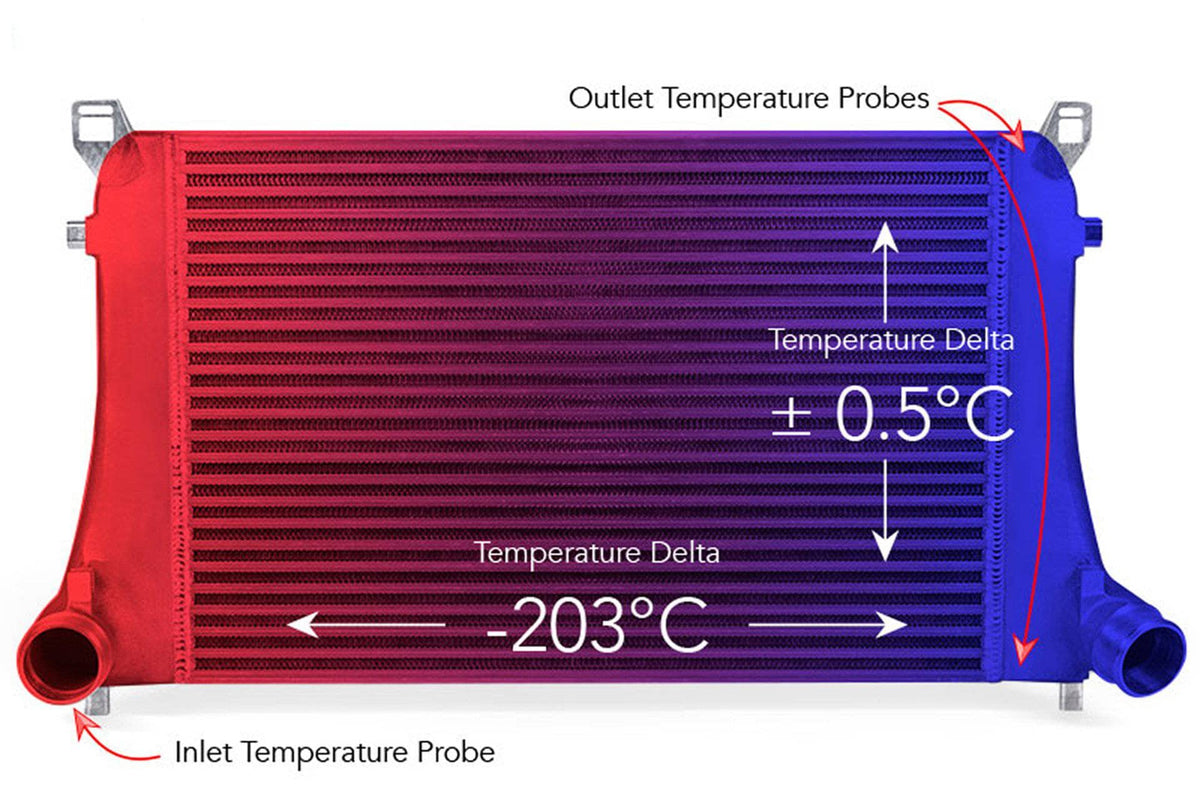

- Dramatically lowers intake air temp (IAT)
- -- Increases horsepower while minimizing power-robbing heat soak!
- -- Effectiveness tested to over 500 HP!

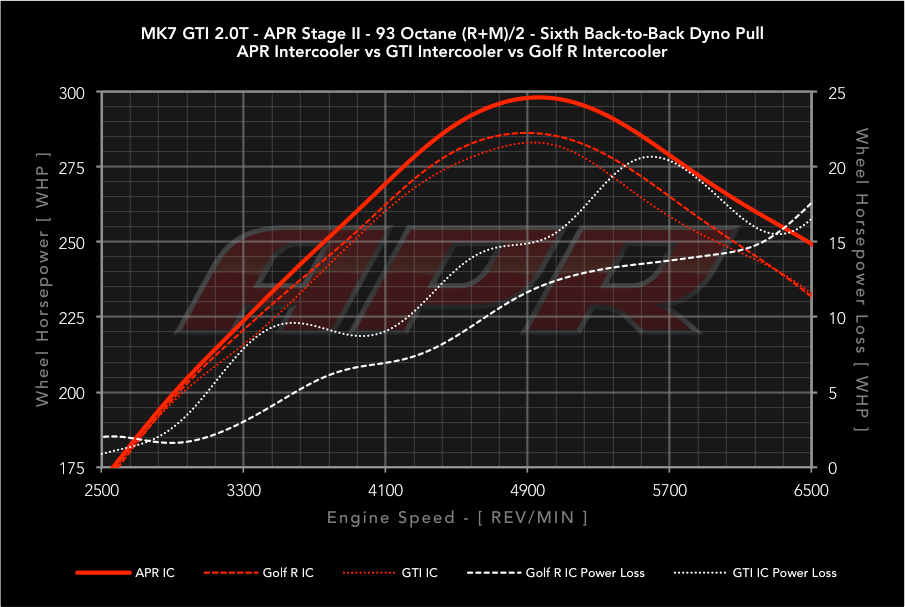

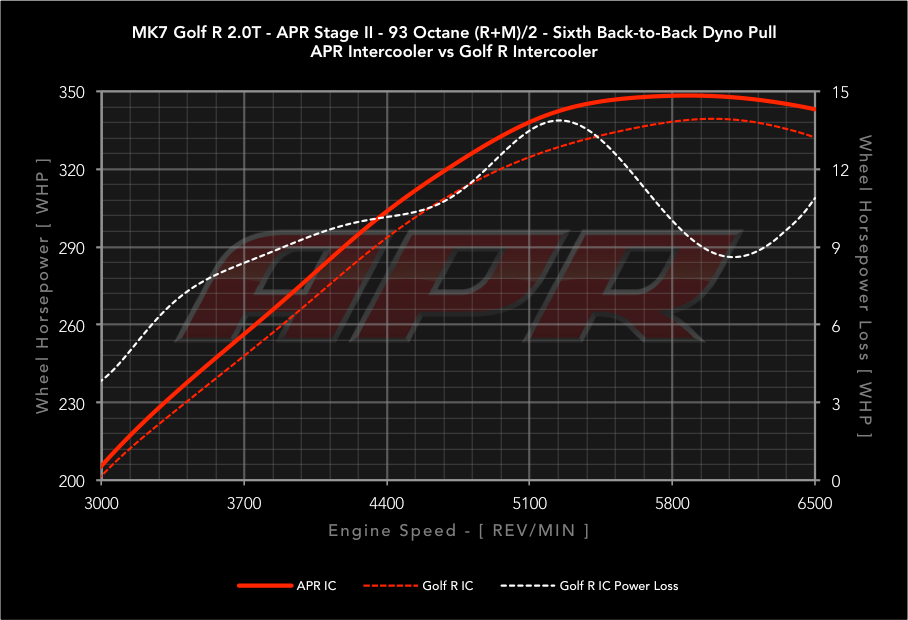

- -- 21 horsepower gain over the factory system!

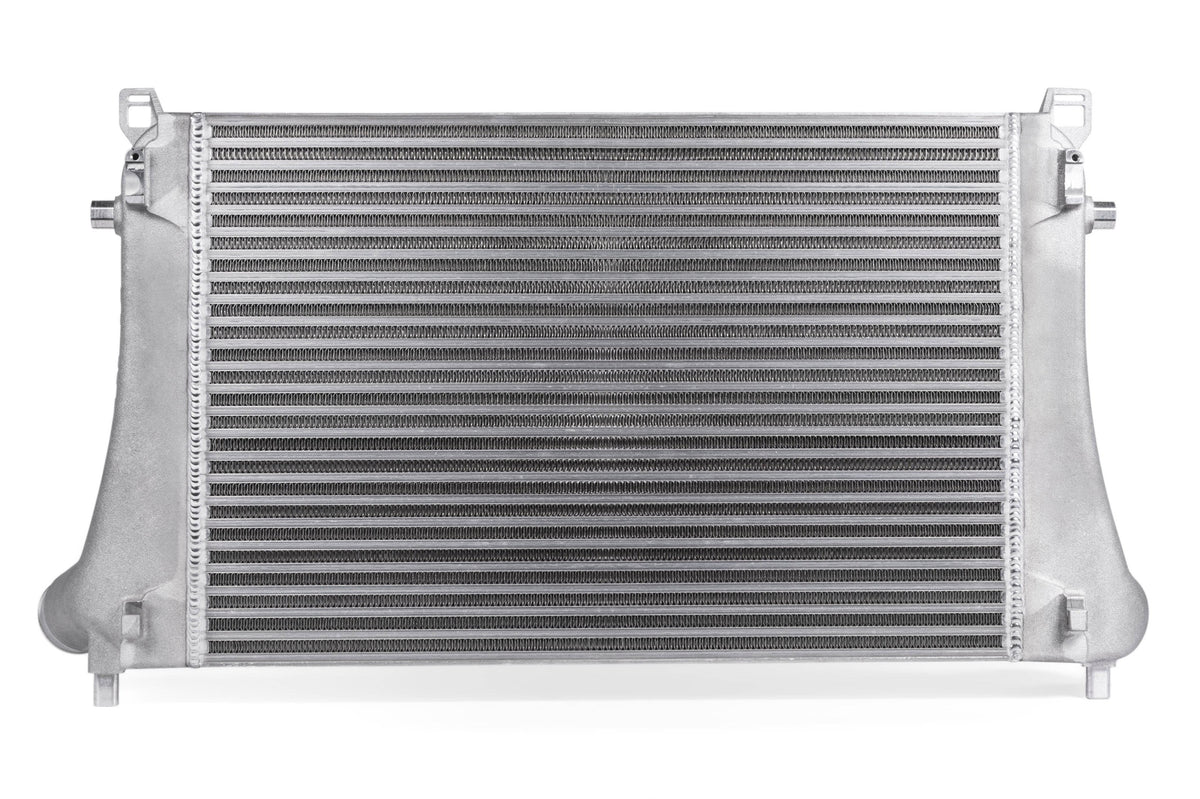

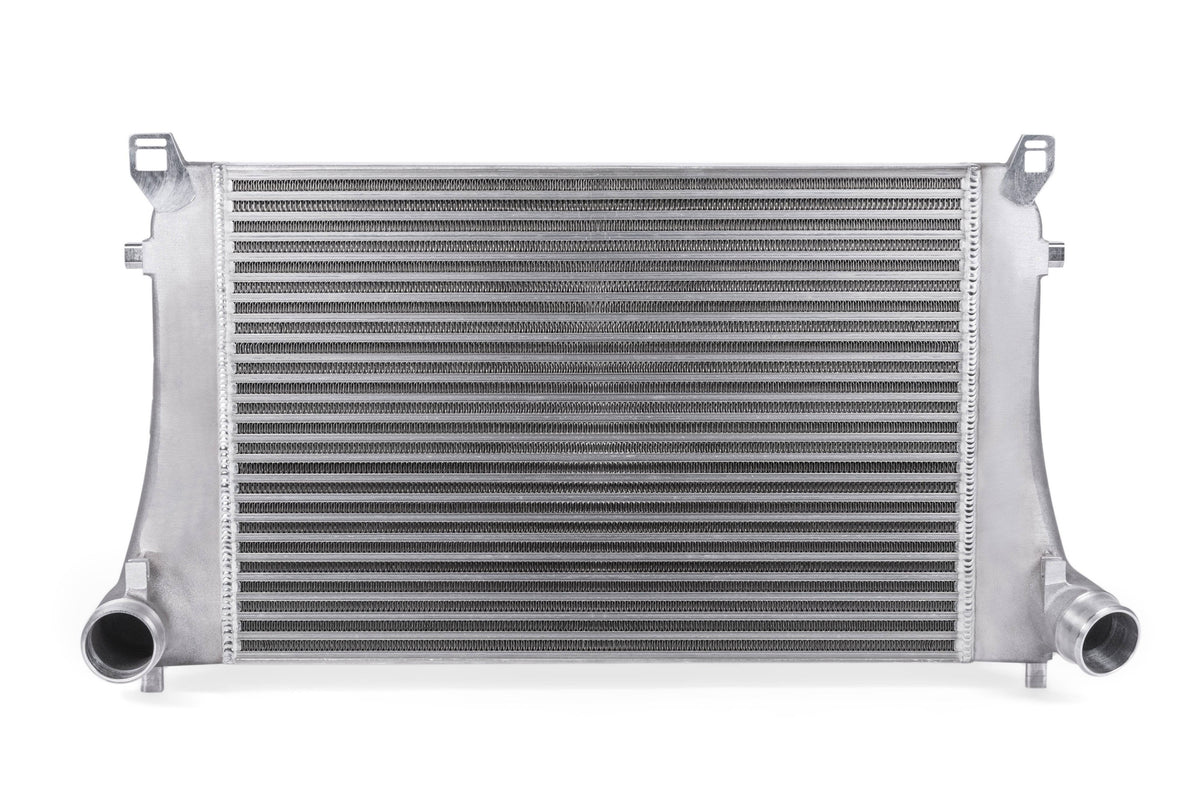

- Massive core size
- -- Use of the OEM-location allows for a massive intercooler core.
- -- 24.25" x 16.25" x 1.16" - 457.1 in³ - OEM MK7 Golf/Tiguan
- -- 24.25" x 16.25" x 1.25" - 492.5 in³ - OEM MK7 GTI
- -- 24.25" x 16.25" x 1.37" - 529.8 in³ - OEM MK7 Golf R
- -- 24.00" x 16.25" x 2.25" - 877.5 in³ - APR

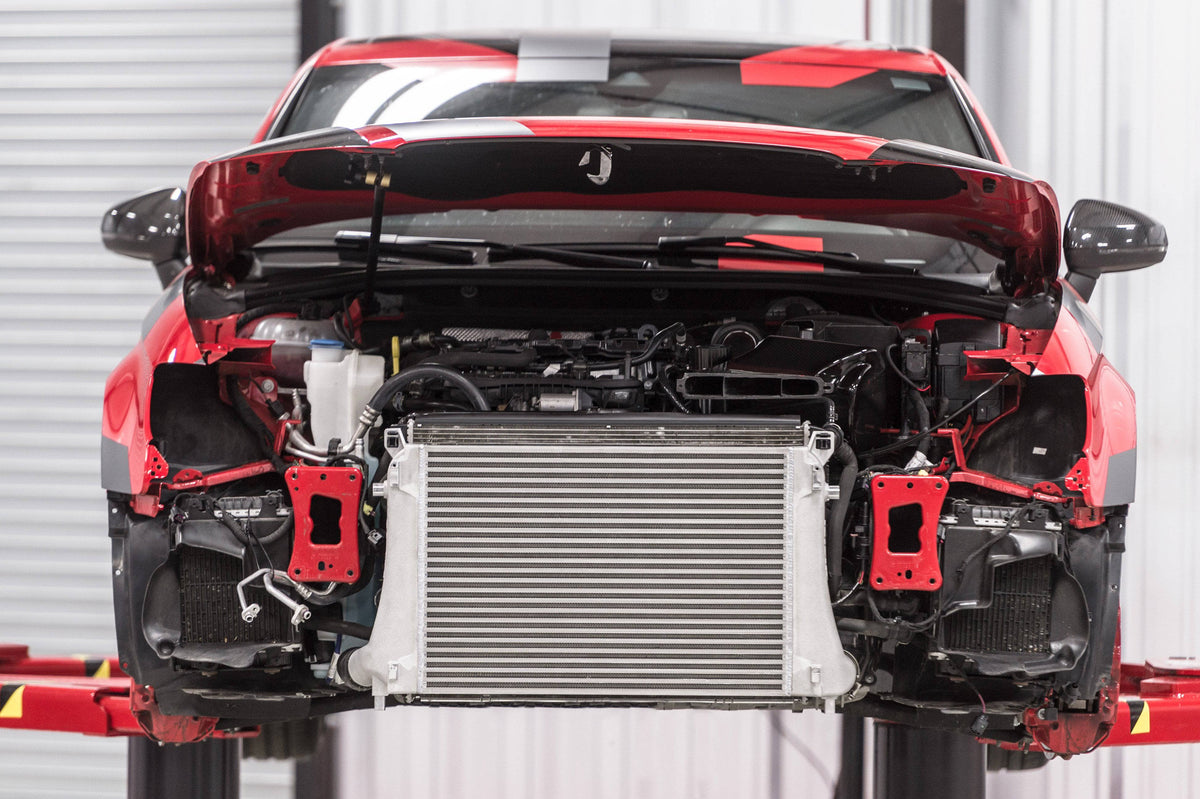

- Intercooler installed in the best location for this platform
- - Utilizes factory air dams for exceptional airflow across the core.
- - 100% compatible with the Adaptive Cruise Control (ACC) system.
- Highly effective core design

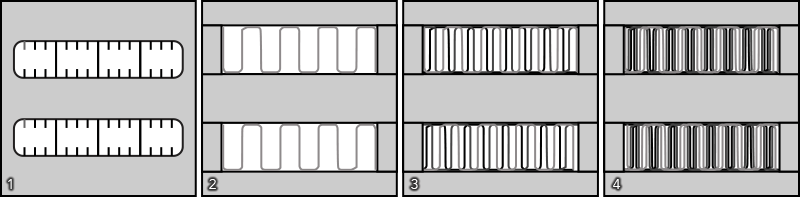

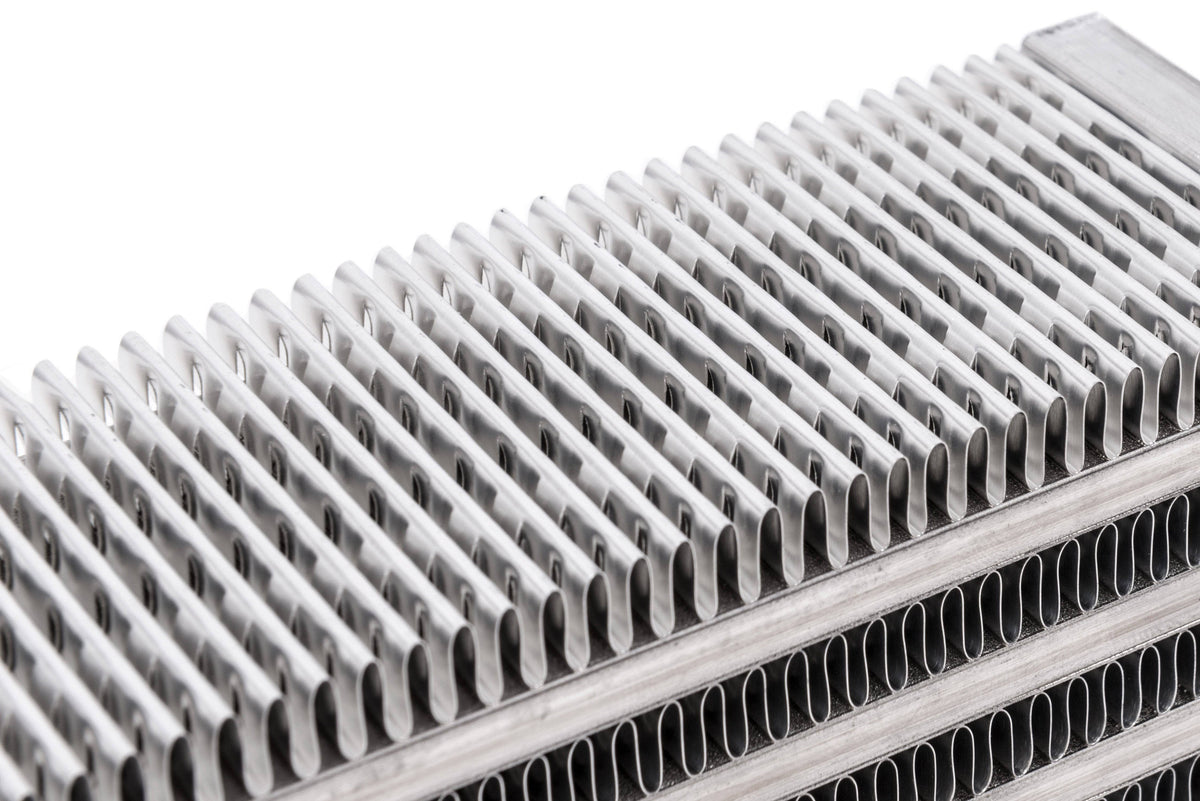

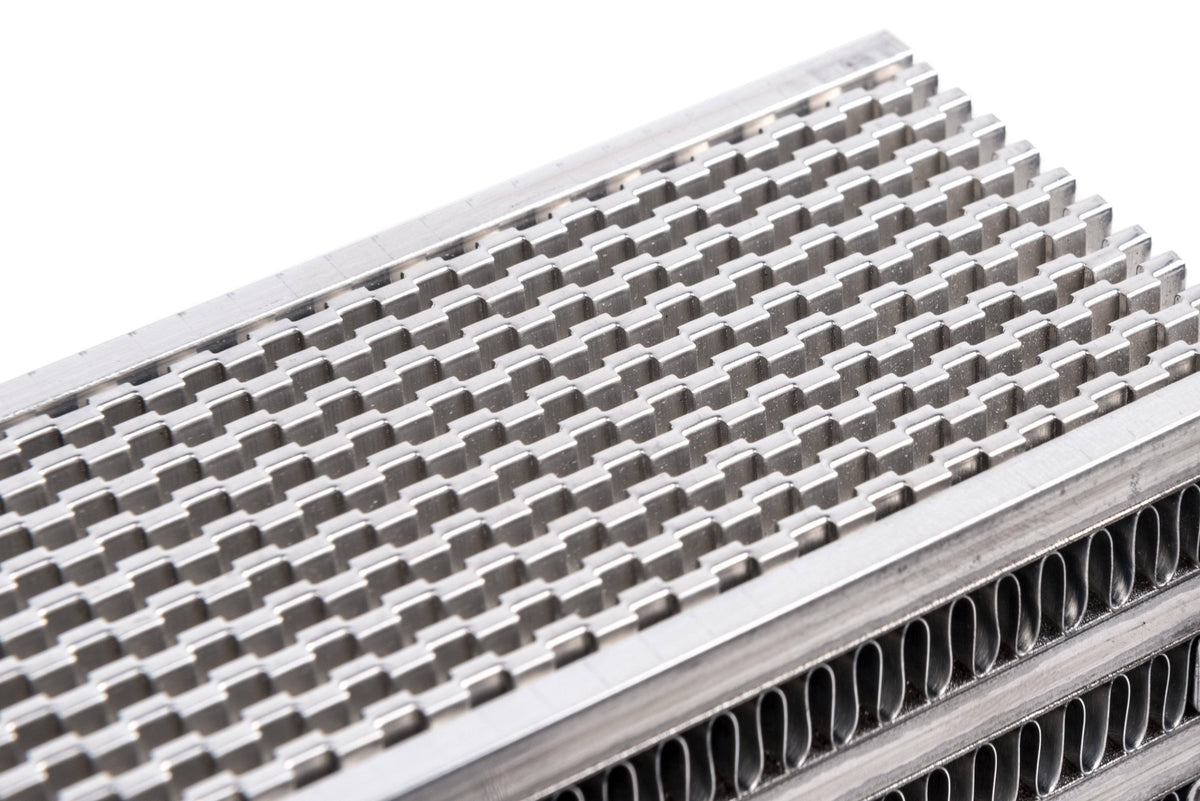

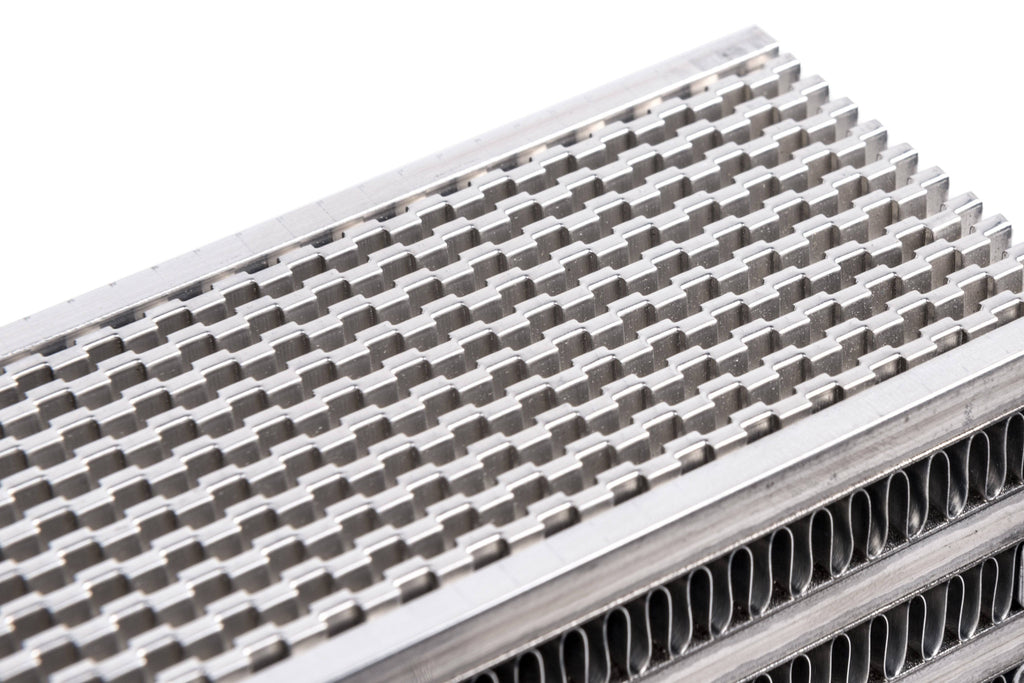

- -- Bar-and-plate core with staggered and louvered fins.
- -- Rigorous testing determined core style, fin density, and size.
- -- Low pressure drop + highly effective cooling = high performance!

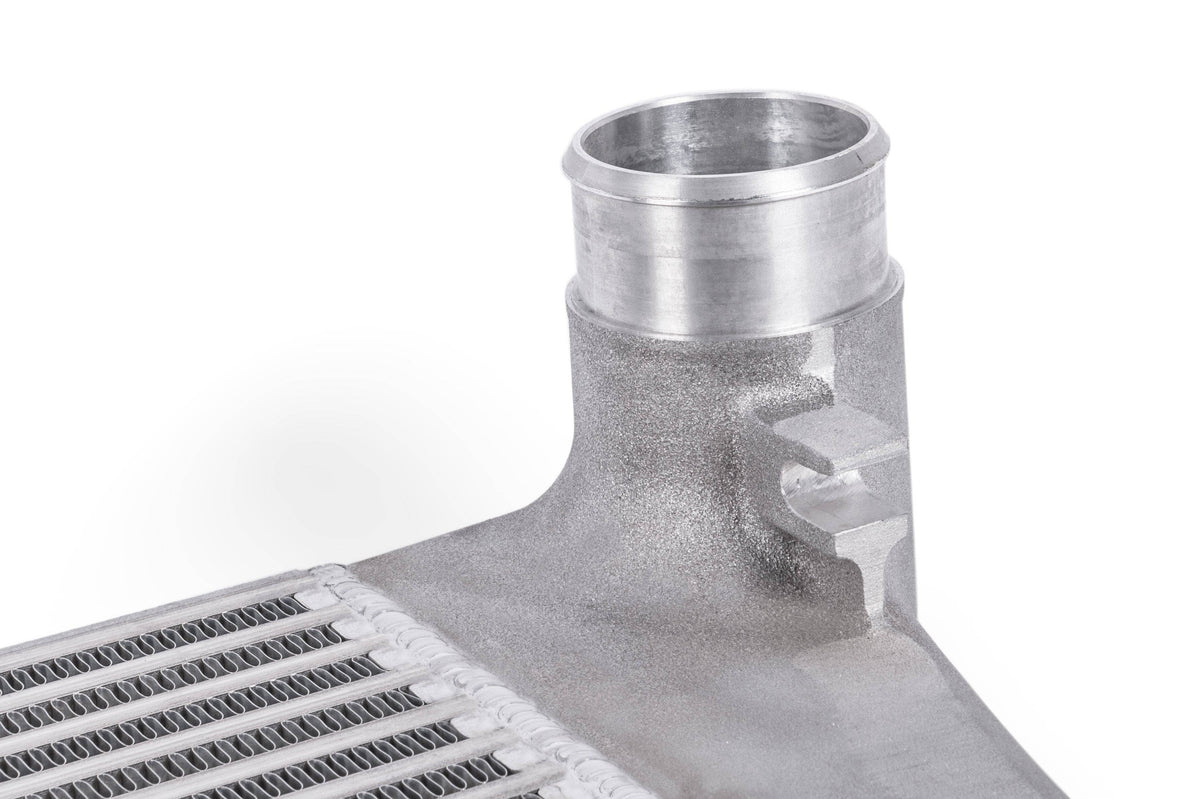

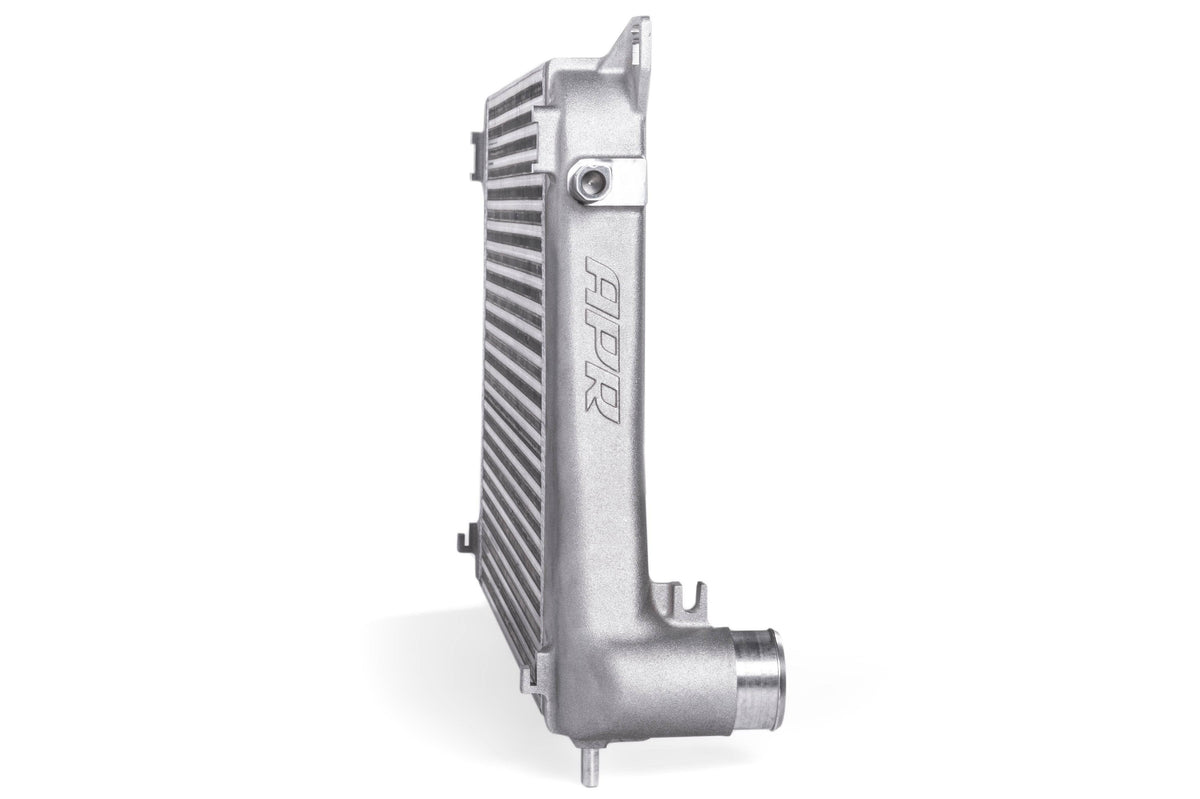

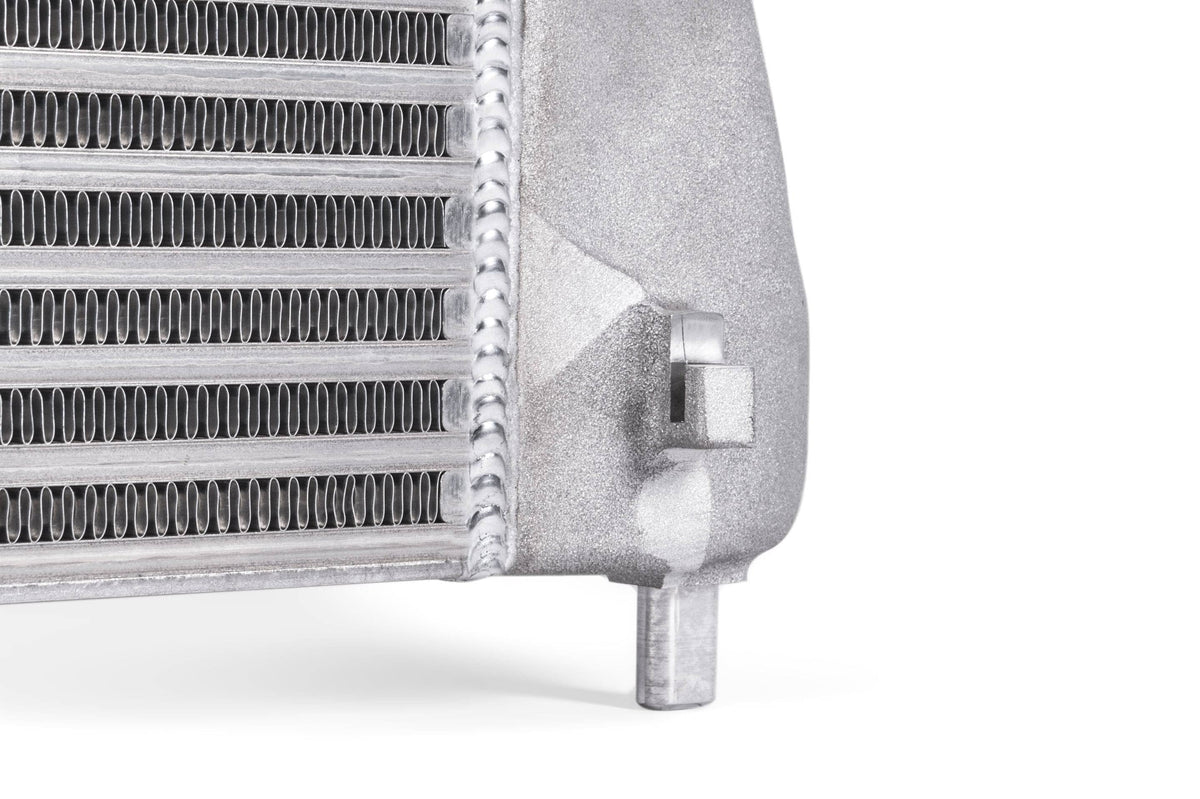

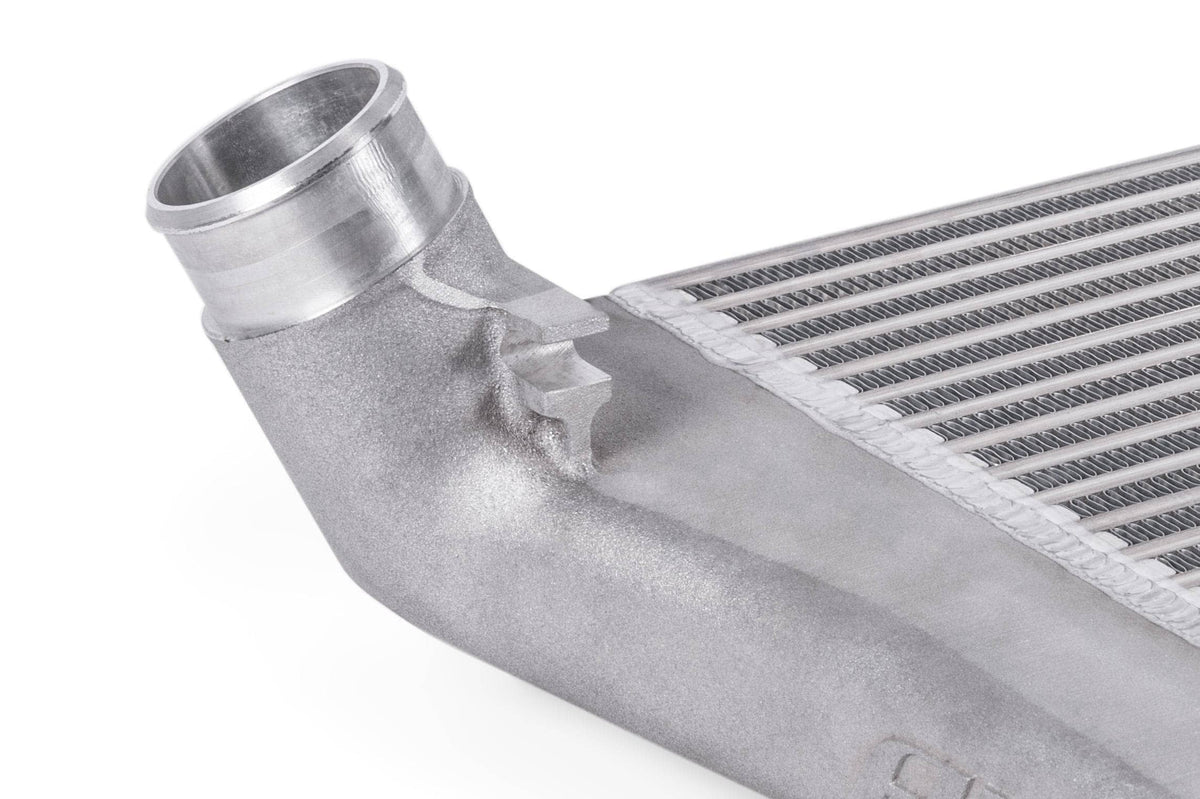

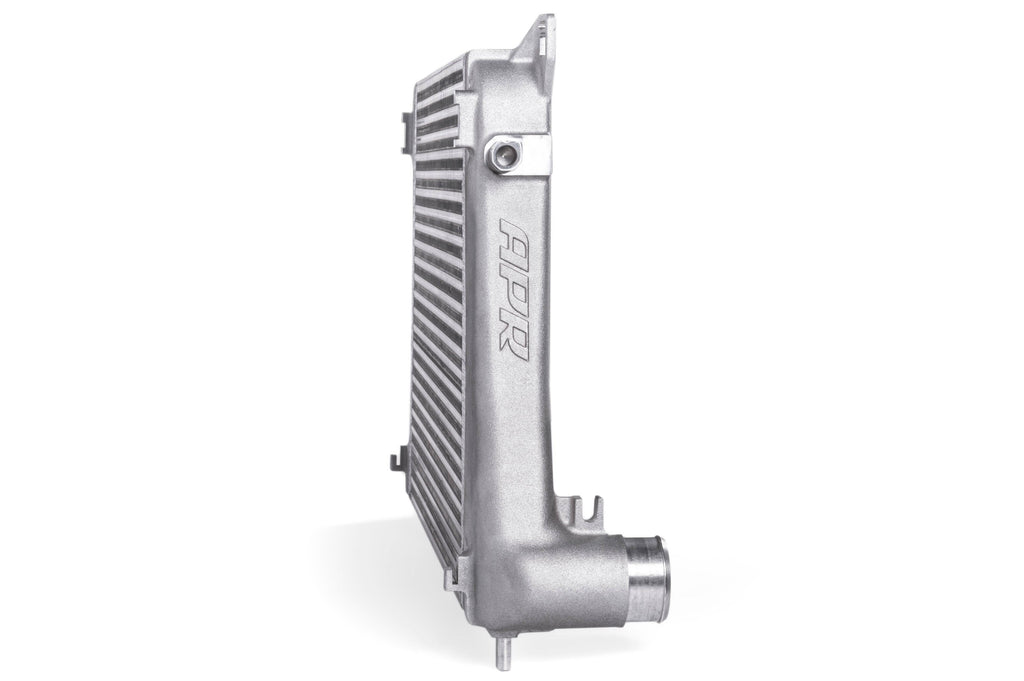

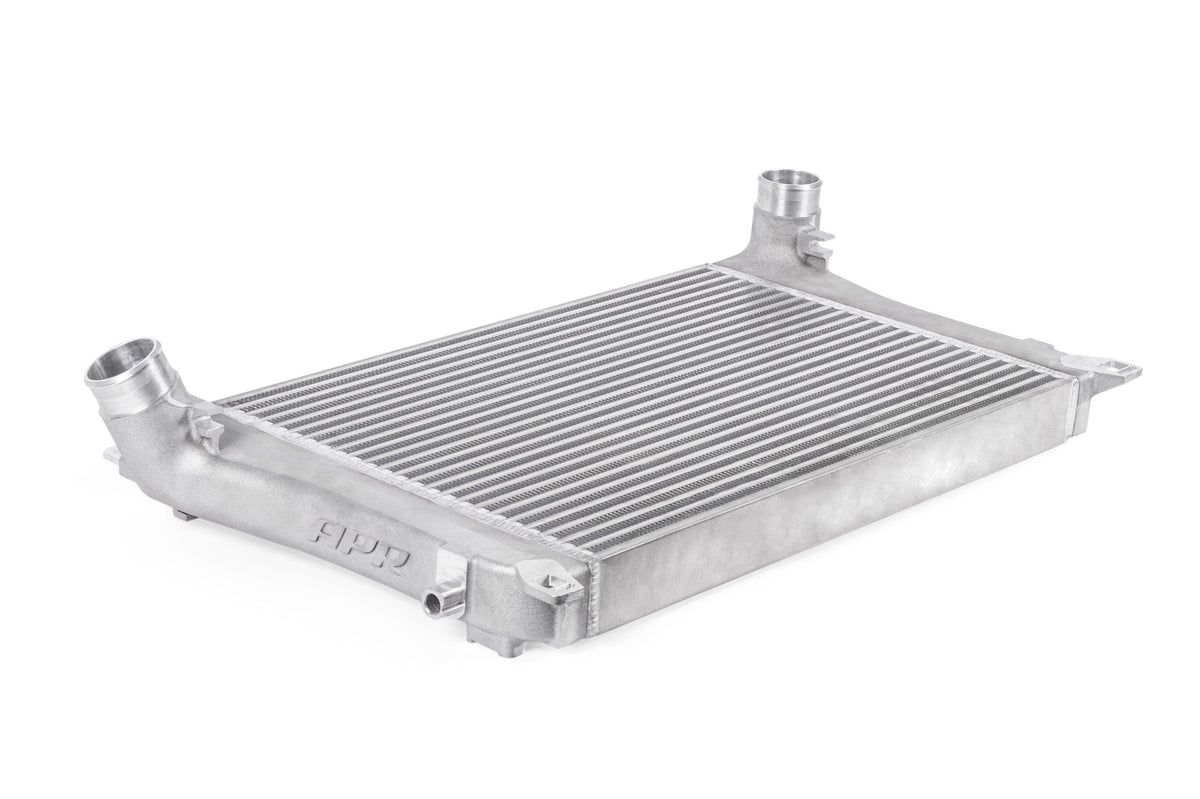

- Smooth cast end tanks

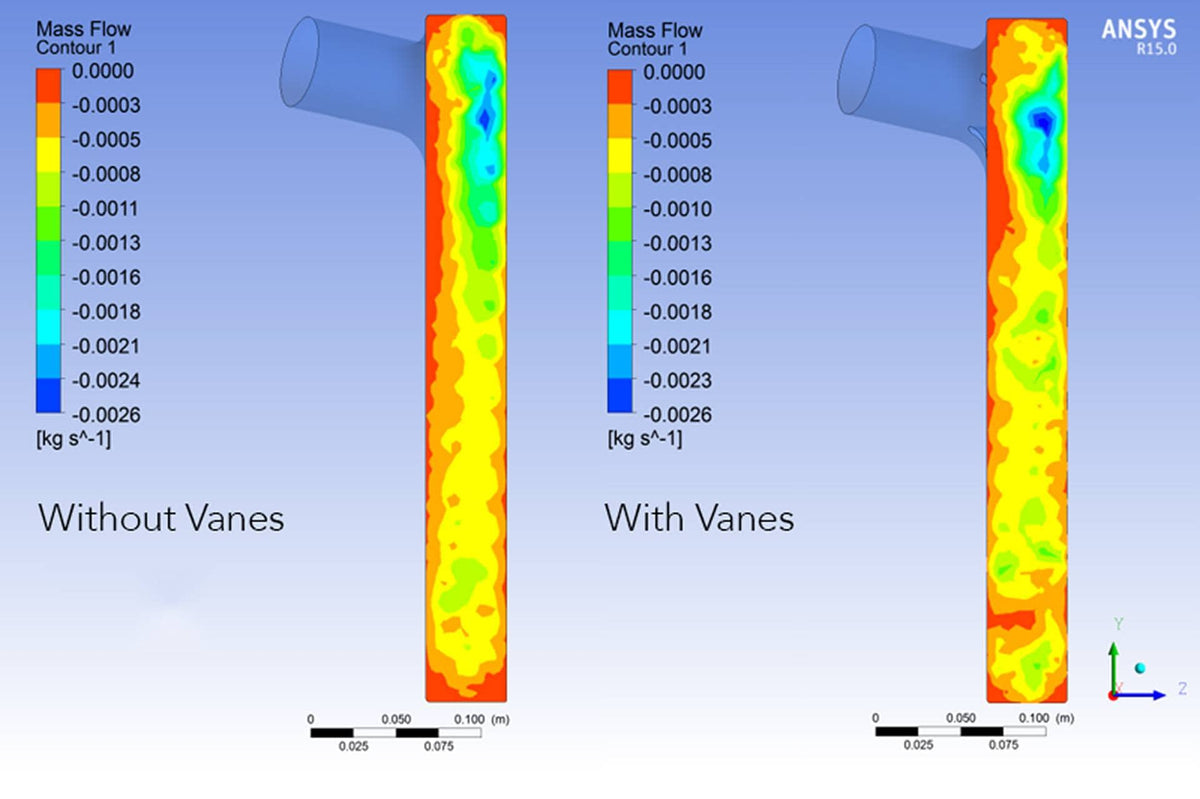

- -- Engineered for low turbulence/restriction and maximum flow.
- -- Organically shaped to promote airflow across entire core.
- -- Pressure tested to prevent power robbing boost leaks.
- -- No hidden labor costs or permanent modifications
- No trimming, cutting, or other costly modification required.
- -- No modification to the Adaptive Cruise Control System required.
- -- Full directions and APR world-renowned customer support included.
- Designed by engineers with lasers
- -- With the best equipment and smartest engineers, it just works!
Specifications
| Brand | APR |
|---|---|
| Category | Belts and Cooling |
| Color | Silver / Natural |
| Cooler Type | Air to Air |
| Core Frontal Area | 390.00 SI |
| Core Height | 16.25 IN |
| Core Type | Bar and Plate |
| Core Volume | 877.50 CI |
| Core Width | 2.25, 24 IN |
| Direct Fit | Yes |
| Emission Code | 7 |
| End tank Construction | Cast |
| End tank Material | 356-F Aluminum |
| Product Type | Intercooler Systems |
| Sub Category | Radiators, Coolers and Related Components |
| Version | 6 Speed Manual / 7 Speed DSG/Stronic |
| Welding Type | TIG |
| UPC | 810904030658 |
| Part Number | IC100019 |
Emissions
7
This part is legal under the provisions of EPA’s Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.
Tech Resources
Vehicle Applications
- 2015–2015 Audi A3 — 2.0L; United States
- 2016–2020 Audi A3 (8V) — 2.0L; United States
- 2022–2024 Audi A3 (8Y) — 2.0L; United States
- 2016–2023 Audi TTS (8S, FV) — 2.0L; United States
- 2015–2015 Audi A3 — 1.8L; United States
- 2016–2016 Audi A3 (8V) — 1.8L; United States
- 2017–2020 Audi A3 (8V) — 2.0L; United States
- 2015–2015 Audi S3 — 2.0L; United States
- 2016–2020 Audi S3 (8V) — 2.0L; United States
- 2022–2024 Audi S3 (8Y) — 2.0L; United States
- 2016–2023 Audi TT (8S, FV) — 2.0L; United States
- 2015–2015 Volkswagen Golf SportWagen — 1.8L; United States
- 2016–2019 Volkswagen Golf SportWagen (5G, MQB) — 1.8L; United States
- 2015–2015 Volkswagen Golf R — 2.0L; United States
- 2016–2019 Volkswagen Golf R (5G, MQB) — 2.0L; United States
- 2022–2024 Volkswagen Golf R (CD, MQB-EVO, Mk8) — 2.0L; United States
- 2017–2019 Volkswagen Golf Alltrack (5G, MQB) — 1.8L; United States
- 2022–2023 Volkswagen Arteon (3H, MQB) — 2.0L; United States
- 2015–2015 Volkswagen Golf GTI — 2.0L; United States
- 2016–2021 Volkswagen Golf GTI (5G, MQB) — 2.0L; United States
- 2022–2024 Volkswagen Golf GTI (CD, MQB-EVO, Mk8) — 2.0L; United States
- 2019–2019 Volkswagen Jetta — 2.0L; United States
- 2021–2024 Volkswagen Jetta — 2.0L; United States
- 2020–2020 Volkswagen Jetta (A7, BU, MQB) — 2.0L; United States
- 2015–2015 Volkswagen Golf — 1.8L; United States
- 2016–2018 Volkswagen Golf (5G, MQB) — 1.8L; United States
Fitment Requirements
Instructions - ic100019_20t_mqb.pdf
