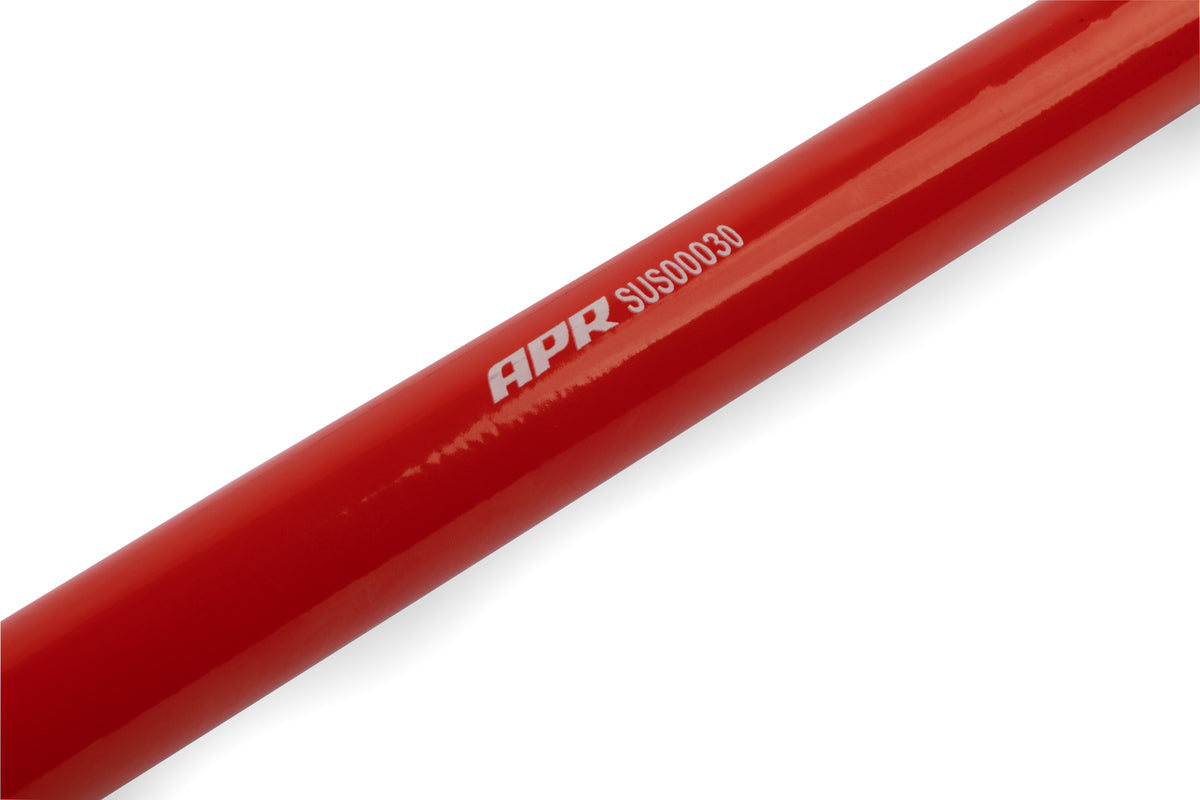

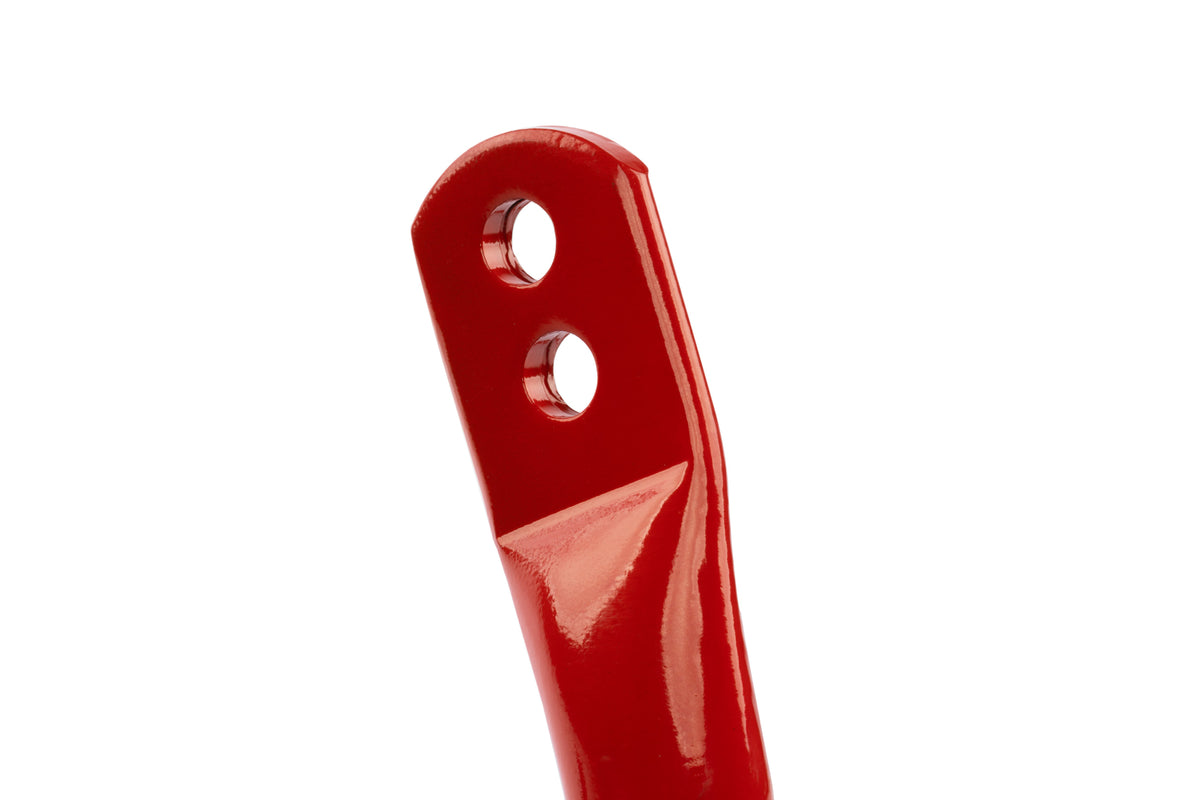

APR Roll-Control Sway Bar - Front - (AWD MQB/MQB EVO)
$318.95
APR Roll-Control Sway Bar - Front - (AWD MQB/MQB EVO)
Regular price
$318.95
Regular price
Sale price
$318.95
Unit price
per
APR Roll-Control Sway Bar - Front - (AWD MQB/MQB EVO)
$318.95
APR Part Number: SUS00030
Fits Audi A3 Quattro 15-25, S3 15-25, RS3 17-25, TT Quattro 16-23, TTS Quattro 16-23, TT RS Quattro 18-22; Volkswagen Golf Alltrack 17-19, Golf R 15-25, Golf SportWagen 17-19; AWD.
Overview
APR Roll-Control Sway Bars are engineered to significantly improve cornering performance by reducing vehicle body roll without greatly impacting comfort. Drivers who enjoy a more spirited driving style often encounter excessive body roll, which negatively impacts handling. During cornering, the vehicle’s body leans to the opposite side, shifting weight primarily to the outside tires. This uneven distribution reduces grip on the inner tires, resulting in decreased overall traction and stability.
Our solution? APR Sway Bars are fine-tuned with an optimized spring rate achieved through increased bar diameter and strategic placement of end-link mounting points forged from a single bar. Additionally, we upgrade the bushings to high-performance polyurethane, eliminating bar movement and compression during hard turns, ensuring consistent and enhanced performance.
APR Sway Bars are designed as a direct replacement for your factory-installed bars. Simply swap out the original bars with our upgraded sway bars to experience improved handling immediately. Whether referred to as stabilizer bars, anti-roll bars (ARB), or sway bars (FSB/RSB), APR’s bars deliver superior cornering control and driving confidence.
Getting Technical:
APR Sway Bars are constructed from high-tensile strength steel, known for its excellent durability properties. To reduce weight without compromising strength, these bars are hollow. Each bar is precision CNC-bent from a single piece of bar stock, eliminating welds and significantly reducing the risk of failure compared to traditional manufacturing methods. The bar ends are forged into shape and then quench-hardened in specialized fixtures to achieve the highest strength profile possible, and then dimensionally confirmed in final check fixtures. Lastly, each sway bar is coated with a corrosion-resistant red powder coat, offering both durability and a sleek appearance.
On this particular model, we’ve increased the bar diameter to 28 mm, with a 4.5 mm wall thickness, an upgrade from the factory’s 24.3x4.1mm (MK7 R/8Y RS3) and 25.4x4.4m (MK8 R) size. This enhancement results in a spring rate of 339/388 lbs/in delivering a 65%/88% and 57%/80% increase over the factory MK7/MK8 Golf R bars. These changes translate to significantly improved handling, reduced body roll, and a more responsive driving experience.
Optimize your vehicle’s performance with APR’s precision-engineered sway bars for superior strength and reliability.
Features:
- Enhanced Cornering Performance: Reduces vehicle body roll, improving balance and stability during sharp turns.
- Comfort Retained: Optimized for spirited driving without sacrificing daily comfort, offering the perfect blend of performance and ride quality.
- Improved Weight Distribution: Minimizes the shift of weight to outer tires, increasing grip and traction on inner tires during cornering.
- High-Tensile Strength Steel: Constructed from extremely durable materials designed for demanding conditions, ensuring long-lasting performance.
- Hollow Bar Design: Reduces weight without compromising strength, enhancing overall vehicle performance.
- CNC-Bent Precision: Manufactured from a single bar of steel with no welds, increasing reliability and minimizing the risk of failure.
- Forge-Pressed and Quench-Hardened: Bar ends are forge-pressed and heat-treated to achieve maximum strength and durability.
- Corrosion-Resistant Finish: Coated with an anti-corrosive red powder coat, ensuring longevity and a sleek, polished appearance.
- Increased Bar Diameter: Upgraded to a larger diameter with enhanced wall thickness for improved stiffness and roll resistance.
- Adjustable Spring Rate: Offers multiple stiffness settings to customize handling, with substantial increases over the factory sway bars.
- Direct Replacement: Easy, plug-and-play installation without the need for modifications.
Specifications
| Adjustability Sittings | 2 |
|---|---|
| Adjustable | Yes |
| Bar Type | Hollow |
| Brand | APR |
| Bushing Material | Polyurethane |
| Bushing(s) Included | Yes |
| Category | Suspension |
| Color | Red |
| Diameter | 28 MM |
| Drivetrain | Front Wheel Drive |
| Emission Code | 5 |
| Location | Front |
| Mounting Hardware Included | Yes |
| Platform | MQB/MQB EVO |
| Product Type | Suspension Systems (Stabilizer Bars) |
| Rear Differential | Front Bar - N/A |
| Spring Rate (APR) | 339 LBS/in (oft) / 388 LBS/in (Stiff) |
| Spring Rate (OEM) | 206 LBS/in (MK7 R/8Y RS3) / 216 LBS/in (MK8 R) |
| Spring Rate Increase | 65%/88% (MK7 R/8Y RS3), 57%/80% (MK8 R) |
| Stock Bar Dimensions | 24.3x4.1mm (MK7 R/8Y RS3), 25.4x4.4mm (MK8 R) |
| Sub Category | Suspension, Springs and Related Components |
| Version | Front - AWD |
| Wall Thickness | 4.5 MM |
| UPC | 810009935599 |
| Part Number | SUS00030 |
Emissions
5
This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
Tech Resources
Please Note: Designed for All wheel drive (AWD) vehicles.
Vehicle Applications
- 2015–2015 Audi A3; United States
- 2016–2020 Audi A3 (8V); United States
- 2022–2025 Audi A3 (8Y); United States
- 2017–2020 Audi RS 3 (8V); United States
- 2022–2025 Audi RS 3 (8Y); United States
- 2016–2023 Audi TTS (8S, FV); United States
- 2018–2022 Audi TT RS (8S, FV); United States
- 2015–2015 Audi S3; United States
- 2016–2020 Audi S3 (8V); United States
- 2022–2025 Audi S3 (8Y); United States
- 2016–2023 Audi TT (8S, FV); United States
- 2017–2019 Volkswagen Golf SportWagen (5G, MQB); United States
- 2015–2015 Volkswagen Golf R; United States
- 2016–2019 Volkswagen Golf R (5G, MQB); United States
- 2022–2025 Volkswagen Golf R (CD, MQB-EVO, Mk8); United States
- 2017–2019 Volkswagen Golf Alltrack (5G, MQB); United States
Fitment Requirements
Please Note: Designed for All wheel drive (AWD) vehicles.
Instructions - apr_sway_bar_adjustment_guide.pdf Please Note: Designed for All wheel drive (AWD) vehicles.
