APR Part Number: MS100106

Fits Audi A3 06-13, A3 Quattro 09-13, Q3 15-18, Q3 Quattro 15-18, TT 08-09, TT Quattro 09-15, TTS Quattro 09-15; VW Beetle 12-19, CC 09-17, Eos 07-16, Golf 10-14, Golf R 12-13, GTI 06-14, Jetta 06-18, Passat 06-10

Overview

Features:

• Reduces transmission movement
• By removing the factory rubber bushing, the APR system reduces slop in the driveline to improve shifts, and transmission of power to the ground.
• Expect a sportier feel during acceleration, deceleration and gear changes without an excessive increase in NVH when paired with the factory sub-frame mount.
• Reduces transmission failure
• The factory rear mounting point was upgraded to the new MQB / MK7 platform style mount as the older design was prone to failure under heavy use.
• Because of the new design's mounting orientation, the system is far less likely to tear out or break the rear bolts, which typically results in costly repairs or full transmission case replacement.
• Spherical bearing
• Spherical bearings offer far less unwanted movement over rubber and polyurethane inserts.
• As such, the APR mount uses a spherical bearing, made possible by upgrading the rear mounting hardware.
• The bearing is fully-serviceable, features a heat-treated race and precision-ground ball, with a self-sealing and self-lubricating PTFE lining.

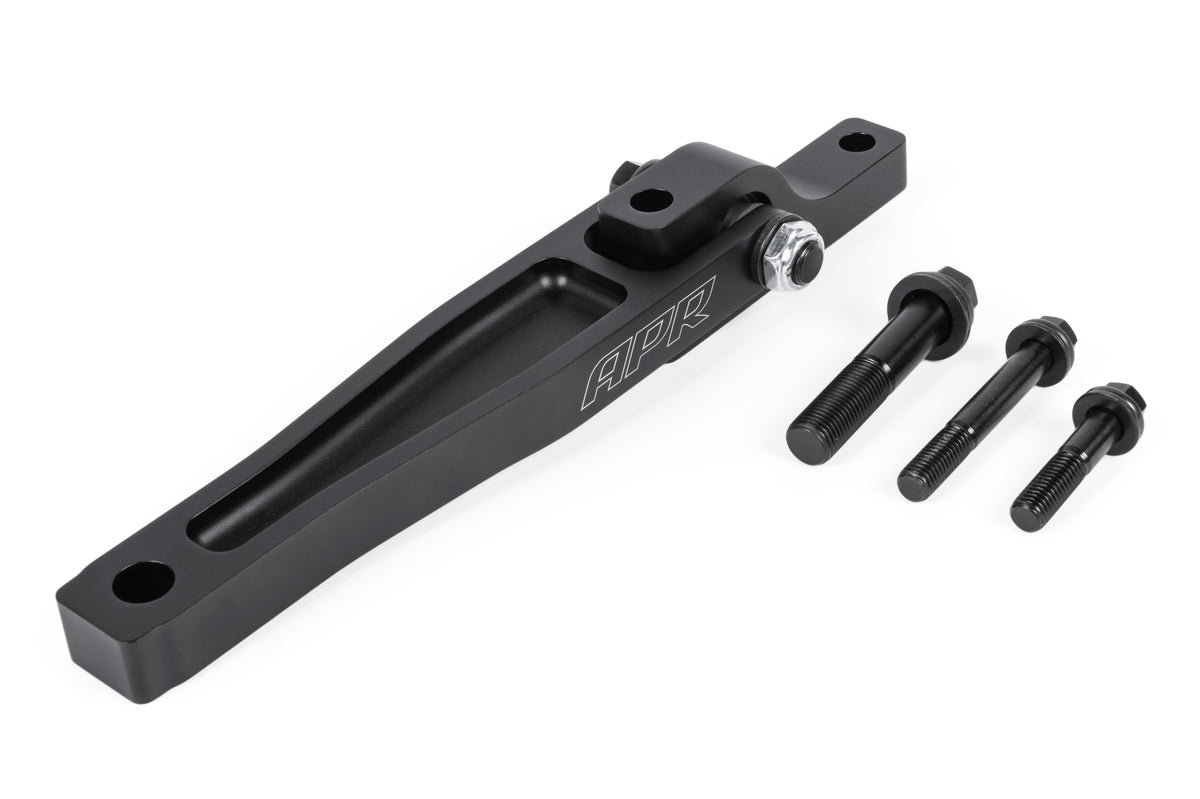

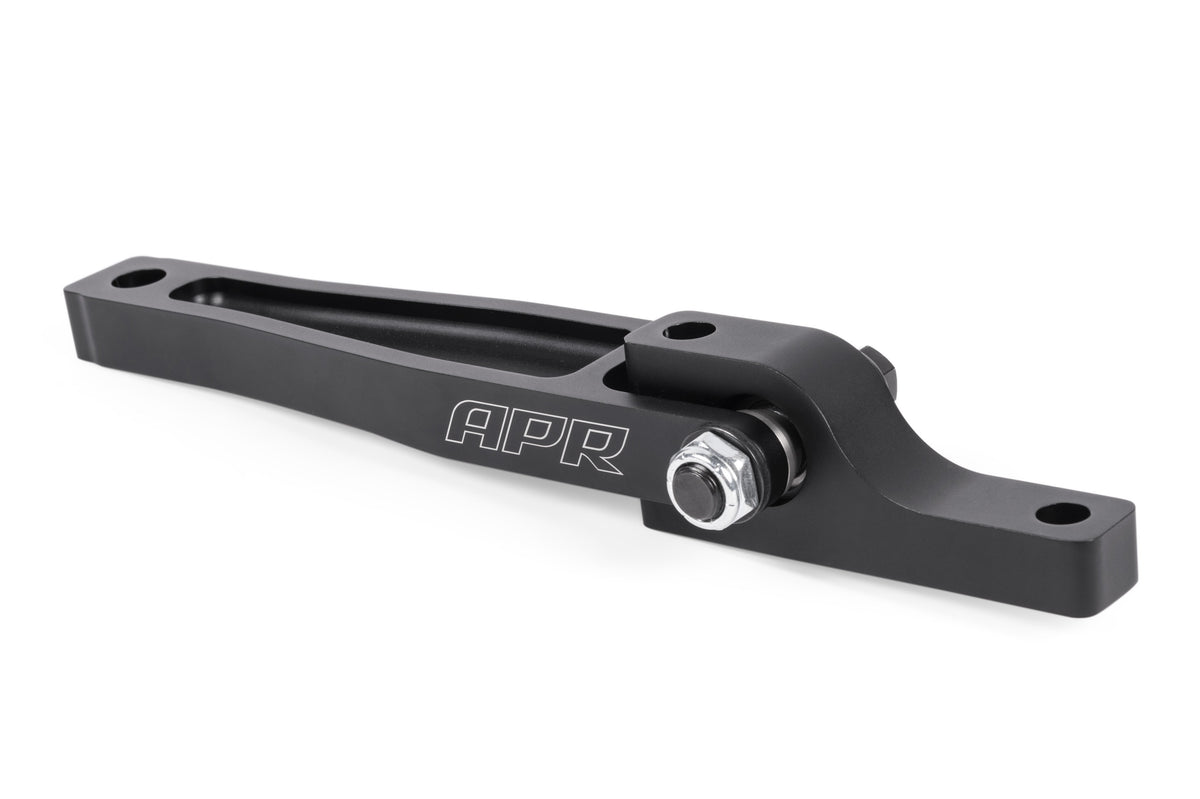

• Billet aluminum construction
• The front and rear pieces replace the factory cast aluminum and stamped steel pieces with precisely machined, billet-aluminum pieces that are both lightweight and strong.
• Each piece is anodized black to provide corrosion resistance and the APR logo is laser etched on each side.

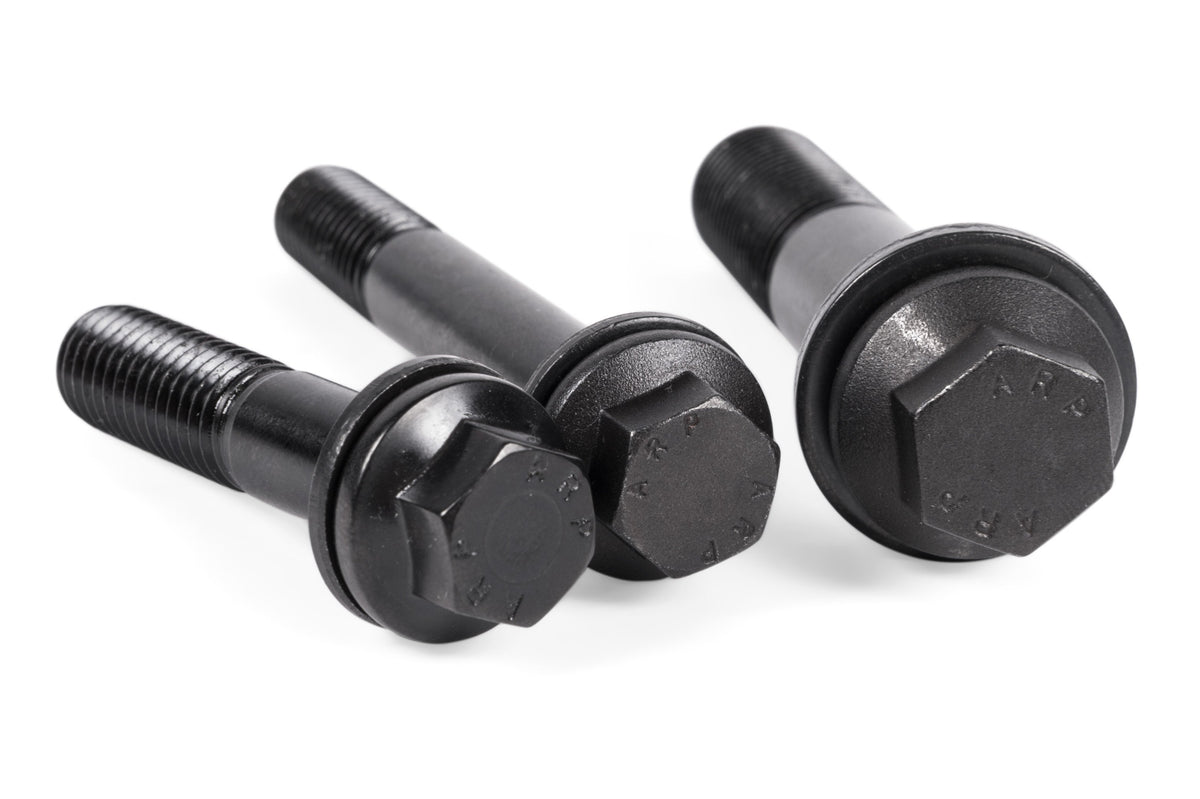

• Replacement Bolts
• The factory bolts are one-time-use, and must be replaced when installing a new mount.
• The APR system includes non-one-time-use bolts for their strength, quality and longevity over the factory bolts.
• Easy to install
• The system is easy to install, doesn't require dropping the sub-frame and is compatible with the factory and factory-like modified sub-frame mounts.
• Full install directions are included with each system

Specifications

Tech Resources

Vehicle Applications

• 2015–2015 Audi Q3 — 2.0L; United States
• 2016–2018 Audi Q3 (8U) — 2.0L; United States
• 2009–2013 Audi A3 — 2.0L; United States
• 2009–2015 Audi TTS — 2.0L; United States
• 2006–2013 Audi A3 — 2.0L; United States
• 2008–2009 Audi TT — 2.0L; United States
• 2009–2015 Audi TT — 2.0L; United States
• 2012–2013 Volkswagen Golf R — 2.0L; United States
• 2007–2015 Volkswagen Eos — 2.0L; United States
• 2016–2016 Volkswagen Eos (1F, PQ35) — 2.0L; United States
• 2006–2014 Volkswagen Golf GTI — 2.0L; United States
• 2009–2015 Volkswagen CC — 2.0L; United States
• 2016–2017 Volkswagen CC (3C8, PQ46) — 2.0L; United States
• 2012–2015 Volkswagen Beetle — 2.0L; United States
• 2016–2019 Volkswagen Beetle (5C, PQ35) — 2.0L; United States
• 2014–2015 Volkswagen Beetle — 1.8L; United States
• 2016–2017 Volkswagen Beetle (5C, PQ35) — 1.8L; United States
• 2006–2015 Volkswagen Jetta — 2.0L; United States
• 2016–2018 Volkswagen Jetta (A6, NCS, 16) — 2.0L; United States
• 2010–2014 Volkswagen Golf — 2.0L; United States
• 2010–2014 Volkswagen Golf — 2.5L; United States
• 2006–2010 Volkswagen Passat — 2.0L; United States

Fitment Requirements

Instructions - ms100106_pendulum_mount.pdf
