APR Supercharger Crank Pulley - 3.0 TFSI
Regular price
$349.95
Sale price
$313.95
APR Supercharger Crank Pulley - 3.0 TFSI
Regular price
$313.95
Regular price
$349.95
Sale price
$313.95
Unit price
per
APR Supercharger Crank Pulley - 3.0 TFSI
Regular price
$349.95
Sale price
$313.95
APR Part Number: MS100133
Fits Audi A6 Quattro 09-18, A7 Quattro 12-18, A8 Quattro 13-18, Q5 13-17, Q7 11-15, S4 10-16, S5 10-17, SQ5 14-17​
Overview
APR's Supercharger Drive and Crank Pulley Upgrades dramatically increase horsepower and torque by increasing the rotational speed of the factory supercharger. APR's Stage II Pulley ECU Upgrade makes the necessary engine management adjustments to handle the increased supercharger speeds, and in turn allows the engine to create more power. The pulleys are sold separately, allowing for multiple levels of performance, each of which builds upon the other. Finally, when combined with APR's Ultracharger Throttle Body Upgrade in a dual pulley setup, the system is alleviated of power robbing inlet restrictions, allowing the engine to achieve exciting new levels of performance!

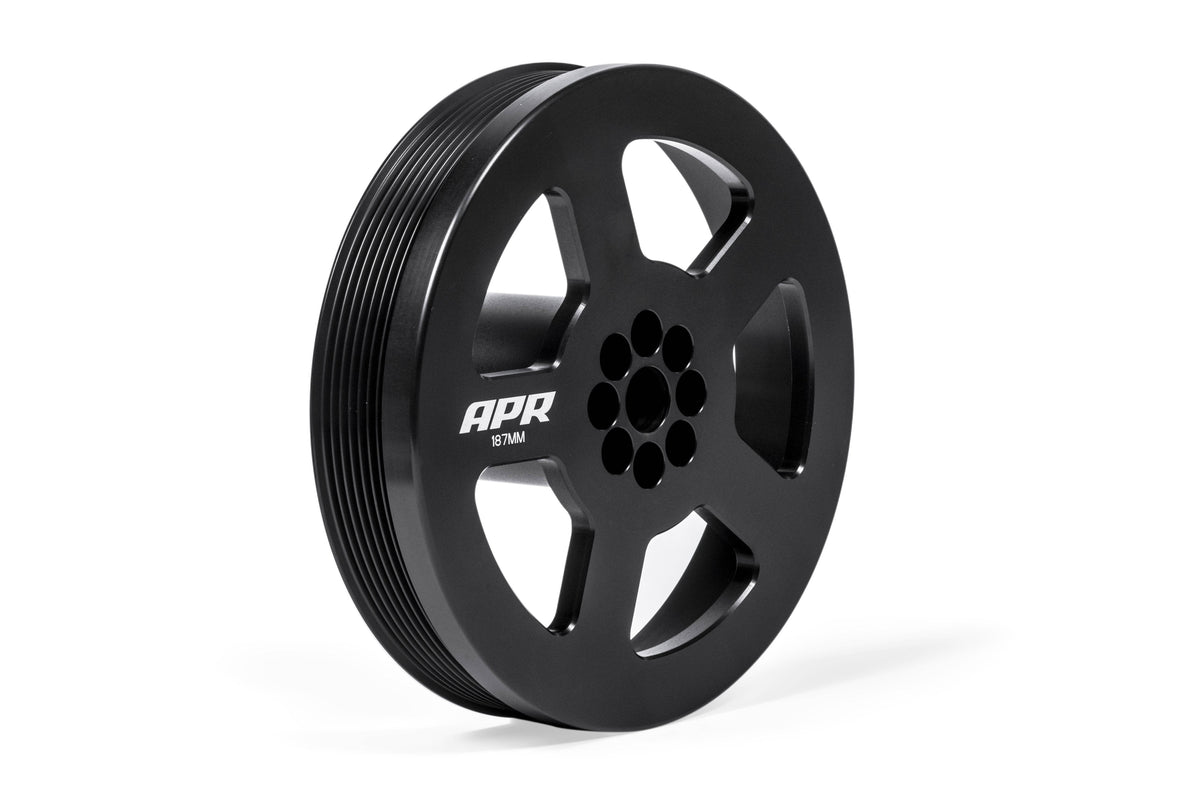

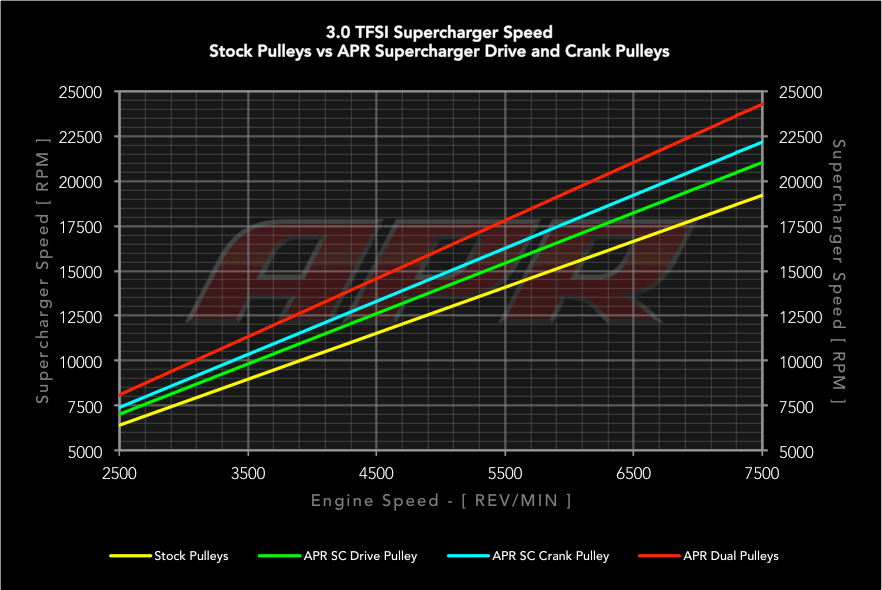

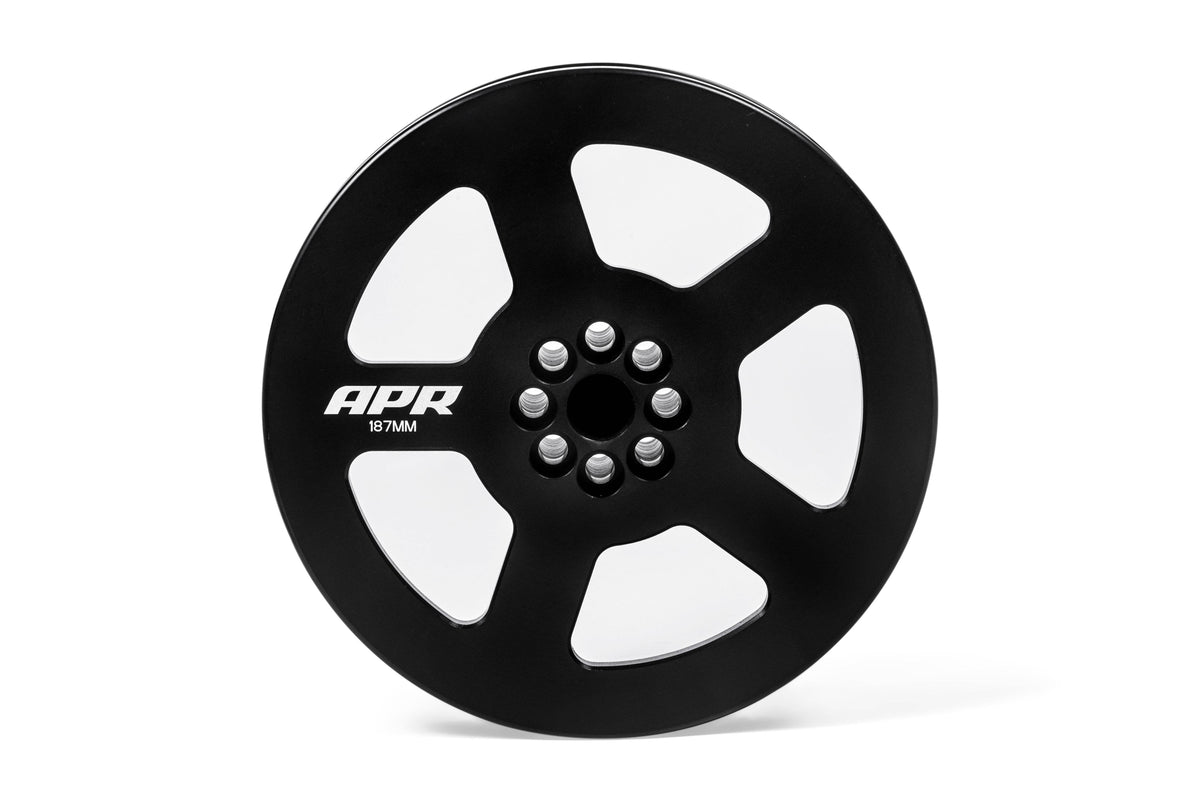

APR's Supercharger Crank Pulley Upgrade increases the diameter of the factory pulley from ~162mm to ~187mm, which in turn spins the supercharger ~15.4% faster. This results in a larger bump in horsepower and torque across the entire RPM range, as the supercharger is spinning at an even higher rate of speed. The pulley retains the factory harmonically balanced crank pulley and bolts on top of the existing unit. It is CNC machined from light weight billet aluminum with weight saving pockets throughout. It has an anodized black finish and includes new crank pulley bolts.
Features:
- Bolt on crank pulley
- Retains harmonic balancer
- Bolt on 187mm crank pulley
- Spins the charger 15.4% faster for massive torque and HP gains with tuning
- Anodized and E-coated factory black
Specifications
| Brand | APR |
|---|---|
| Category | Belts and Cooling |
| Color | Black |
| Construction | Billet |
| Diameter | 57.75 MM |
| Emission Code | 7 |
| Material | 6061 Aluminum |
| Product Type | Pulley Systems |
| Sub Category | Turbocharger, Supercharger and Ram Air |
| Version | Crank Pulley |
| UPC | 810904031273 |
| Part Number | MS100133 |
Emissions
7
This part is legal under the provisions of EPA’s Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.
Tech Resources
Please note, specific software is required to maximize output with this product. A new belt is required. Use part number RS100003 with a factory supercharger drive pulley and part number RS100002 with an APR supercharger drive pulley.
Vehicle Applications
- 2012–2015 Audi A7 — 3.0L; United States
- 2016–2016 Audi A7 (C7.5, 4G8) — 3.0L; United States
- 2017–2018 Audi A7 (C7.5, 4G8) — 3.0L; United States
- 2014–2015 Audi SQ5 — 3.0L; United States
- 2016–2017 Audi SQ5 (8R) — 3.0L; United States
- 2011–2015 Audi Q7 — 3.0L; United States
- 2010–2015 Audi S5 — 3.0L; United States
- 2016–2017 Audi S5 (B8.5, 8T, 8F) — 3.0L; United States
- 2013–2015 Audi Q5 — 3.0L; United States
- 2016–2016 Audi Q5 (8R) — 3.0L; United States
- 2017–2017 Audi Q5 (8R) — 3.0L; United States
- 2010–2015 Audi S4 — 3.0L; United States
- 2016–2016 Audi S4 (B8.5, 8K) — 3.0L; United States
- 2009–2015 Audi A6 — 3.0L; United States
- 2016–2016 Audi A6 (C7.5, 4G) — 3.0L; United States
- 2017–2018 Audi A6 (C7.5, 4G) — 3.0L; United States
- 2013–2015 Audi A8 — 3.0L; United States
- 2016–2016 Audi A8 (D4.5, 4H) — 3.0L; United States
- 2017–2018 Audi A8 (D4.5, 4H) — 3.0L; United States
Fitment Requirements
Please note, specific software is required to maximize output with this product. A new belt is required. Use part number RS100003 with a factory supercharger drive pulley and part number RS100002 with an APR supercharger drive pulley.
Instructions - 30t_crank_pulley_tb_web_tl100095.pdf Please note, specific software is required to maximize output with this product. A new belt is required. Use part number RS100003 with a factory supercharger drive pulley and part number RS100002 with an APR supercharger drive pulley.
