APR Part Number: MS100222
Fits Audi S3 22-24; VW Arteon 22-23, Golf R 22-24
Overview

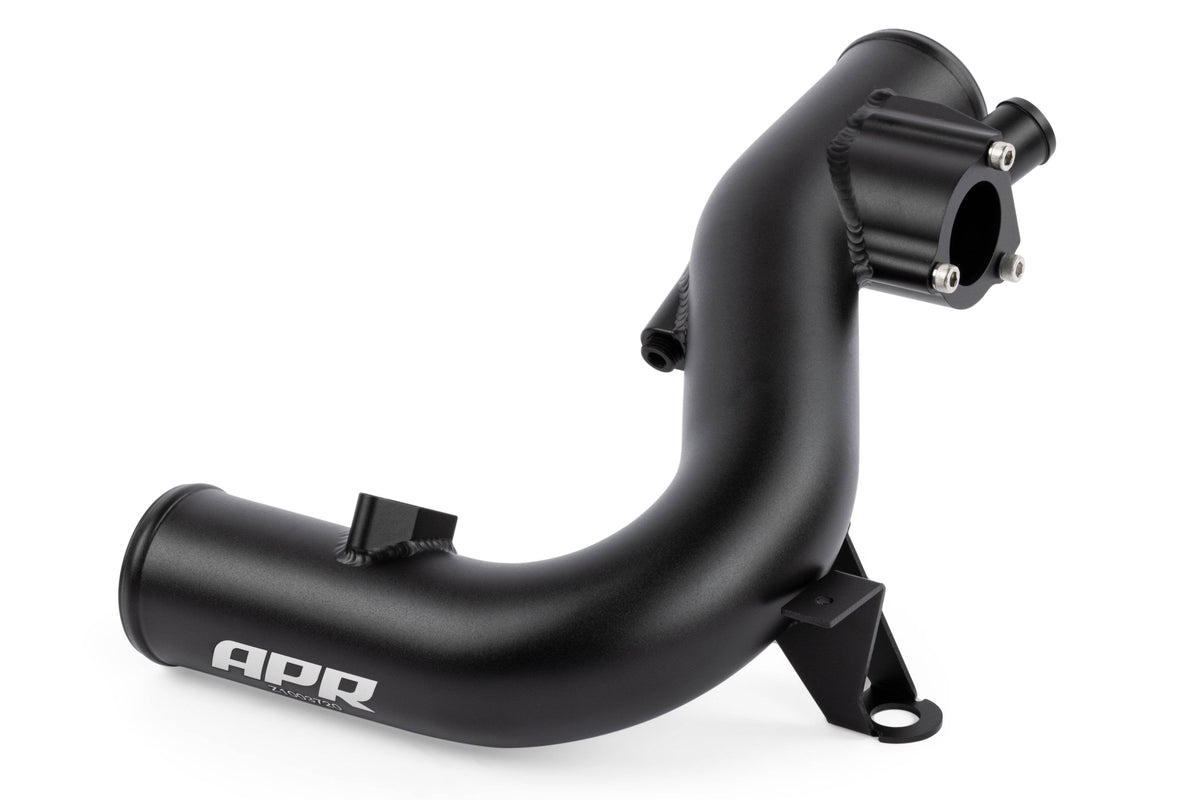

The APR Throttle Body Pipe replaces the factory plastic pipe with a high quality aluminum pipe that's a constant diameter within. We pay close attention to the airflow path and provide as few bends and tight radius turns as possible to maximize performance. Unlike the factory plastic pipes, ours won't melt and crack under extreme conditions, and ours don't contain a failure-prone and resistive internal piece like the factory pipe. The pipe features an additional port which can be used for an additional sensor, water/methanol injection, or however you see fit, and includes an NPT tap to block it off when not in use. The pipe features bead rolled connection points to help resist hose slippage, and all mounting brackets and billet sensor and DV recirculation ports are tig-welded to the pipe for a strong connection. Finally, the pipe is finished in an attractive satin-black finish. This all results in a more reliable setup and increased performance through a smooth and strong uninterrupted airflow path. This pipe is compatible with both OEM and upgraded APR charge hoses.
Features:
- Direct replacement parts
- Increases performance through smooth airflow paths and reduced boost leak points
- Strong aluminum pipes that resist cracking and melting like OEM components

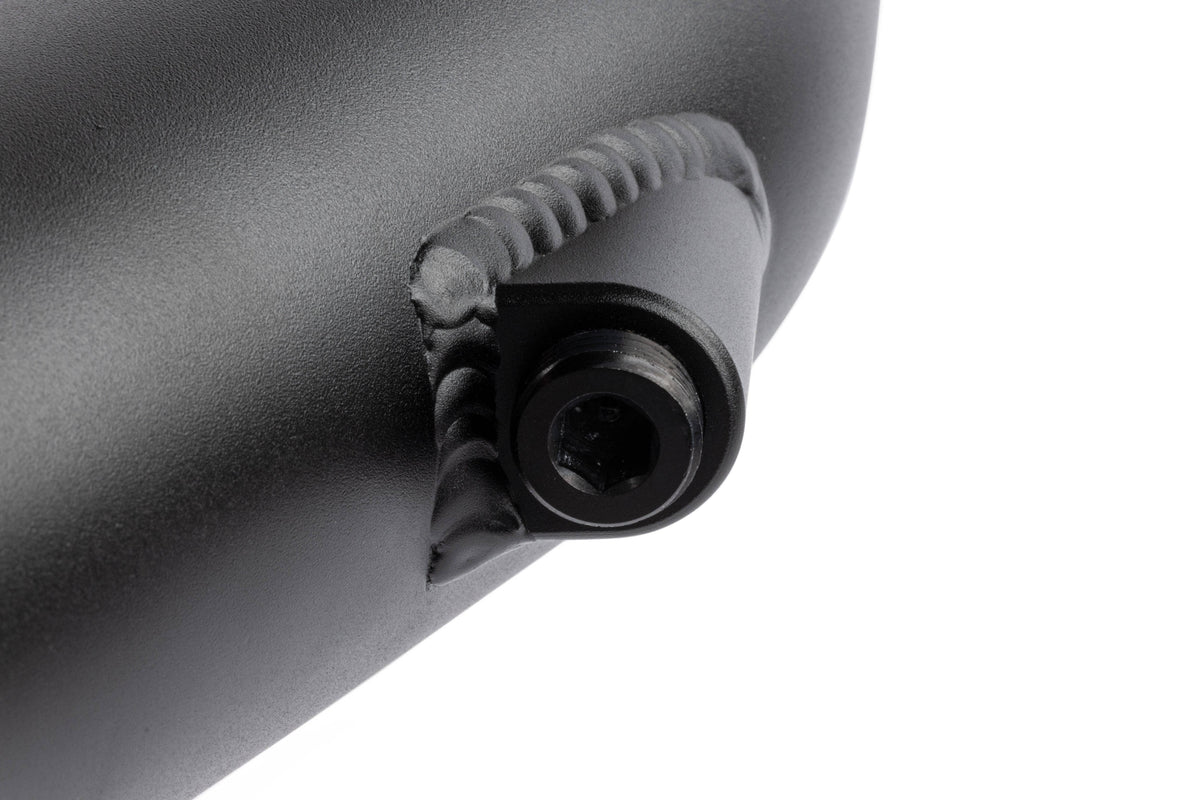

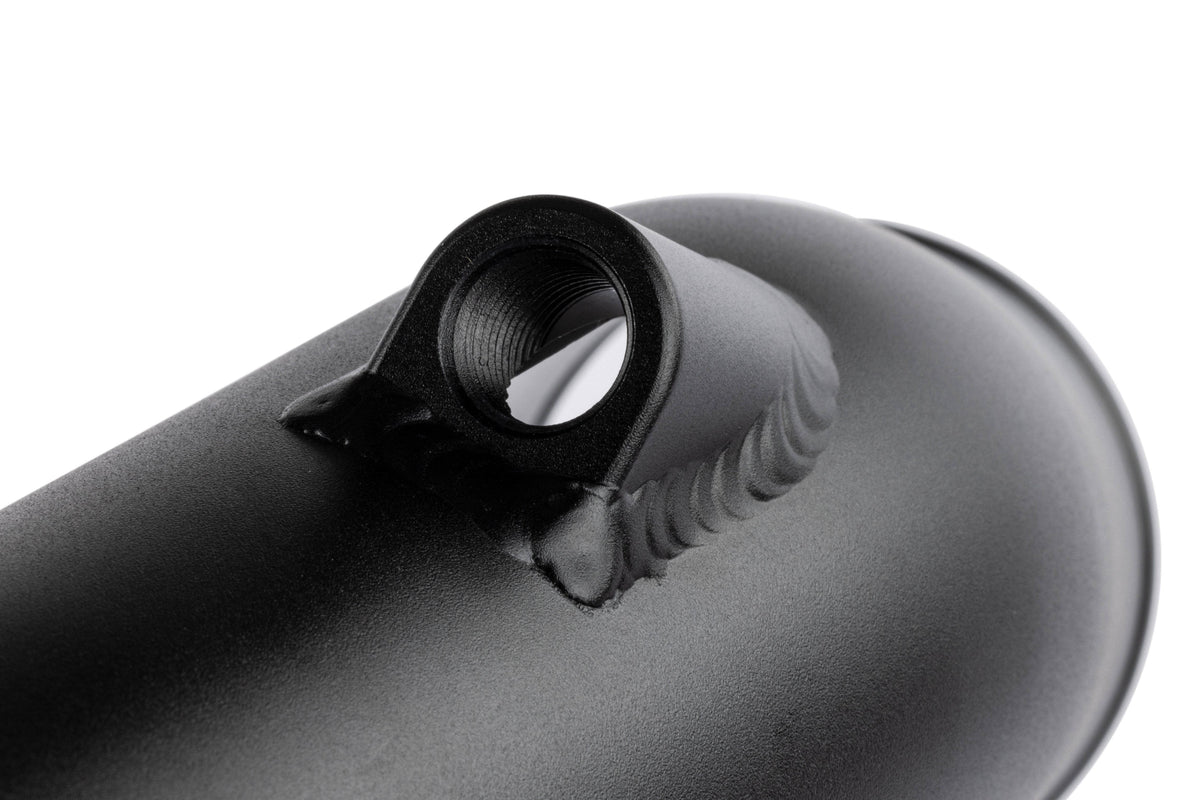

- Billet aluminum meth/sensor bung with NPT tap (TB inlet pipe)

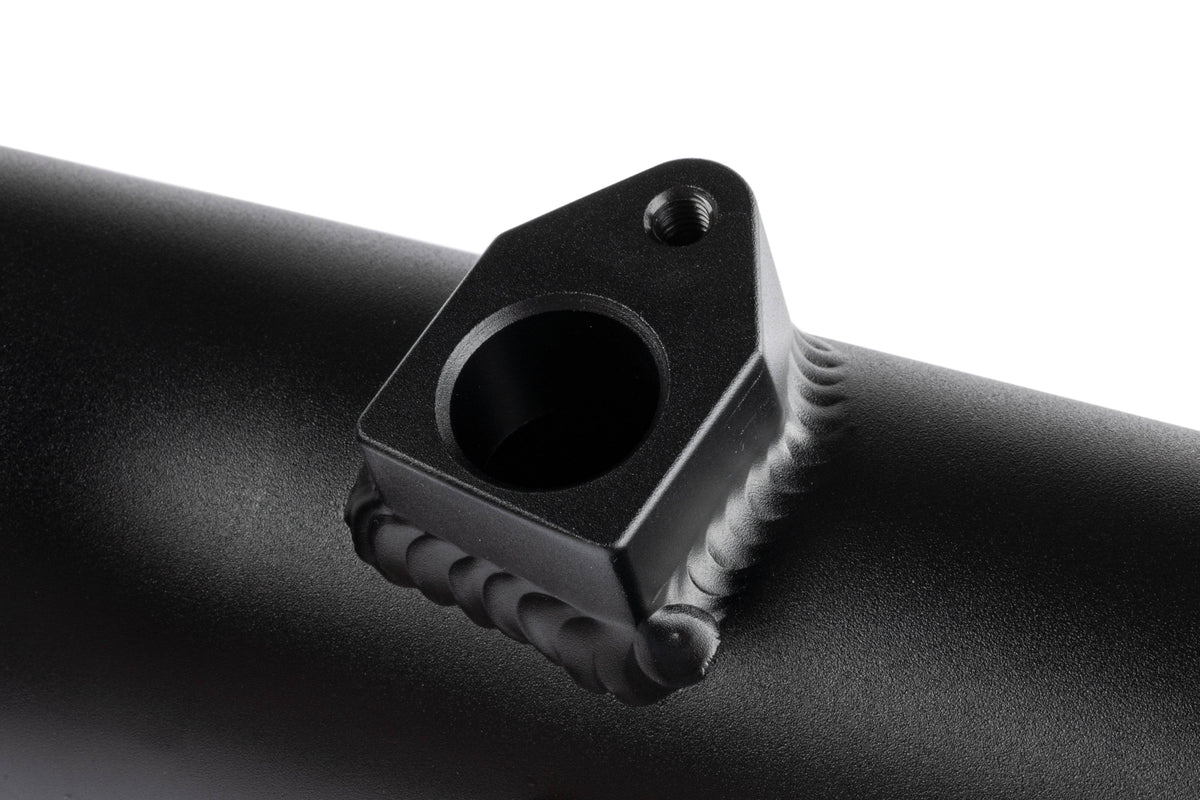

- Billet aluminum MAP sensor bungs (TB inlet pipe)

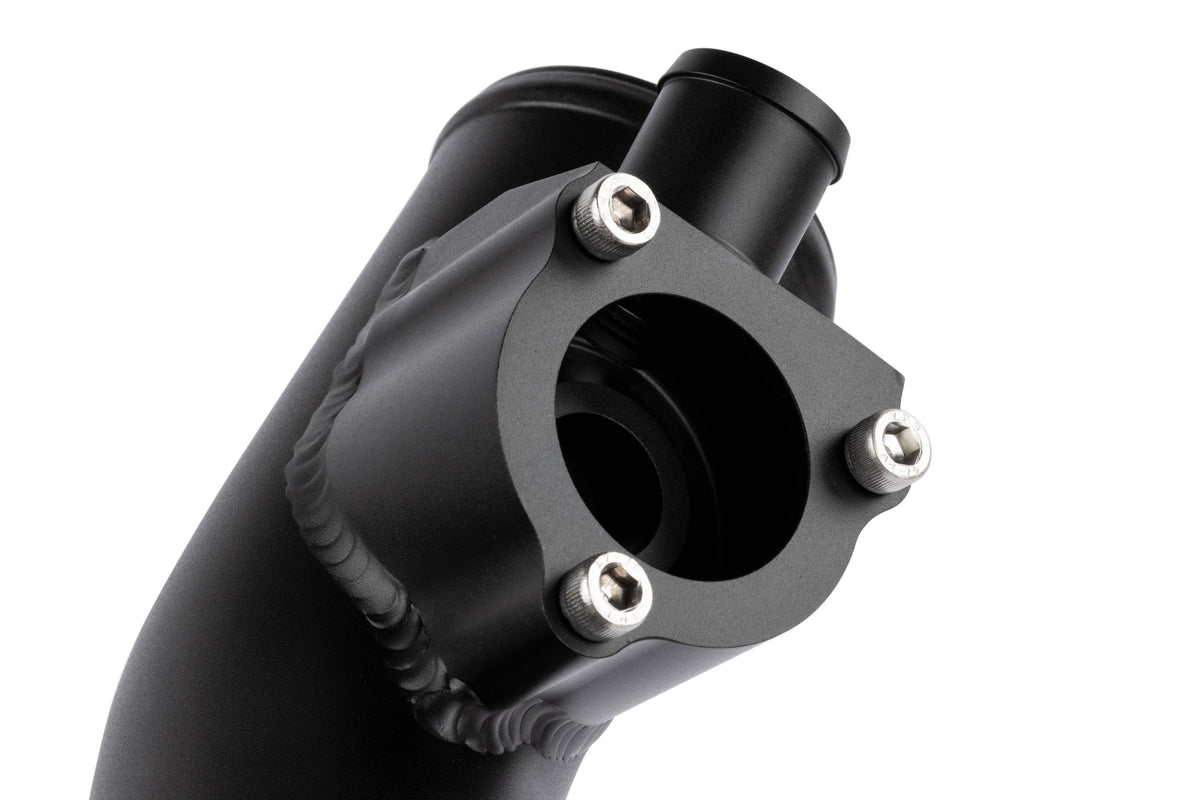

- Billet aluminum DV mount and recirc path (TB inlet pipe)
- Removes the restrictive and failure prone throttle body inlet internals (TB inlet pipe)

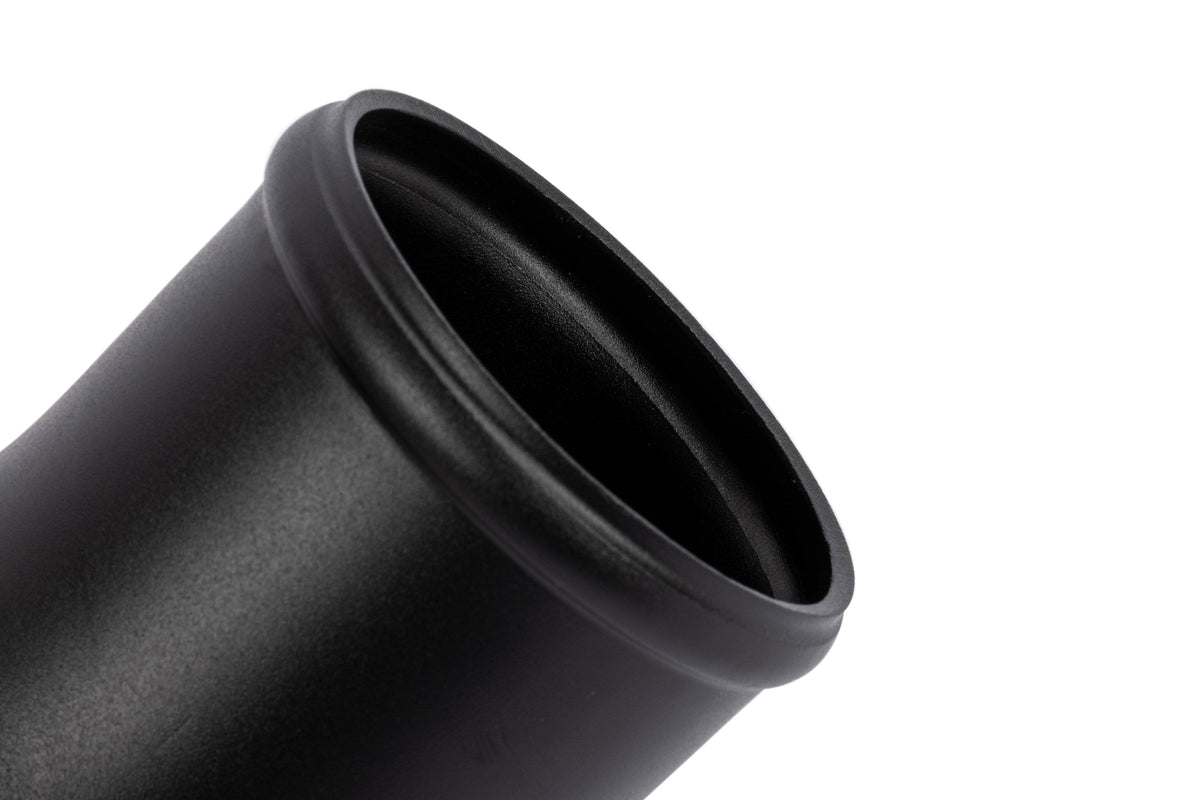

- No-slip bead rolled pipe ends

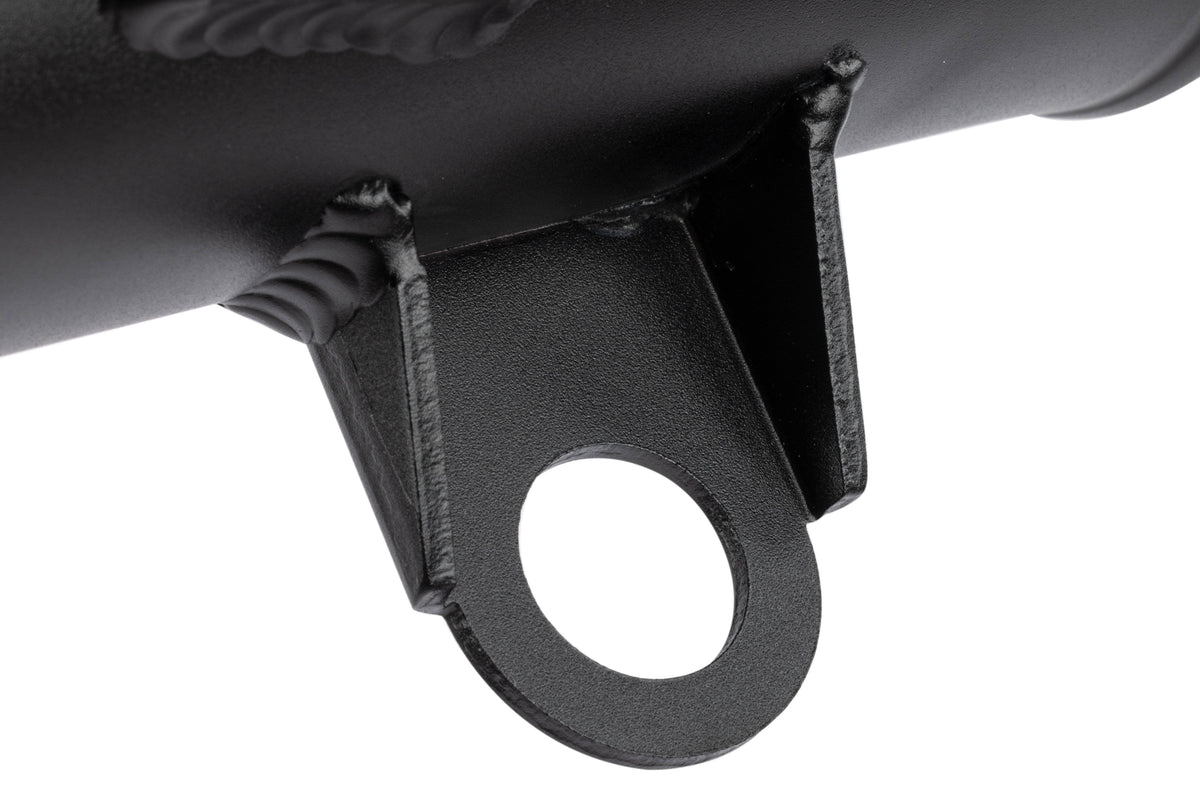

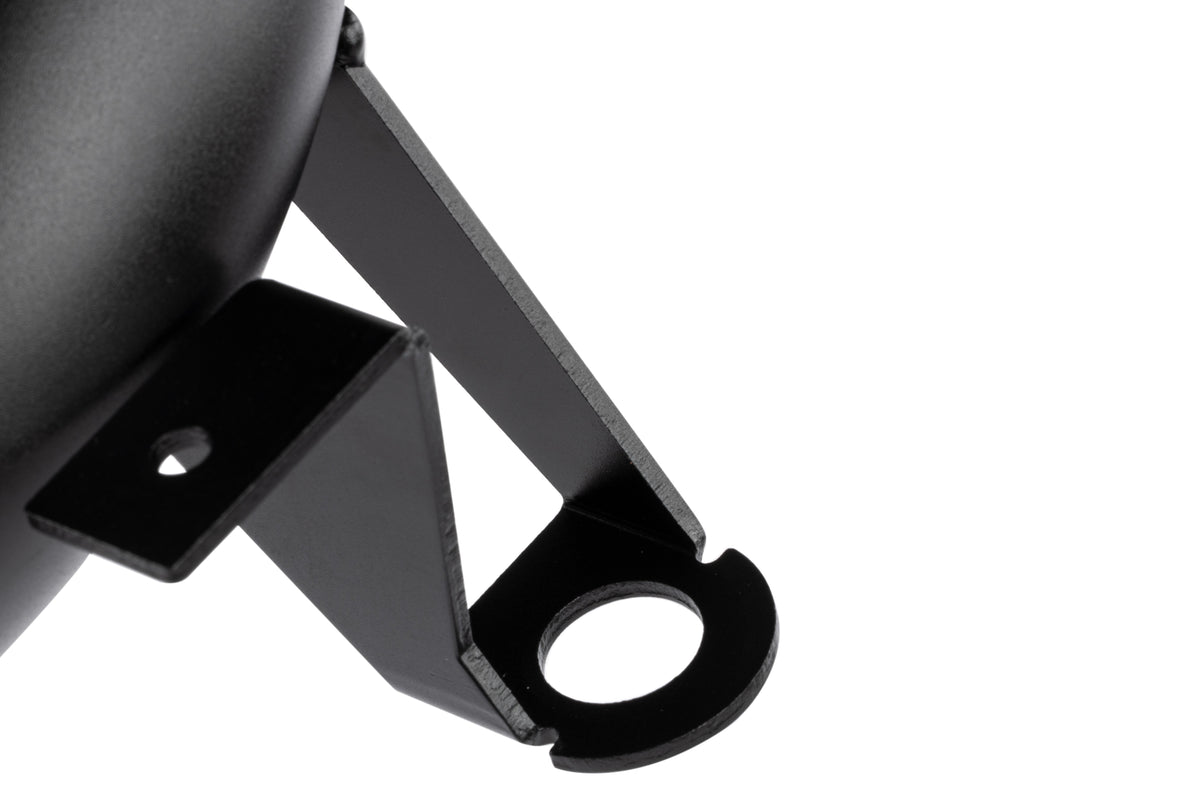

- TIG welded mounting brackets
- Full 60mm setup
- Satin Black Finish
- Emissions Friendly
Specifications
| Brand | APR |
|---|---|
| Category | Belts and Cooling |
| Emission Code | 7 |
| Material | Aluminum |
| Product Type | Charge Air Systems |
| Version | Throttle Body Pipe - R/S3 Platform |
| UPC | 810009933922 |
| Part Number | MS100222 |
Emissions
7
This part is legal under the provisions of EPA’s Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.
Tech Resources
Vehicle Applications
- 2022–2024 Audi S3 (8Y) — 2.0L; United States
- 2022–2024 Volkswagen Golf R (CD, MQB-EVO, Mk8) — 2.0L; United States
- 2022–2023 Volkswagen Arteon (3H, MQB) — 2.0L; United States
Fitment Requirements
Instructions - tl100154_mk8_charge_pipes_web.pdf
