APR Turbo Muffler Delete

APR Turbo Muffler Delete

Vendor: APR
SKU: MS100097
Product type: Charge Air Systems
$115.95 $104.35
Product subtotal: $104.35
APR Turbo Muffler Delete
$104.35
$115.95 $104.35
Version: Turbo Muffler Eliminator
Kies-Motorsports APR APR Turbo Muffler Delete Turbo Muffler Eliminator
APR Turbo Muffler Delete
$115.95 $104.35

APR Part Number: MS100097

Fits 2015-2020 Audi A3 - 2009-2022 Audi A4/A5/A6/A7 - 2013-2016 Audi Allroad - 2019-2024 Audi Q3 - 2011-2022 Audi Q5 - 2017-2022 Audi Q7 - 2015-2020 Audi S3 - 2016-2023 Audi TT/TTS - 2019-2021 VW Arteon - 2018-2023 VW Atlas - 2015-2019 VW Golf - 2015-2021 VW GTI - 2019-2024 VW Jetta - 2017-2021 Porsche Macan

Overview

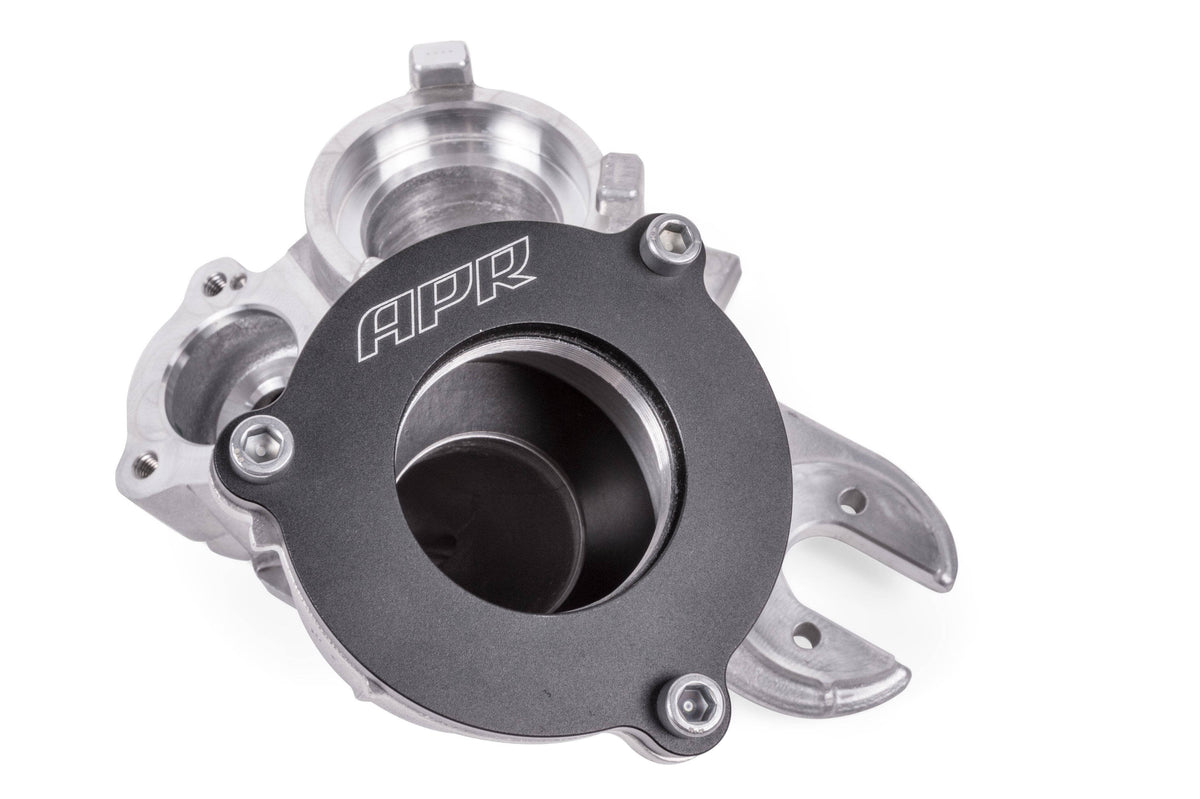

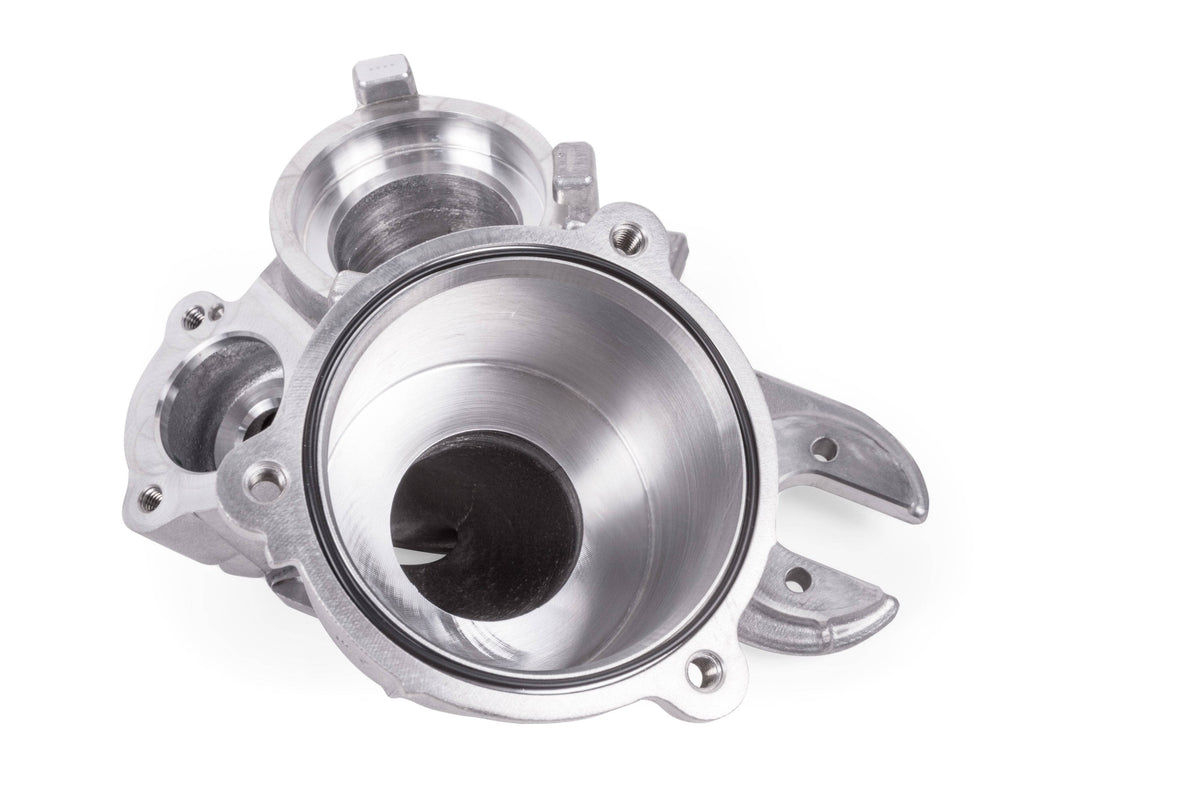

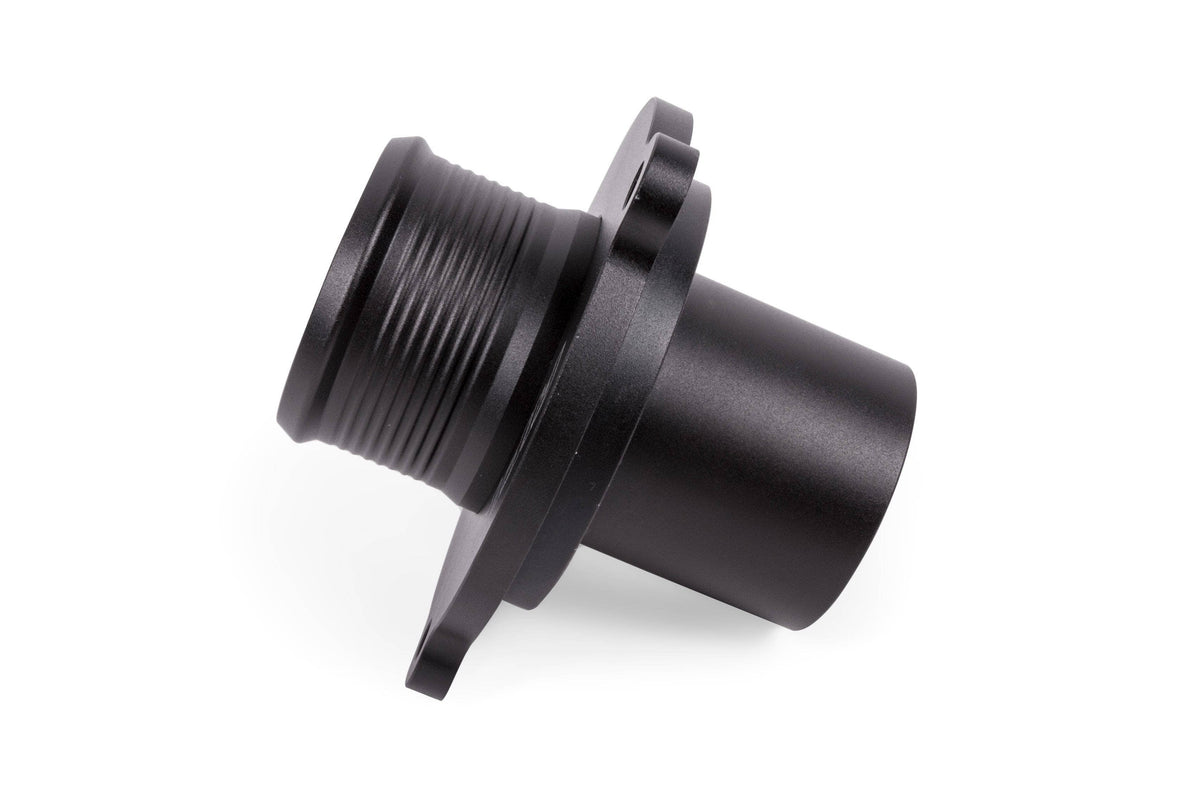

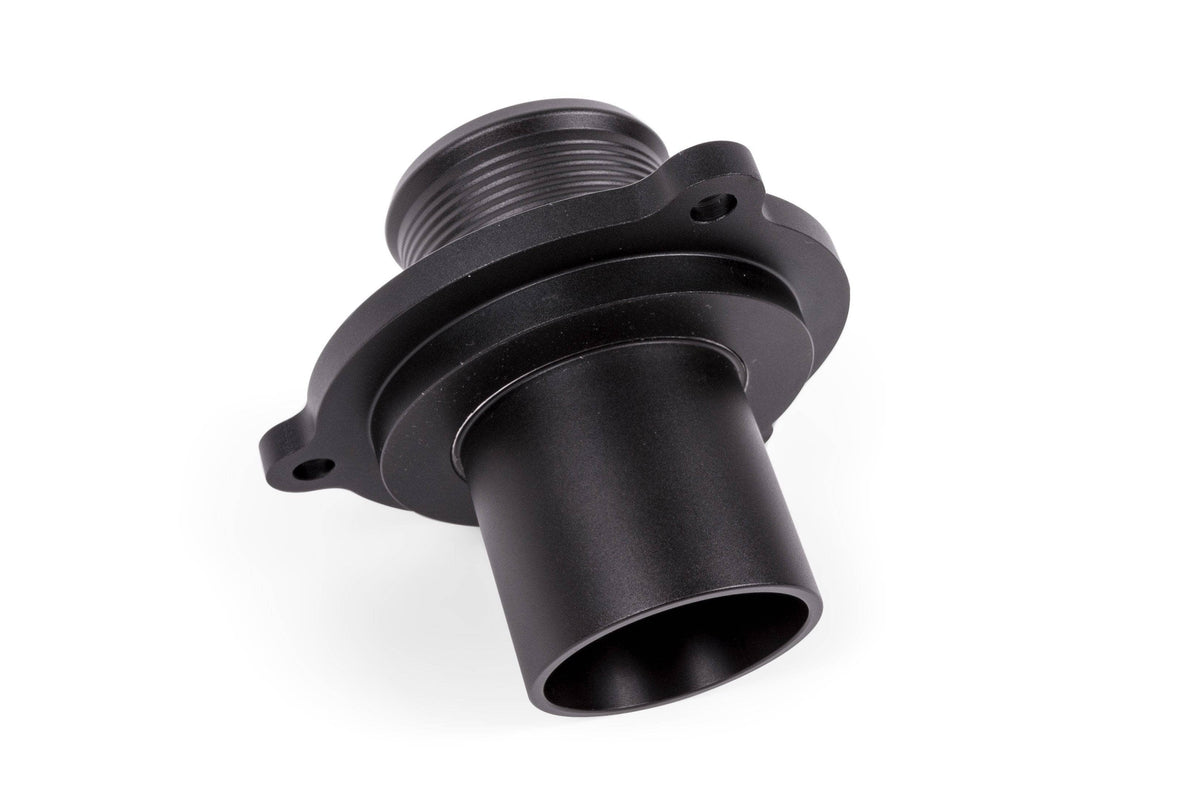

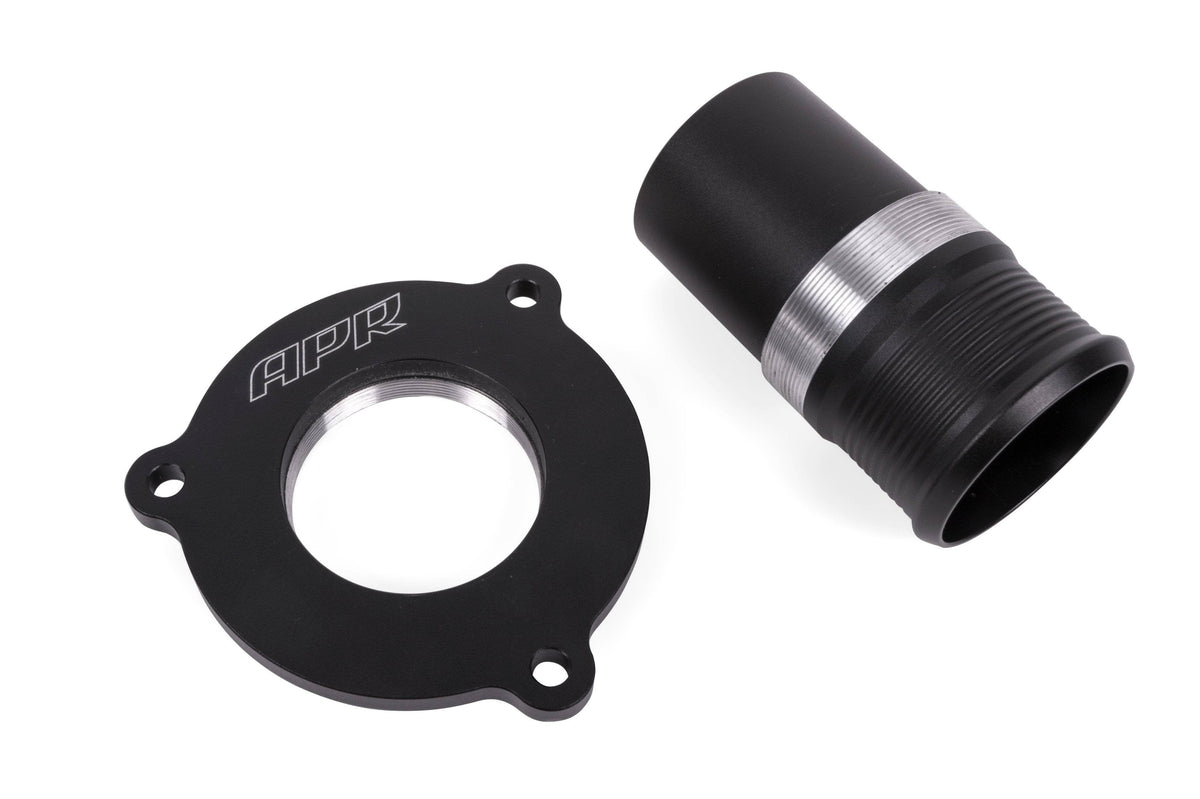

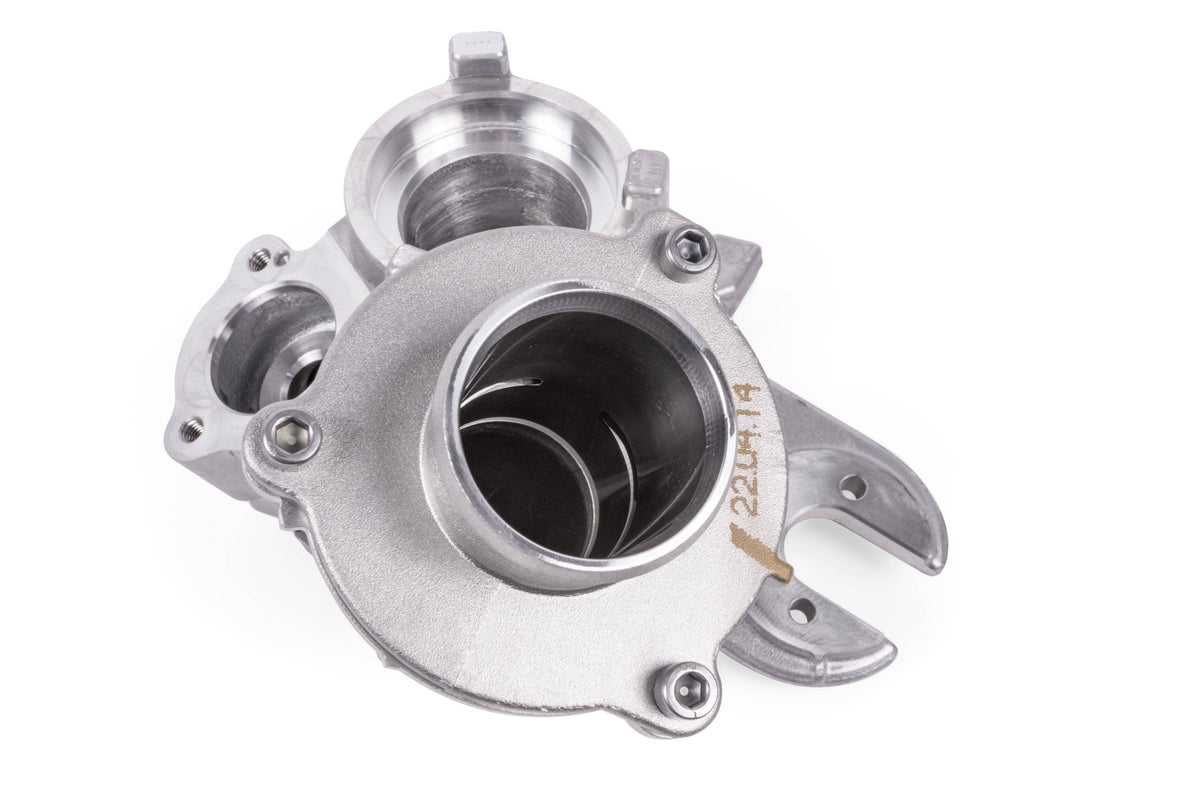

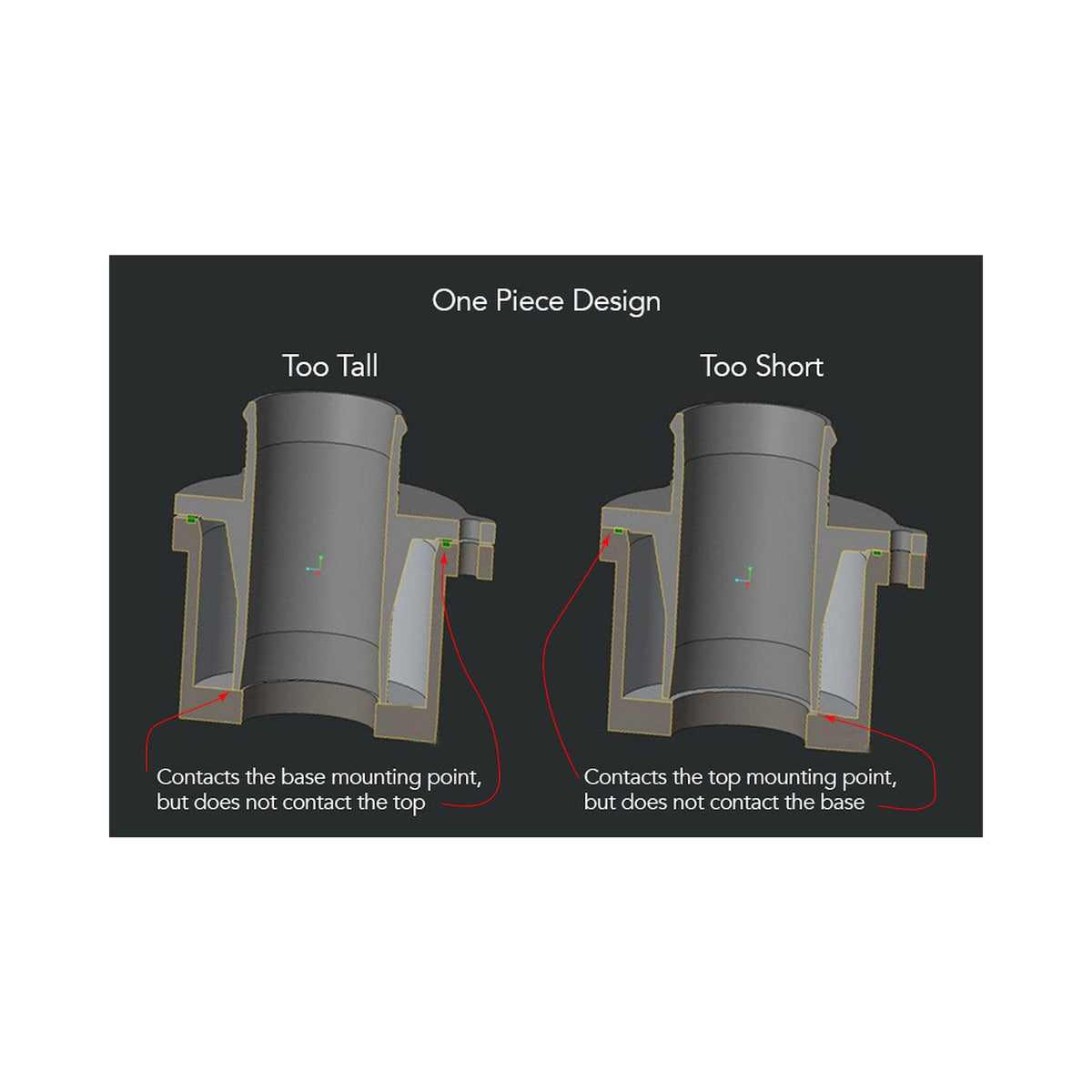

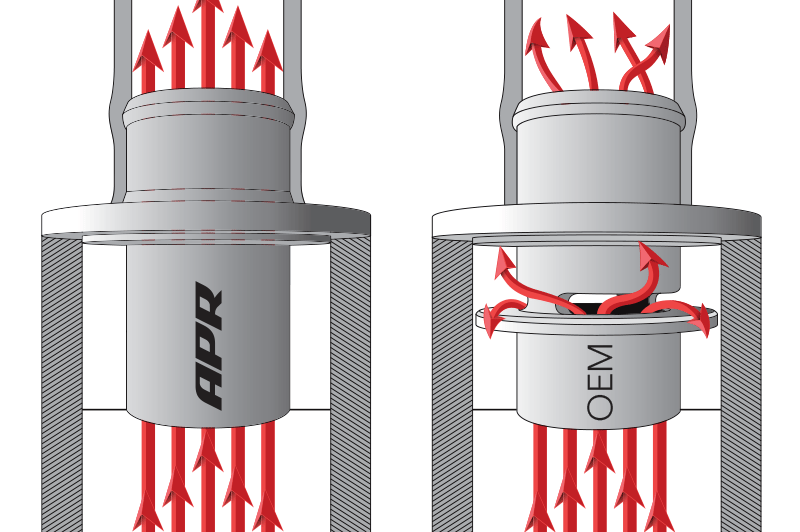

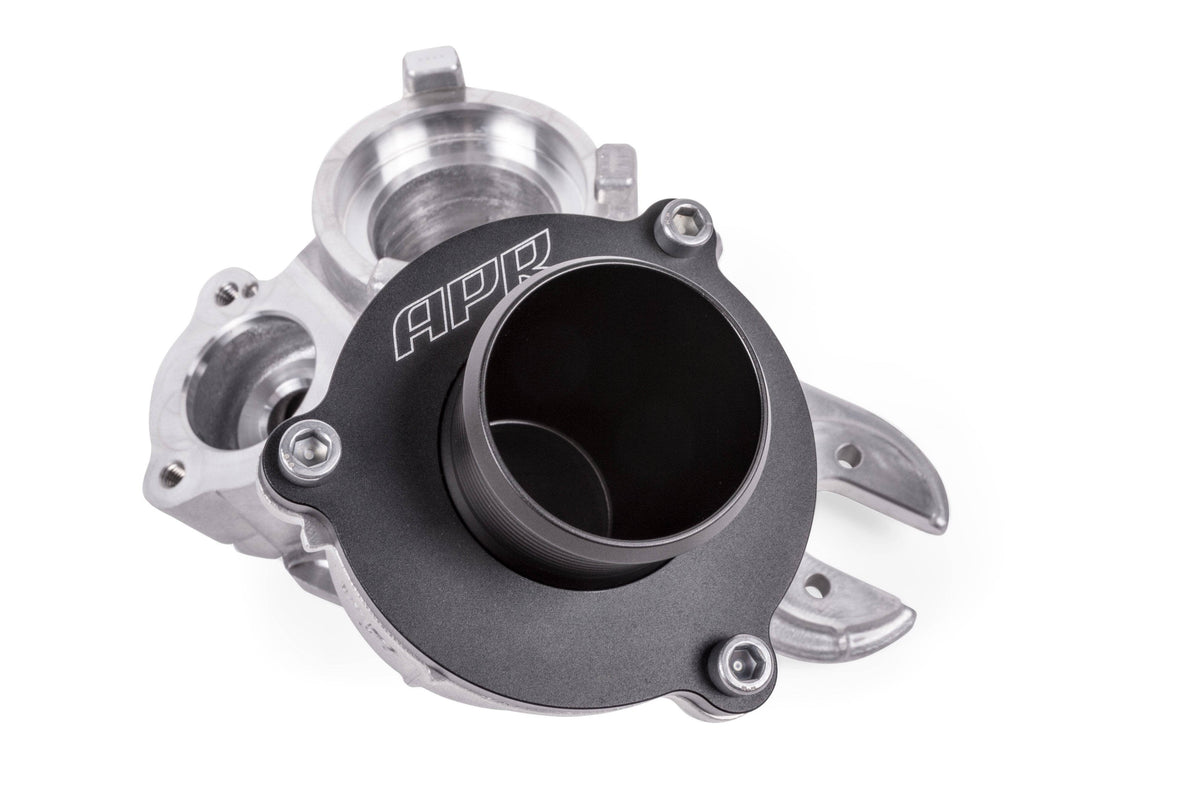

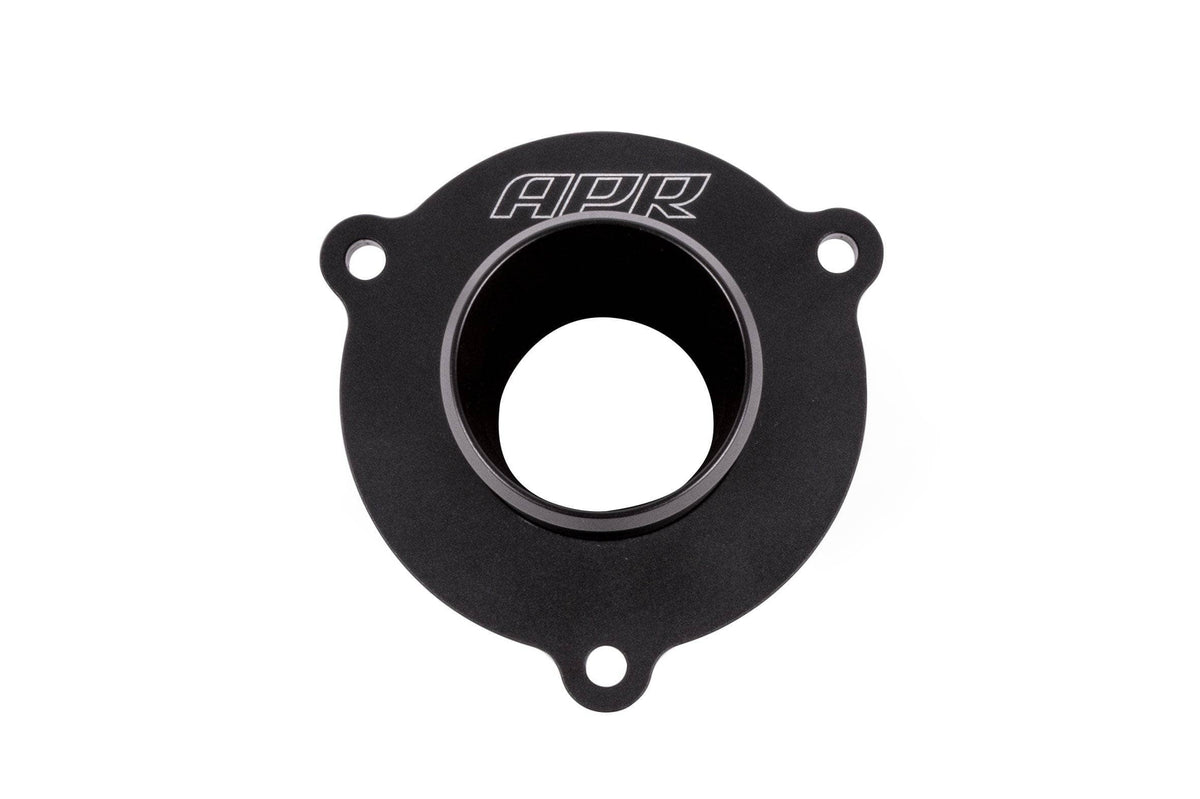

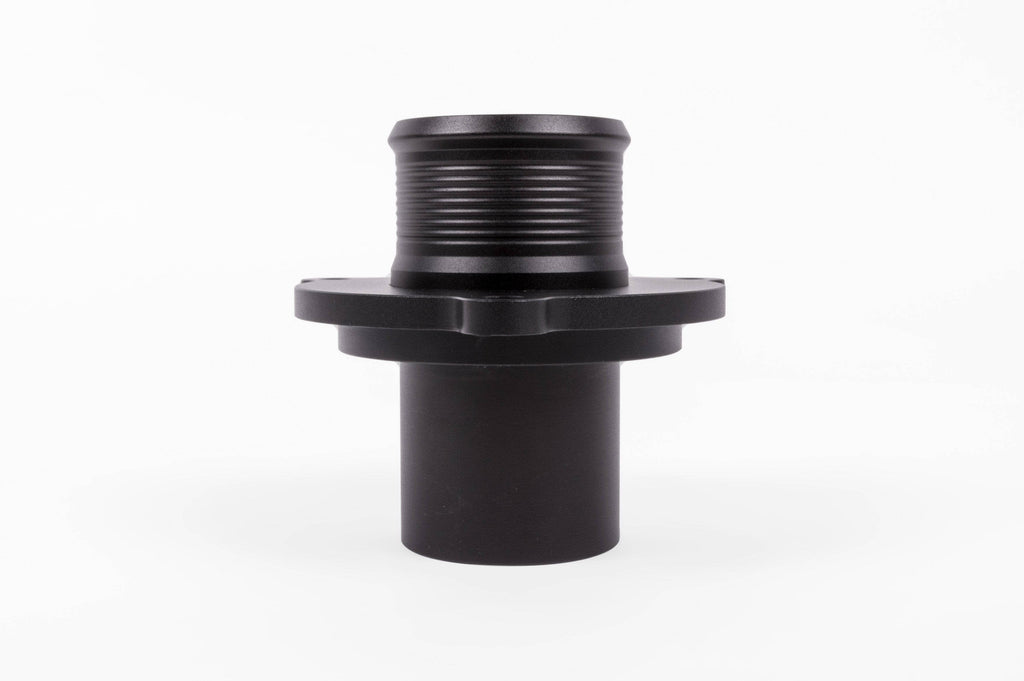

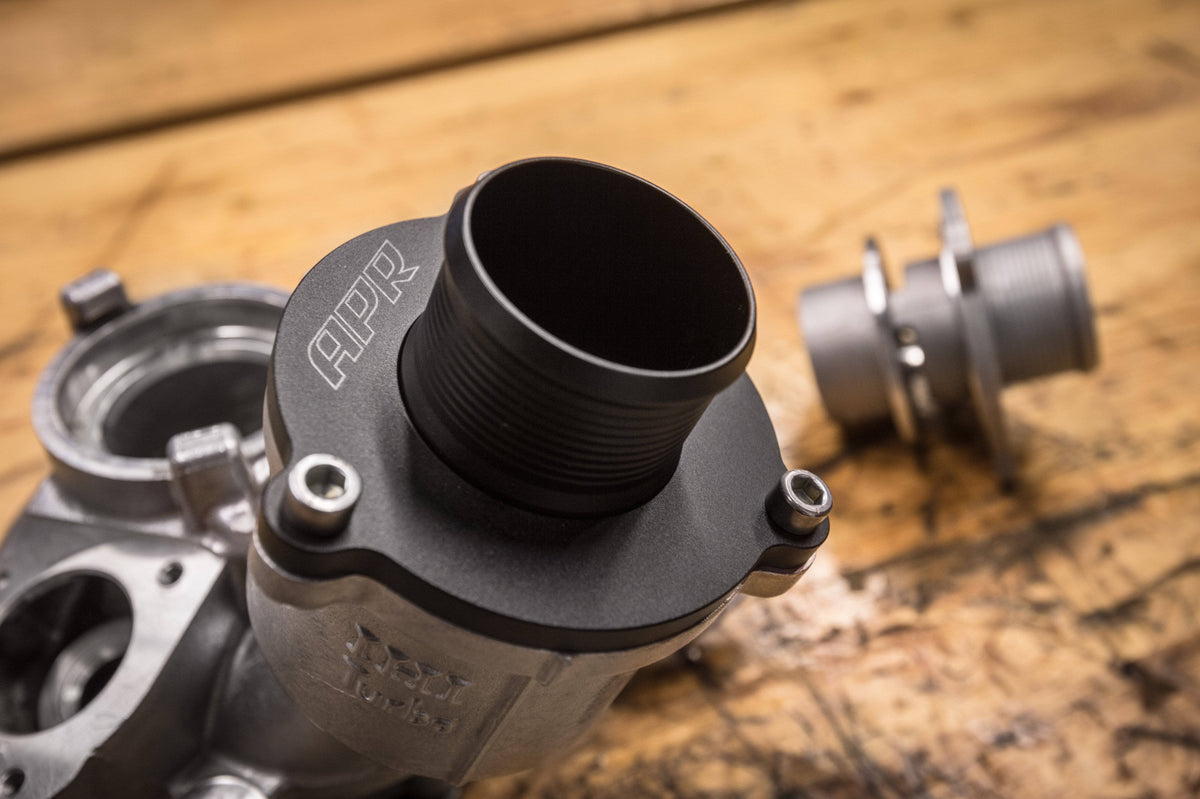

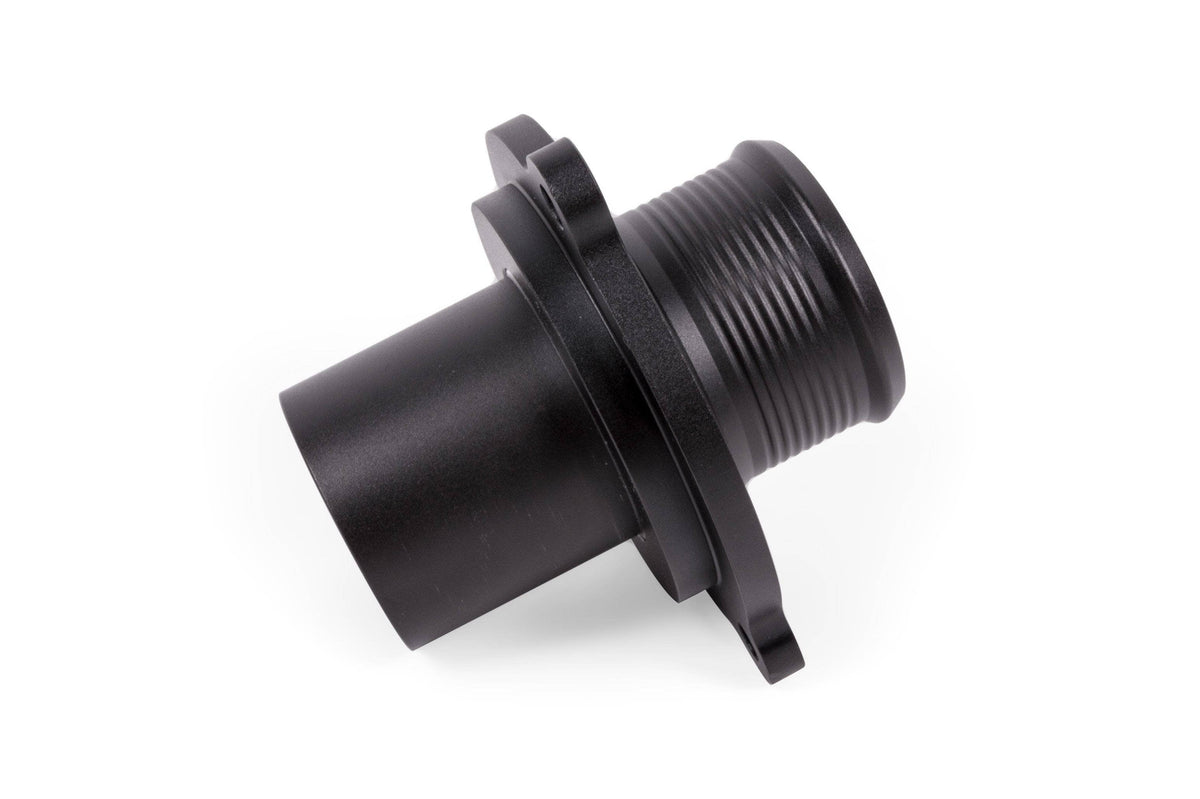

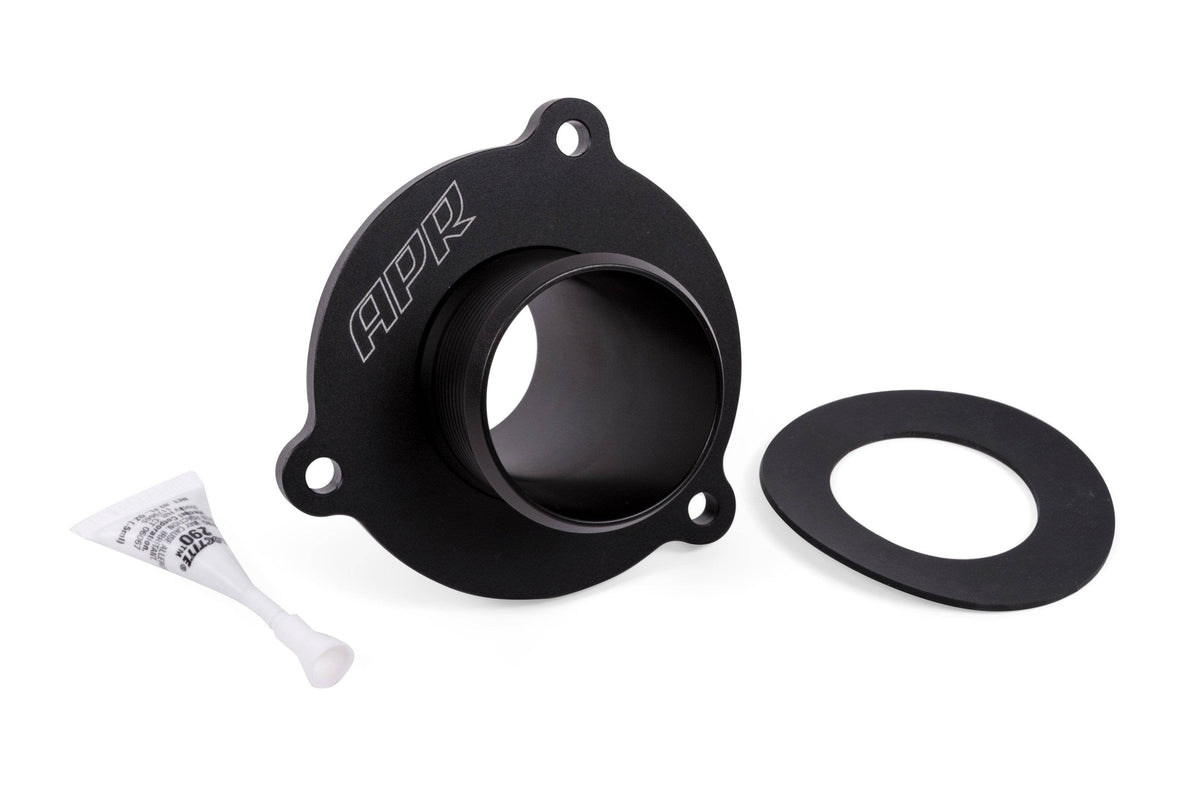

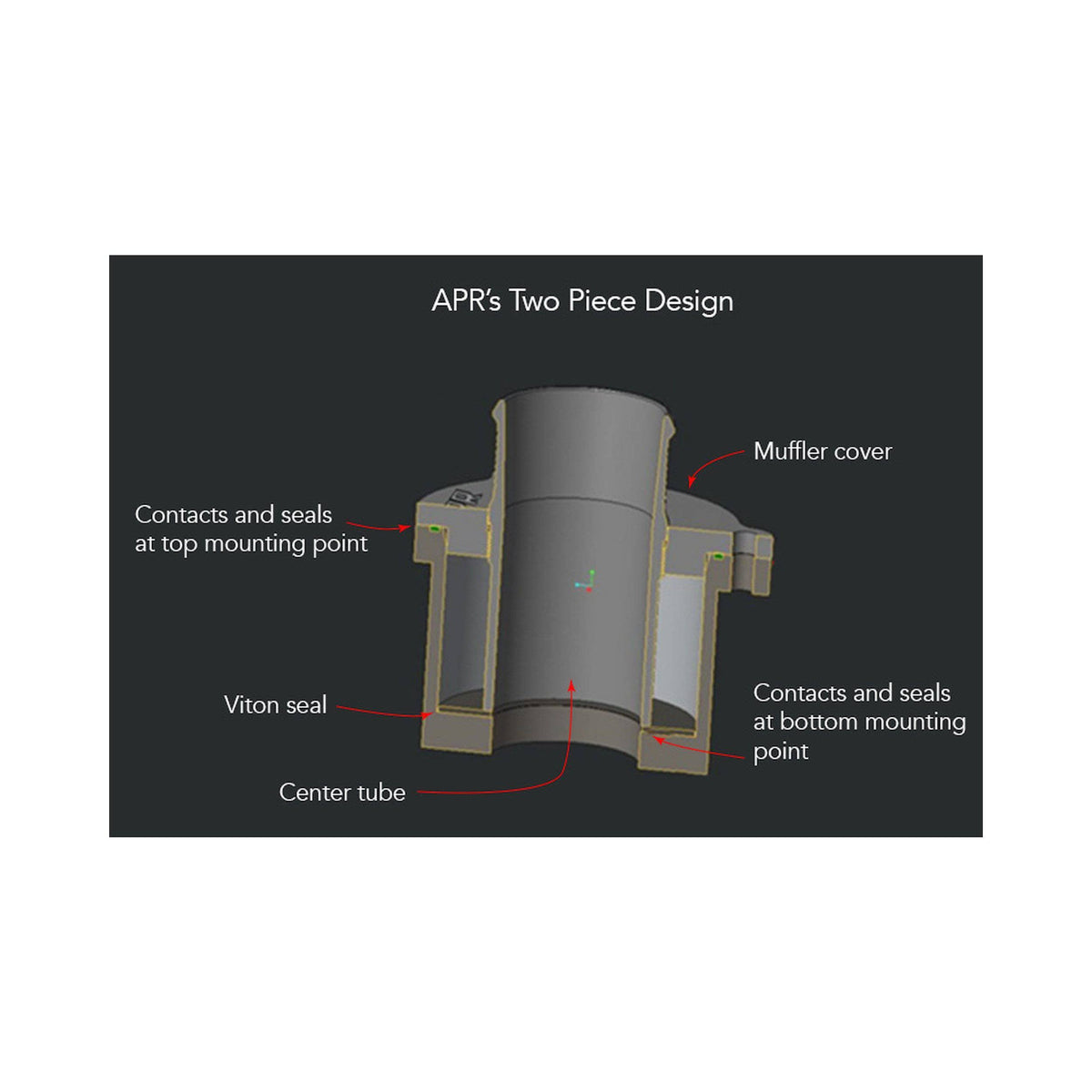

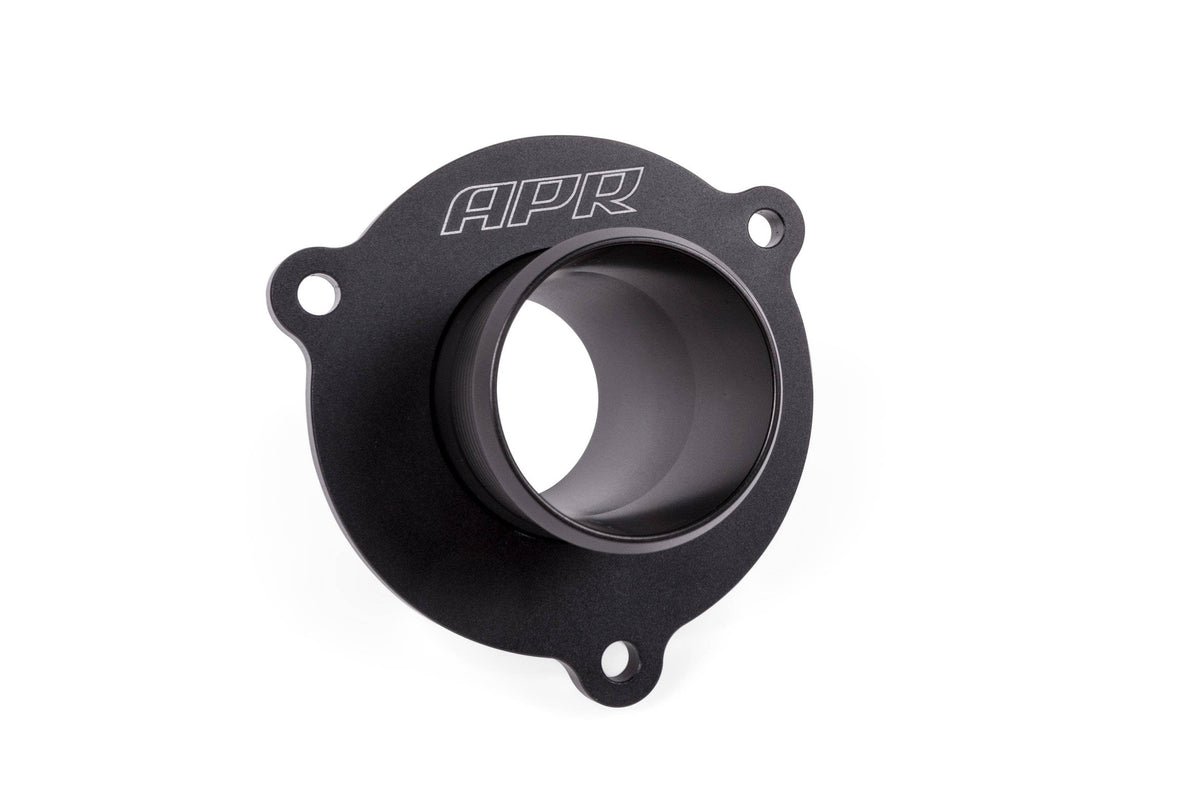

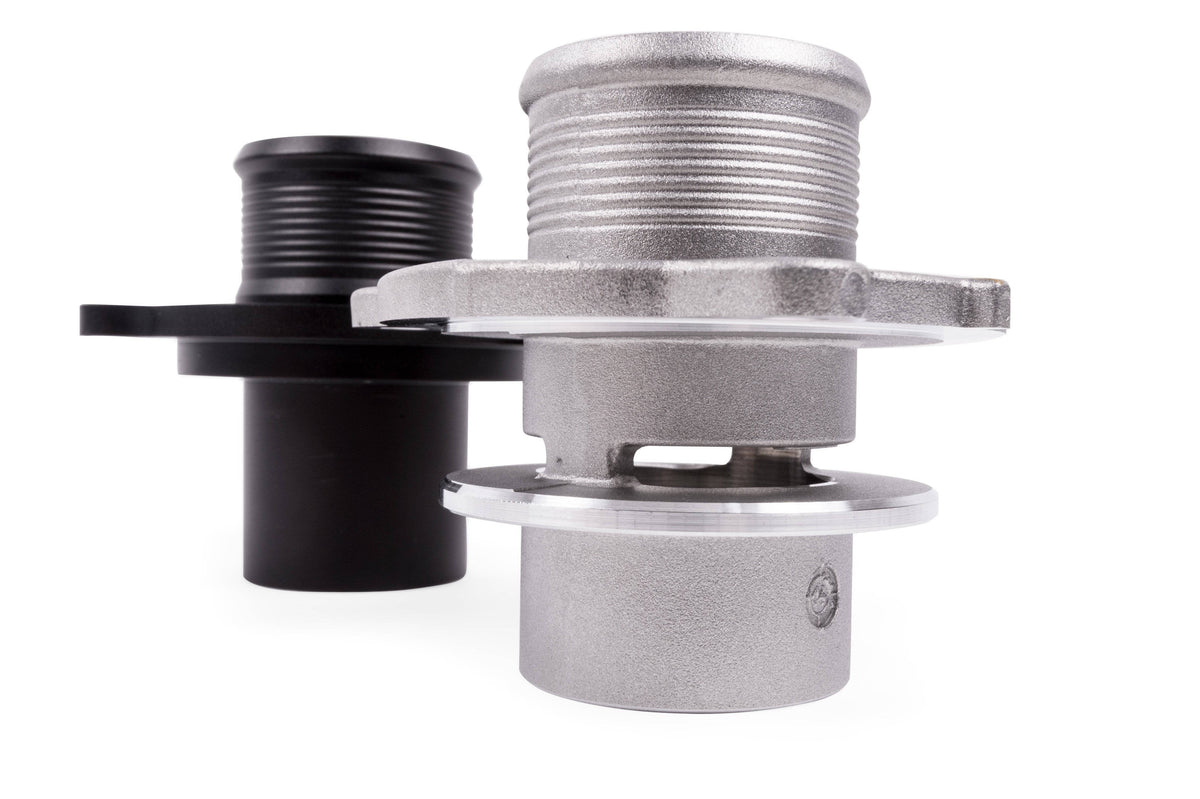

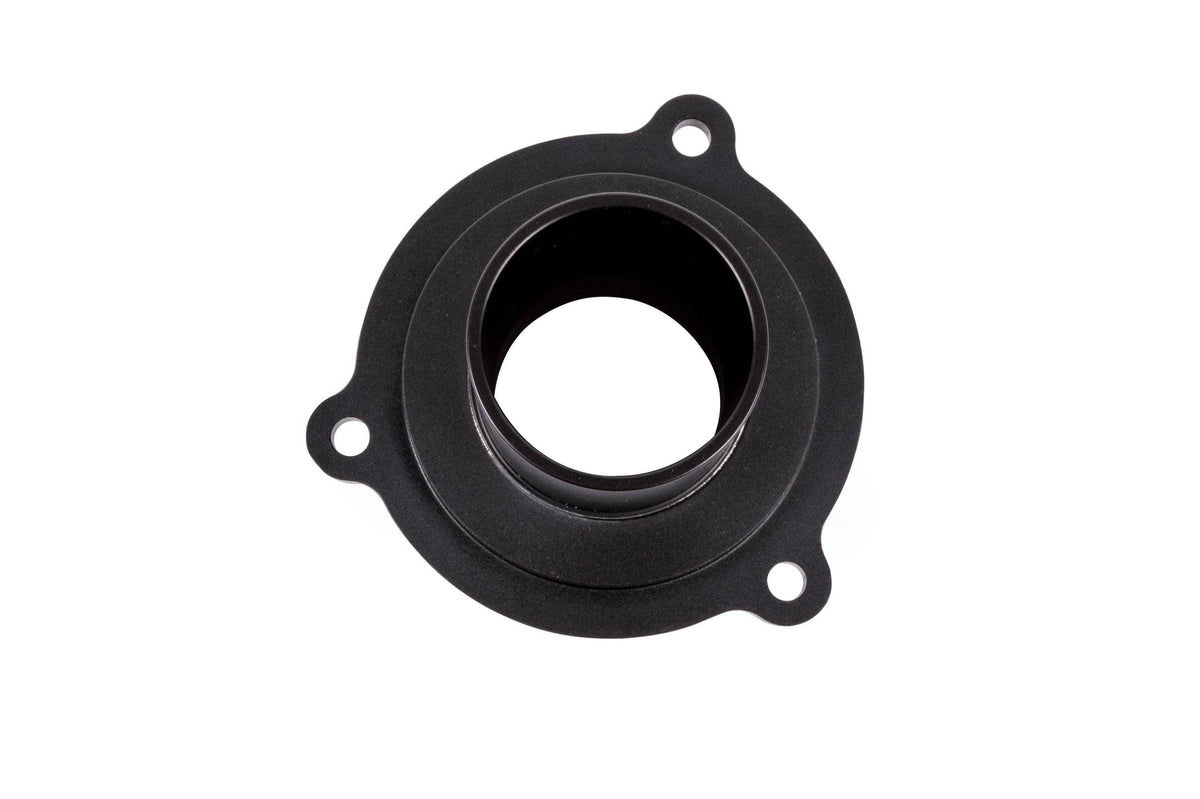

All too often OEM components must sacrifice various performance minded characteristics in an effort to appeal to a wide variety of customers. While an enthusiast typically wants better boost response and more power, all while hearing the turbocharger breathe, a non-enthusiast may give up these characteristics for a quieter ride. In the case of the factory IHI turbocharger, a turbo muffler, or Pulsations-schalldämpfer, is positioned at the compressor outlet and is designed to reduce engine bay acoustics. The APR Turbo Muffler Delete replaces the factory muffler with a straight, uninterrupted piece, CNC-machined from billet aluminum and anodized black. To ensure proper sealing, APR's engineers took a two-part approach. A Viton seal is included and forms a seal between the base of the muffler housing and the new piece. With the seal in place and the outer flange installed, the muffler delete tube screws into place, forming a full, uninterrupted path for airflow. APR's 2-Piece Design Explained: As is true with all machined parts, it's impossible to make all parts the same. In the case of the turbo muffler housing, the distance between the bottom and top of the muffler's housing will vary from turbo to turbo. The acceptable measurement range is known as a tolerance. The nominal distance between the top and bottom of the turbo muffler's mounting points is roughly 51 mm. The tolerance on this part can be as loose as +/- .5mm or more. This means some muffler housings will be up to 51.5mm tall, or as low as 49.5mm tall. Since the distance between the top and bottom of the muffler chamber will be different on every turbo, a 1-piece turbo muffler delete will always be either too tall or too short. On systems that are too tall, the delete will touch the bottom but will not touch the top mounting point, creating an imperfect seal and potential for a boost leak. If the part is too short, the system will seal at the top, but will leave a small gap at the bottom, thus negating the purpose of the part as illustrated in the diagram below. APR's 2-piece design solves this issue with an adjustable height design. While a 2-piece design is more difficult and expensive to manufacture, it's the only way to ensure an accurate fit and perfect seal. APR provides a Viton seal that's placed at the bottom of the muffler housing. The muffler cover is then installed forming a seal with the factory gasket. Then, the center tube is inserted and screwed into place to the desired depth, compressing against the Viton seal to ensure a leak proof seal in every scenario. Finally Tension from the seal prevents the tube from coming loose, and the included Loctite provides extra security from movement. With the turbo muffler deleted, the APR design provides a smooth, turbulence free, and leak proof path for airflow existing the turbo!

Features:

  • Removes the factory turbo muffler
  • Enhanced turbo sound
  • Faster spool
  • Better power delivery
  • 2 piece design with gasket eliminates leaks / factory tolerance issues
  • CNC machined billet aluminum
  • Anodized black

Specifications

Brand APR
Category Air and Fuel Delivery
Color Black
Construction Billet
Emission Code 7
Material 6061 Aluminum
Product Type Charge Air Systems
Sub Category Turbocharger, Supercharger and Ram Air
Version Turbo Muffler Eliminator
UPC 810904031020
Part Number MS100097

Emissions

7

This part is legal under the provisions of EPA’s Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.

Tech Resources

Please note, replaces factory part 06H 131 111

Vehicle Applications

  • 2017–2018 Porsche Macan (95B) — 2.0L; United States
  • 2019–2021 Porsche Macan (95B.2) — 2.0L; United States
  • 2019–2024 Audi Q3 (F3) — 2.0L; United States
  • 2015–2015 Audi A3 — 2.0L; United States
  • 2016–2020 Audi A3 (8V) — 2.0L; United States
  • 2013–2016 Audi A4 allroad — 2.0L; United States
  • 2019–2022 Audi A4 allroad — 2.0L; United States
  • 2019–2022 Audi A5 Sportback — 2.0L; United States
  • 2021–2022 Audi A7 Sportback — 2.0L; United States
  • 2016–2023 Audi TTS (8S, FV) — 2.0L; United States
  • 2015–2015 Audi A3 — 1.8L; United States
  • 2016–2016 Audi A3 (8V) — 1.8L; United States
  • 2020–2022 Audi Q5 PHEV — 2.0L; United States
  • 2017–2022 Audi Q7 (4M, MLB-EVO) — 2.0L; United States
  • 2021–2022 Audi Q5 Sportback — 2.0L; United States
  • 2010–2015 Audi A5 — 2.0L; United States
  • 2016–2017 Audi A5 (B8.5, 8T, 8F) — 2.0L; United States
  • 2018–2020 Audi A5 (B9, F5) — 2.0L; United States
  • 2021–2022 Audi A5 (B9.5, F5) — 2.0L; United States
  • 2011–2015 Audi Q5 — 2.0L; United States
  • 2016–2017 Audi Q5 (8R) — 2.0L; United States
  • 2018–2021 Audi Q5 (FY, MLB-EVO) — 2.0L; United States
  • 2015–2015 Audi S3 — 2.0L; United States
  • 2016–2020 Audi S3 (8V) — 2.0L; United States
  • 2010–2014 Audi A5 — 2.0L; United States
  • 2012–2015 Audi A6 — 2.0L; United States
  • 2016–2018 Audi A6 (C7.5, 4G) — 2.0L; United States
  • 2013–2015 Audi A6 — 2.0L; United States
  • 2019–2022 Audi A6 (C8, 4K) — 2.0L; United States
  • 2009–2015 Audi A4 — 2.0L; United States
  • 2016–2016 Audi A4 (B8.5, 8K) — 2.0L; United States
  • 2017–2019 Audi A4 (B9, 8W) — 2.0L; United States
  • 2020–2022 Audi A4 (B9.5, 8W) — 2.0L; United States
  • 2016–2023 Audi TT (8S, FV) — 2.0L; United States
  • 2015–2015 Volkswagen Golf SportWagen — 1.8L; United States
  • 2016–2019 Volkswagen Golf SportWagen (5G, MQB) — 1.8L; United States
  • 2015–2015 Volkswagen Golf R — 2.0L; United States
  • 2016–2019 Volkswagen Golf R (5G, MQB) — 2.0L; United States
  • 2017–2019 Volkswagen Golf Alltrack (5G, MQB) — 1.8L; United States
  • 2018–2023 Volkswagen Atlas (CA1, MQB) — 2.0L; United States
  • 2019–2021 Volkswagen Arteon (3H, MQB) — 2.0L; United States
  • 2020–2023 Volkswagen Atlas Cross Sport (CA1, MQB) — 2.0L; United States
  • 2015–2015 Volkswagen Golf GTI — 2.0L; United States
  • 2016–2021 Volkswagen Golf GTI (5G, MQB) — 2.0L; United States
  • 2019–2019 Volkswagen Jetta — 2.0L; United States
  • 2021–2023 Volkswagen Jetta — 2.0L; United States
  • 2020–2020 Volkswagen Jetta (A7, BU, MQB) — 2.0L; United States
  • 2015–2015 Volkswagen Golf — 1.8L; United States
  • 2016–2018 Volkswagen Golf (5G, MQB) — 1.8L; United States

Fitment Requirements

Please note, replaces factory part 06H 131 111

Instructions - mk7_turbo_muffler_delete.pdf Please note, replaces factory part 06H 131 111
