ARP Head Stud Kit BMW / Toyota B58
- $399.99 USD
- $399.99 USD
- Unit price
- per
Hurry up! only -1 left
Subtotal:
$399.99

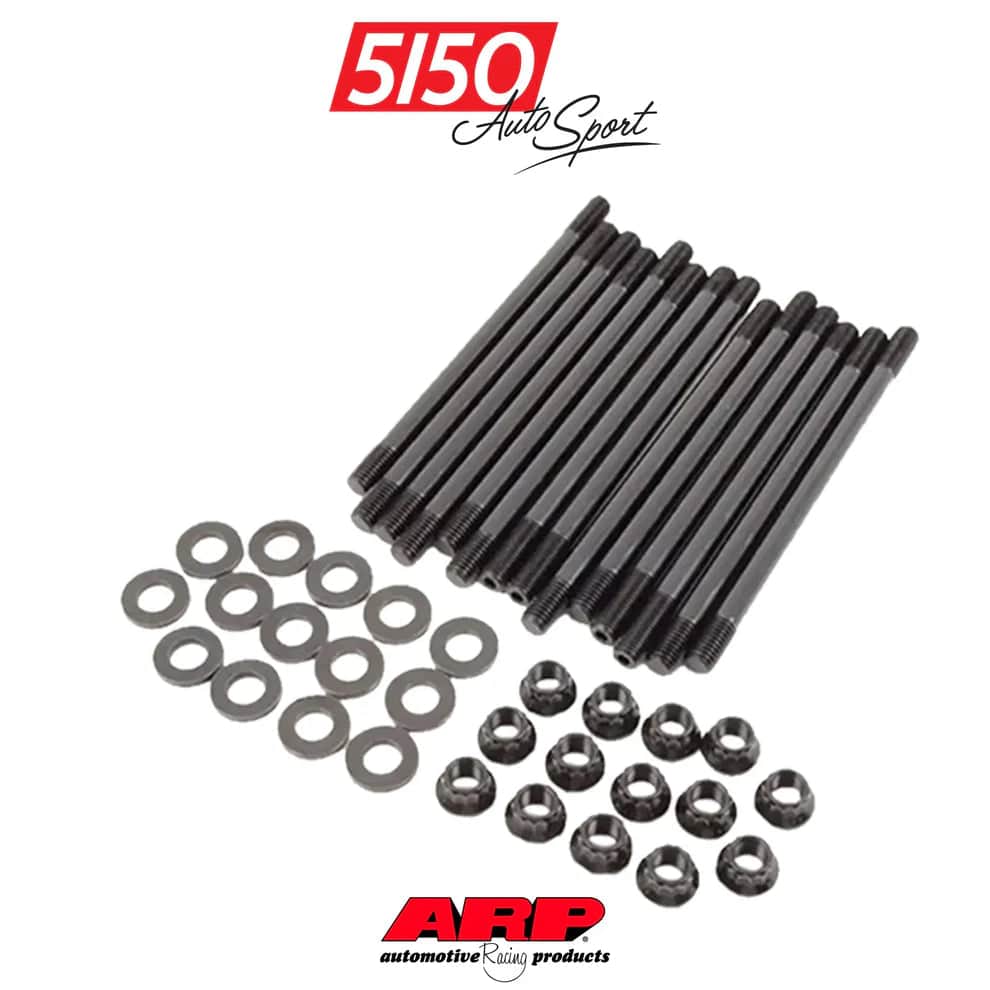

This ARP2000 Head Stud Kit 203-4705 is designed for the turbocharged inline 6-cylinder B58 engines found in varias BMW chassis and the Toyota GR Supra A90/A91. As you increase the power output of your engine beyond its factory specifications, the head and block may start to separate, causing factory bolts to stretch and fail. ARP Head Studs are stronger than factory bolts, ensuring your race engine stays together even under extreme conditions.
The Custom Age 625+ option 203-4706 is kit made from a material that has a tensile strength of 260 ksi, which is substantially higher than the 190 ksi of the ARP 2000 head stud. It's an ideal choice for individuals who want to push the limits of their B58 builds and require a stronger head stud.
Installation Instructions:
1. To ensure proper thread engagement and accurate torque readings, clean ALL threads in the block. Chase if necessary with ARP Thread Chaser.
2. Clean and inspect all hardware prior to installation. Look for obvious defects or shipping damages, plus proper fit, length and dimension.
3. If the cylinder head studs protrude into a water jacket, lubricate the block threads of the studs with ARP THREAD SEALER.
4. Screw studs into the block “HAND TIGHT ONLY”.
5. Install the cylinder head(s) and check for binding or misalignment.
6. Lubricate the stud threads, nuts and washers with ARP ULTRA-TORQUE FASTENER ASSEMBLY LUBRICANT.
Then install the washers and the nuts onto the studs and tighten them hand tight.
ARP recommends using the ARP ULTRA-TORQUE FASTENER ASSEMBLY LUBRICANT that is provided with each kit as opposed to motor oil. This is due to higher friction on the studs as well as inconsistencies in the clamping force of the fasteners when motor oil or other low quality lubricants are used.
Please note: After initial assembly, it is necessary to allow the engine to complete a full heat cycle, then re-torque your head studs to spec. This means allowing the engine to warm up to its normal operating temperature, remain at operating temperature for several minutes to ensure each component is uniformly heated, then turned off and cooled completely to ambient temperature.
PRELOAD (TORQUE) RECOMMENDATIONS
7. Following the manufacturers recommended torque sequence tighten the nuts steps 1-3
ARP2000
Step 1: Tighten to 30 ft-lbs.
Step 2: Tighten to 60 ft-lbs.
Step 3: Tighten to 90 ft-lbs.
Custom Age 625+
Step 1: Tighten to 30 ft-lbs.
Step 2: Tighten to 60 ft-lbs.
Step 3: Tighten to 110 ft-lbs.
with ARP Ultra-Torque fastener assembly lubricant
Bolt Torque Sequence
| 12 | 10 | 4 | 2 | 6 | 8 | 14 |
| 13 | 7 | 5 | 1 | 3 | 9 | 11 |
