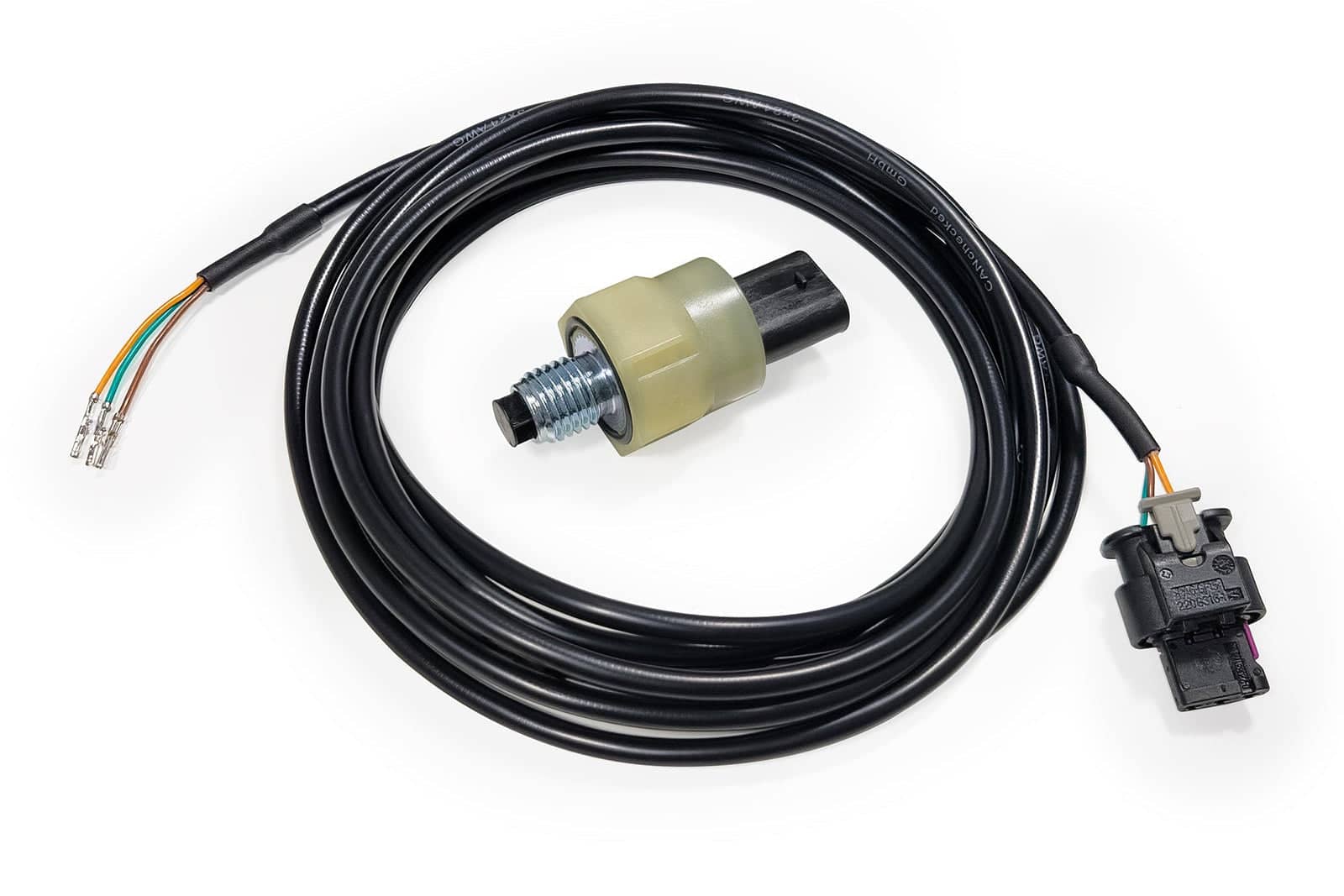

CANchecked CFS02 Temperature and Pressure Combo Sensor with Wiring Harness Kit

The CANchecked CFS02 Temperature and pressure Combo Sensor with Wiring Harness Kit is a CANchecked sensor solution designed to supply accurate measurement data for advanced monitoring and display systems in street and motorsport vehicles.

It is well suited for projects that require broad system compatibility, and sensor expansion capability. The CFS02 Kit includes a combined electronic pressure and temperature sensor for oil, water, and fuel, as well as a pre-assembled wiring harness.

The kit is compatible with various displays and gauges such as MFD15, MFD28, MFD32 and freely programmable engine control units (ECUs).

Product Details

• High-precision combined pressure and temperature sensor from large-scale production
• Suitable for oil, water, and fuel applications
• Wide measurement range for pressure and temperature
• M12x1.5 thread for versatile applications
• Compatible with CANchecked data displays and freely programmable control units
• Supplied including connection wiring harness
• Pressure measurement range: 0.5 - 10.5 bar (7.2 - 152 psi)
• Temperature measurement range: -40 to 160 °C (-40 to 320 °F)
• Thread: M12x1.5 male thread
• Signal type: PWM
• Combined pressure and temperature sensor for oil, fuel, and water
• Plug-and-play wiring harness (3 meters length) with matching connection pins for CANchecked data displays

What’s Included

• Combined pressure and temperature sensor for oil, fuel, and water
• Plug-and-play wiring harness (3 meters length) with matching connection pins for CANchecked data displays
• Quick start guide
