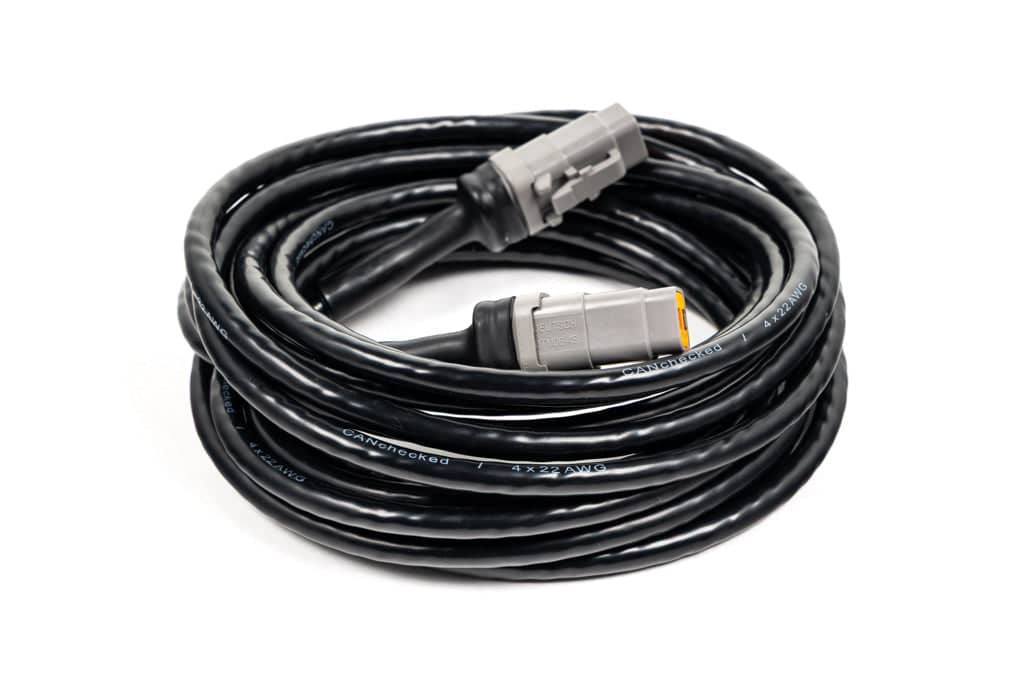

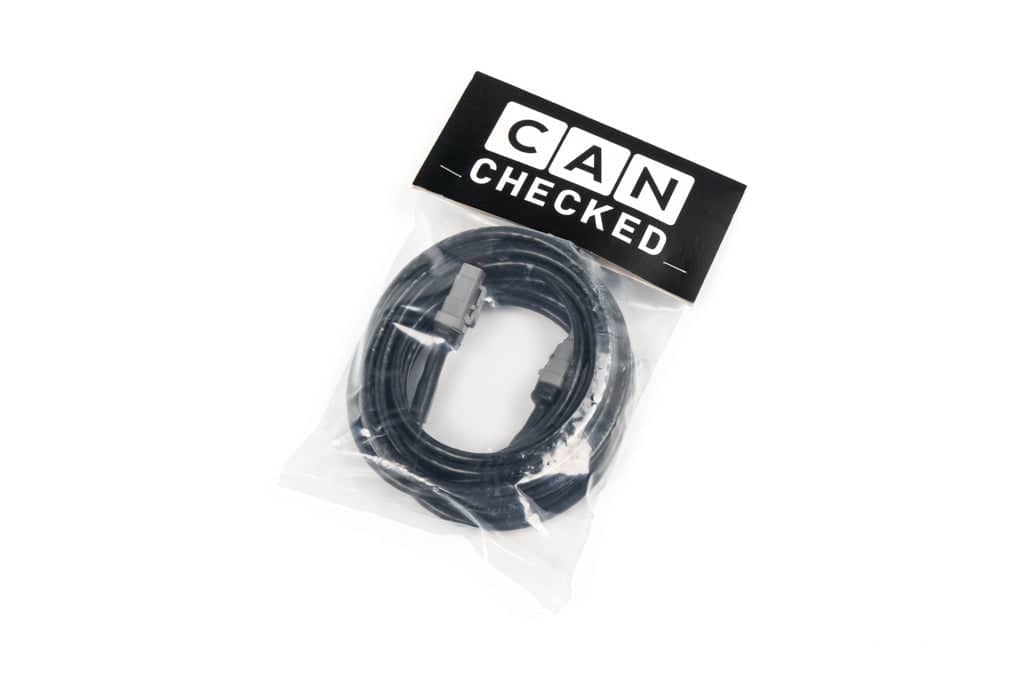

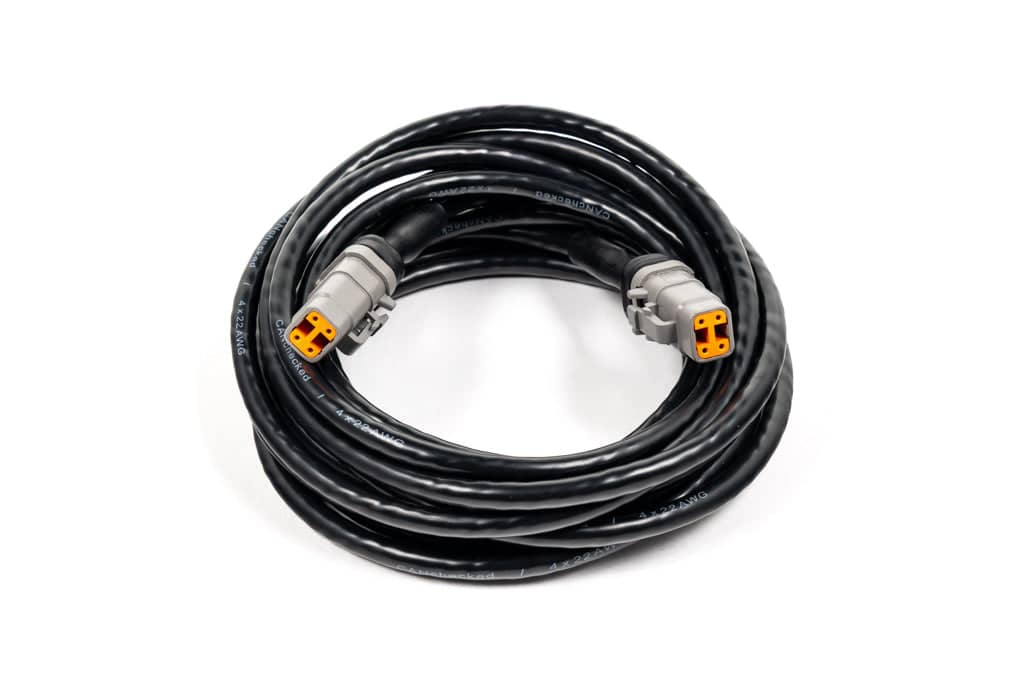

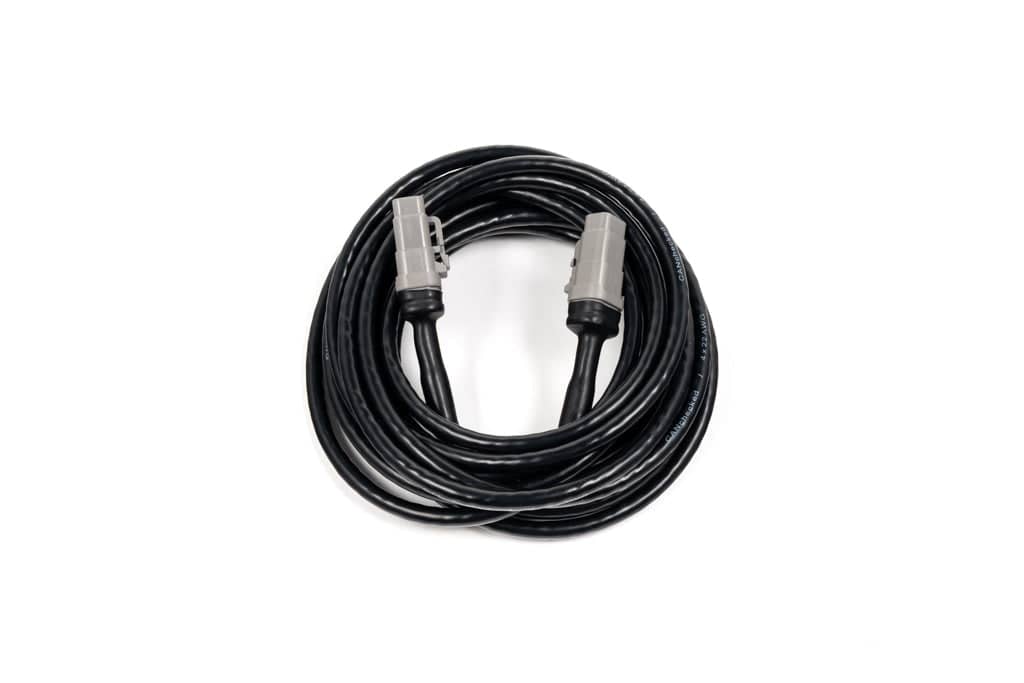

CANchecked Extension Cable DTM2DTM - Multiple Lengths

The CANchecked DTM2DTM Extension Cable is available in multiple lengths ranging from 0.5m to 4.5m, providing a professional solution for motorsport and performance vehicle installations that require extended CAN bus routing. Designed to provide a reliable connection between CANchecked's MFDxx Multi Function Displays, CBDxx CAN bus Distribution Modules, TCCxx Thermocouple Converters, as well as the Brake and Tire Temperature Monitoring Systems; in addition to any DTM-standard compatible components.

Constructed using 4x22AWG twisted pair wiring and protected by a durable black PVC outer jacket, the cable is engineered to withstand harsh automotive environments. The outer casing is flame-retardant and resistant to petrol, diesel, and oil exposure, making it suitable for race vehicles, track builds, and demanding street applications. Waterproof DTM06-4S-E007 female socket connectors with integrated kink protection are fitted on both ends to provide secure connections and long-term reliability.

This extension cable is ideal for any vehicle setup with multi-display installations or applications with various CAN bus hubs and connected devices. The DTM2DTM cable maintains the same CANchecked wiring standard used throughout the DTM-Line ecosystem, simplifying installation while ensuring compatibility across supported devices.

Product Details

• Lengths:
  • 0.5 meters
  • 1.0 meters
  • 2.0 meters
  • 3.5 meters
  • 4.5 meters
• DTM06-4S-E007 connectors on both ends
• Integrated connector kink protection
• 4x22AWG twisted pair cable construction
• Black PVC outer jacket
• Flame-retardant construction
• Resistant to petrol, diesel, and oil exposure
• Outer diameter: 6.2mm
• Waterproof and vibration-resistant design
• Built for motorsport and performance automotive applications

Technical Specifications

• Pin 1: Ground (GND)
• Pin 2: 12V Positive
• Pin 3: CAN Low
• Pin 4: CAN High
