CANchecked F97 X3M / F98 X4M LCI MFD28 Multi Function Display | 2.8" Gen2 (LHD)

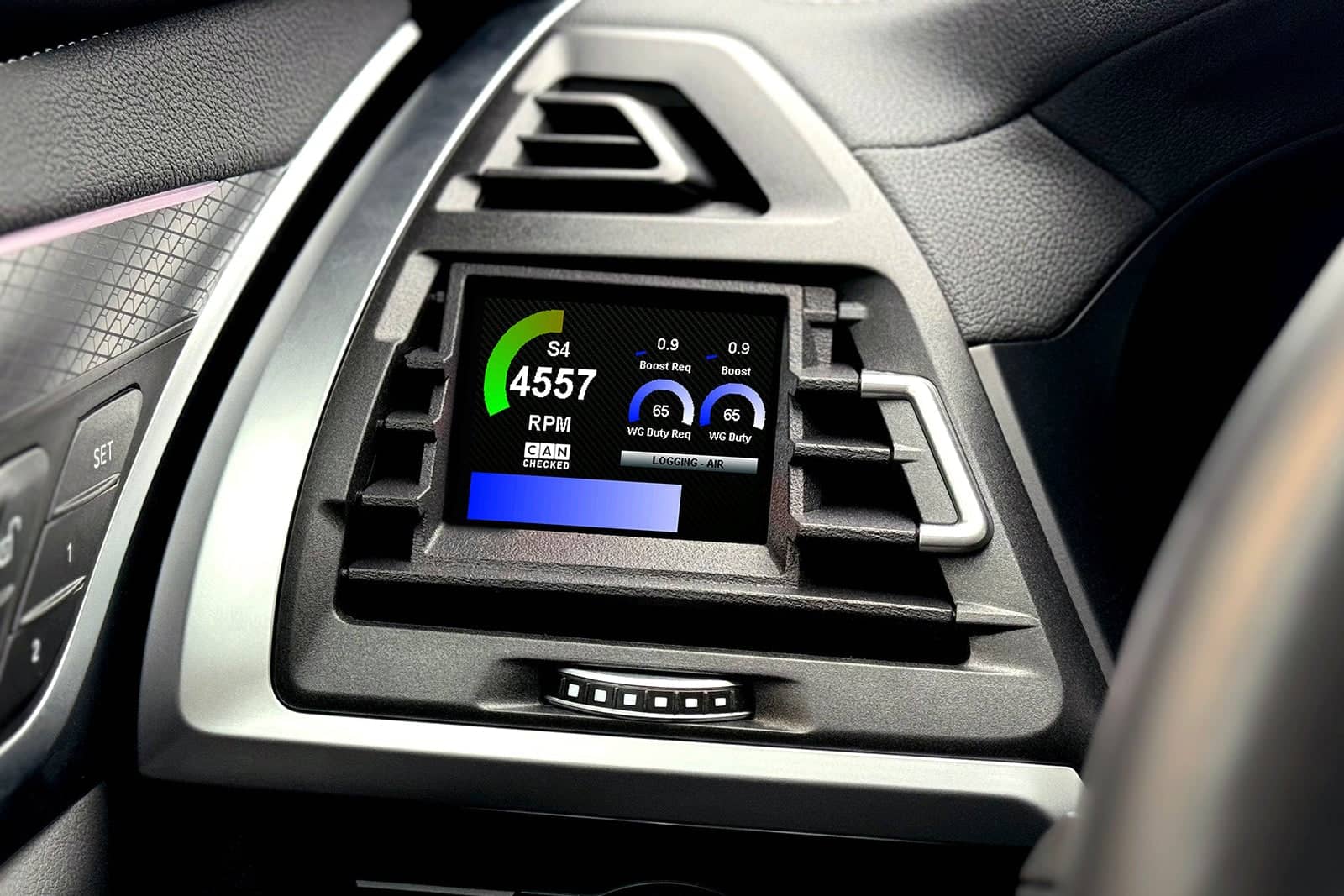

The CANchecked MFD28 Gen2 Multi Function Display brings advanced vehicle monitoring and data acquisition capabilities to the BMW F97 X3M and F98 X4M LCI while maintaining a clean, factory-inspired appearance. Designed specifically for left-hand-drive LCI models, the display integrates directly into the factory air vent and provides access to a wide range of performance, diagnostic, and engine management data without the need for additional gauges or bulky aftermarket displays.

Utilizing direct CAN bus communication, the MFD28 can display critical vehicle information including boost pressure, oil temperature, coolant temperature, intake air temperature, fuel pressure, ethanol content, ignition timing, gear position, vehicle speed, and many additional parameters. The responsive touchscreen interface allows drivers to navigate between custom display pages, monitor real-time data, review logged information, and configure personalized alerts based on vehicle operating conditions.

Built for both daily-driven and heavily modified vehicles, the MFD28 offers extensive customization capabilities through CANchecked's powerful Display Setup Software (DSS). Users can create custom layouts, adjust sensor parameters, configure warning thresholds, design personalized startup screens, and analyze logged performance data. Integrated performance measurement functions also allow drivers to record acceleration metrics directly through the display without requiring additional hardware.

Beyond standard CAN bus monitoring, the MFD28 supports direct connection of external sensors including temperature sensors, pressure sensors, exhaust gas temperature monitoring, ethanol content sensors, and CANchecked's optional external shift light modules. This flexibility allows the display to evolve alongside future vehicle modifications while maintaining a seamless OEM-style installation.

Product Details

• CANchecked MFD28 Multi-Function Display
• Access real-time ECU data directly via CAN bus
• Vehicle-specific trim panel for OEM-style interior integration
• Up to 128 sensors can be monitored simultaneously
• 10 configurable display layouts using DSS Display Setup Software
• Integrated performance meter for acceleration measurements
• Built-in data logging to internal SD card
• Read and clear engine fault codes in plain text
• 4 analog inputs for additional sensors (oil pressure, EGT, fuel pressure, etc.)
• Ethanol sensor compatibility via digital input
• Plug-and-play installation using included wiring harness
• Queries ECU data using manufacturer diagnostic protocols

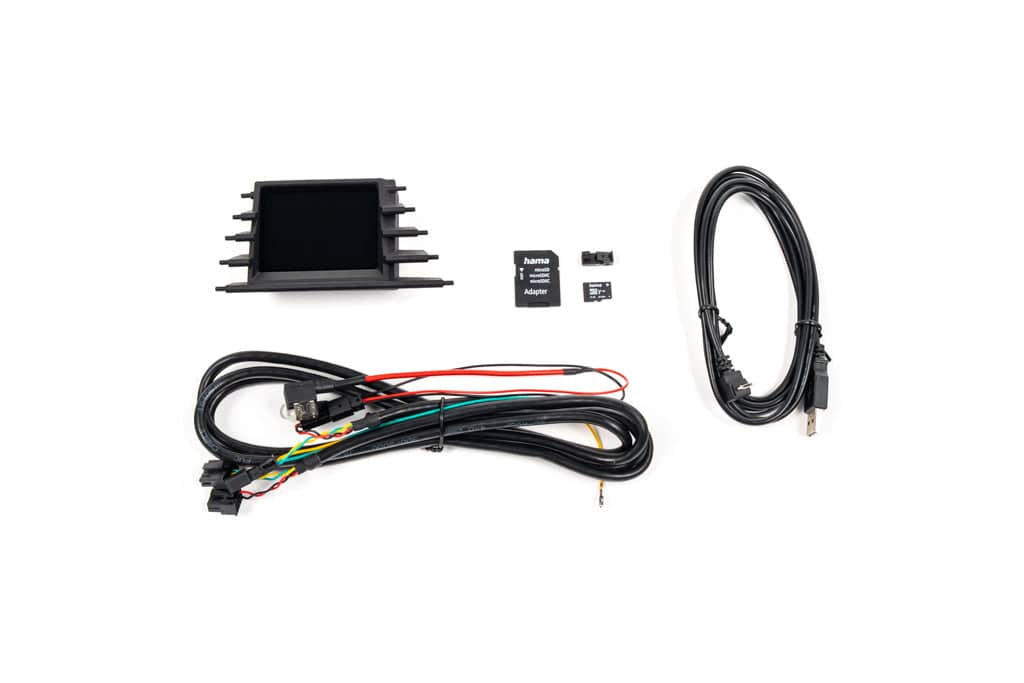

What's Included

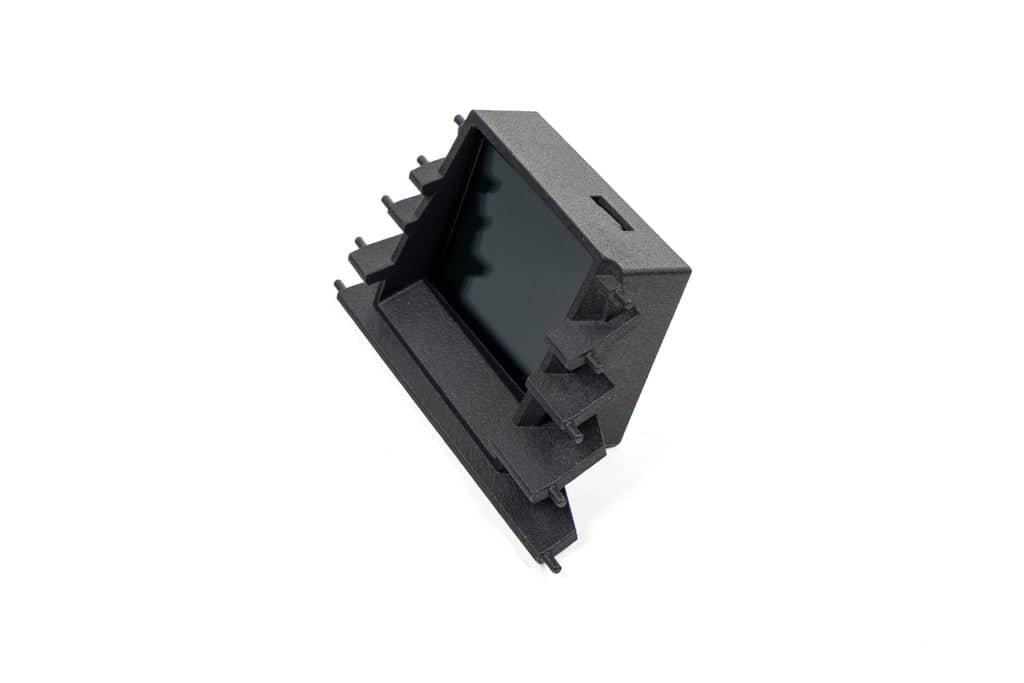

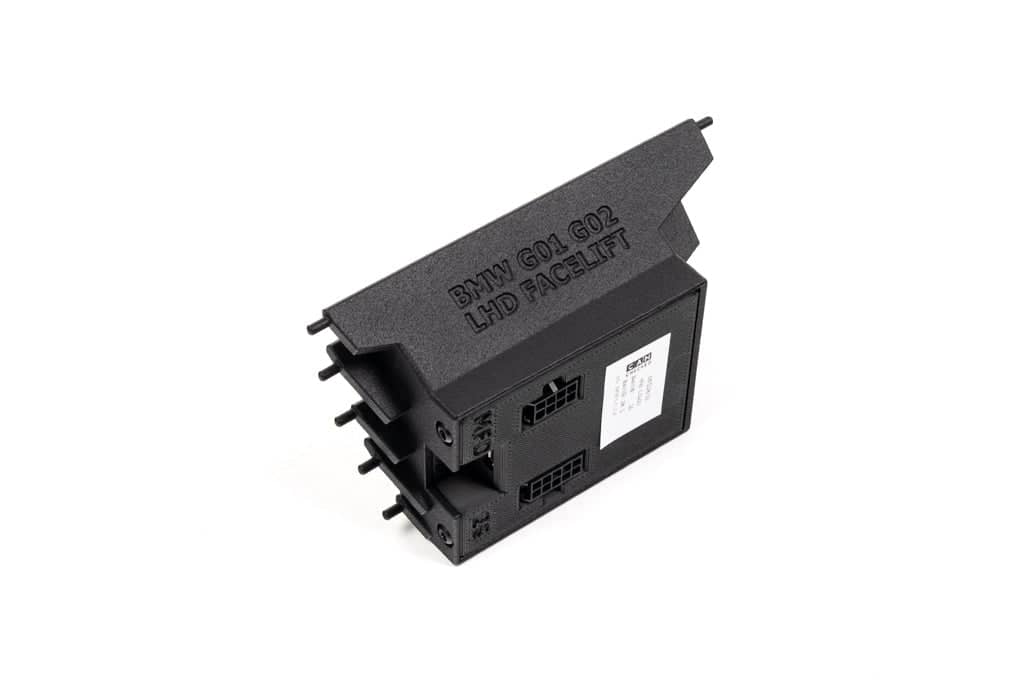

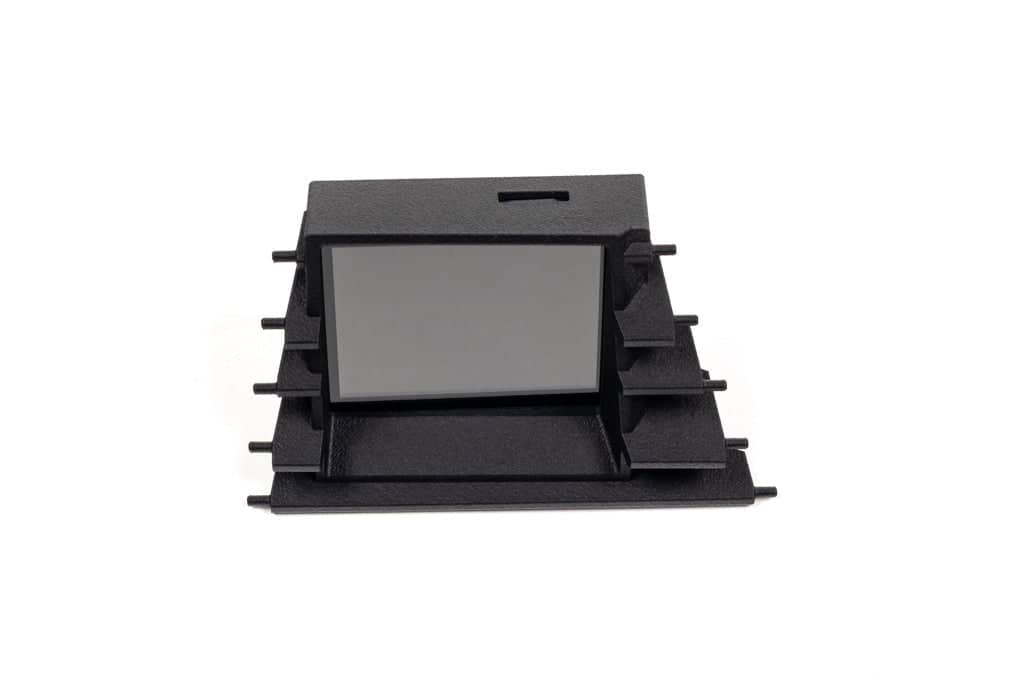

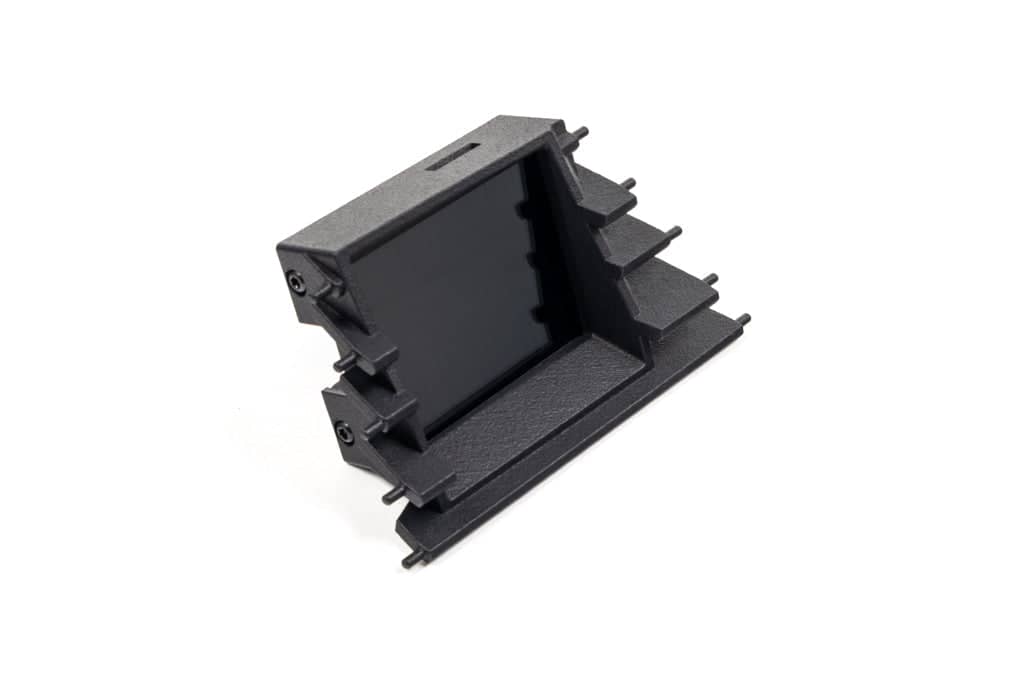

• CANchecked MFD28 Gen2 Multi Function Display integrated into vehicle-specific air vent assembly for LHD models

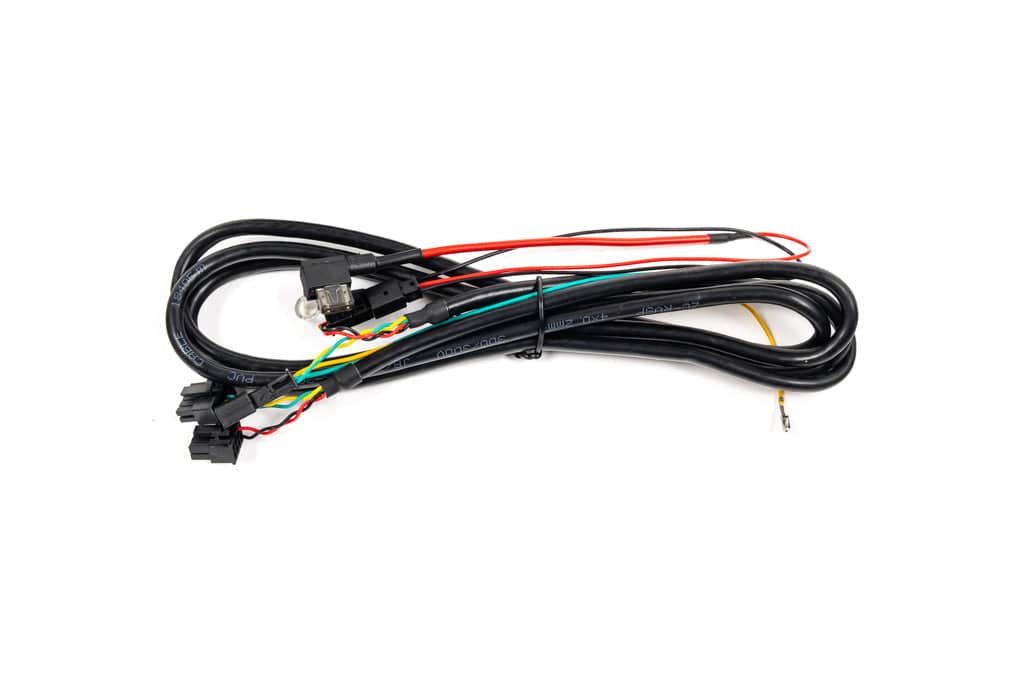

• Vehicle-specific connection harness
• USB data cable
• Pre-installed SD card
• SD card adapter
• Anti-reflective display film
• Quick Start Guide
