The CANchecked MFA2.0 Gen2 Multi Function Display for the Mazda MX-5 NB provides a clean, OEM-style solution for monitoring critical vehicle data without adding bulky aftermarket gauges to the interior. Designed specifically for the second-generation MX-5 platform, the MFA2.0 Gen2 integrates directly into the factory dashboard location while delivering extensive monitoring, diagnostics, and customization capabilities.
At the heart of the system is CANchecked's high-contrast OLED display, engineered for excellent visibility even in direct sunlight. The vehicle-specific bezel creates a factory-like appearance while providing access to real-time engine, performance, and diagnostic information directly within the driver's line of sight. Through CAN bus communication, OBD2 integration, and analog sensor inputs, the MFA2.0 Gen2 can be configured to display virtually any data channel relevant to your build.
Whether monitoring oil temperature during spirited driving, tracking boost pressure on a turbocharged setup, or reviewing data logs after a track session, the MFA2.0 Gen2 offers a highly customizable solution tailored to both street and motorsport applications. Integrated WiFi connectivity enables wireless configuration, firmware updates, custom startup screens, and advanced setup through CANchecked's Online Display Setup Software (oDSS).
Product Details
- Vehicle-specific display solution for Mazda MX-5 NB applications
- High-contrast OLED display with excellent daylight visibility

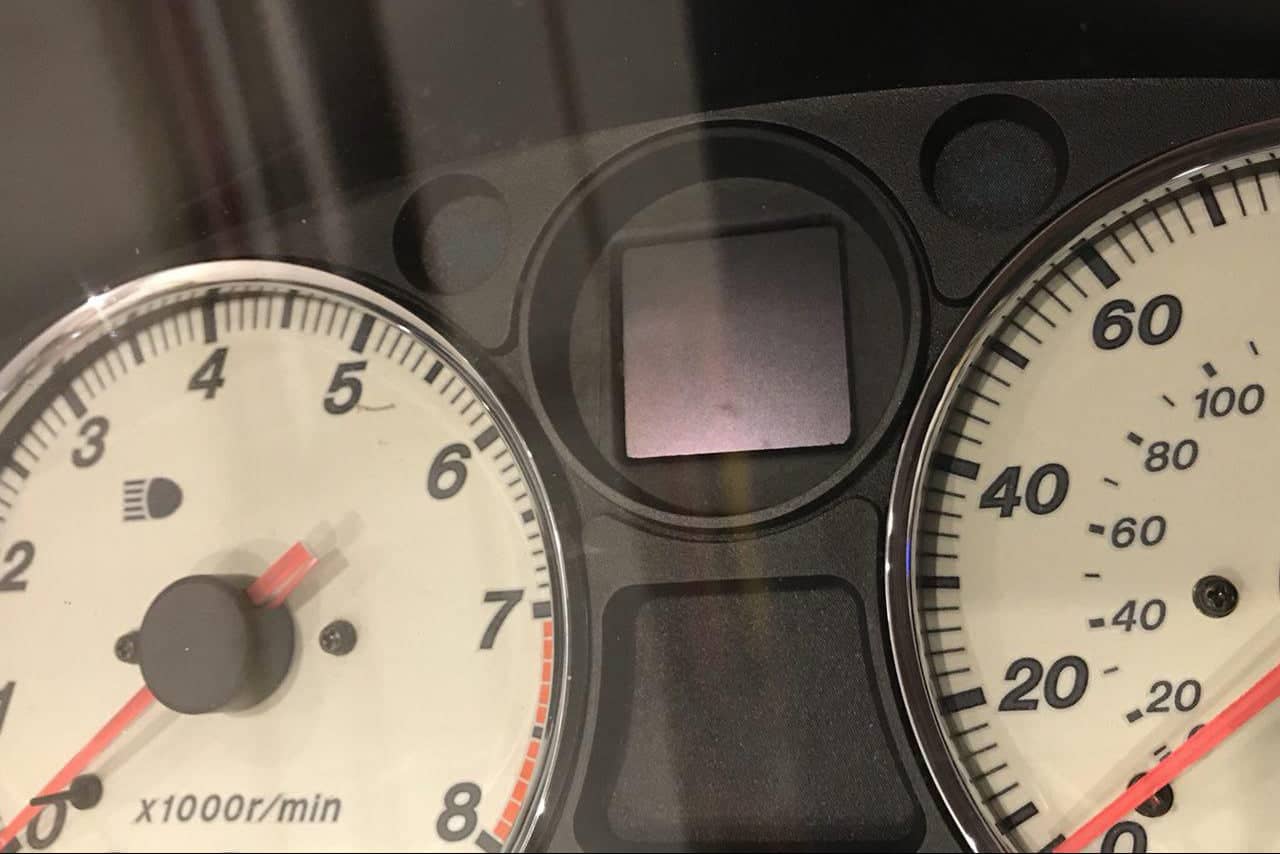

- OEM-style dashboard integration using vehicle-specific bezel
- Integrated shift light and warning LED functionality
- Supports CAN bus communication and OBD2 protocols
- WiFi-enabled configuration and firmware updates through oDSS
- Supports up to 8 customizable display pages
- Displays up to 64 ECU parameters depending on ECU support
- Supports up to 128 OBD2 values simultaneously
- Compatible with ISO 11898-2 and SAE J2284 communication standards
- Supports custom CAN streams and numerous aftermarket ECUs
- Connect up to 6 analog sensors directly to the display
- Direct ethanol sensor support with optional license
- Custom startup screens and display color customization
- Optional live data logging capability
- Optional CAN switching and analog input forwarding functionality
Display Modes
- Analog Gauge
- Dual Value Display
- Single Value Display
- Gear Indicator
- 4-Value Display
- 6-Value Display
- Bar Graph Displays
- Round Gauge Display
- Performance Meter
- Multi-Value Dashboard Views

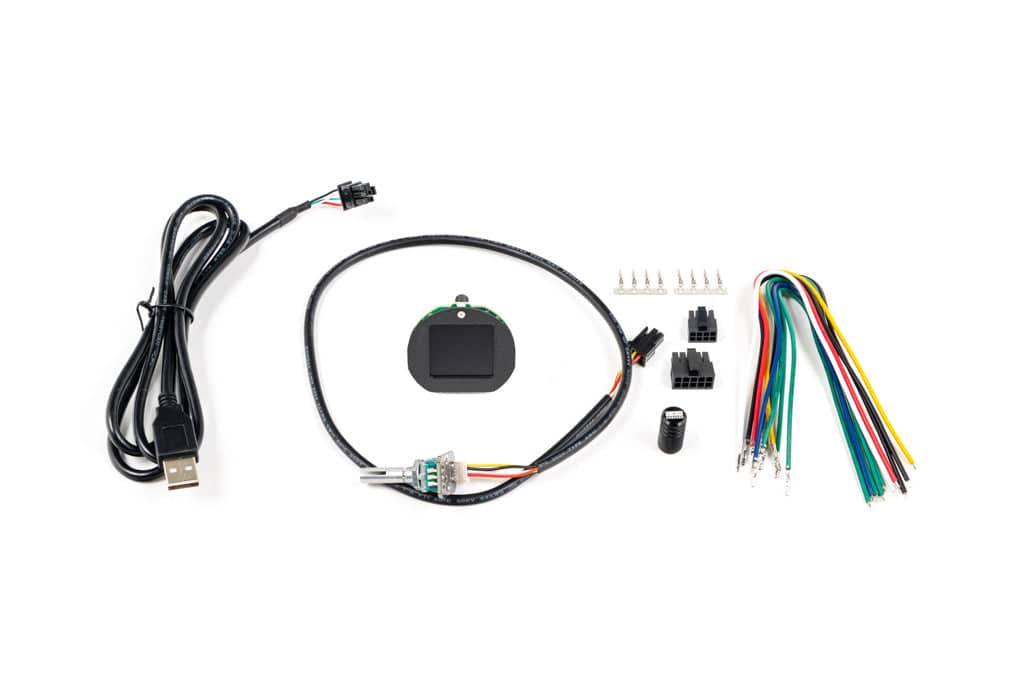

What's Included
- CANchecked MFA2.0 Gen2 Display
- Mazda MX-5 NB-specific mounting bezel
- Vehicle-specific connection kit
- Quick Start Guide
- Connector B (6-pin Molex)
- Connector C (12-pin Molex)
- Pre-assembled wiring leads
- Additional crimp pins
- Two 1K pull-up resistors for NTC sensors
Compatible CANchecked Accessories
- CBD08 CAN Distribution Hub
- ANC04 Analog Input Harness
- NTC01 Temperature Sensor
- TCC01 Type-K Temperature Converter
- FLP01 Pressure Sensor
- BST10 Boost Pressure Sensor
