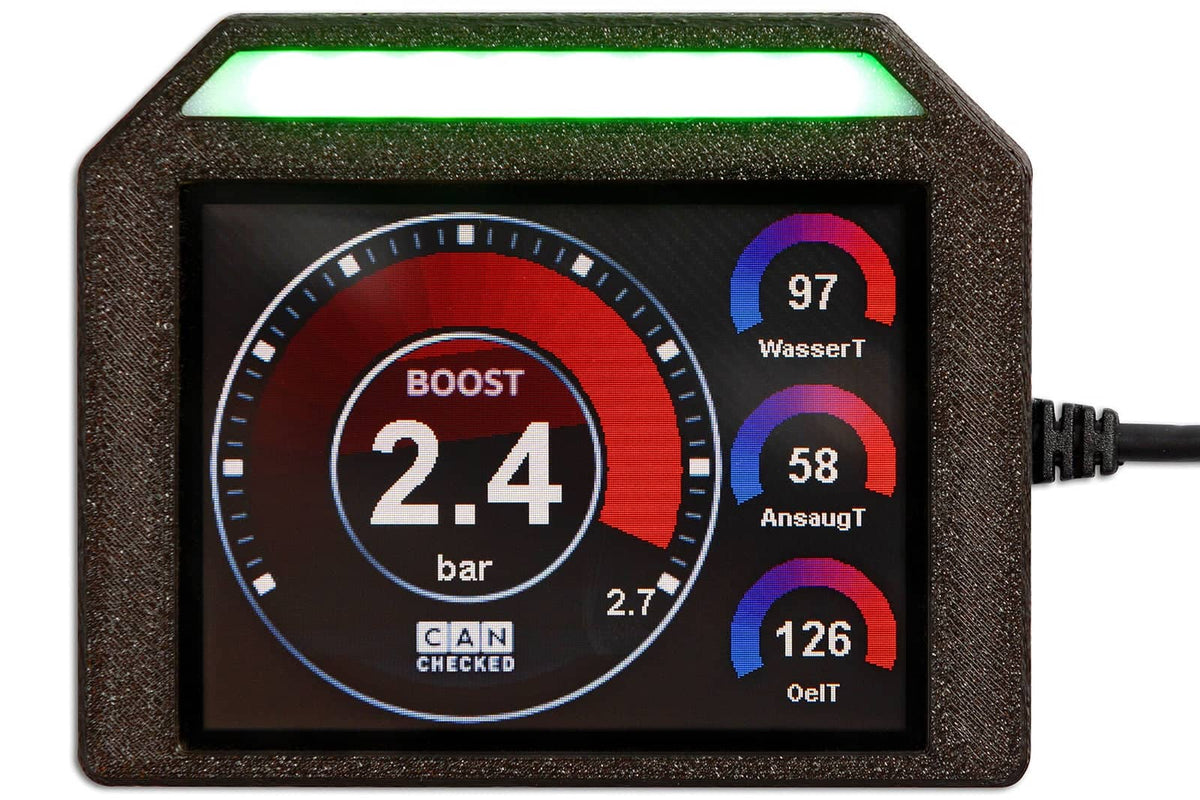

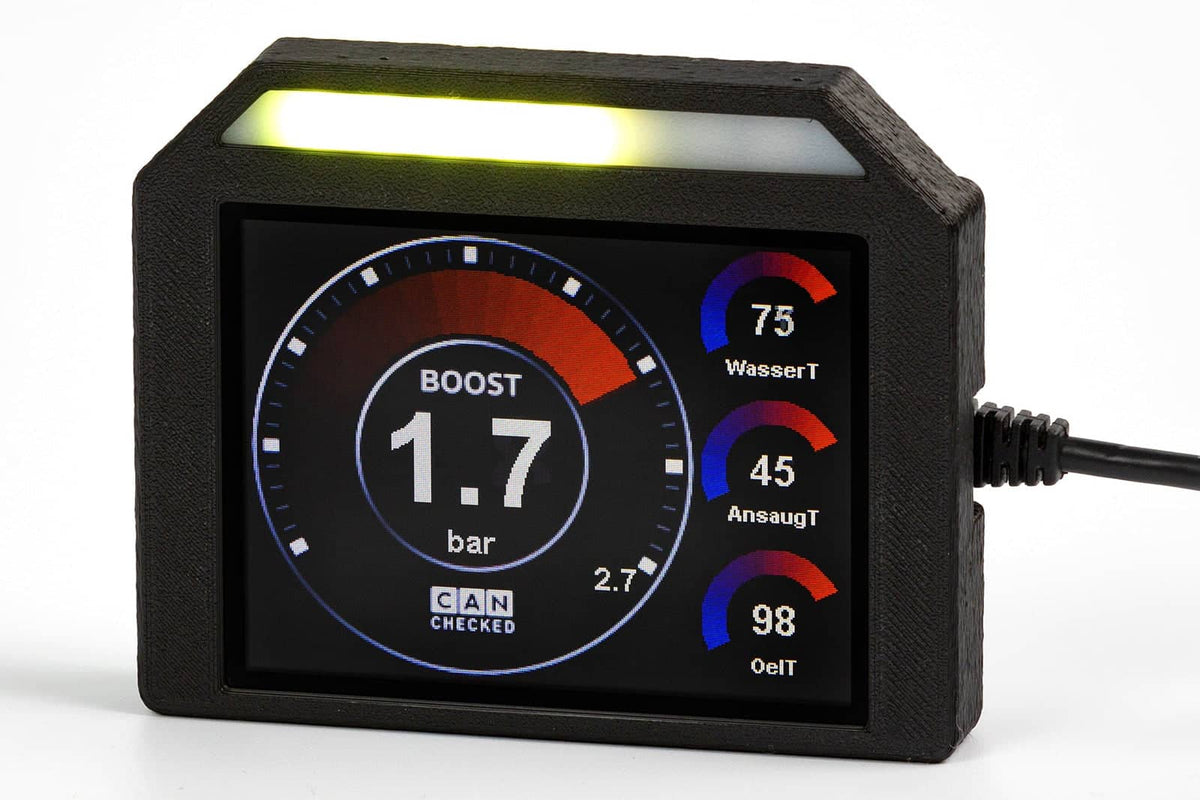

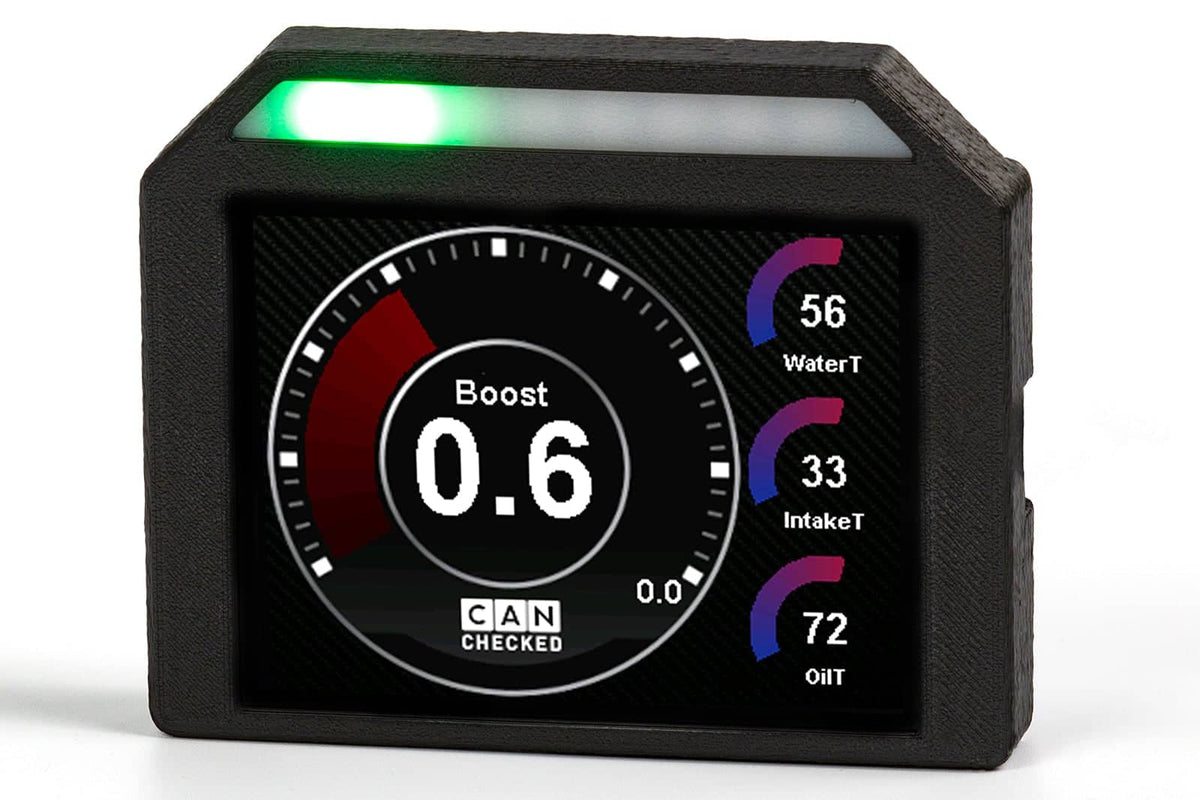

CANchecked MFD32S Multi Function Universal Display | 3.2" Gen2 with Integrated Shiftlight

The CANchecked MFD32S Gen2 Data Display with Integrated Shiftlight is a CANchecked digital display solution designed for enthusiasts and tuners who need a compact, configurable way to monitor critical engine and vehicle data.

It is well suited for projects that require CAN Bus integration, expandable sensor inputs, integrated shift light functionality, and built-in warning functions. The MFD32S Gen2 in the universal version fits in any vehicle and is an intelligent display with features you don't want to miss.

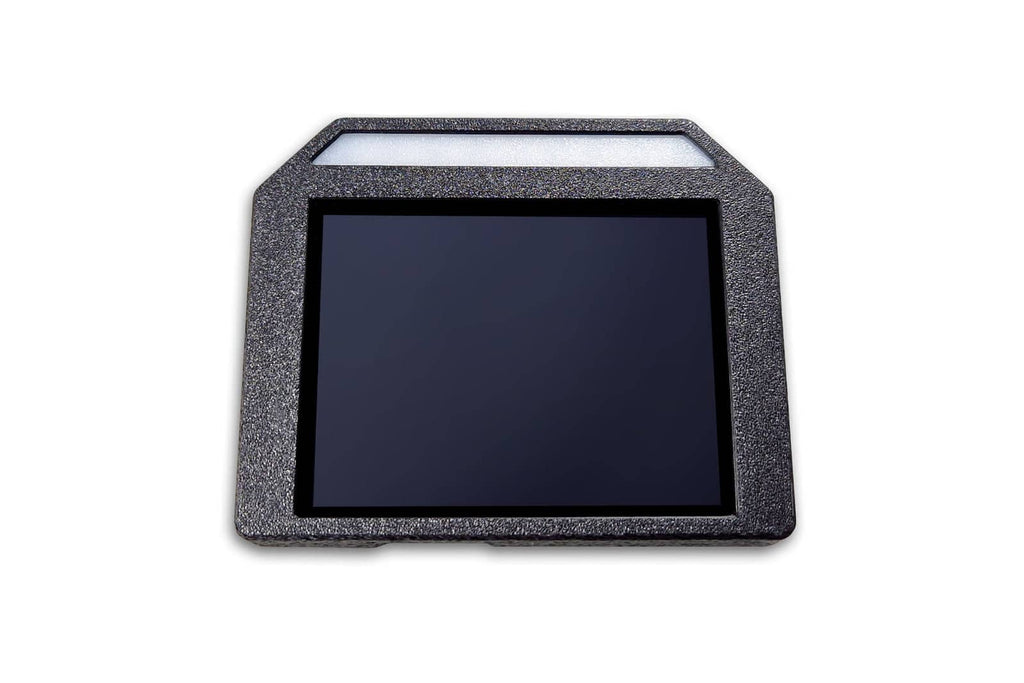

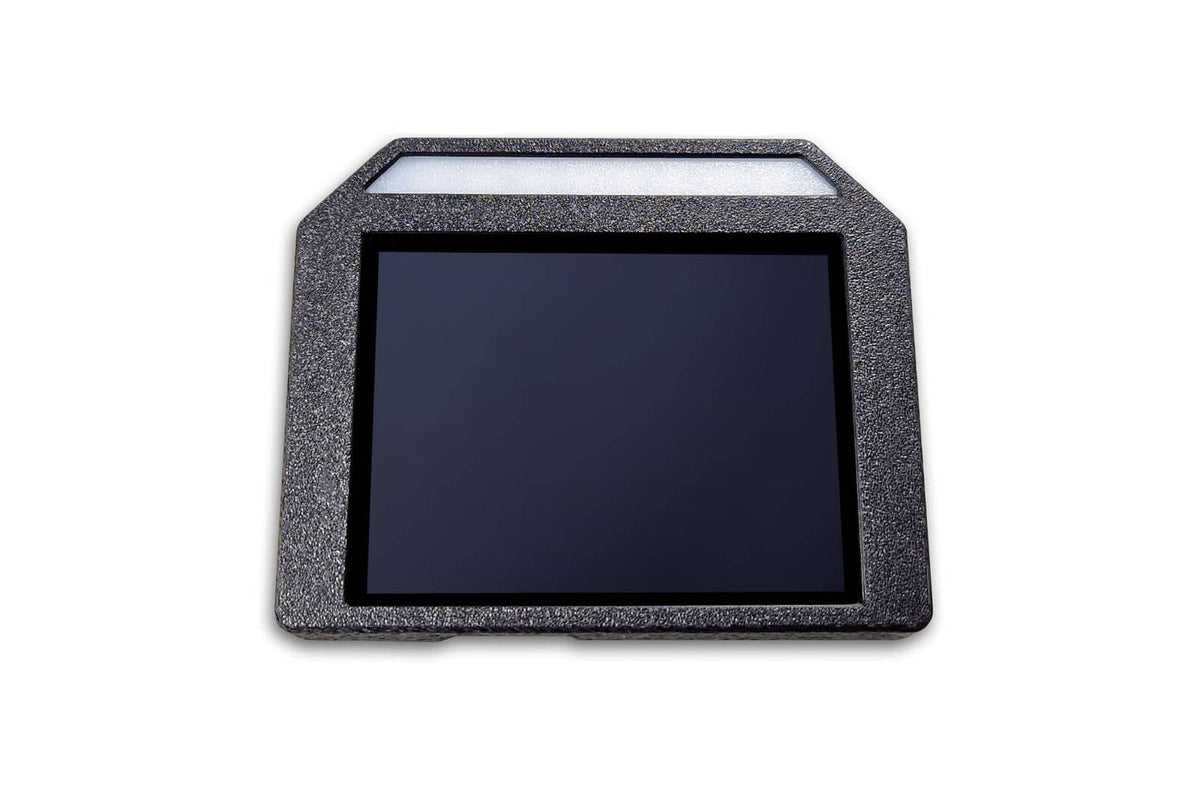

The lightweight plastic housing impresses with its symmetrical appearance and can be used both vertically and horizontally.

Product Details

• Compact size: The external dimensions are 89.5 x 72.5 mm and the depth is 19.5 mm (without connector)

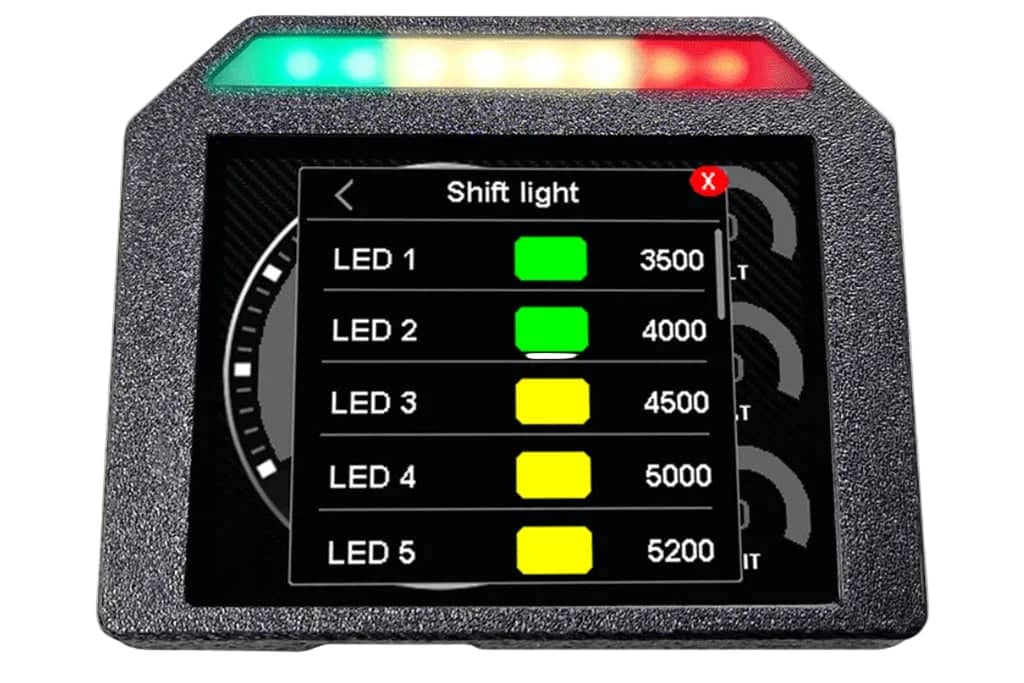

• Shift light: The colors and speed thresholds of the integrated shift light can be freely configured
• Can Bus: Readout of in-depth vehicle data such as manufacturer diagnostic tools
• Gear display: Directly via Can Bus or calculated from speed and rpm
• Touchscreen: Navigate through pages using intuitive swipe gestures
• Customization: Design your own pages, add your own pictures or start animation
• Additional inputs: Connect up to 4 analog inputs and an ethanol sensor directly to the display
• Can Switching: Use your display as a keypad and send your own can messages to the bus
• Customizable Alarms: Customizable alarms can be easily configured and activated. For example, get a big warning message when the exhaust gas temperature is above 900 degrees
• Logging: Log and save your data to the internal SD card for later analysis.
• Performance Meter: Measure your 0-100, 100-200 and 0-200 times with the integrated performance meter without any additional hardware.
• DTC*: Read and clear the errors of engine control unit, transmission, ABS and all-wheel drive

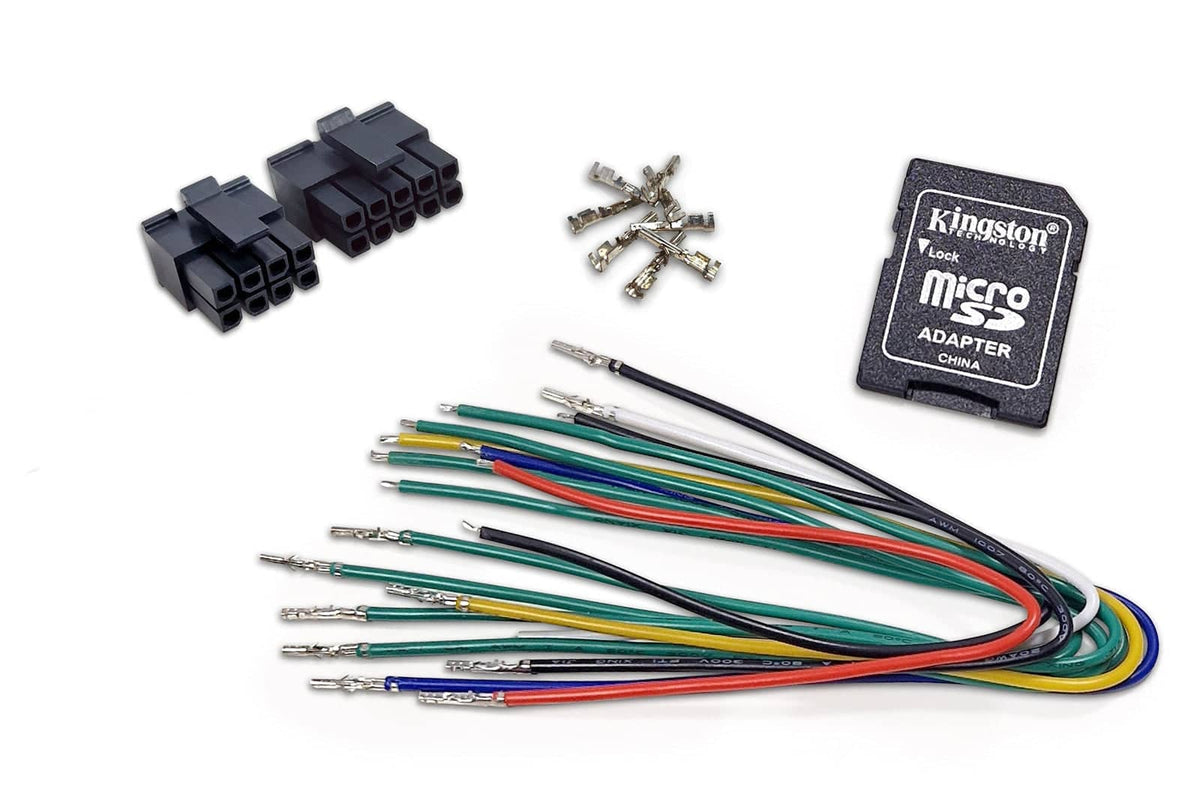

What’s Included

• MFD32S Gen2 data display with integrated shift light

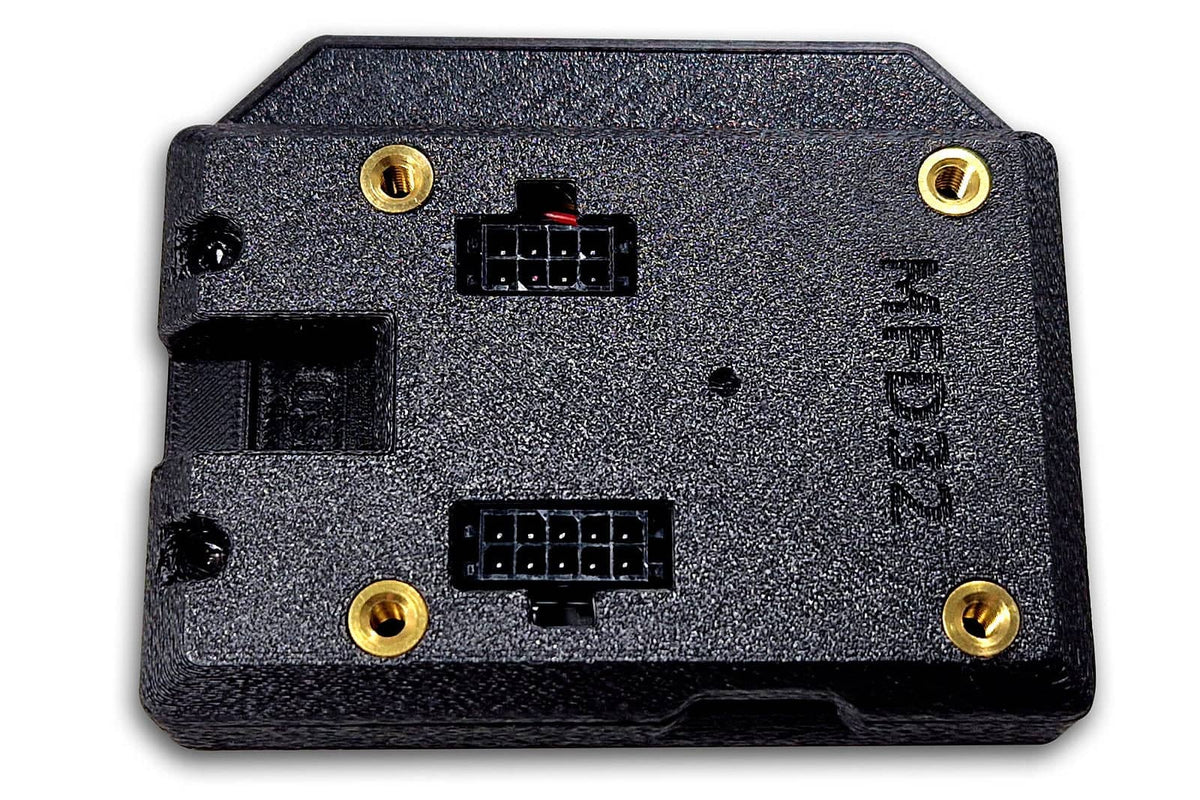

• Connector A (8-way Molex)
• Connector B (10-way Molex)
• Different coloured pre-assembled connection cables (length: 20 cm, intended use: power supply, Can Bus, analogue inputs, 5V, sensor ground)
• Pins for crimping yourself

• USB data cable
