CANchecked Multi Function Display MFD28 GEN2 for BMW F20 F21 F22 F23 F30 F31 F32 F33 F34 F35 F36 F80 F81 F82 F87 2011 - 2021

Please be advised that customers are responsible for any applicable customs duties, tariffs, and value-added taxes.

BMW F-Series Display - Your Glimpse into the Future

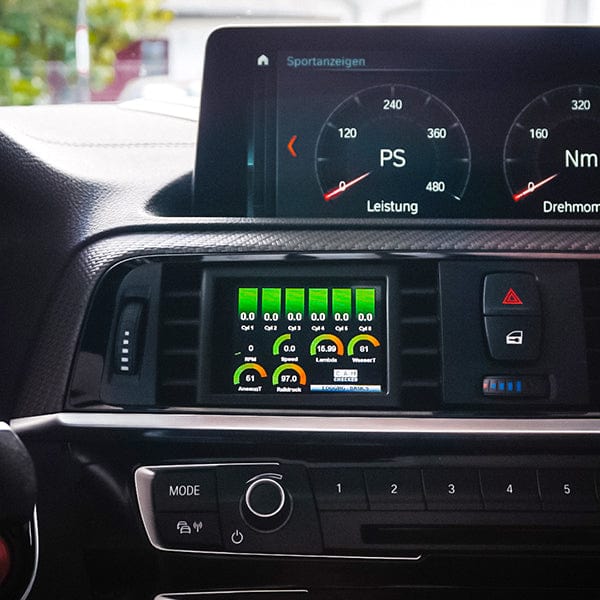

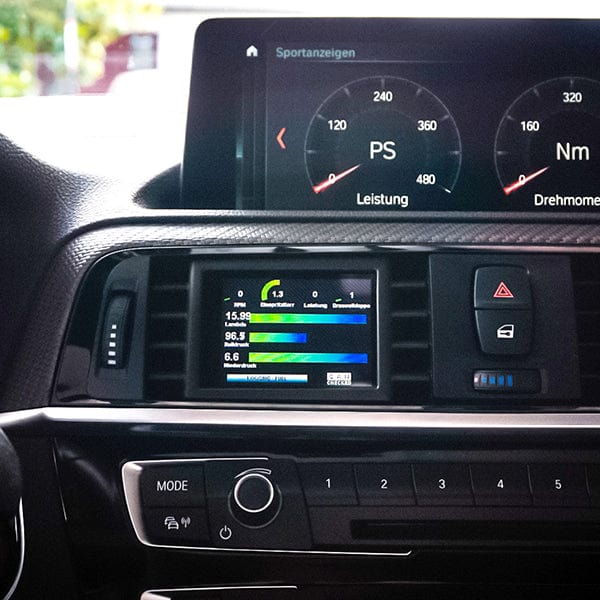

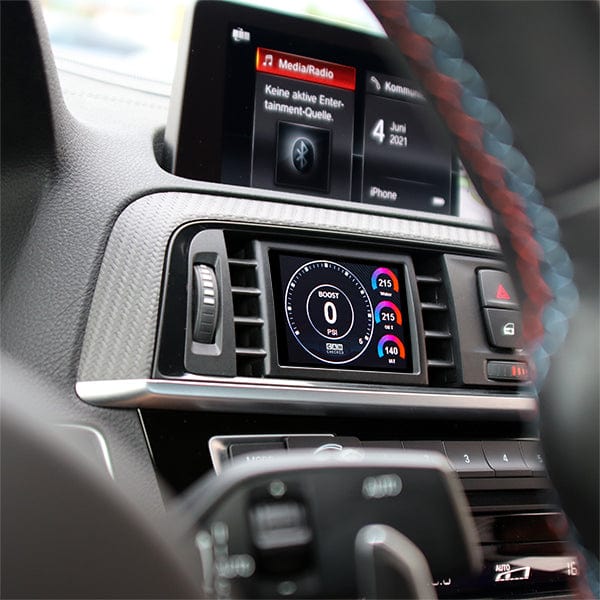

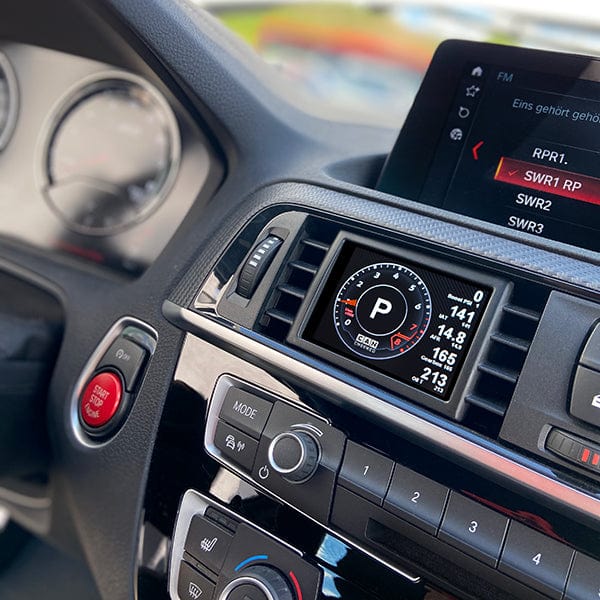

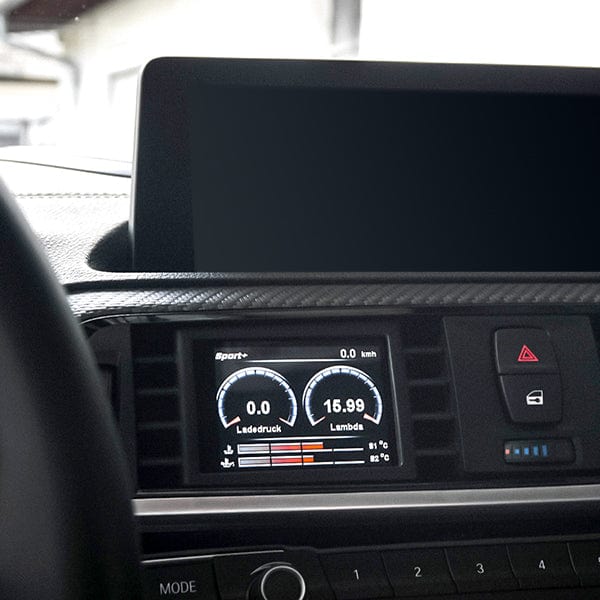

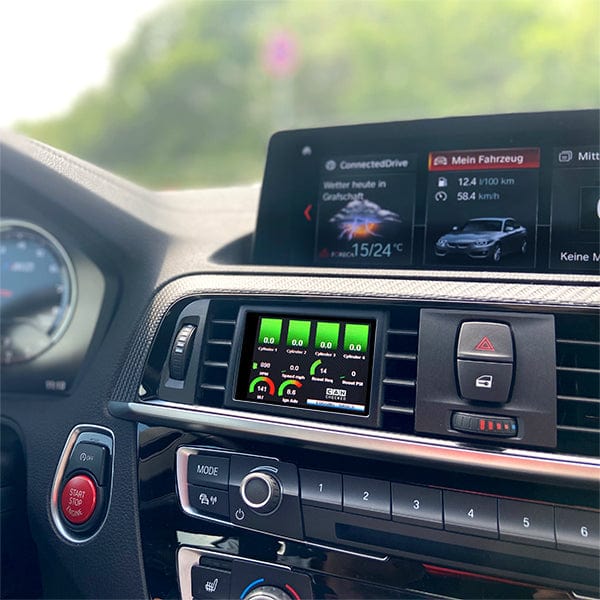

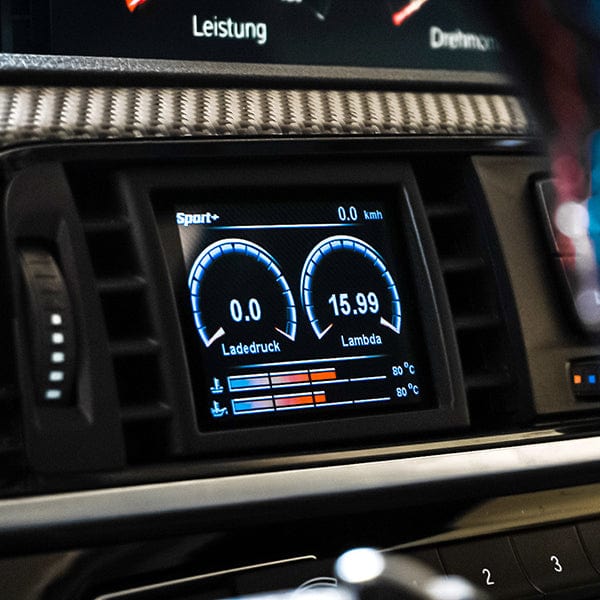

We proudly present our advanced display for BMW F-series. This innovative display provides you access to all essential vehicle data. Yes, we mean all relevant information. Our display reads this data directly through the Can-Bus protocol and displays it on our reliable MFD28 display. The BMW F-series display is designed to seamlessly fit into your vehicle's cockpit and comes with a custom-made bezel that blends perfectly with the original design.

The specially adapted Can-Bus protocol was developed to ensure the fastest query speed possible.

Key Features Overview:

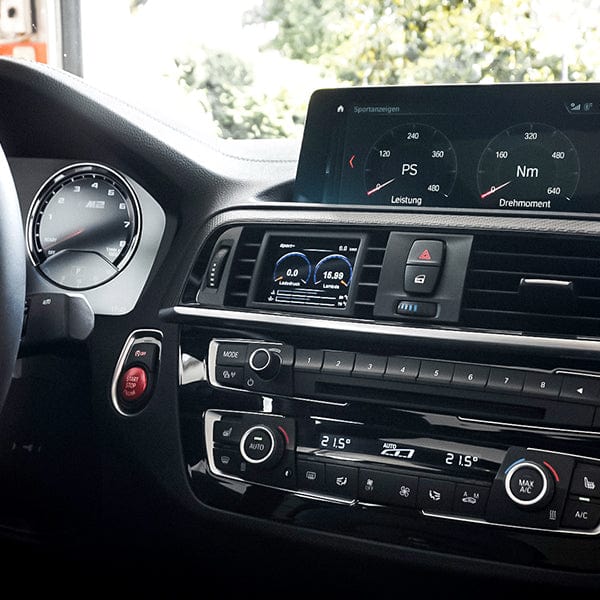

• Perfect integration into your BMW F-series cockpit design
• Support for up to 128 sensors
• 10 individually customizable display modes thanks to our DSS - Display Setup Software
• Pre-installed display modes for a quick start
• Easy plug-and-play installation with our cable set - simply connect and go
• 4 additional analog inputs for monitoring exhaust temperature, oil pressure, and more
• Integrated option for connecting an ethanol sensor
• Optimal readability with optional glare shield
• Diagnostics-friendly sensor querying at eye level
• Data logging - continuously or on demand
• Switch display modes using the original cruise control switch

Additional Exciting Features:

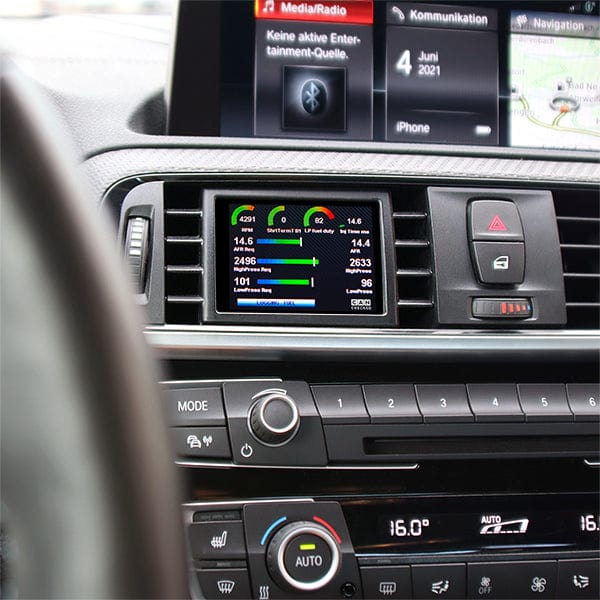

• Performance Meter: Measure your acceleration times with our performance widget - 0-100, 100-200, 0-200.
• Data Logging: Log all data on the internal SD card - whether on request (start with a tap) or continuously. All data from your last drive will be stored.
• Customizable Alerts: Activate and customize pre-installed alerts, e.g., when exceeding an exhaust temperature of 900 degrees.
• 4 Additional Analog Inputs: Connect additional sensors such as temperature or pressure sensors to utilize advanced monitoring functions, including exhaust temperature or exhaust backpressure. An ethanol sensor can be connected to one of the digital inputs.
• Error Reading/Clearing: Read and clear error messages from the engine control unit clearly and decisively.

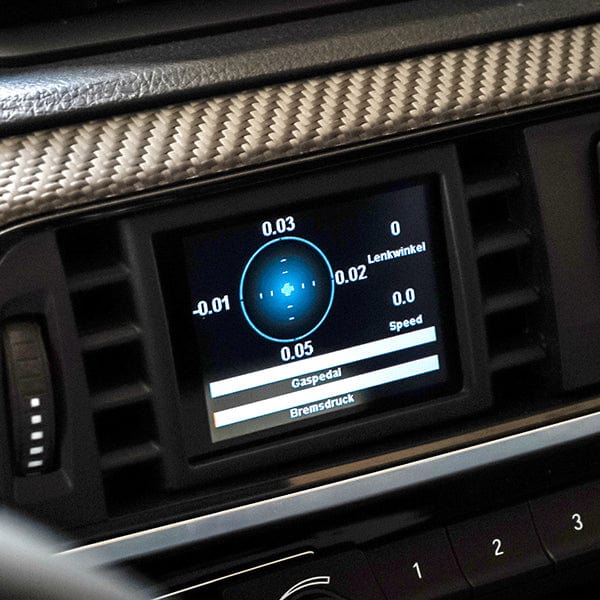

• Personalization: Customize the startup screen or choose from various widgets to tailor the display to your preferences.
• Seamless Vehicle Integration: Our display is compatible with all BMW F-series models. We are also working on a version for right-hand drive (RHD) models.

Access to All Vehicle Data: We provide a pre-configured TRI file for your display by default. It lists all queryable sensors, including:

Temperatures: Engine coolant temperature, intake air temperature, exhaust gas temperature, transmission temperature.
Pressures: Boost pressure, ambient pressure, oil pressure.
Lambda/Fuel Mixture: Lambda setpoint/actual value, short-term lambda adaptation, long-term lambda adaptation, MAF (Mass Air Flow) sensor, engine load, torque.
Driver Dynamics: Brake pressure, vehicle speed, throttle angle/gas pedal position.
Others: Engine speed, total ignition angle, gear, battery voltage, ignition angle correction per cylinder.

Analog Inputs: You can add additional sensors such as oil temperature, fuel pressure, oil pressure, exhaust gas temperature, and more, as well as an ethanol sensor for flex-fuel applications.

Please note that not every engine provides all of these data.

Compatibility with BMW Fxx Models:

The display frame is suitable for all BMW Fxx models, including M models, 2 series, 3 series, 4 series. A version for right-hand drive (RHD) is also available.

Package Contents in Detail:

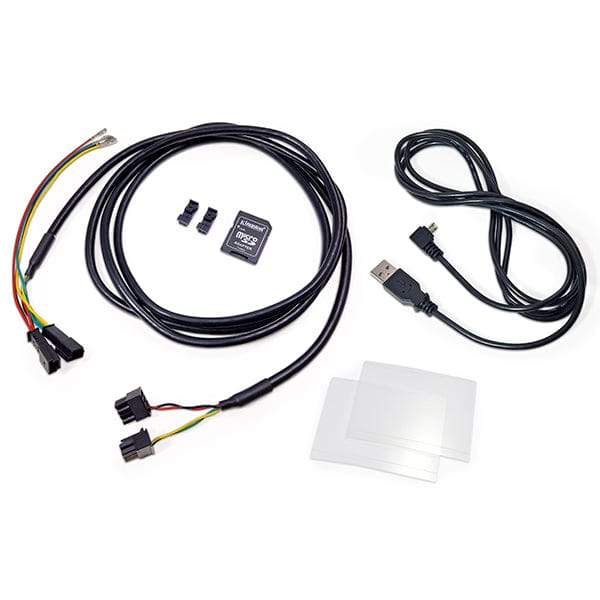

Each package includes:

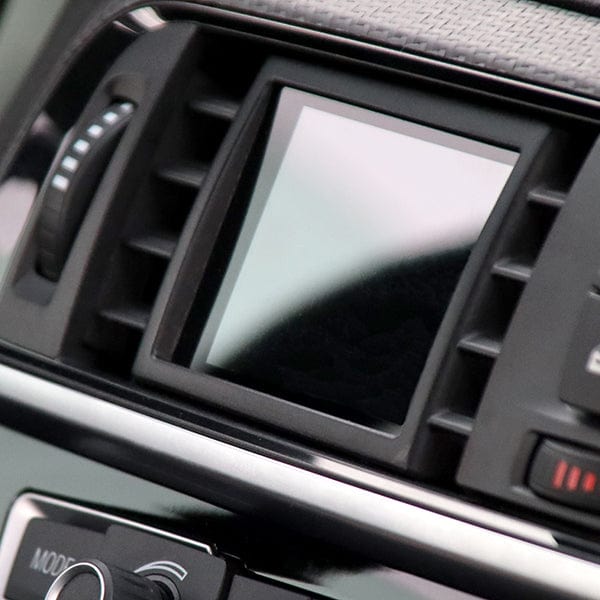

• Integrated MFD28 Gen2 data display in the dashboard
• Vehicle-specific connection cable
• Quick start guide
• USB data cable
• SD card (pre-installed in the display)
• SD card adapter
• Display glare shield (to prevent reflections)

Connection and Expansion Possibilities:

You can connect various sensors through the four analog inputs - both linear 0-5V and NTC sensors are supported.

Our in-house CANchecked Dsiplay sensors are already integrated into the TRI/TRX files and only need to be connected:

• AIN1: Temperature sensor
• AIN2: Exhaust gas temperature probe Type K
• AIN3: Pressure sensor 0-10 bar
• AIN4: Boost pressure sensor 0-5.5 bar absolute

In addition to analog sensors, you can also directly connect our external flash module with 8 LEDs. It can blink in various colors to indicate rev limits, and the colors can be conveniently configured through the display.

The ethanol sensor is connected directly to the display. A pull-up resistor (10K) between 5V and signal is required. Afterward, you can read and log ethanol content and temperature directly on the display.

Advanced Features for Experts:

With the Math Channels, you can link sensor data together. User Tables allow creating additional sensors with 2D or 3D maps.

Optional Accessories for Expansion:

• CC24000 SLM08 - External flash module
• CC22100 CBD08 - Eight-channel CAN distributor
• CC22902 NTC01 - Liquid temperature sensor 1/8" NPT
• CC22903 TCC01 - Type K converter 0-1250°C
• CC22901 FLP01 - Pressure sensor 0-10 bar (145psi) M10x1
• CC22900 BST01 - Pressure sensor 0-5.5 bar absolute (80psi)

Installation Guide for a Smooth Setup:

We provide an illustrated installation guide to ensure a hassle-free installation process.

Unleash the full potential of your BMW F-Series with our state-of-the-art display. If you have any questions or need further information, we are at your service.
