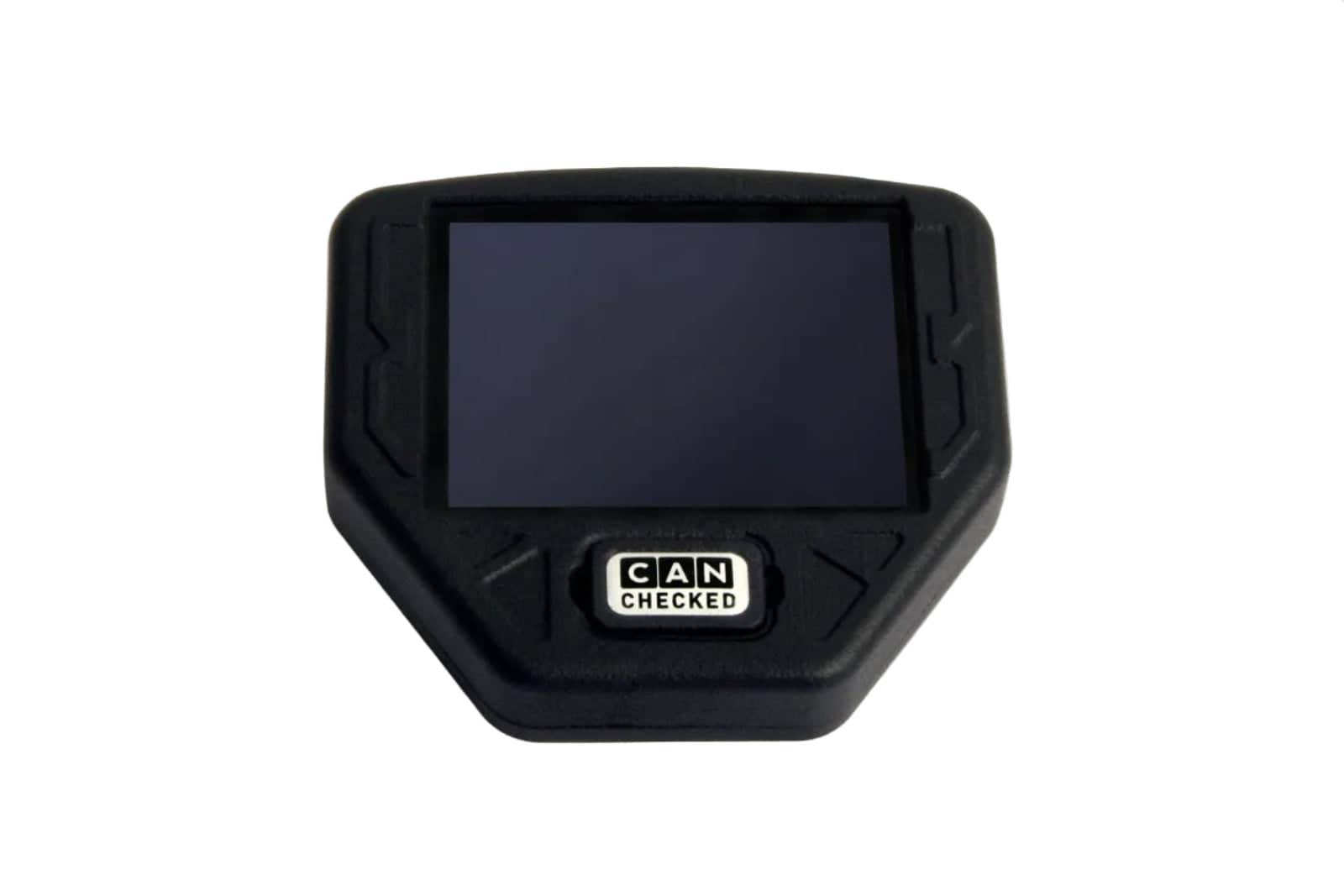

CANchecked SWD32 Multi Function Display | 3.2" Gen2 - For Dished Steering Wheels

The CANchecked SWD32 display for dished racing steering wheels is a high-performance motorsport solution for displaying real-time vehicle data directly in the driver's field of vision. Based on the proven CANchecked platform, the SWD32 combines state-of-the-art CAN integration, extensive customization options, and professional data analysis in a compact system.

Based on the proven MFD32 display, it is mounted directly to dished steering wheels and offers maximum control over all relevant engine data – ideal for motorsport and performance applications. The MFD32 supports communication through CAN bus protocols including ISO 11898-2 and SAE J2284, allowing users to retrieve extensive ECU data depending on manufacturer support and CAN documentation availability. CANchecked’s system supports up to 128 sensors across CAN bus and internal inputs, while offering configurable pages and widget layouts through the integrated touchscreen interface or CANchecked’s Display Setup Software (DSS).

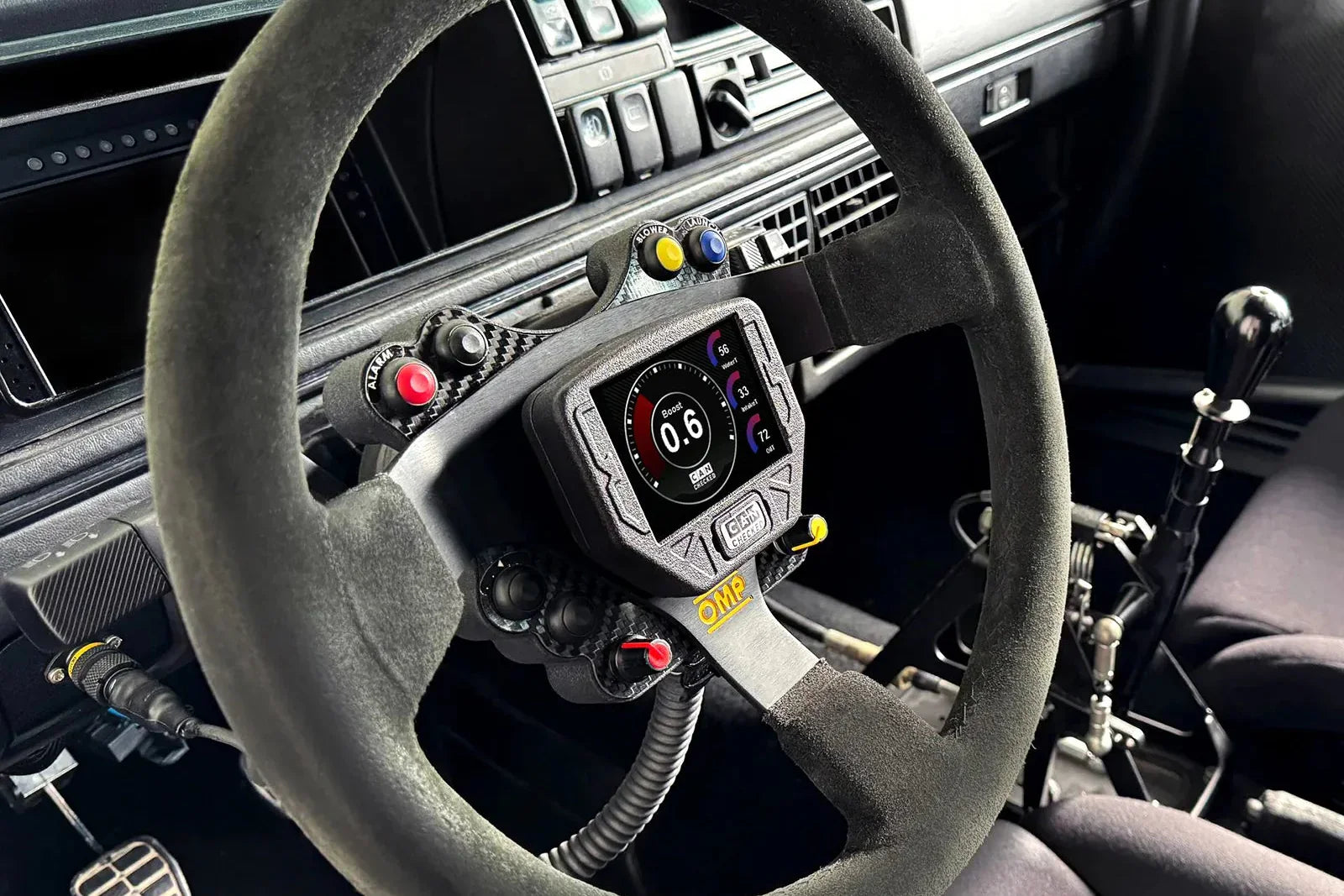

The SWD32 transforms your steering wheel into an intelligent cockpit. Thanks to its direct integration into the steering wheel, you have all important vehicle data in view at all times – without taking your eyes off the road. Use the analog inputs from the display as trim pots or the digital inputs to switch between pages via external buttons.

Key Features

• Steering wheel display for real-time display of vehicle data
• Mounts directly to the sports steering wheel (6x70 bolt circle)
• Variants for flat and dished steering wheels
• 3.2" touchscreen with intuitive operation
• Up to 10 layout pages with customizable widgets
• Up to 64 widgets per page
• Automatic display dimming
• Compatible with CAN bus systems and many control units
• Includes MicroSD and MicroUSB support
• 4x analog inputs
• Integrated speed input support
• Optional external shift light support
• CAN bus switching functionality supported
• Supports OBD2 CAN communication (11-bit and 29-bit)
• Supports TP2.0 and UDS communication protocols

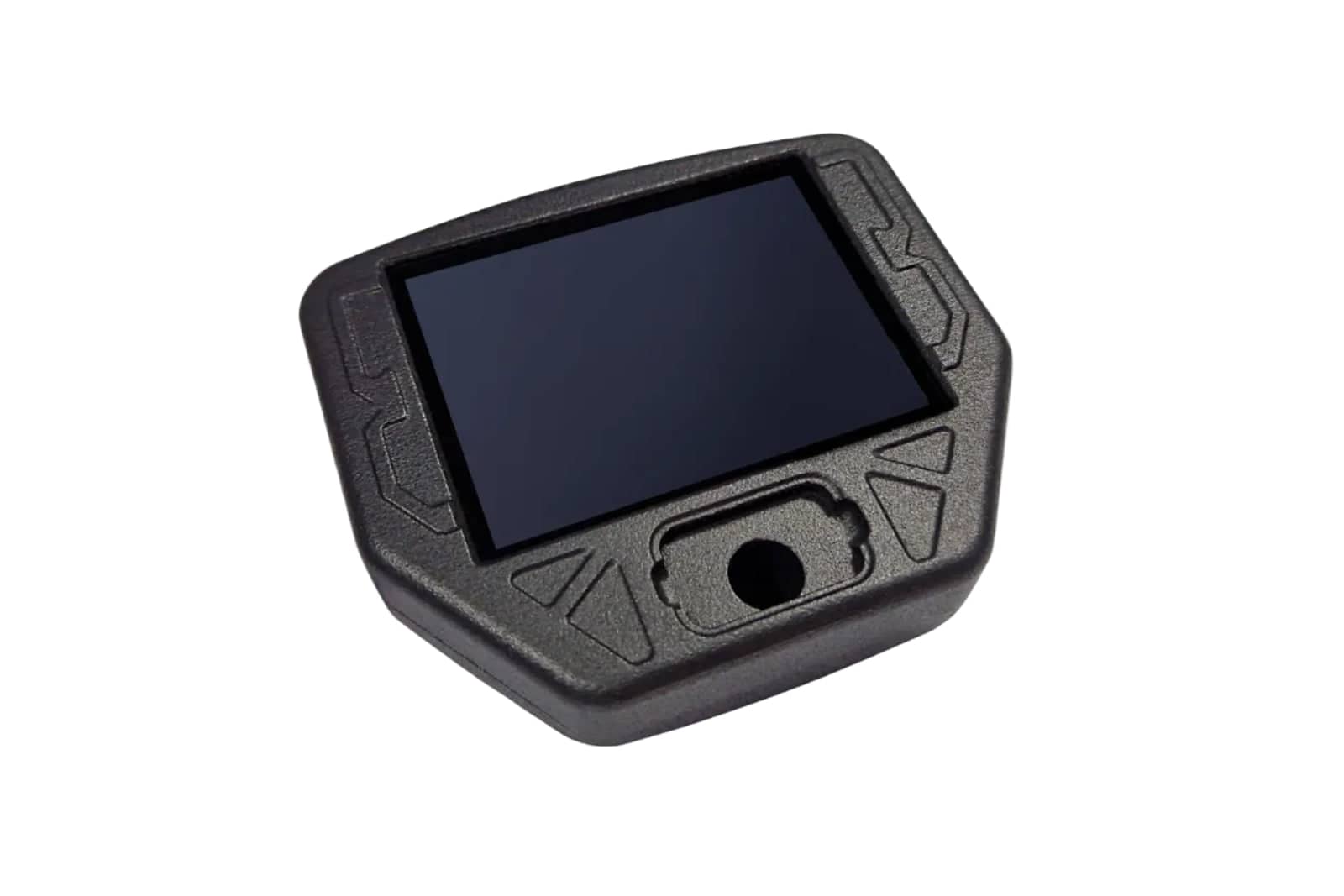

• High quality 3D-printed display surround manufactured in-house by CANchecked

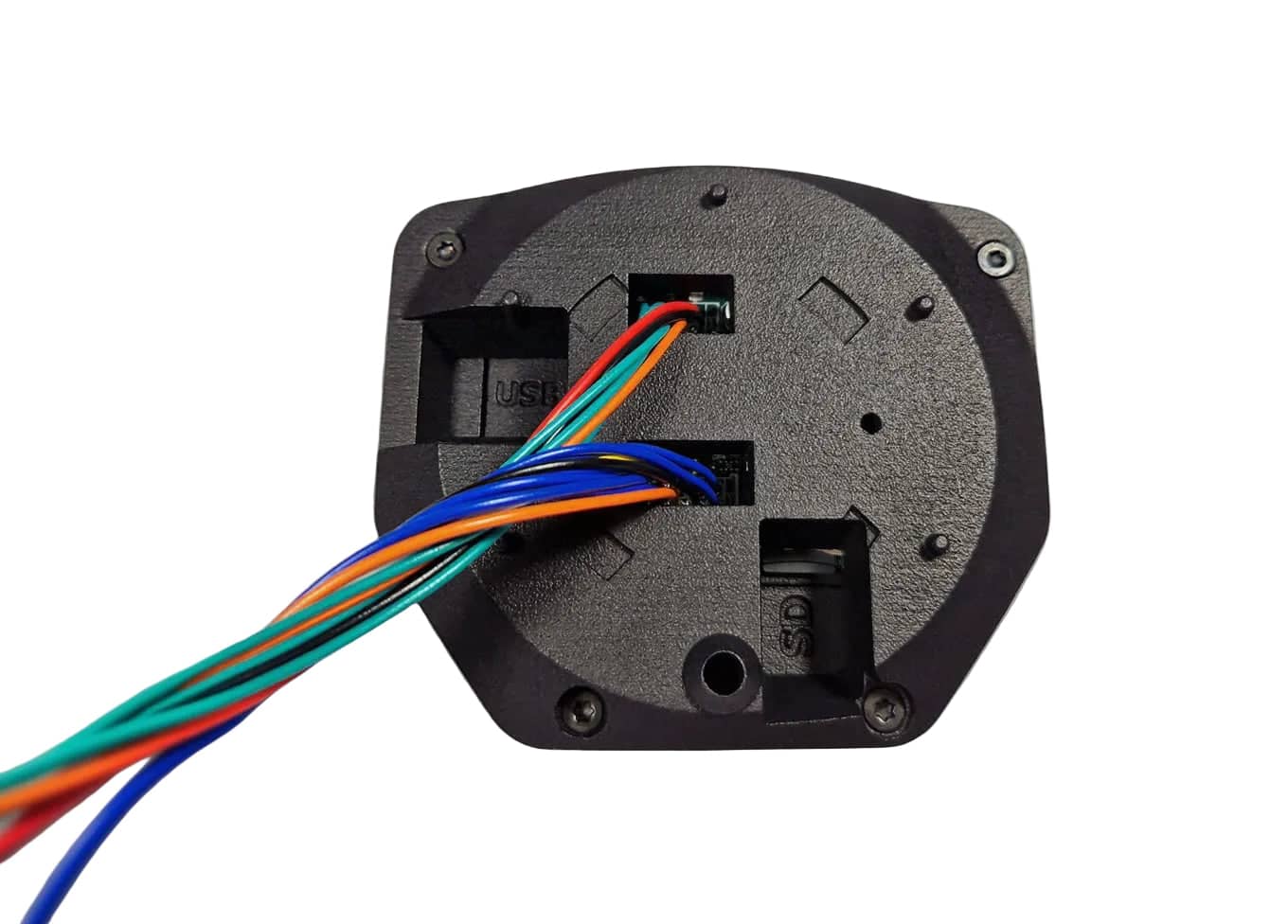

• Includes wiring, connectors, and wire harness for display installation
