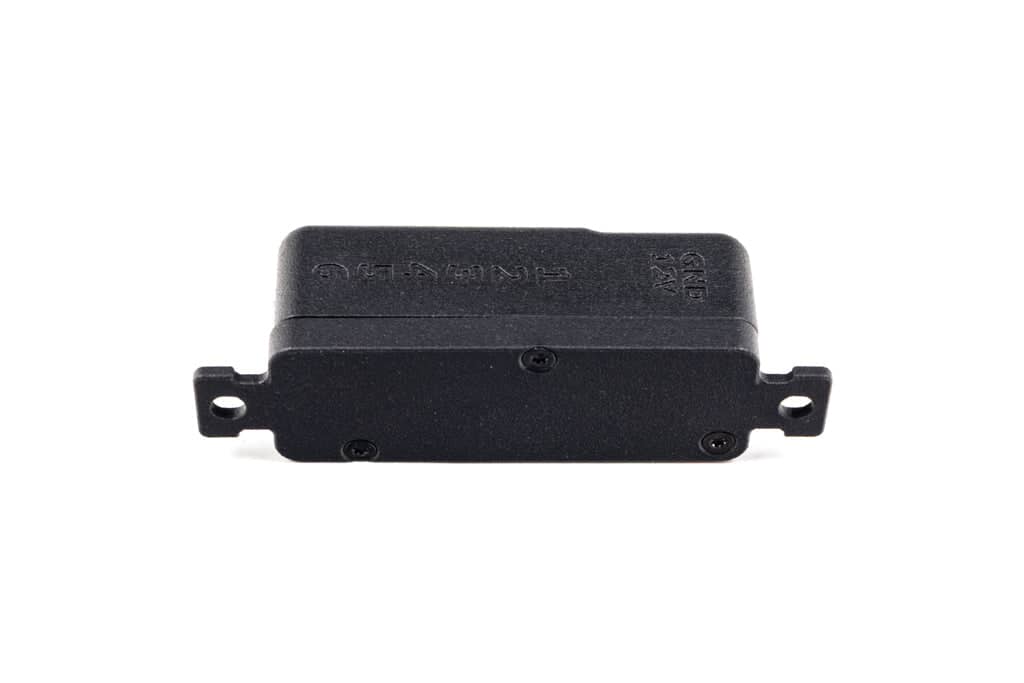

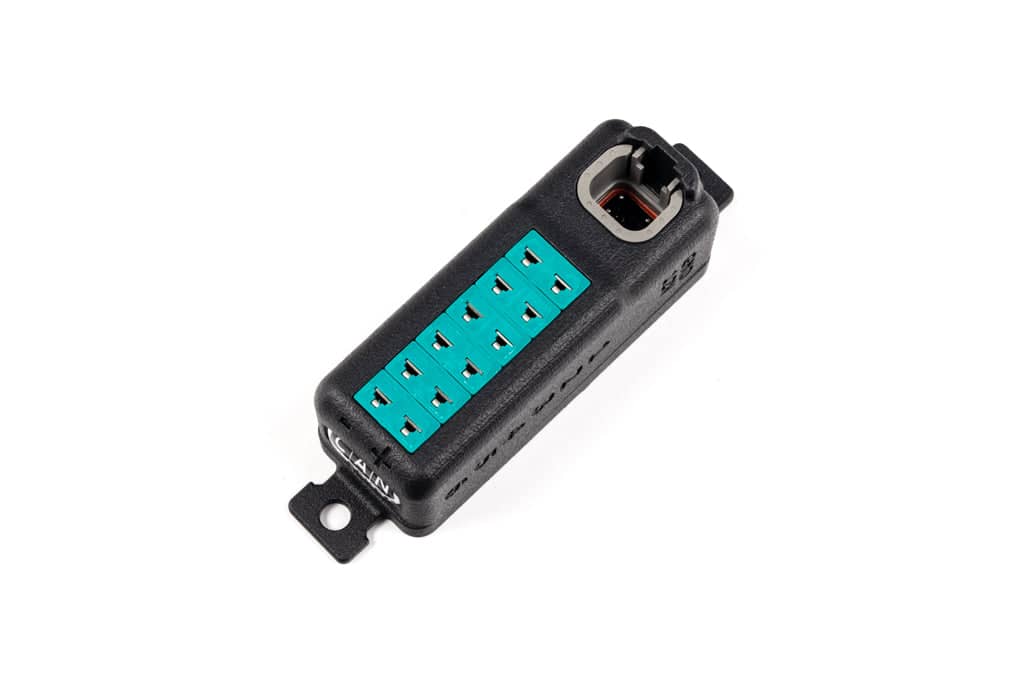

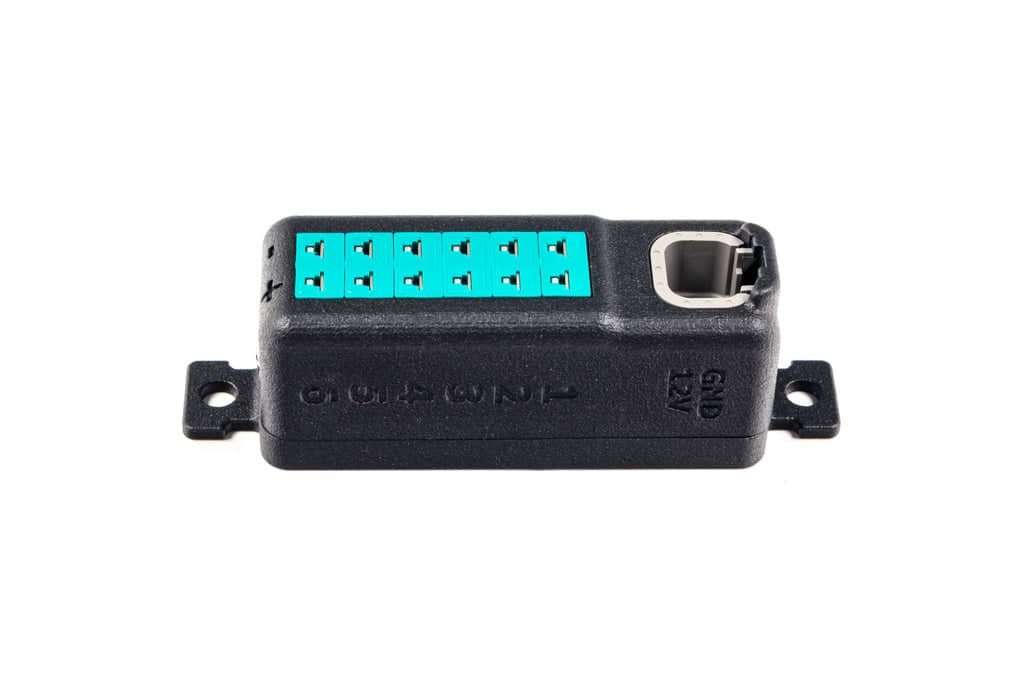

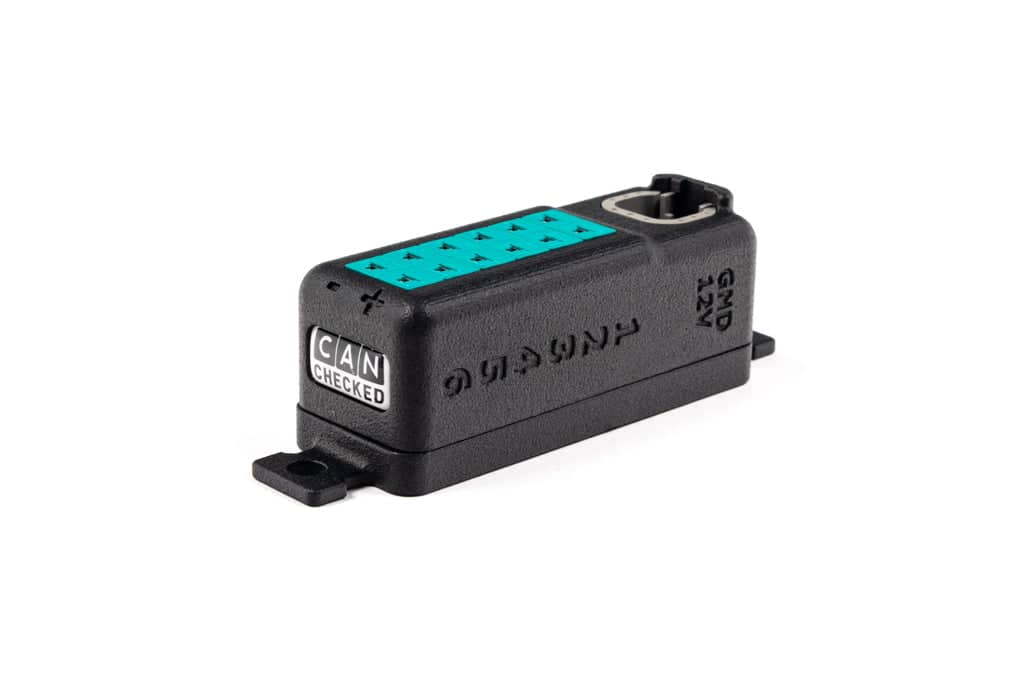

CANchecked TCC06 Thermocouple CAN Converter with 4-pin DTM Connector

The CANchecked TCC06 Thermocouple Converter provides professional-grade temperature monitoring through direct CAN bus communication, allowing users to accurately measure and transmit data from up to six Type-K thermocouples. Designed for motorsport, performance, and advanced vehicle monitoring applications, the TCC06 eliminates the limitations of traditional analog temperature inputs while delivering fast, reliable, and highly accurate temperature data to compatible ECUs, displays, data loggers, and CAN bus devices.

Unlike conventional thermocouple converters that rely on analog voltage outputs, the TCC06 transmits temperature data directly over the CAN bus. This digital communication method improves accuracy, reduces signal degradation, and simplifies integration with modern vehicle electronics. The module supports measurement ranges from 0°C to 1250°C with cold-junction compensation and high-resolution temperature reporting, making it suitable for monitoring exhaust gas temperatures, intercooler efficiency, cylinder head temperatures, oil temperatures, coolant temperatures, and other critical operating parameters.

Built around a compact motorsport-grade design, the TCC06 features CAN 2.0A/B compatibility and can be configured to communicate with a wide range of aftermarket ECUs and control systems. Support for multiple CAN protocols and configurable communication settings allows seamless integration with platforms from Emtron, MaxxECU, Motec, Haltech, Ecumaster, LinkECU, and many others.

A built-in WiFi interface provides convenient wireless access for configuration, firmware updates, live temperature monitoring, and diagnostic functions. Users can quickly adjust CAN speeds, configure communication settings, select supported CAN emulation modes, and verify thermocouple operation directly from a smartphone, tablet, or computer without requiring additional software or hardware.

Whether you're monitoring exhaust gas temperatures on a turbocharged race car, tracking engine temperatures during endurance events, or integrating advanced temperature monitoring into a custom vehicle build, the TCC06 delivers precise data acquisition and seamless CAN bus integration in a compact and versatile package.

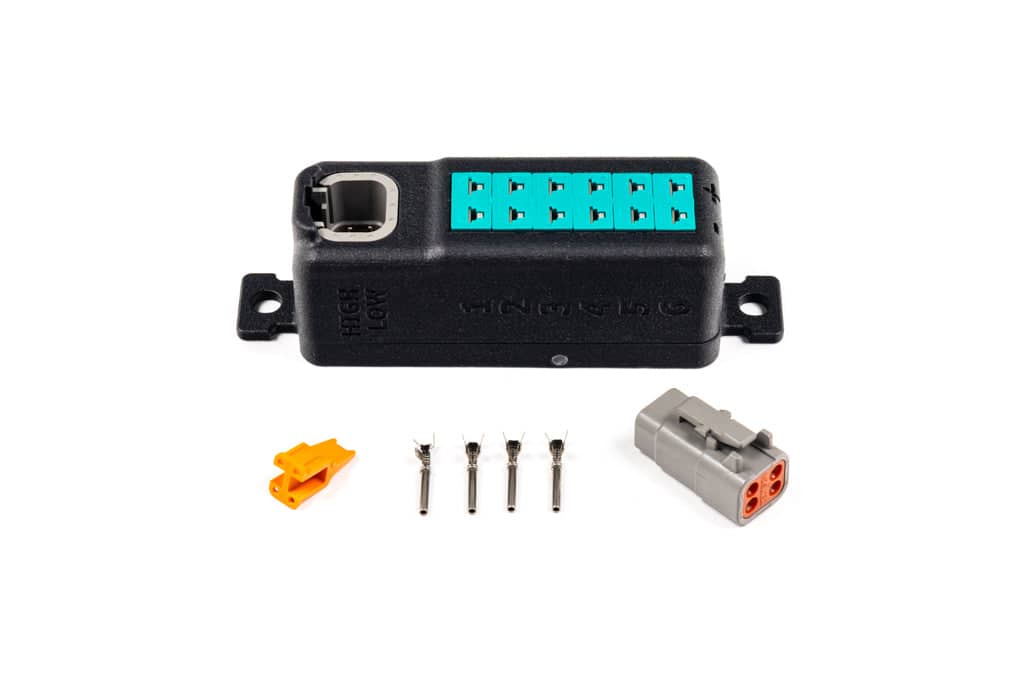

What's Included

• CANchecked TCC06 Type-K Thermocouple Converter Module
• Integrated DTM 4-pin CAN bus connection

Key Features

• Supports up to six Type-K thermocouples
• Direct CAN bus communication for accurate digital data transmission
• Measurement range from 0°C to 1250°C
• Cold-junction compensated temperature readings
• High-resolution 14-bit measurement accuracy
• Integrated WiFi connectivity for configuration and monitoring
• CAN 2.0A/B compatibility
• Configurable CAN bus speeds from 125 kbps to 1 Mbps
• Compatible with a wide range of aftermarket ECUs and CAN-enabled devices
• Ideal for EGT, coolant, oil, intercooler, and cylinder head temperature monitoring
