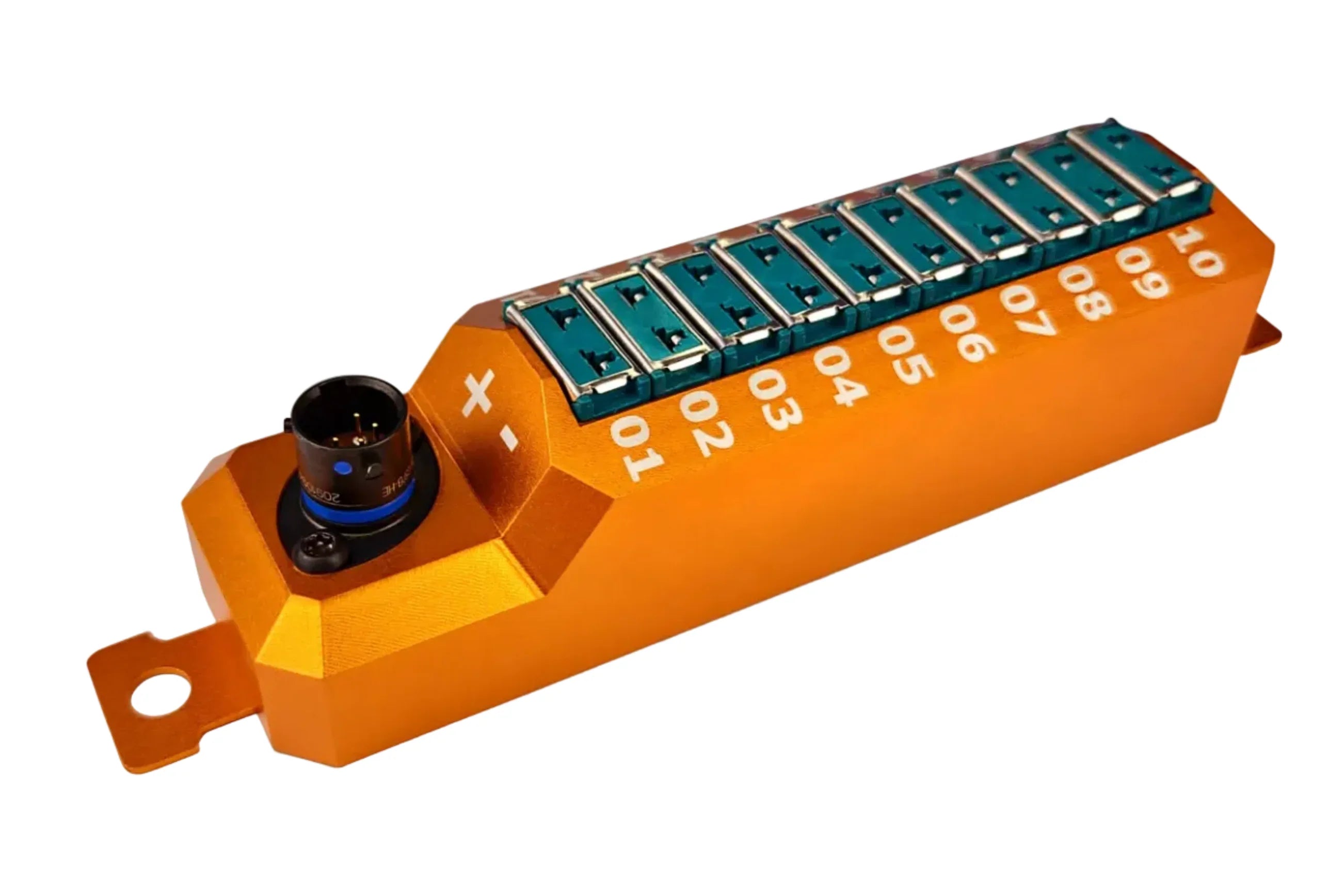

CANchecked TCC10AS - Thermocouple CAN Converter with Autosport Connector

Developed in close collaboration with motorsport companies, the TCC10AS sets new standards in terms of performance and flexibility. The CANchecked TCC10AS - Thermo Couple Converter with Deutsch Autosport ASL006-05PN (5-pin, female) connector is a CANchecked connector accessory designed to support clean, reliable wiring and service-friendly installation in custom vehicle electronics setups.

It is well suited for projects that require broad system compatibility, and CAN Bus integration. Discover the TCCXX family - the bigger siblings of our proven TCC01 !

If standard DTM connectors aren’t cutting it for you and you love billet housings, then the TCC10AS from CANchecked is made for you.

Product Details

• Connect up to 10 Type-K thermocouples
• Locking miniature Type-K connectors - secure connection under extreme conditions
• CAN 2.0A/B support with flexible configuration
• WLAN connectivity for easy configuration and monitoring
• Billet aluminum housing, anodized - rugged and attractive

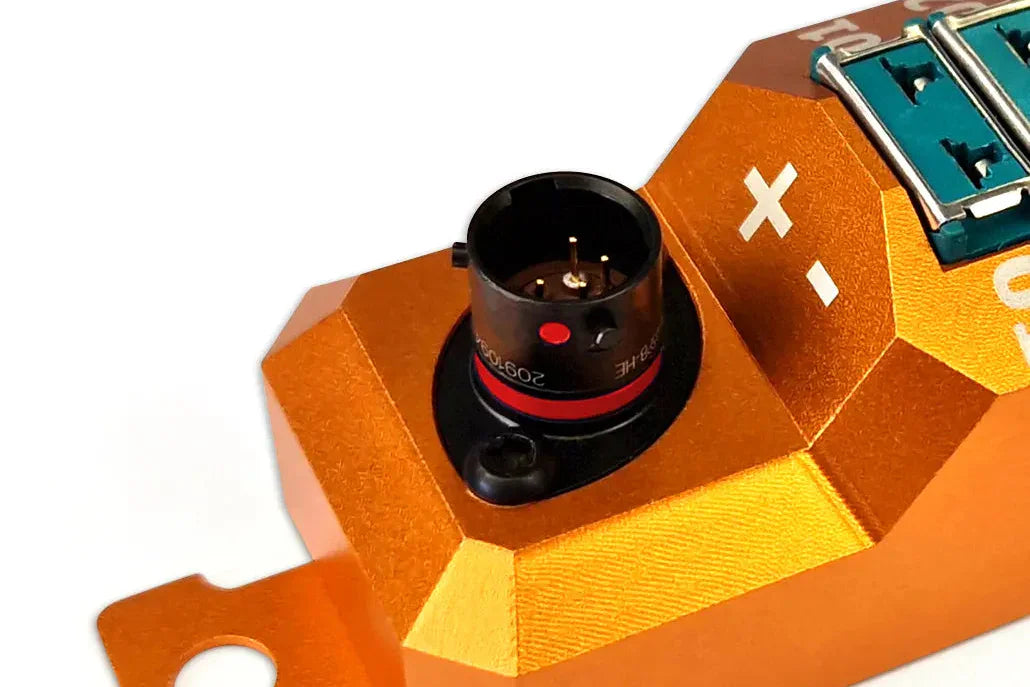

• Deutsch Autosport ASL006-05PN (5-pin, female) connector for CAN and power
• Exhaust gas temperature (EGT)
• Pre- and post-intercooler temperatures
• Cylinder head temperature
• Water and oil temperature
• Many other motorsport or performance tuning uses
• Measurement range: 0 to 1250°C

Technical Overview

• If standard DTM connectors aren’t cutting it for you and you love billet housings, then the TCC10AS from CANchecked is made for you
• Just like the TCC10 in its DTM variant, the TCC10AS doesn't output analog 0-5V signals, but transmits its readings directly via CAN bus
• Fully compatible with a wide range of ECUs, including:
• Exhaust gas temperature (EGT)
• Pre- and post-intercooler temperatures
• Cylinder head temperature

Notes

• NOTE: Mating connectors (Deutsch Autosport and locking miniature Type-K connectors) are not included in the delivery!
