CANchecked Toyota Supra GR A90/A91 LHD MFD32 Gen2

Please be advised that customers are responsible for any applicable customs duties, tariffs, and value-added taxes.

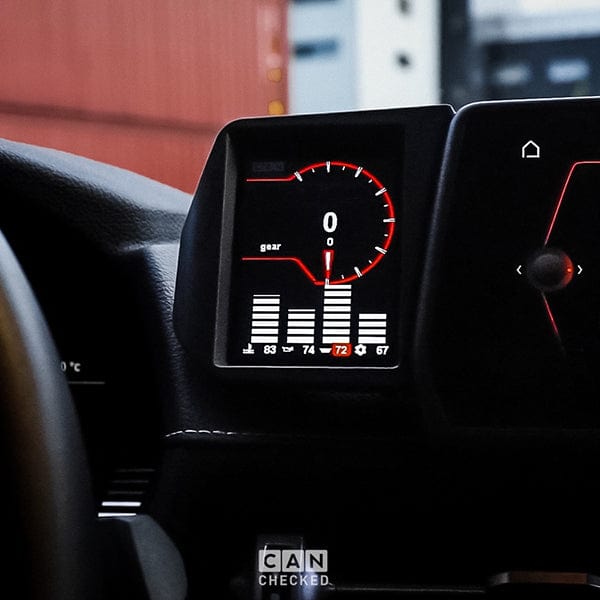

Toyota Supra Display - Your Gateway to the Future

We proudly present our advanced display for Toyota Supra models. This innovative display grants you access to all vital vehicle data. And when we say all, we truly mean all relevant information. Our display reads this data directly through the Can-Bus protocol and presents it on our reliable MFD28 display. The Toyota Supra display is designed to seamlessly integrate into your vehicle's cockpit, featuring a custom-made panel that perfectly complements the original design.

The specially tailored Can-Bus protocol has been developed to ensure the fastest query speed possible.

Key Features Overview:

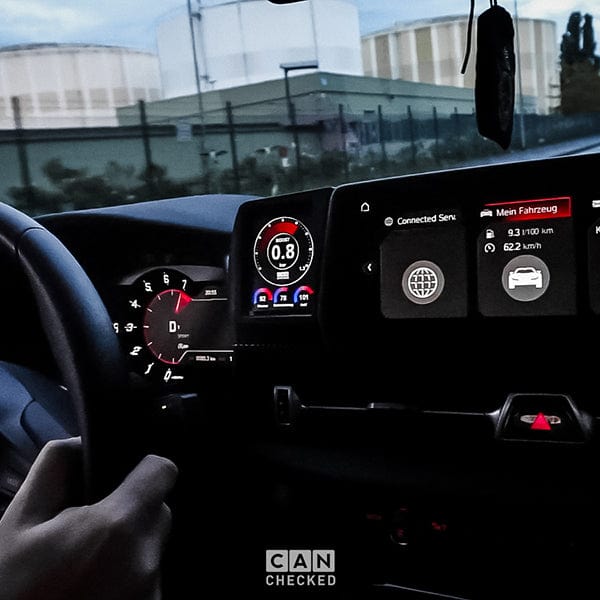

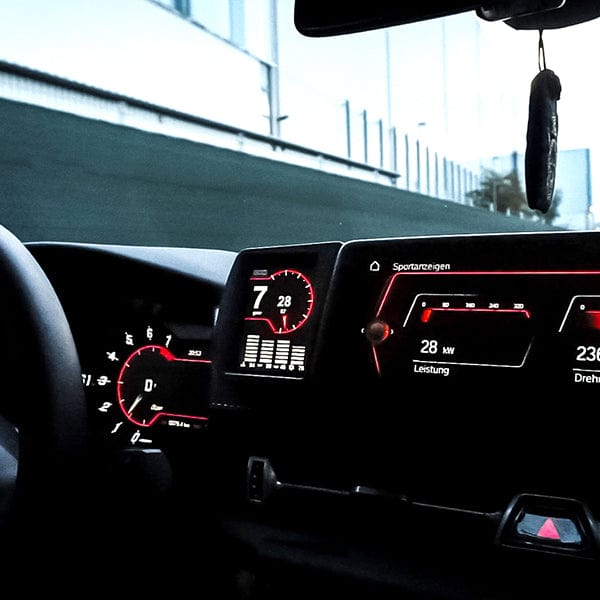

• Perfect integration into the cockpit design of your Toyota Supra
• Support for up to 128 sensors

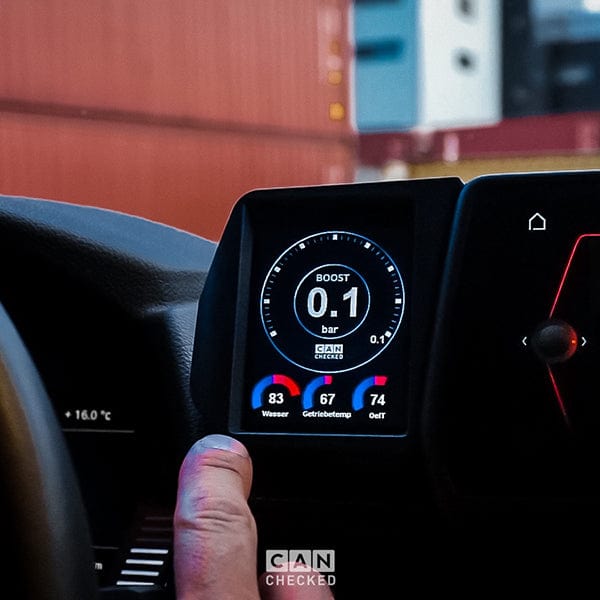

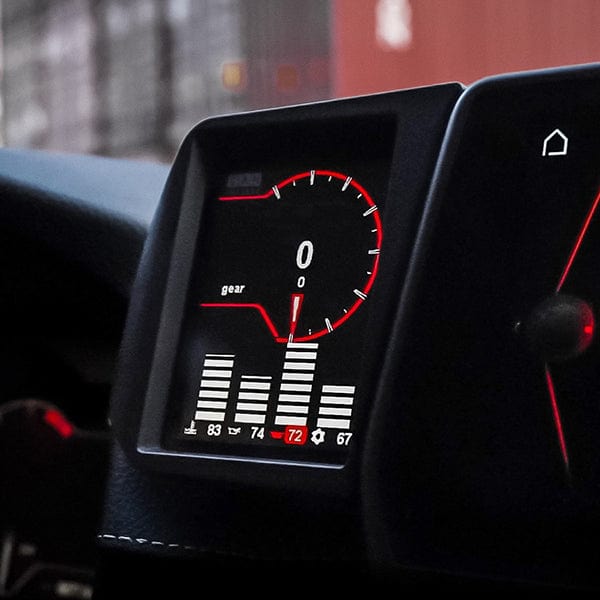

• 10 customizable display modes thanks to our DSS - Display Setup Software
• Pre-installed display modes for a quick start
• Easy plug-and-play installation with our cable kit – simply connect and go
• 4 additional analog inputs for monitoring exhaust temperature, oil pressure, and more
• Integrated option for connecting an ethanol sensor
• Optimal readability with optional glare shield
• User-friendly sensor query at eye level
• Data logging - continuously or on-demand
• Switch display modes with the original cruise control switch

Additional Exciting Features:

• Performance Meter: Measure your acceleration times with our performance widget - 0-100, 100-200, 0-200.
• Data Logging: Log all data on the internal SD card - either on demand (start with a touch) or continuously. All data from your last drive is saved.
• Customizable Alerts: Activate and personalize pre-installed alerts, such as exceeding an exhaust temperature of 900 degrees.
• 4 additional analog inputs: Connect additional sensors, such as temperature or pressure sensors, to utilize advanced monitoring functions, including exhaust temperature or exhaust backpressure. An ethanol sensor can be connected to one of the digital inputs.
• Error Reading/Clearing: Read and clear error messages from the engine control unit clearly and effectively.
• Personalization: Customize the startup screen or choose from various widgets to tailor the display to your preferences.
• Seamless Vehicle Integration: Our display is compatible with all Toyota Supra models. We are also working on a version for right-hand drive (RHD) models.

Access to All Vehicle Data: We provide a pre-configured TRI file for your display by default. It includes all queryable sensors, including:

Temperatures: Engine coolant temperature, intake air temperature, exhaust gas temperature, transmission temperature.
Pressures: Boost pressure, ambient pressure, oil pressure.
Lambda/Fuel Mixture: Lambda target/actual value, short-term lambda adaptation, long-term lambda adaptation, MAF (mass airflow sensor), engine load, torque.
Driver Dynamics: Brake pressure, vehicle speed, throttle angle/gas pedal position.
Other: Engine speed, total ignition angle, gear, battery voltage, ignition angle correction per cylinder.

Analog Inputs: You can add additional sensors like oil temperature, fuel pressure, oil pressure, exhaust gas temperature, and more, as well as an ethanol sensor for flex-fuel applications.

Please note that not every engine provides all of these data points.

Compatibility with Toyota Supra Models:

The display frame is suitable for all Toyota Supra models, including all generations and engine variants. A version for right-hand drive (RHD) is also available.

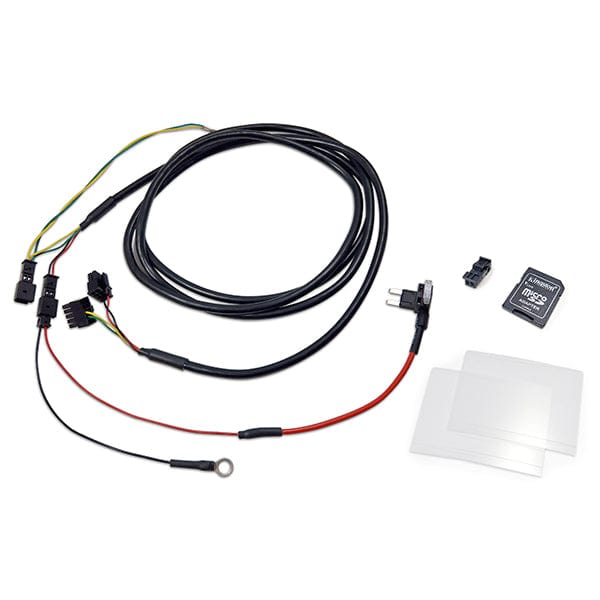

Package Contents in Detail:

Each delivery includes:

• Integrated MFD28 Gen2 data display on the dashboard
• Vehicle-specific connection cable
• Quick start guide
• USB data cable
• SD card (pre-installed in the display)
• SD card adapter
• Display protective film (to prevent reflections)

Connection and Expansion Options:

You can connect various sensors via the four analog inputs - both linear 0-5V and NTC sensors are supported.

Our in-house CANchecked Dsiplay sensors are already integrated into the TRI/TRX files and only need to be connected:

• AIN1: Temperature sensor
• AIN2: Exhaust gas temperature sensor Type K
• AIN3: Pressure sensor 0-10 Bar
• AIN4: Boost pressure sensor 0-5.5 Bar absolute

In addition to the analog sensors, you can also connect our external flash module with 8 LEDs directly. It can flash in various colors to indicate rev limits, and the colors can be easily configured via the display.

The ethanol sensor is connected directly to the display. A pull-up resistor (10K) between 5V and signal is required. Afterward, you can read and log the ethanol content and temperature directly on the display.

Advanced Features for Experts:

You can link sensor data using math channels. User tables allow you to create additional sensors with 2D or 3D maps.

Optional Expansion Accessories:

• CC24000 SLM08 - External flash module
• CC22100 CBD08 - Eight-channel CAN distributor
• CC22902 NTC01 - Temperature sensor for liquids 1/8" NPT
• CC22903 TCC01 - Type K converter 0-1250°C
• CC22901 FLP01 - Pressure sensor 0-10 Bar (145psi) M10x1
• CC22900 BST01 - Boost pressure sensor 0-5.5 Bar absolute (80psi)

Installation Guide for Smooth Setup:

We provide an illustrated installation guide to ensure a seamless installation process.

Unleash the full potential of your Toyota Supra with our state-of-the-art display. If you have any questions or need further information, please feel free to contact us.
