CANchecked VW MK6 Golf MFD15 Multi Function Display | 1.5" Gen2 (LHD)

The CANchecked VW MK6 Golf MFD15 Multi Function Display - 1.5" Gen2 (LHD) is a CANchecked digital display solution designed for enthusiasts and tuners who need a compact, configurable way to monitor critical engine and vehicle data.

It is well suited for projects that require CAN Bus integration, OBD-based data access, wireless configuration, and expandable sensor inputs. The MFD15 Gen2 is equipped with an OLED screen, which offers best readability even in direct sunlight.

This kit is supplied with a vehicle-specific bezel and a connection kit.

Product Details

• Compact design: 52 mm in diameter and only 12.5 mm deep
• Faceplate-mounted LED: The LED on the front of the display can be used as a shift light and/or as a warning LED
• Can Bus: Support of Can Bus ECUs, own Can streams and from 2008 on OBD2 and deep values for VAG-cars
• WiFi: connect to your smartphone or PC and configure it using our Web App
• Additional inputs: connect up to 6 analog sensors to the inputs or connect an ethanol sensor* directly to the display
• Preset Alarms: predefined alarms can be easily activated and customized. For example, get a big alert when the exhaust gas temperature is above 900 degrees.
• Customization: Use your own startup logo and color scheme to make it your MFD15 Gen2
• Online logging*: Log your data with your smartphone or PC and save the log to your device for later analysis
• Flex Fuel*: View ethanol content and temperature on your display
• Can Switching*: Switch can switches using the buttons on your display and forward the readings from your analog inputs to the can bus

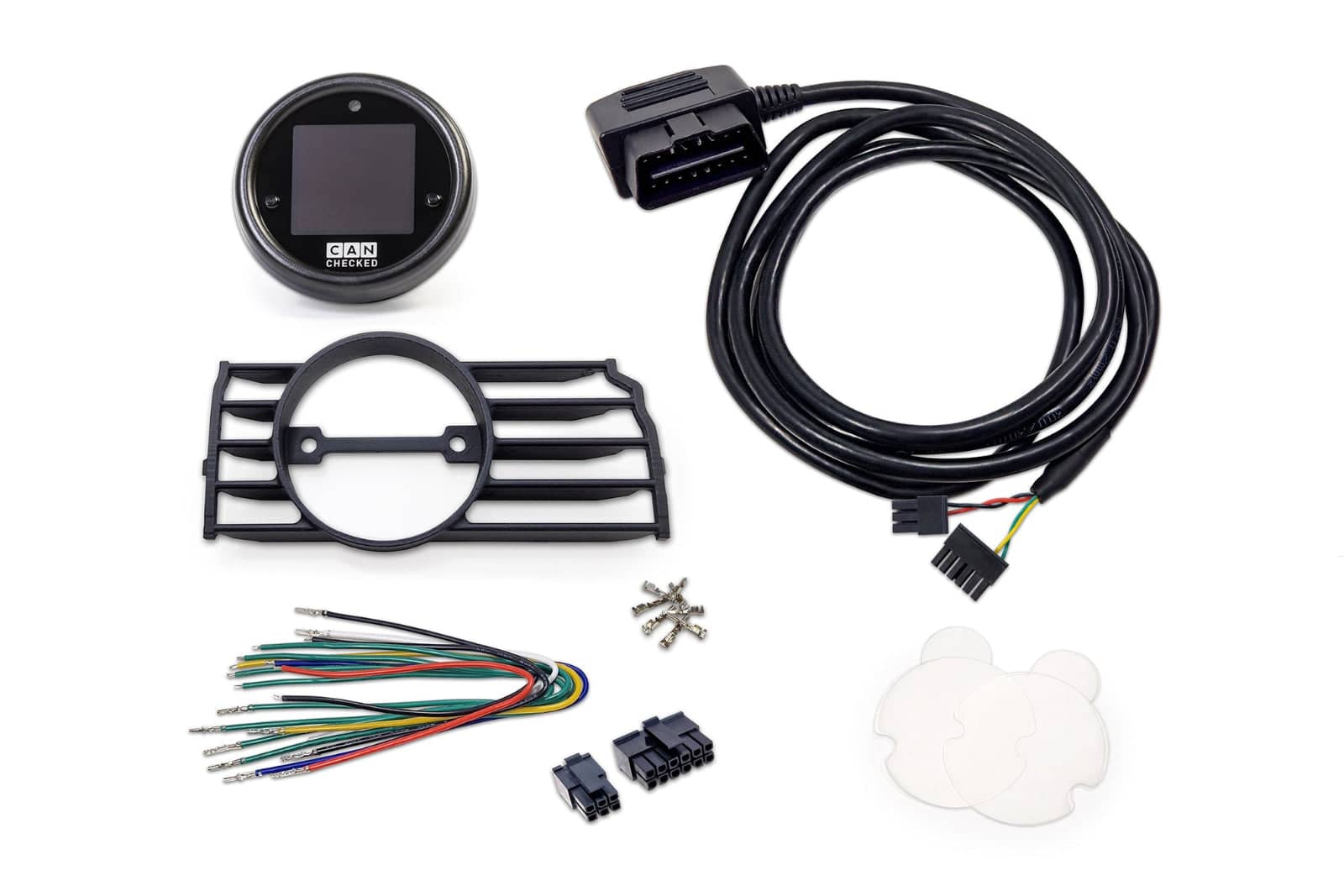

What’s Included

• MFD15 Gen2 Datadisplay
• Vehicle-specific bezel for LHD vehicles
• Vehicle-specific connection cable
• Quickstart Guide
• Connector B (6-way Molex)
• Connector C (12-way Molex)
• Different coloured pre-assembled connection cables (length: 20 cm, intended use: power supply, Can Bus, analogue inputs, 5V, sensor ground)
• pins to crimp by yourself
