Description
xThe DINANTRONICS X is the newest installment of the highly successful Dinan foray into inline tuning modules. Like its predecessors it is a highly engineered piece of computer hardware and software that enhances engine performance to levels the stock programming is not allowed to venture. It does this without affecting long term reliability or the functionality of on-board diagnostic systems when run under recommended operating variables. Unlike its predecessor however, the DINANTRONICS X is Bluetooth smart and offers convenient access to the adjustment of power levels directly from the palm of your hand.
A further advancement beyond its entry level little brother, the DINANTRONICS SPORT, X connects to additional inputs and/or has a more refined tuning strategy that yields more power as a result. For those that do not wish to (or can't) alter their stock ECU with a more robust engine flash the DINANTRONICS X is a perfect alternative to satiate the craving for "more". Whichever level of engine tuning is ultimately chosen you can be sure to be pleased by the result. The Dinan Difference is possible by employing a full staff of talented engineers that are well rounded in many facets of automotive engineering and backed by a wealth of hands-on knowledge. Stemming from diverse backgrounds not only on racing teams but on standard factory production line vehicles, we have seen it all. Manipulating these signals/maps with an adept hand, all the while keeping an engine running at its best and with the most reliable power, is what Dinan is all about.
NOTE(S): (1) Please refer to the recommended mapping notice below for important operating information. (2) D440-0158 is only compatible with the 301 HP B48E engine in the 2021+ F54 Clubman JCW / F60 Countryman JCW. For earlier JCW F54/F60 JCW variants please use D440-0141.
FEATURES

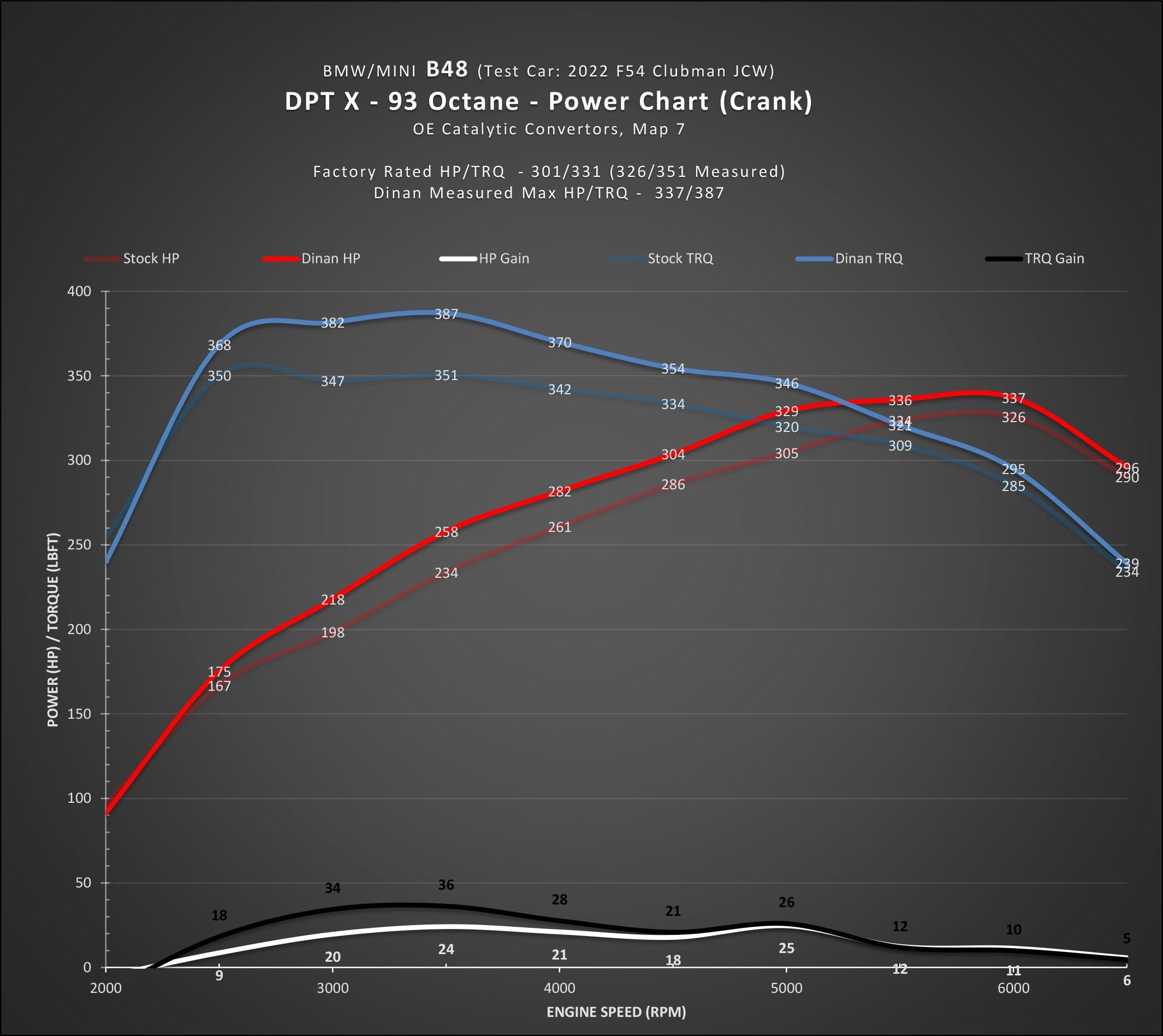

- More Power: Max gains of up to +25 HP and +36 lb-ft TRQ (Crank); +22 HP and +32 lb-ft TRQ (Wheel).
- Bluetooth smart (Android and iOS Compatible). App download / pairing process detailed within the installation instructions located under the Tech Resources dropdown below.
- 7 power levels and a bypass setting to choose from.
- Smooth and predictable power delivery.
- On board diagnostics and factory safeguards maintained.
- Unaffected by dealer factory updates.
- Plug and play installation.
SPECS
| Dinan Point Value | 3 |
| Emission Code | 7 |
| Factory Rated HP |
301 (326 Measured) |
| Factory Rated Torque (lb-ft) | 331 (351 Measured) |
| Labor Time (Hours) | 1 |
| Max HP Gain | 25 @ 5000 RPM |
| Max Torque (lb-ft) Gain | 36 @ 3500 RPM |
| Peak HP | 337 @ 6000 RPM |
| Peak Torque (lb-ft) |
387 @ 3500 RPM |
| Peak Torque (lb-ft) Gain | 36 @ 3500 RPM |
| Product Type |
Inline Module |
| Part Number |
D440-0158 |
EMISSIONS (7)
This part is legal under the provisions of EPA’s Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.
TECH RESOURCES
COMPATIBILITY OF APPLICATIONS
| YEAR | 2021, 2022 |
|
MAKE |
MINI |
|
MODEL |
COOPER CLUBMAN. COOPER COUNTRYMAN |
|
SUBMODEL |
JOHN COOPER WORKS ALL4 |
| BODY TYPE | WAGON, HATCHBACK |
|
ENGINE |
122/2.0L L4 |
