Eventuri G90 / G99 M5 (S68) Carbon Turbo Inlet Set - Gloss Carbon

Presenting the perfect addition to our G9X M5 intake system to optimize the flow path all the way to the turbos. The OEM inlets exhibit a reduction in diameter immediately downstream of the intake connection, which can restrict airflow, particularly at elevated boost pressures. Our carbon fiber inlets address this restriction by maintaining a consistent, larger cross-sectional area and therefore there is a larger captured volume of air directly in front of the turbos. Furthermore, the curvature of the inlets has been optimized to minimize flow resistance, promoting smoother airflow to the turbochargers. Made from prepreg carbon fiber with CNC machined flanges, the inlets also provide an aesthetic improvement to the engine bay.

Benefits of the inlets are apparent with tuned vehicles where the boost pressure is higher and therefore the flow demand form the turbos is greater. This is where the larger inlet volume of the inlets help provide that extra flow.

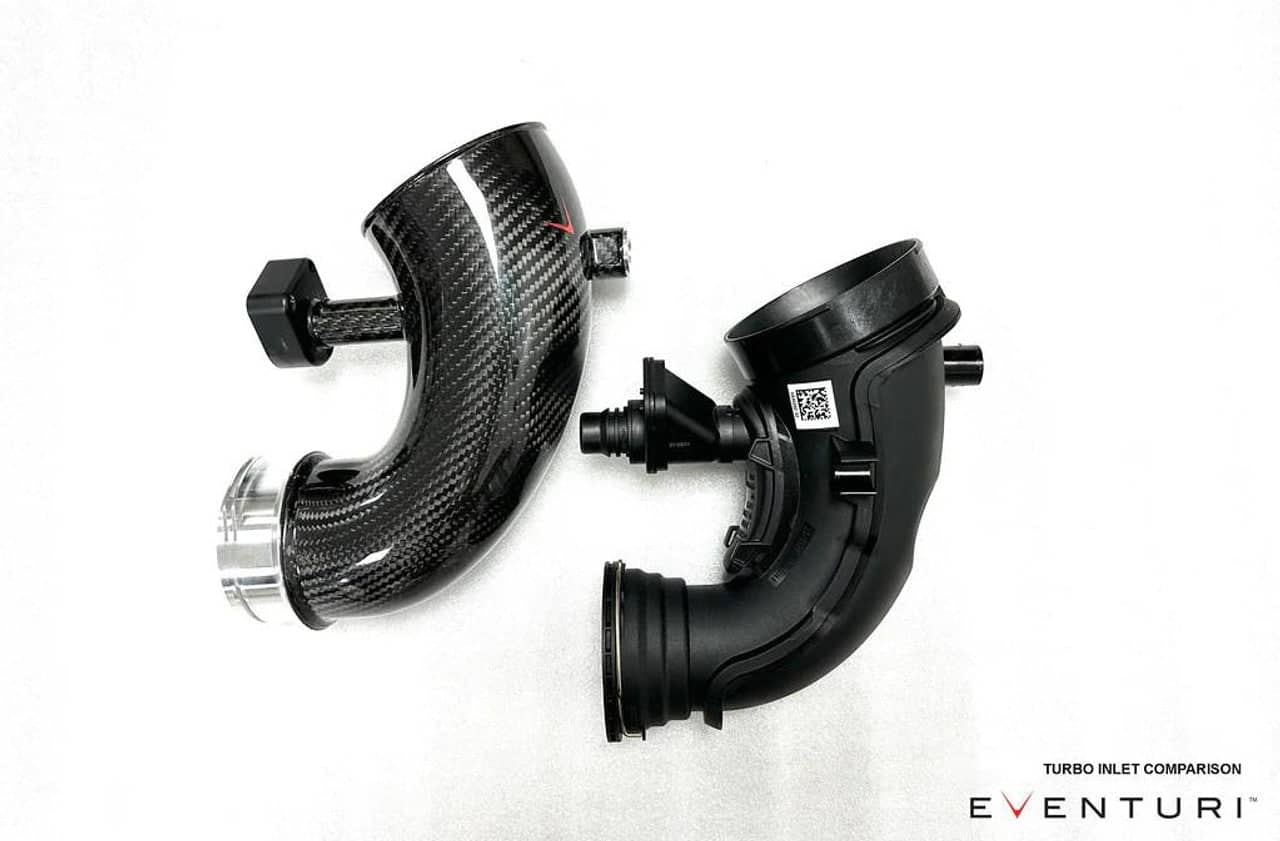

The performance gains are produced from providing the turbos with a less resistive flow path which allows them to reach peak boost sooner in the RPM range. When comparing to the stock inlets the differences are clear to see. Where the stock tubes narrow down immediately after the connection to the intakes, our tubes maintain a larger diameter and the reduction to the stock turbos is achieved with an internal radius on the machined flanges. This allows for larger volume whilst maintaining a smooth flow path. One of the drawbacks of the oversized inlets was the more aggressive reduction in size to match the stock turbos which created some flow constraints.

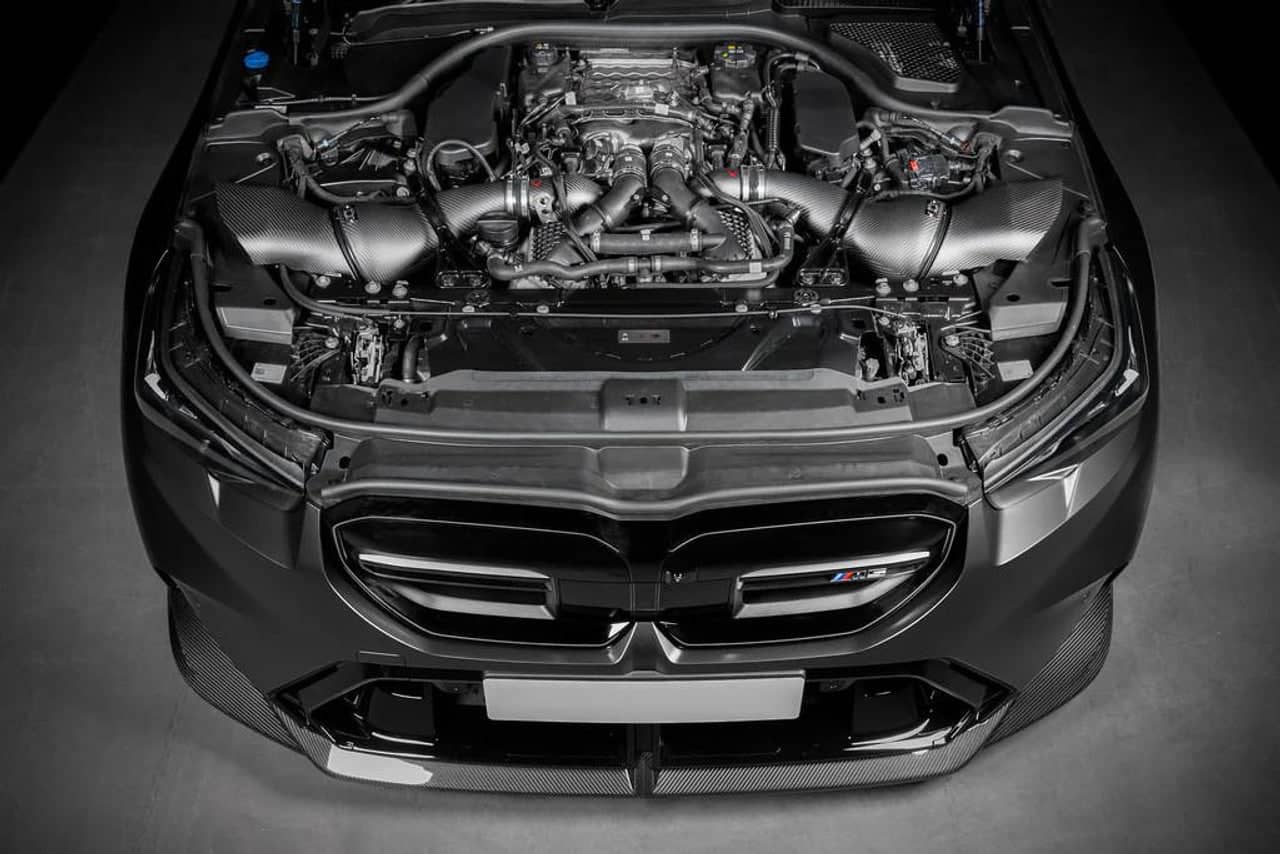

NOTE: Some photos show our optional G9X M5 Intake system available separately.

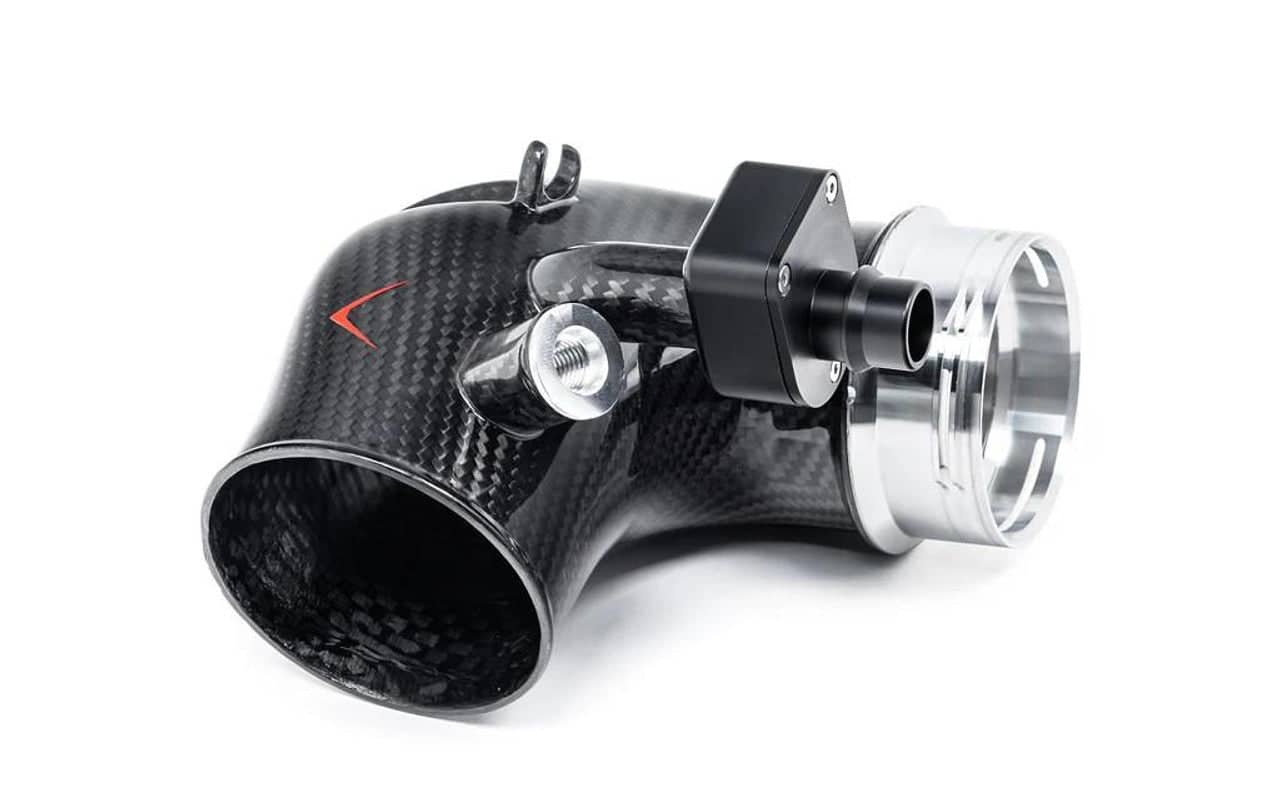

Each inlet inlet set consists of:

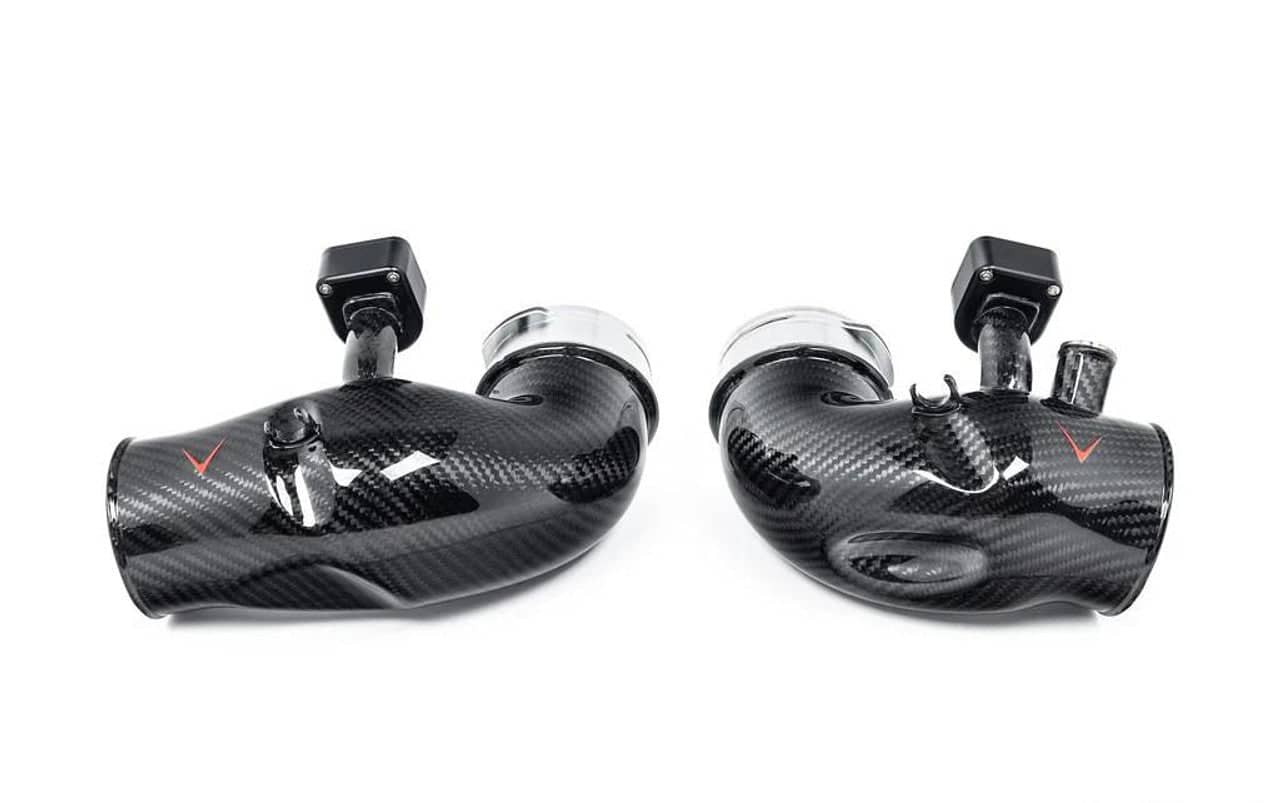

• Prepreg Carbon Inlet Pair
• CNC Machined Turbo Flanges
• CNC Machined Breather Valve Assembly

** This item is not eligible for return **
