KLM Ice Box

KLM Ice Box setup is designed to keep the factory AC and Heat Exchanger in place for street driving. You can also remove the AC & Heat Exchanger for track use only if preferred.

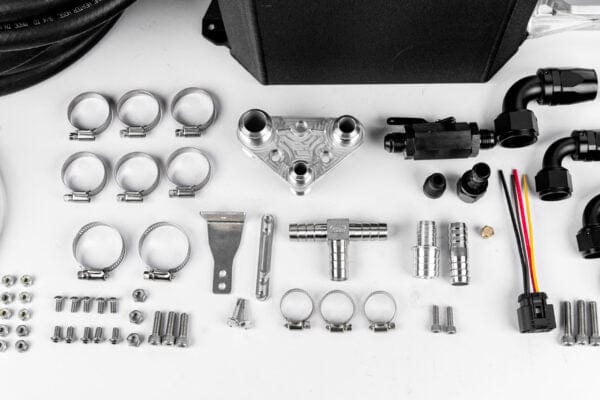

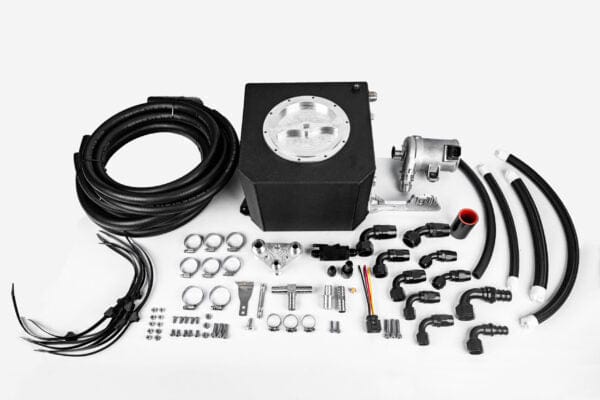

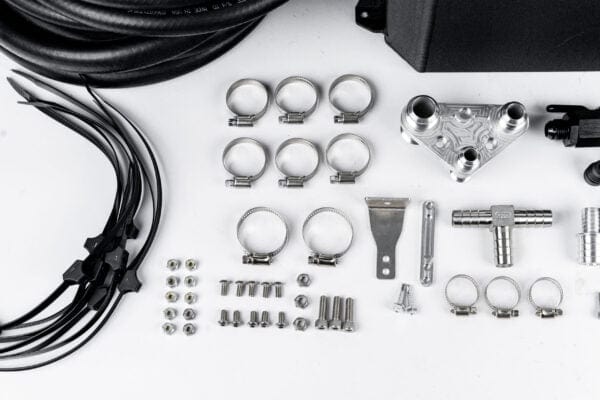

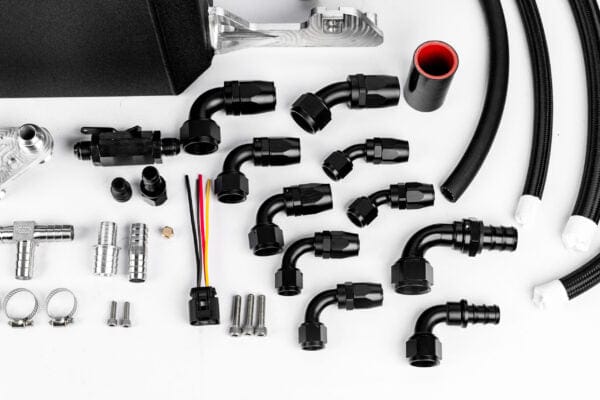

Kit Includes:

– KLM Ice Box w/ Billet Pump Bracket (5 Gal)
– KLM Billet Lid
– KLM Billet Passthrough Flange
– Pierburg CWA400 Pump (Modified w/ Fitting)
– Pump Mounting Bracket
– AN Shut-Off Valve
– Water Pump Pigtail
– 1.5″ Hose Coupler (Qty: 1)
– 1.5″ Hose Clamps (Qty: 2)
– 1/8″ NPT Breather Vent (Qty: 1)
– Billet Coolant Block-Off Fitting (Qty: 1)
– 3/4″ T-Fitting (Qty: 1)
– 3/4″ Straight Barb Fitting (Qty: 1)
– 1″ to 3/4″ Barb Reducer (Qty: 1)
– Double Zip-Ties (Qty: 5)
– Mounting Screws (Qty: 2)
– M6 Short Bolts (Qty: 3)
– M8 Long Bolts (Qty: 3)
– M8 Lock Nuts (Qty: 3)
– 16AN 90 Degree Fitting (Qty: 1)
– 16AN 45 Degree Fitting (Qty: 1)
– 12AN 90 Degree Fitting (Qty: 2)
– 10AN 90 Degree Fitting (Qty: 2)
– 10AN 45 Degree Fitting (Qty: 2)
– Push-Lock 16AN 90 Degree (Qty: 1)
– Push-Lock 12AN 90 Degree (Qty: 1)
– Push-Lock 10AN Straight (Qty: 1)
– 16AN Line
– 12AN Line
– 10AN Line
– 16AN Push-Lock Hose
– 12AN Push-Lock Hose
– 10AN Push-Lock Hose
– 1″ Hose Clamps (Qty: 6)

**Attention**
With the configuration shown in the photos it will not work with the factory exhaust due to the size of the muffler. Pass through fitting will need to be relocated to a different location for cars running factory exhaust.

KLM S58 SAVAGE Single Turbo Kit (Stock Motor) – Mikey Botti – 1/4 Mile 8.60 / @159 MPH

Turbo Kit Includes:

1.) *** Turbo Next Gen PTE 7480 Sportsman or Next Gen R 6870 Sportsman***
2.) Wastegates 2x Turbosmart 45mm
3.) Coupler 3” (x1)
4.) Manifold True Twin Scroll T4 Divided Dual Wastegate
5.) *** 4″ Down Pipe ***
6.) V-Band Clamp for Down Pipe
7.) Dump Tubes (X2)
8.) *** Intercooler Piping with 3 Weld Fittings/ 1 BOV Flange w/ V-Band Sportsman Flange ***
9.) *** V-Band Clamp for Intercooler Piping ***
10.) Turbo Studs & Turbo Gasket (Trimmed Studs)
11.) 10AN Nylon Braid Hose 2ft.
12.) 10AN Hose end Fitting 1 X 45Degree
13.) 10 AN Hose end fitting 1 X 90 degree
14.) Stainless Braid Oil feed Line 2ft. Vibrant
15.) Silicon Vacuum Hose 6ft.
16.) 4AN to 4AN 90 Degree Oil Feed Fitting
17.) Oil Return Block Off Fitting
18.) Oil Feed Block Off Fitting
19.) Oil Return Block Fitting 10AN (use factory bolt and O-ring)
20.) Oil Feed Block Fitting 4AN (use factory bolt and O-ring)
21.) Drain Block Off Front (use factory bolt and O-ring)
22.) Drain Block Off Cap (Factory Style)
23.) Turbo Oil Drain Fitting / with Bolts and O-Ring (x2)
24.) M6x12mm Bolts for Intercooler Piping (X3) [1x for map, 2X for Rad Bracket]
25.) Heat Tape (20 Inches)
26.) Vacuum T Fittings (X2)
27.) KLM Stickers
28.) 1/8″ NPT Plugs (x2)
29.) O2 Sensor Block Off (X2)
30.) Billet Throttle Body Adapter

Coolant Overflow Relocation Kit:
31.a) Relocation Bracket
31.b) 180° Hose
31.c) 90° Hose (22in cut form 90)
31.d) Aluminum Barb Fitting
31.e) 1/4″ Heater Hose (thicker than vacuum hose) 45in
31.f) Brown and Black Wire 5ft.
31.g) 5ft. Wire Loom
31.h) 4X Wire Connector
31.i) 4X 1/4″ Hose Clamps
31.j) 4X 5/8″ Hose Clamps
32.) Turbo drain and feed line heat sleeve
33.) Vacuum line heat sleeve
