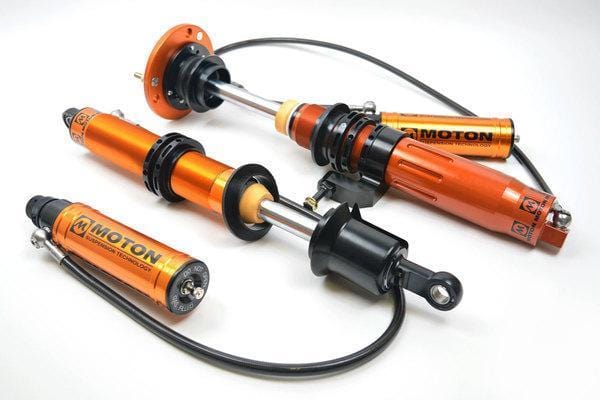

Moton Suspension 3-Way Motorsport Coilovers (Divorced Rear) M 505 144 - 2011-2012 BMW 1M 3.0 Alloy Front (E82)

The Moton 3 Way Motorsport suspension for the 2011-2012 BMW 1M 3.0 Alloy Front (E82) is designed for the professional racer. This ultimate suspension system is by far the finest quality and best handling suspension system on the market today.

Featuring remote reservoirs for superior fluid temperature control, quick release hydraulic lines (on most models) for easy installation, separate compression and rebound damper valving adjustment and height adjustable spring perches, this kit is beyond the more common coilover systems on the market. If your driving can benefit for the ultimate in suspension tuning, then this kit is for you.

Benefits

• Improved platform stability
• Improved traction, higher grip level
• Improved curb stone������and bumpy track control
• Improved tire wear over the complete race distance
• Easy to adjust and work with
• Every single adjustment done is very noticeable to the driver
• Proven reliability
• Rebuildable/Revalveable

Features

• Separate high speed bump (15 positions), low speed bump (6 positions) and rebound (15 positions) adjustments
• Unique blow off valve system in canister to totally control curb stones and bumpy track conditions
• Large piston rod diameter for more fluid displacement
• Adjustable gas pressure for added lifting force
• Large main piston for quick response
• No preloaded valve stacks needed for low speed damping control
• Swivel banjo hoses for easy installation of remote reservoirs
• DDP (double digressive pistons) are available as an option
• Double Digressive Pistons are recommended for use on the non-driven wheels
• 4WD/FWD vehicles: DDP for both rear axle struts/shocks
• RWD vehicles: DDP for both front axle struts/shocks

Product Specifications

• Part Number: M 505 144
• Product: Moton Suspension 3-Way Motorsport Coilovers (Divorced Rear)
• System: Alloy front, QD FR, divorced rear
• Model Years: 2011-2012
• Make: BMW
• Model: 1M
• Chassis: E82
• Vehicle Note: Coupe/Convertible
• Spring Kit: Included
• Top Mounts: Front Included - Rear Included
• Front Top Mounts: Camber Adjustable
• Rear Top Mounts: Solid - No camber adjustment (CO Only)
• Adjustable Droplinks Needed? Yes
• Adjustable Front Droplinks (Additional Cost): Part Number: DLA-BMW3-S
• DDP Pistons Included? No
• DDP Pistons Available (Additional Cost): Yes
• QDC Included? Yes (Front Only)
• QDC Part Number:
• TUV Approved?
• Comments:

Vehicle Fitment

• 2011 BMW 1M 3.0 Alloy Front (E82)
• 2012 BMW 1M 3.0 Alloy Front (E82)
