MSD 4 Channel Relay Module

Vendor: MSD
SKU: 7566-4
Product Type: Relay Module
$158.95 USD
$158.95 USD
$158.95 USD
Hurry up! only 0 left
Subtotal: $158.95
MSD 4 Channel Relay Module

MSD 4 Channel Relay Module

$158.95

MSD 4 Channel Relay Module

$158.95

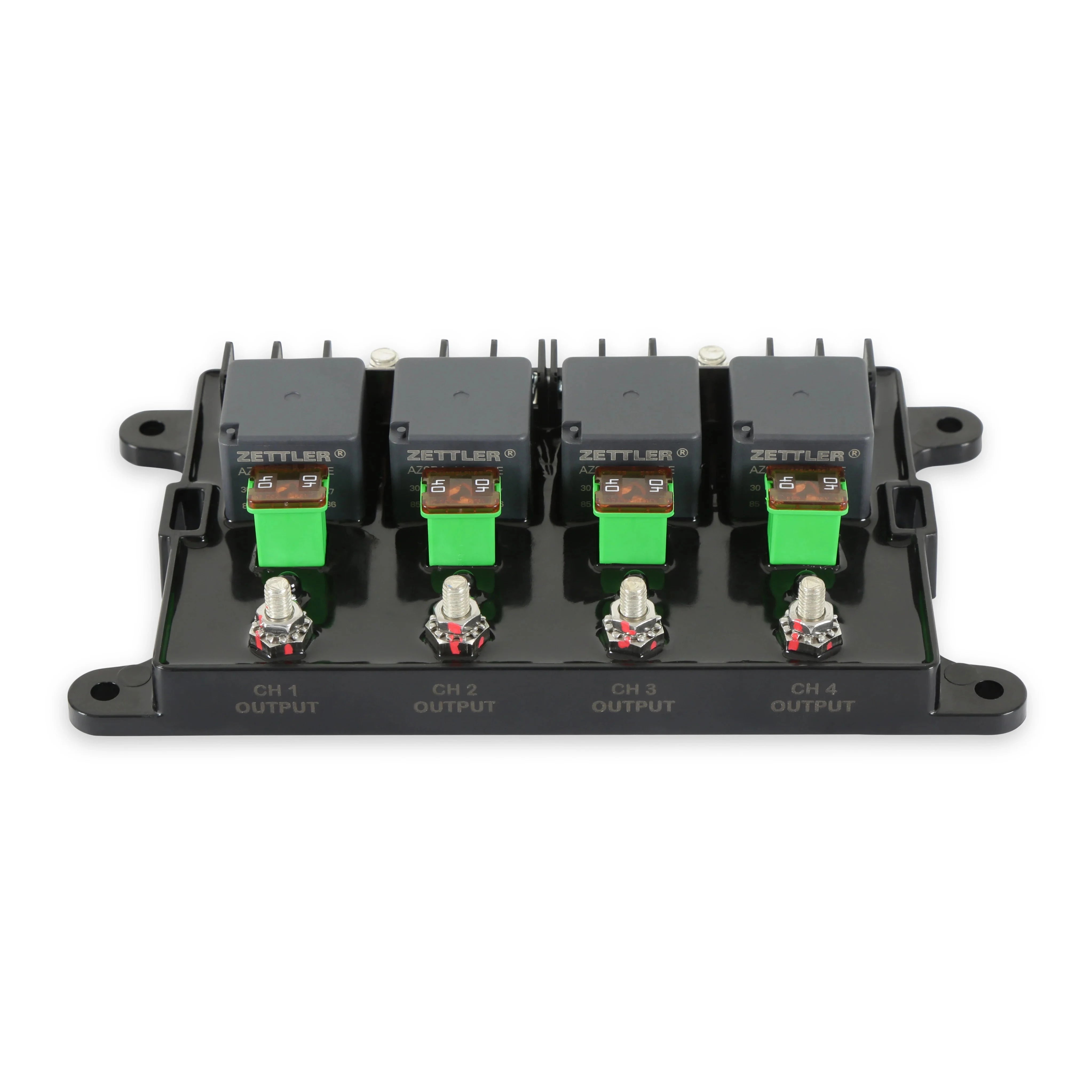

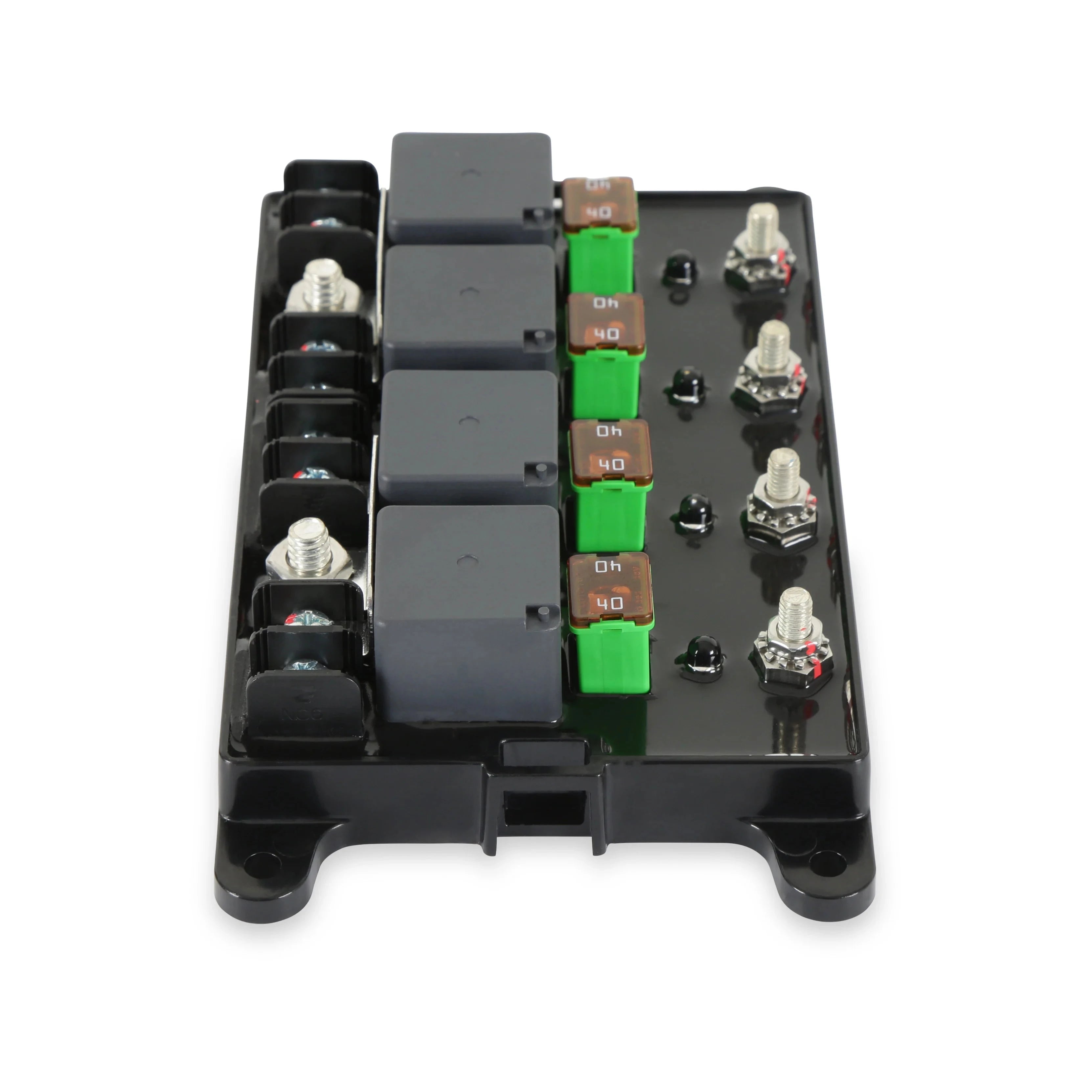

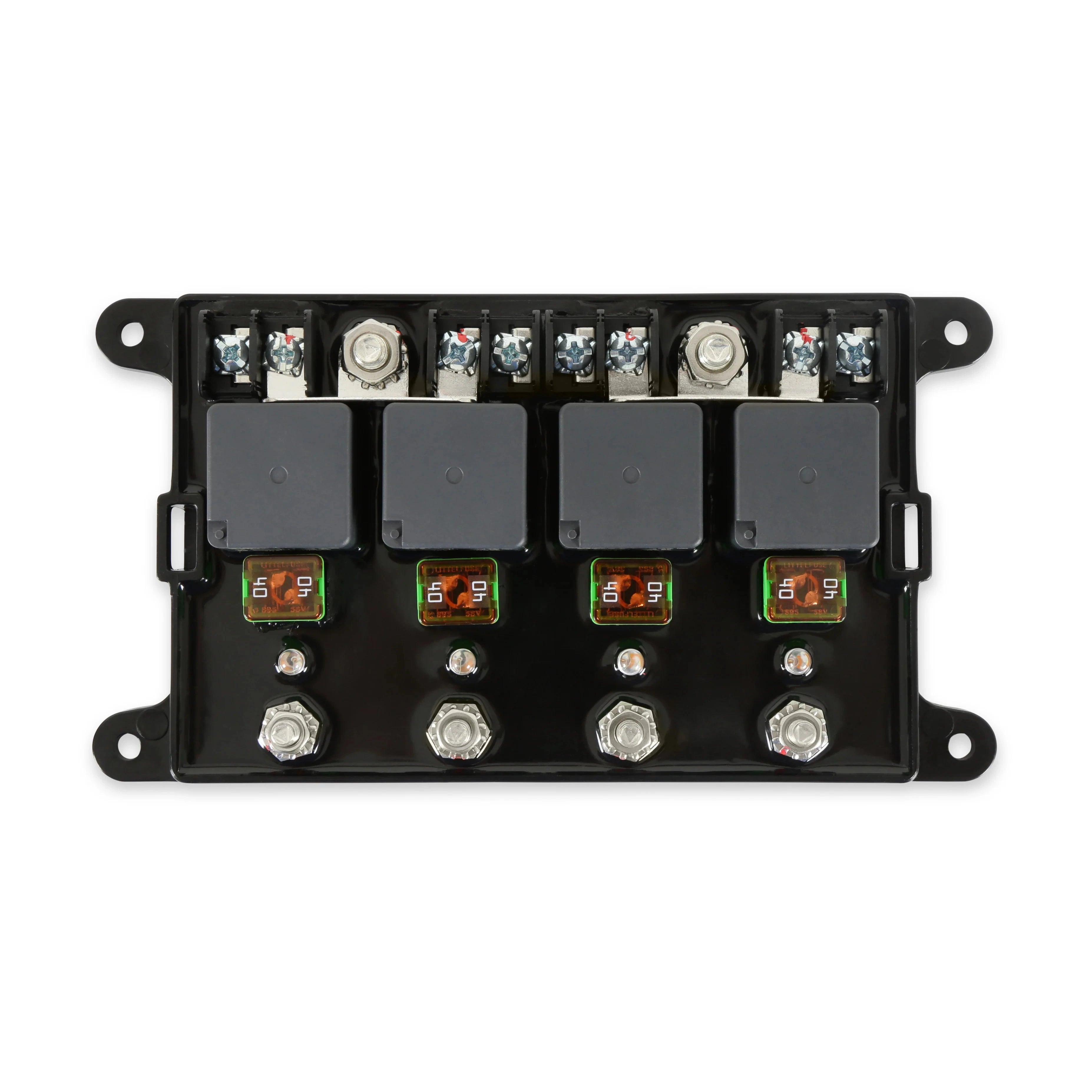

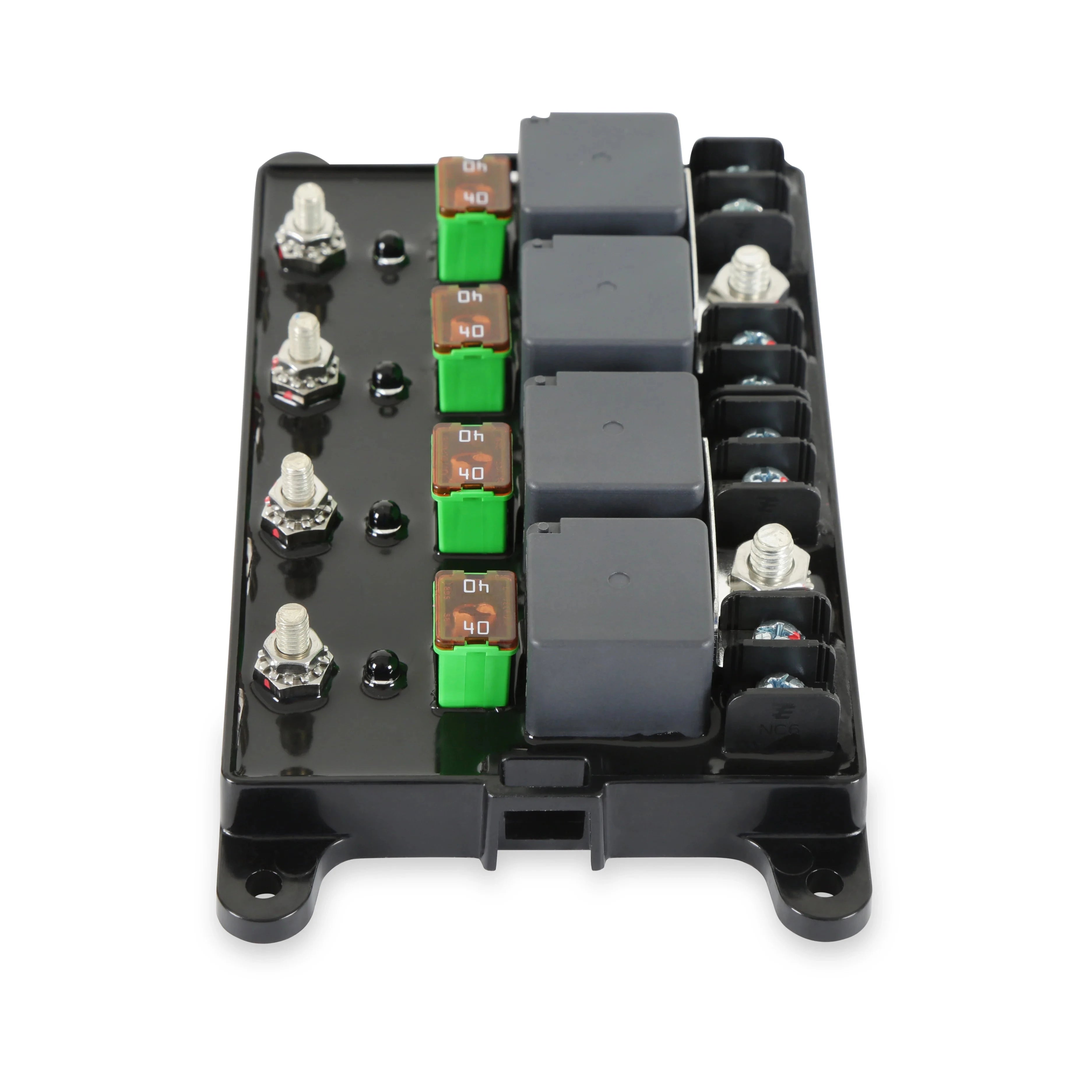

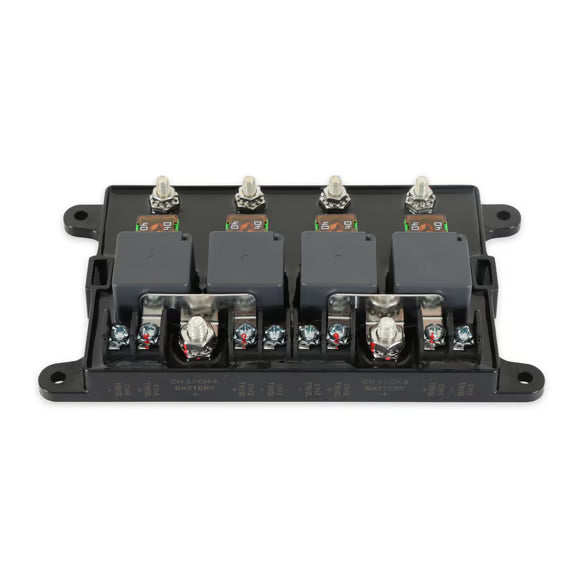

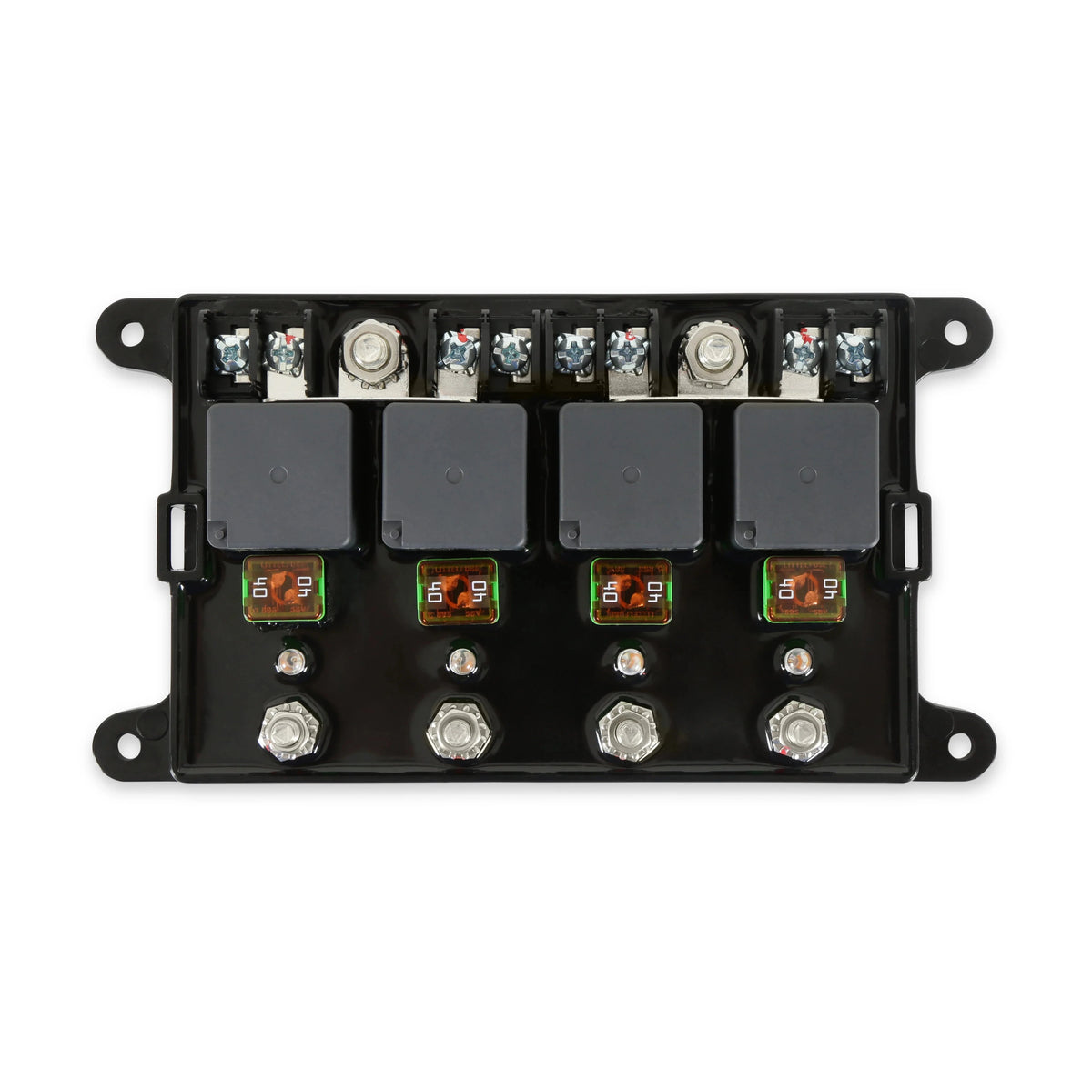

Four 40 Amp Relays
MSD relay modules are designed to be easily installed in most automotive electrical systems where a high amperage relay is needed. These relay modules are perfect use with high amperage electric fuel pumps and high CFM electric cooling fans. Each relay comes with a 40amp fuse, however lower amp fuses can be installed if required. The relay housing comes with a labeled lid that snaps into place providing a clean installation, and protecting the main power stud and triggers from contamination or accidental contact.

Features:

  • 7V to 20V supply to fit a wide variety of applications
  • Independent 40A outputs, to supply power to most aftermarket fuel pumps and electric fans
  • Configurable single-wire activation with Ground (-) input or 12V (+) input, with removal of the Tie-Bar

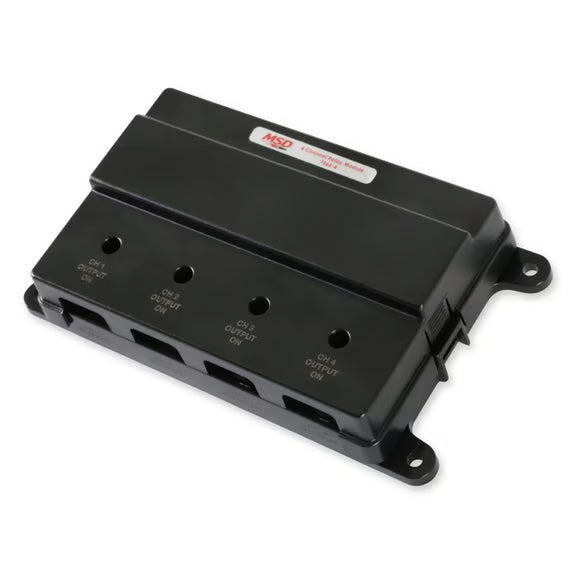

  • Removable cover for easy accessibility
  • Low profile JCASE fuses provide ample protection in case of a short
  • LED status indicators, show you which channel is triggered at a glance
