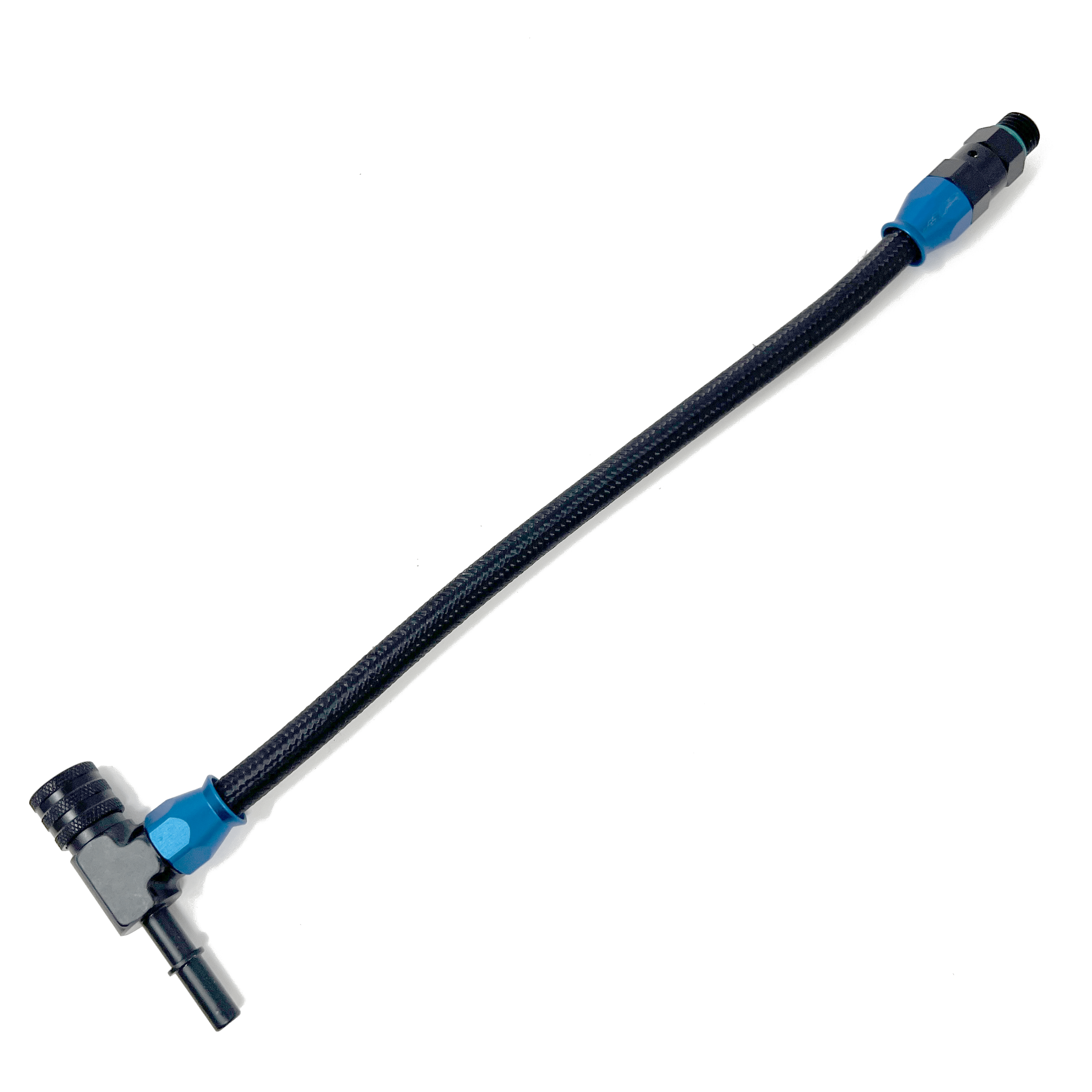

N54/N55/S55 Port injection Fuel line (Plate Style PI)

The Precision Raceworks N54/N55/S55 Port Injection fuel line is compatible with most plate style port injection kits on the market.

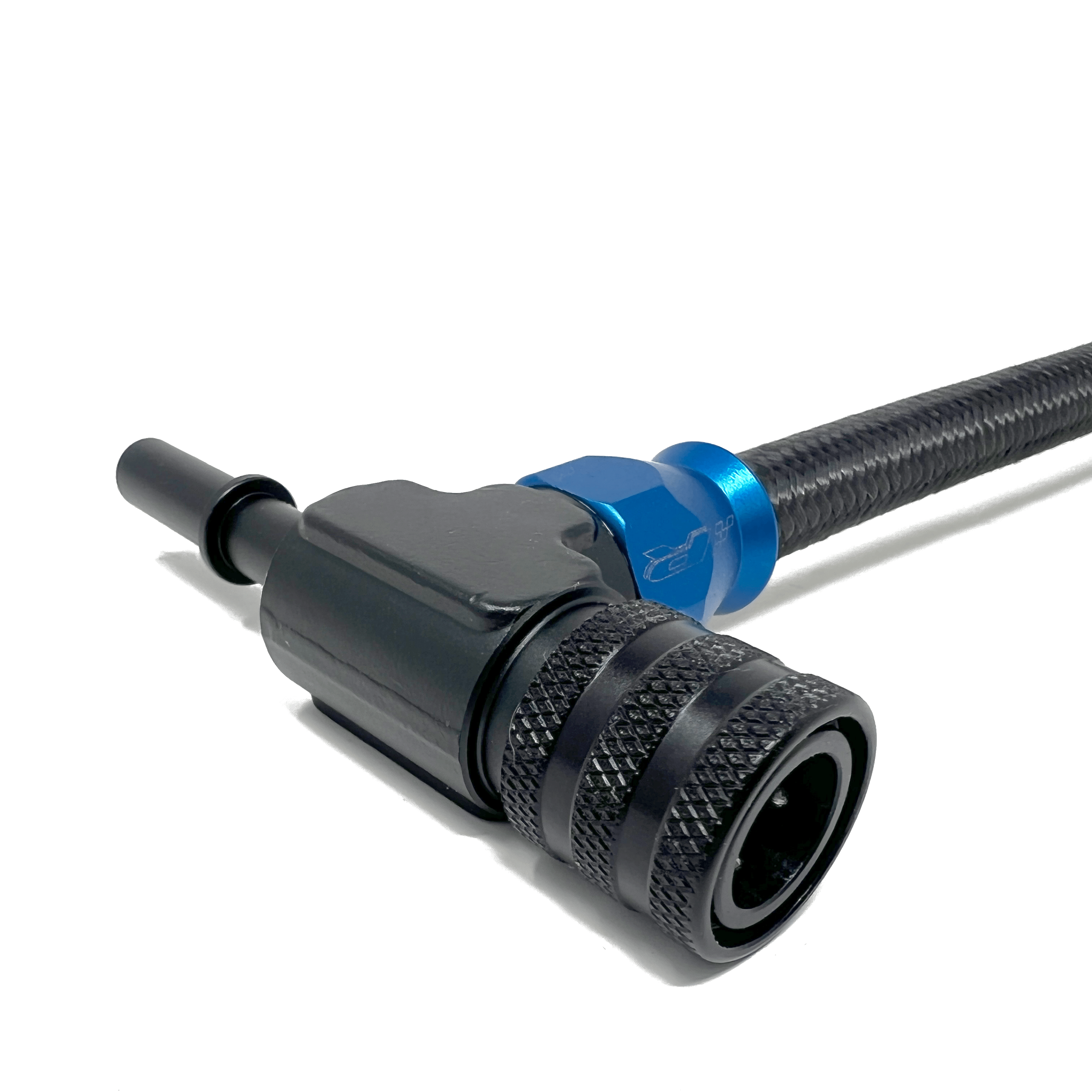

All connections are designed in house and machined from 6061 aluminum then anodized for 100% E85 compliance. All female quick connectors have 2 seals (a primary and secondary seal) to guarantee no possible fuel leaks. The fuel line used by Precision Raceworks is Smooth Bore PTFE hose used in high end E85 applications built all over the world.

This high quality solution is direct plug and play with all factory and aftermarket fuel lines providing you a quick and easy way to supply fuel to the port injection.

Specifications

• Weight: .35 lbs
• Fuel hose type: PTFE Smooth Bore
• AN Size: -6AN
• Connection style: OEM Quick Connect (HPFP & FUEL LINE)

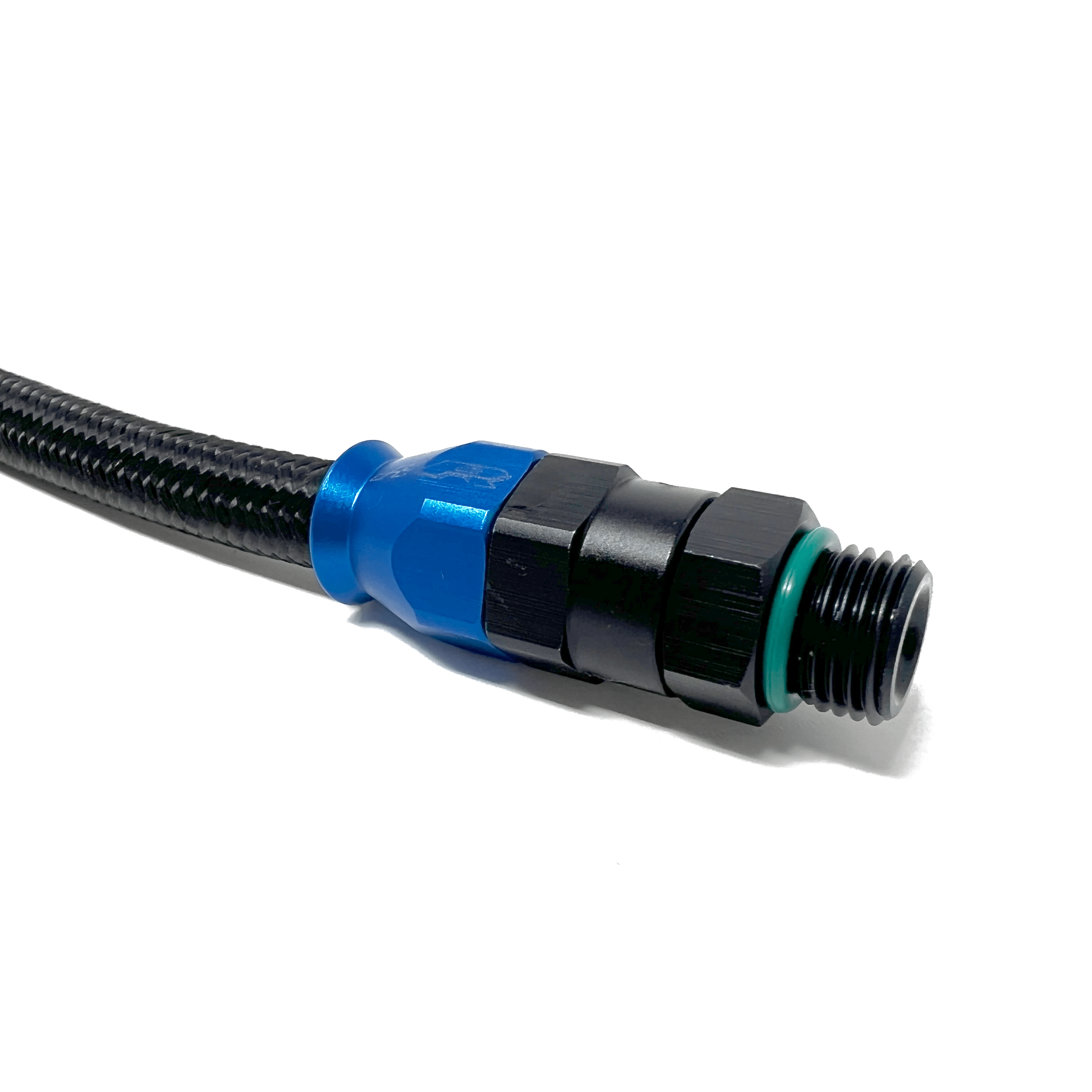

• Connection style fuel rail:  AN6 ORB

• Bmw 135i 2007 to 2013
• Bmw 135is 2013
• Bmw 1m 2011
• Bmw 335i 2006 to 2015
• Bmw 335i Gt Xdrive 2014 to 2016
• Bmw 335i Xdrive 2009 to 2015
• Bmw 335is 2011 to 2013
• Bmw 335xi 2007 to 2008
• Bmw 435i 2014 to 2016
• Bmw 435i Gran Coupe 2015 to 2016
• Bmw 435i Xdrive 2014 to 2016
• Bmw 535i 2008 to 2017
• Bmw 535i Gt 2011 to 2017
• Bmw 535i Gt Xdrive 2011 to 2017
• Bmw 535i Xdrive 2009 to 2016
• Bmw 640i 2012 to 2018
• Bmw 640i Gran Coupe 2013 to 2017
• Bmw 640i Xdrive 2014 to 2017
• Bmw 640i Xdrive Gran Coupe 2014 to 2017
• Bmw 740i 2011 to 2015
• Bmw 740li 2011 to 2015
• Bmw 740li Xdrive 2013 to 2015
• Bmw Activehybrid 3 2013 to 2015
• Bmw M135i 2013 to 2016
• Bmw M2 2016 to 2020
• Bmw M235i 2014 to 2016
• Bmw M235i Xdrive 2015 to 2016
• Bmw M3 2015 to 2018
• Bmw M4 2015 to 2020
• Bmw X1 2013 to 2015
• Bmw X3 2011 to 2017
• Bmw X4 2015 to 2016
• Bmw X4 2017 to 2018
• Bmw X5 2011 to 2018
• Bmw X6 2008 to 2017
• Bmw Z4 2009 to 2014
