Precision Raceworks Bosch Motorsport Extended Tip Matched Injectors

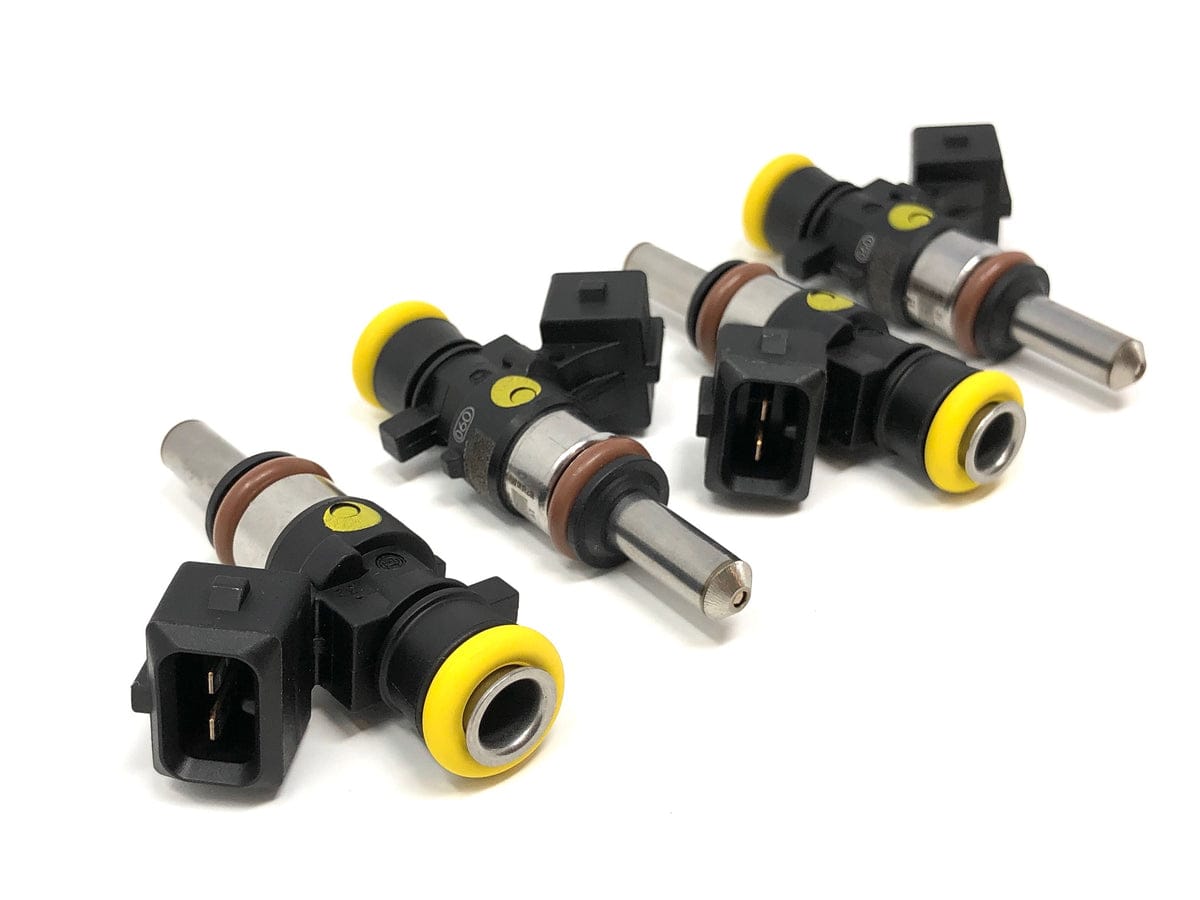

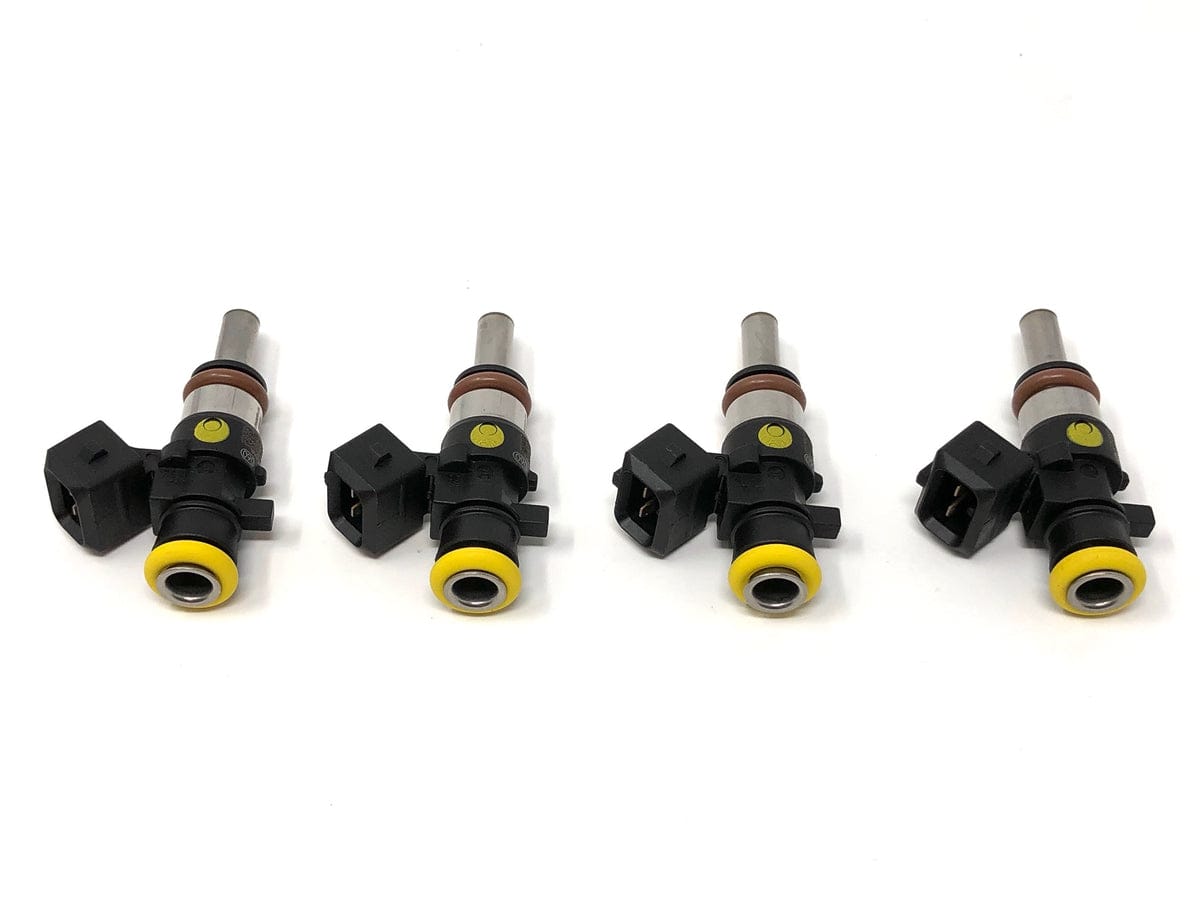

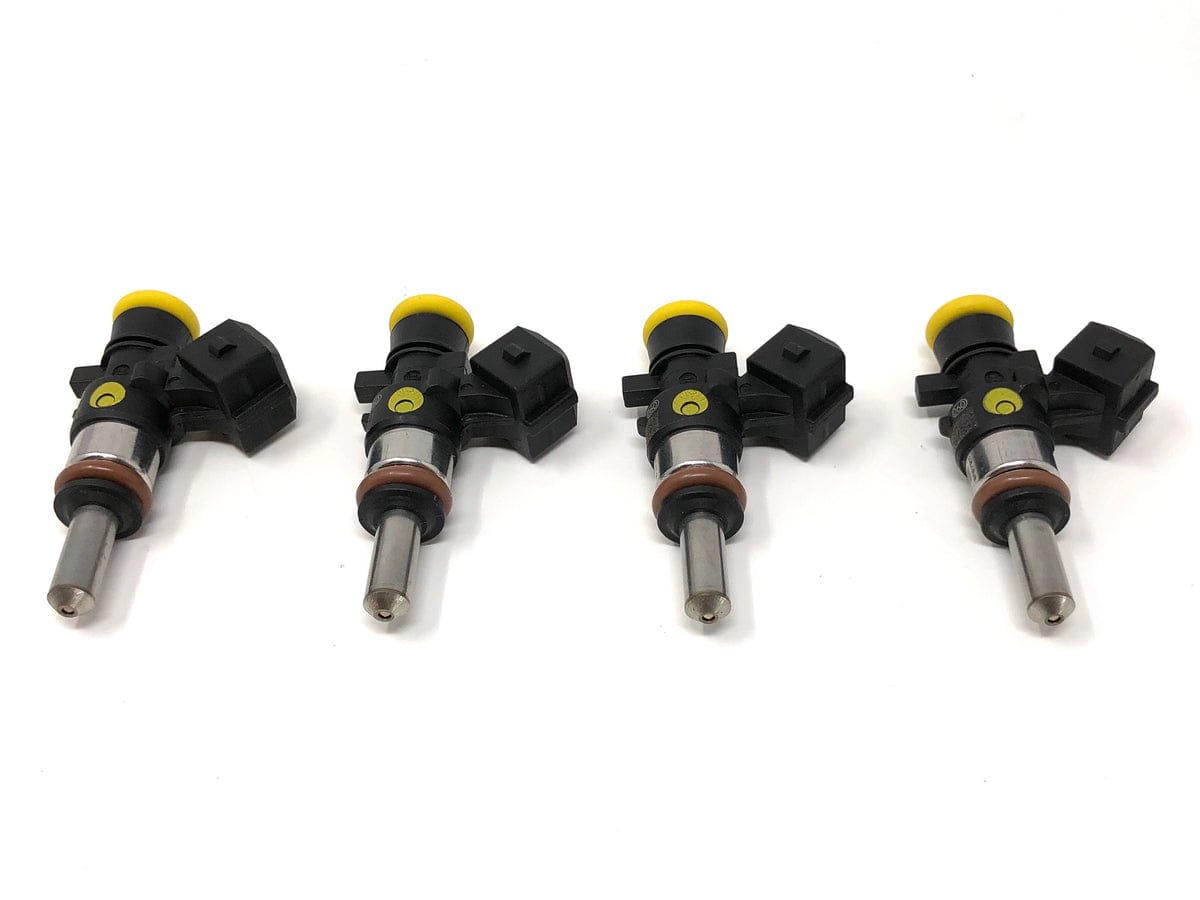

The Precision Raceworks Genuine Bosch Motorsports EV14 extended tip fuel injectors featuring EV1 connector matched and packaged in pack of 4 or 6 units.

Features

• Full stainless wetted internals for corrosion resistance compatible with all known fuels
• Proprietary spray pattern perfect for use in EA888.3 & center fire BMW manifolds
• Strong magnetic valve design capable of stable operation up to 10 bar

Advertised flow rates

• 925cc* Version
• Minimum Flow 800cc @ 3bar (43.5 PSI)
• Minimum Flow 925cc @ 4bar (58 PSI)
• Minimum Flow 1050cc @ 5 bar (72.5 PSI)

• 1300cc* Version
• Minimum Flow 1125cc @ 3bar (43.5 PSI)
• Minimum Flow 1300cc @ 4bar (58 PSI)
• Minimum Flow 1450cc @ 5 bar (72.5 PSI)
• Matched both Static and Dynamic within 2%

Certificate of Conformance provided with each set proving actual flow data
Individually serialized injectors that match flow data from Certificate of Conformance

*Actual flow rate may vary, as the advertised rate is based upon an overall average.

Specifications

• Weight: 0.35 lbs (4 pack) or .53 lbs (6 pack)
• Wetted materials: Full Stainless
• Advertised Flow: See Product Description
• Fuel Compatibility: All known fuels
• Flow Matched: 2% or better (250% more accurate than off the shelf Bosch injectors)
• Connection Type: EV1

1300cc / 925cc - Injector Dead Times
