VRSF HD Intercooler Upgrade Kit for 12-18 F20 & F30 228i/M235i/M2/328i/335i/428i/435i N20 N26 N47 N55

VRSF
10303010
$419.00

VRSF F Chassis Performance Intercooler Upgrade Kit

for your 2012 – 2016 BMW 228i, M235i, 328i, 335i, 428i & 435i with the N20, N26 & N55 Engine

Replace your inefficient factory intercooler with a VRSF upgraded intercooler kit to get the most out of your N20, N26 & N55 BMW. Our intercoolers are designed to be the best performing, direct bolt on intercoolers available for your BMW with special attention to quality and performance while maintaining a reasonable price. Each VRSF intercooler includes our proprietary High Density fin pack which results in higher HP gains compared to the other guys, mainly due to our incredibly dense internal and external fin pack. Our core was engineered to offer a greater overall surface area for increased heat absorption as well as dissipation.

VRSF HD Intercooler Core

The most important component of any intercooler is the core. The core cools the charged air from the turbo before it enters the engine and the OEM BMW tube and fin intercooler is designed to support low boost levels and air flow. When tuned, airflow and boost levels are increased significantly. This causes the OEM intercooler to heat soak and reduces HP and increases the chance of pre-detonation.

We remedy this problem with our proprietary, high density bar and plate intercooler core which utilizes a staggered and offset internal and external fin pack. The VRSF HD core has been carefully balanced to provide the the best intake temperature reduction while maintaining minimal pressure drop. The VRSF HD core is also much more durable than the OEM tube and fin core, with a better ability to withstand rocks and other debris.

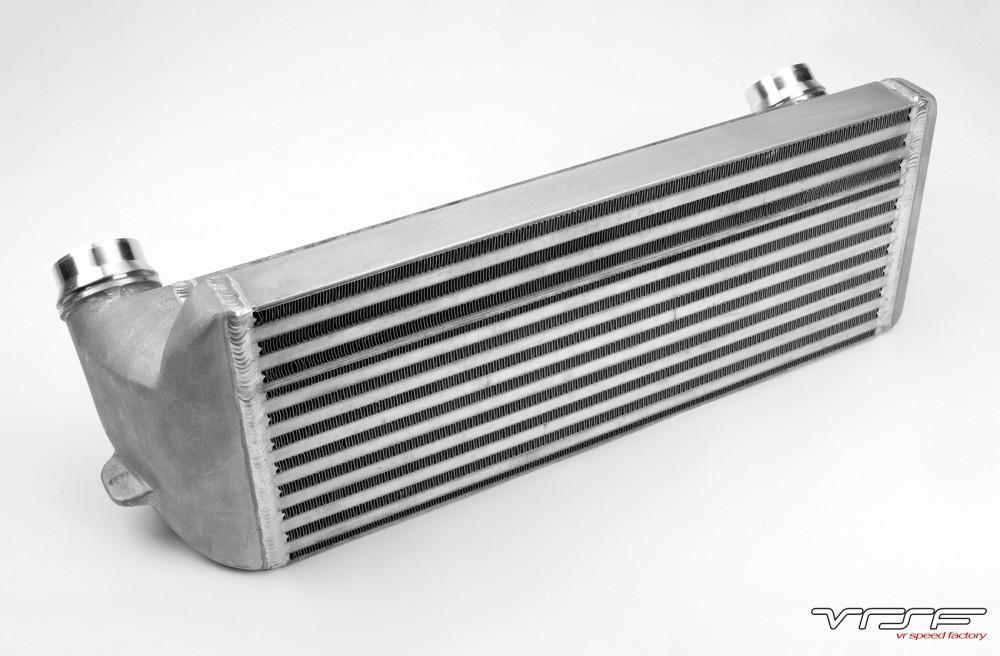

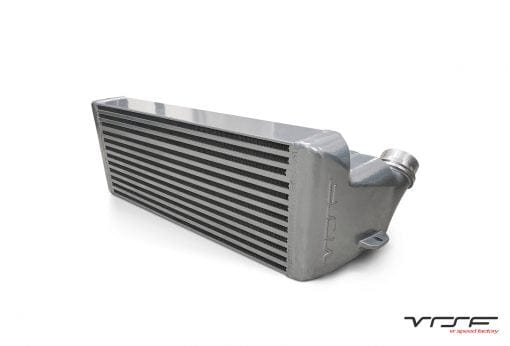

The VRSF 5″ Performance HD & 6.5″ Competition HD Intercoolers are comprised of an incredibly dense fin pack both internally and externally. It’s not uncommon to see intake temperatures drop at the end of a 3rd gear pull due to the larger overall internal and external surface area. You can expect to see an intake temperature reduction on a stock turbo, full bolt on car during a 3rd gear pull which is why the VRSF HD is THE best option for your N55. Please note that the HD fin pack is now standard at no extra charge! The VRSF 5″ Performance HD is capable of supporting up to 600whp whereas the 6.5″ Competition HD is capable of supporting up to 800whp.

Installation & Construction

We include everything required to replace the OEM intercooler. All VRSF intercoolers feature tabs that allow the retention of the factory fan shroud and our CFD optimized cast end tanks are designed to work with both the OEM intercooler piping as well as any aftermarket charge pipe that adapts to the OEM FMIC. After each intercooler is pressure tested, we then apply a thermal dispersant coating which ensure a leak free experience along with superior protection against the elements. Our intercoolers fit both Left Hand Drive (LHD) & Right Hand Drive (RHD) Models as well as all XI models.

Features

  • Proprietary VRSF HD bar & plate core.
  • CFD optimized cast end tanks.
  • 87% larger than the OEM intercooler.
  • Quick and easy install (less than 1.5 hours)
  • Compatible with both OEM and aftermarket charge pipes.
  • Thermal heat dispersent for added durability.
  • Includes lifetime warranty

This item fits the following N20, N26, N47 & N55 BMWs:

2012 – 2018 F30/F31/F36 BMW 320i & 320xi / 328i & 328xi / 335i & 335xi (Also Fits 316i, 316d, 318d, 320d, 325d, 330d, 335d)
2012 – 2018 F32 BMW 428i & 428xi / 435i & 435xi (Also Fits 420i, 420d, 425d, 430d, 435d)
2014 – 2018 F22/F23 BMW 228i & 228xi / M235i & M235xi (Also Fits 220i, 218d, 220d, 225d)
2012 – 2018 F20/F21 BMW 114i / 116i / 118i / 125i / M135i / 114d / 116d / 118d / 120d / 125d
2016 – 2019 F22 BMW M2
