APR Part Number: MS100115
Fits 2015-2020 Audi A3/A3 Quattro/S3 - 2019-2024 Audi Q3 - 2016-2023 Audi TT/TTS - 2019-2021 VW Arteon - 2015-2018 VW Golf - 2017-2019 Golf AT - 2015-2019 VW Golf R/Golf Sportwagen - 2015-2021 VW GTI - 2019-2024 VW Jetta - 2022-2024 VW Tiguan
Overview

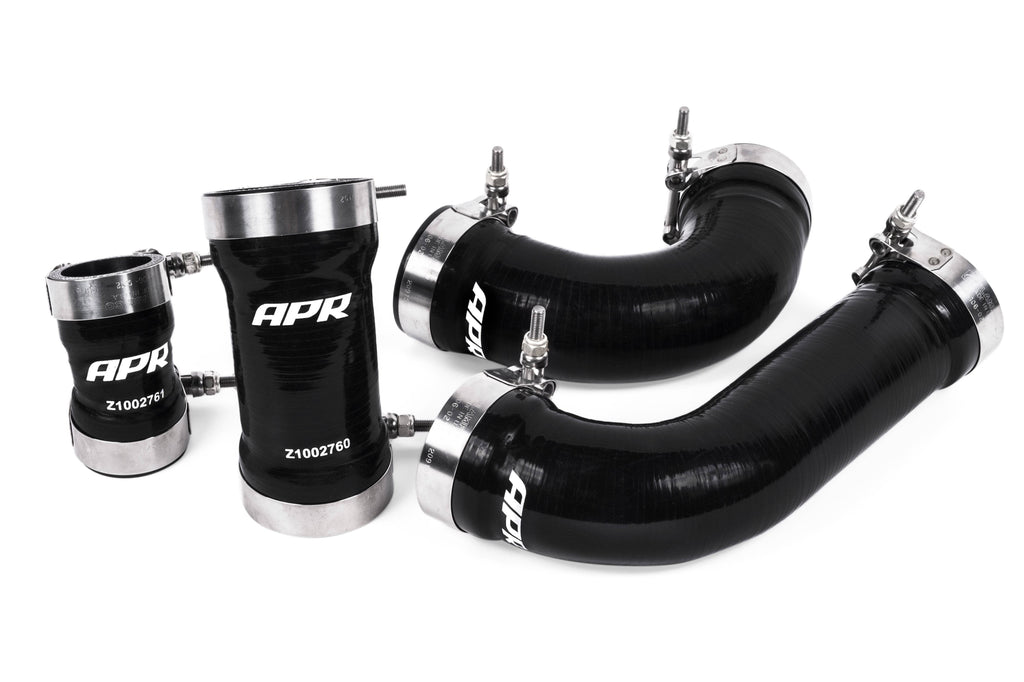

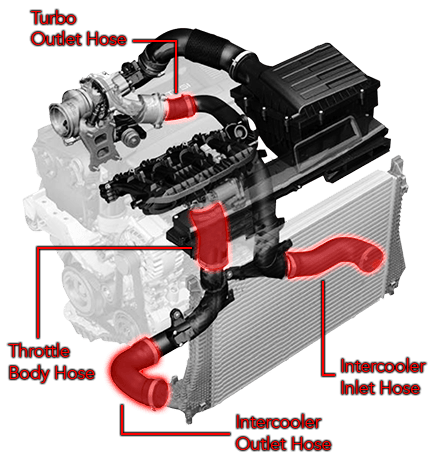

APR is pleased to present the ultimate boost hose upgrade for MQB platform vehicles with the 1.8T and 2.0T engines!The APR Boost Hose System is a comprehensive, direct replacement upgrade, to the factory rubber hoses found in the charge piping system. The system includes a multitude of enhancements designed for maximum performance, longevity and insurance against power robbing boost leaks. The system is sold both as a complete kit, and individually, and is fully compatible with the OEM and upgraded APR Intercooler system, OEM throttle body and all OEM turbochargers.This system includes the turbo outlet hose, throttle body hose, and both intercooler hoses.APR's Engineers took a multi-step approach to optimizing the hoses to minimize boost leaks, reduce turbulence and other performance degradations. Four-ply silicone was utilized as it provides the thickness and strength characteristics necessary to support boost levels far beyond the engine's capabilities. A Fluorosilicone internal lining was added to ensure the hoses do not rapidly deteriorate over time when exposed to oil and gasoline from the PCV and EVAP systems. The included stainless-steel Clampco T-bolt clamps prevent the hoses from coming loose under heavy pressure and under high temperatures, silicone adheres to its mating surface, further minimizing leaks and hose slippage. APR's EZ-Flow stepped design creates a smooth airflow path, reducing turbulence over non-stepped designs. Finally, silicone provides better heat resistance over rubber, extending the life of the product and ultimate
Features:
- Direct OEM replacement: Compatible with OEM/APR Intercooler, OEM Throttle body and all OEM turbochargers.

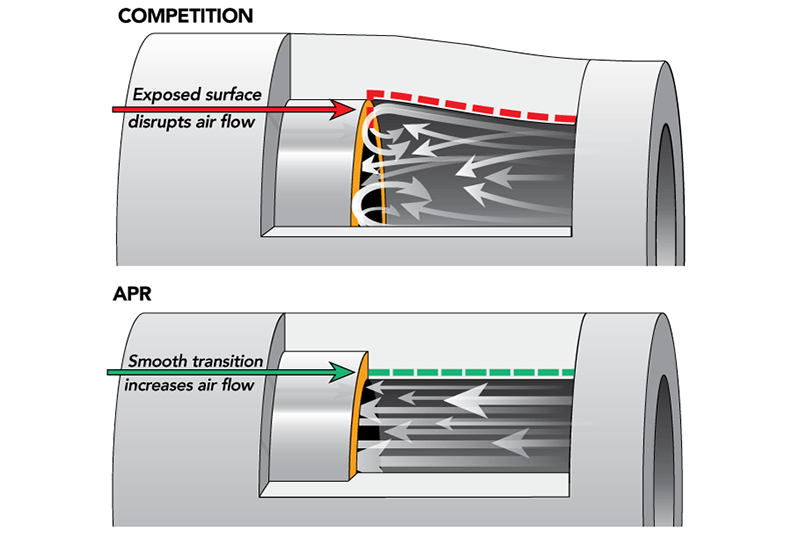

- APR EZ-Flow design: APR’s EZ-Flow stepped design provides maximum flow for maximum performance through a smooth, port matched transition from hose to connection surface.
- Multi-ply silicone outer construction: Pressure tested far beyond the engine’s capabilities, the system maintains performance under extreme conditions and increases burst resistance as well as mating surface adhesion compared to rubber.
- Fluorosilicone interior surface: A Fluorosilicone coating on the interior surface greatly resists oil and gasoline permeation providing an extra layer of protection against deterioration of the hoses.

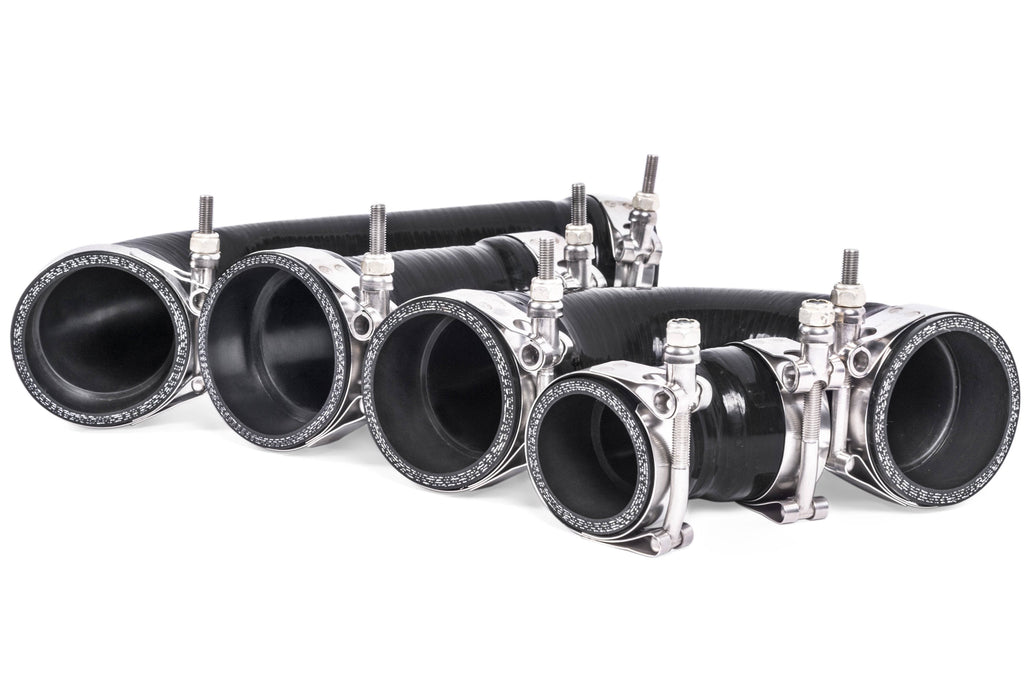

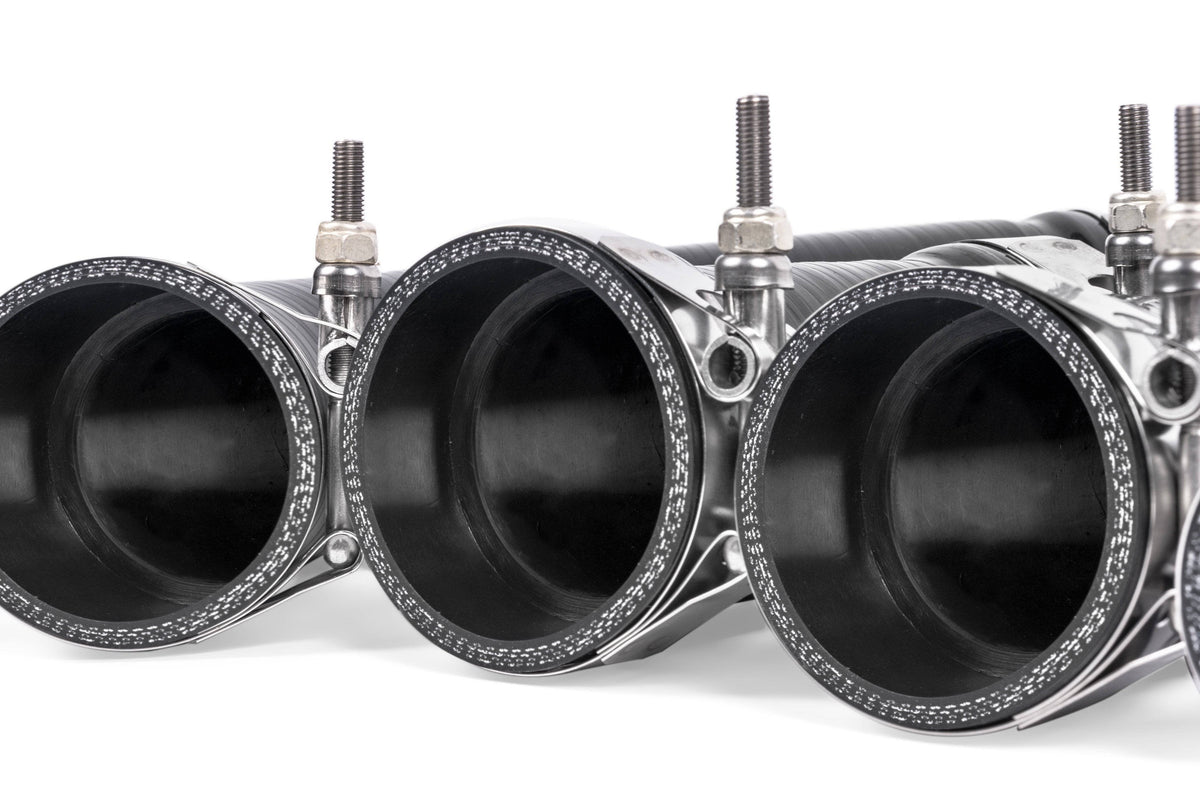

- Clampco T-bolt clamps: Stainless steel T-bolt clamps. Diminishes the risk of boost leaks with increased connection strength and decreased hose slippage.
- Additional quality control: APR take quality seriously. Each hose is fully tested before it leaves our doors to ensure fitment and our EZ-Flow design is perfectly matched!
Specifications
| Brand | APR |
|---|---|
| Category | Belts and Cooling |
| Clamps | T-Bolt |
| Color | Black |
| Emission Code | 7 |
| Material | Silicon |
| Product Type | Charge Air Systems |
| Sub Category | Hoses and Pipes |
| Version | All Hoses |
| UPC | 810904031136 |
| Part Number | MS100115 |
Emissions
7
This part is legal under the provisions of EPA’s Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.
Tech Resources

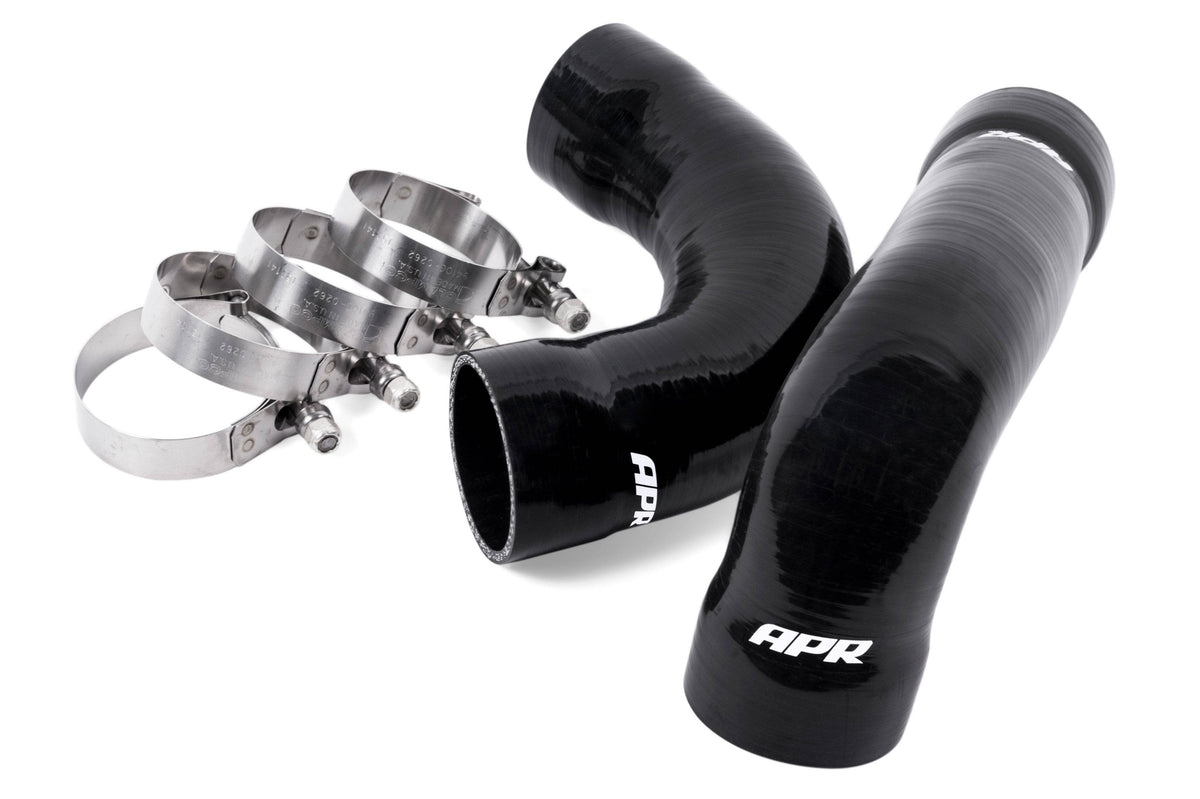

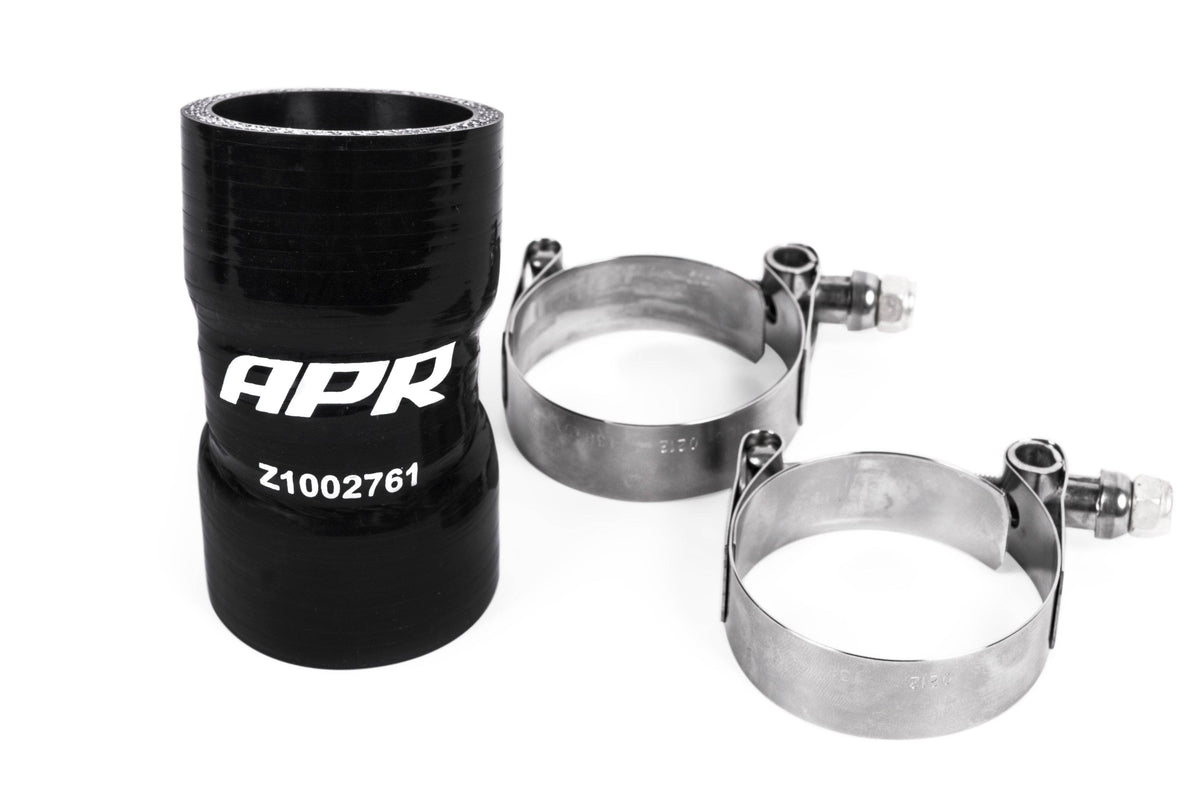

Intercooler hoses replace factory part 5Q0145832 & 5Q0145834.

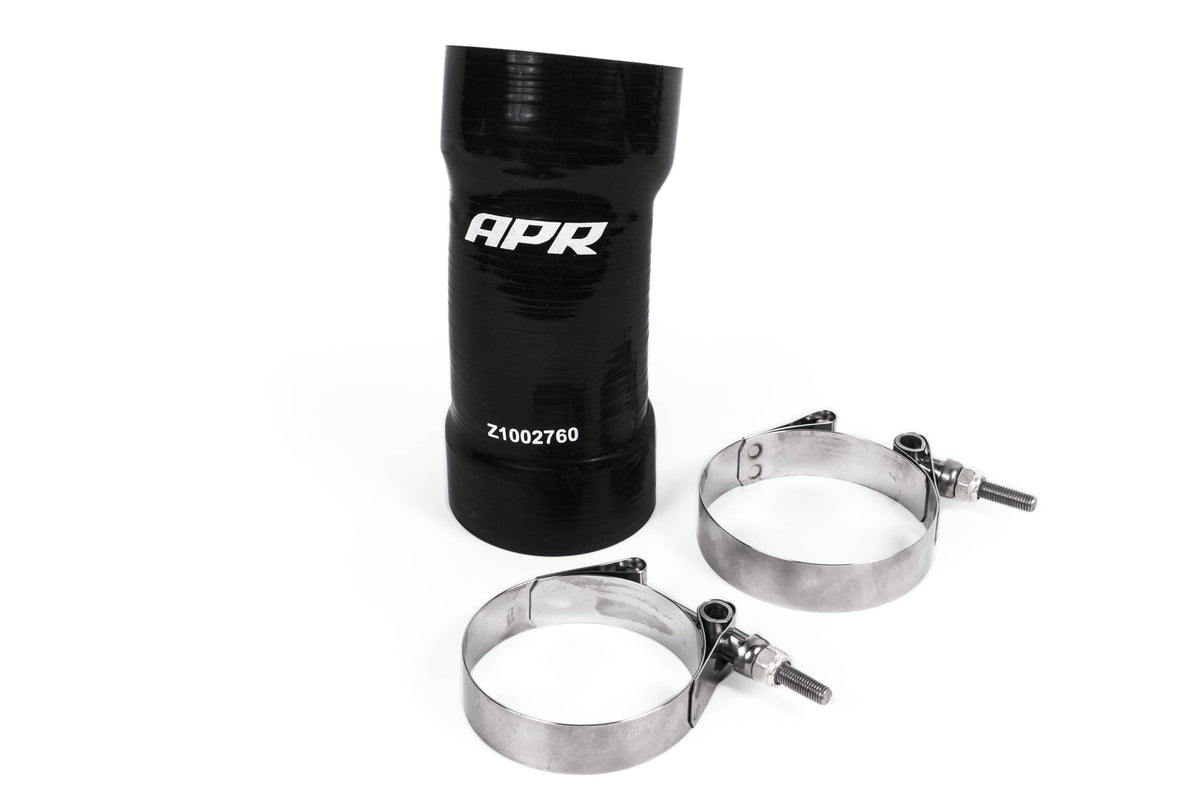

Throttle body hose replaces factory part 5Q0145838.
Turbo outlet hose replaces factory part 5Q0145828.
The turbo outlet pipe does not fit vehicles with the 7 speed DQ381 transmission.
Vehicle Applications
- 2019–2024 Audi Q3 (F3) — 2.0L; United States
- 2015–2015 Audi A3 — 2.0L; United States
- 2016–2020 Audi A3 (8V) — 2.0L; United States
- 2016–2023 Audi TTS (8S, FV) — 2.0L; United States
- 2015–2015 Audi A3 — 1.8L; United States
- 2016–2016 Audi A3 (8V) — 1.8L; United States
- 2017–2020 Audi A3 (8V) — 2.0L; United States
- 2015–2015 Audi S3 — 2.0L; United States
- 2016–2020 Audi S3 (8V) — 2.0L; United States
- 2016–2023 Audi TT (8S, FV) — 2.0L; United States
- 2015–2015 Volkswagen Golf SportWagen — 1.8L; United States
- 2016–2019 Volkswagen Golf SportWagen (5G, MQB) — 1.8L; United States
- 2015–2015 Volkswagen Golf R — 2.0L; United States
- 2016–2019 Volkswagen Golf R (5G, MQB) — 2.0L; United States
- 2017–2019 Volkswagen Golf Alltrack (5G, MQB) — 1.8L; United States
- 2019–2021 Volkswagen Arteon (3H, MQB) — 2.0L; United States
- 2022–2024 Volkswagen Tiguan (BW, MQB) — 2.0L; United States
- 2015–2015 Volkswagen Golf GTI — 2.0L; United States
- 2016–2021 Volkswagen Golf GTI (5G, MQB) — 2.0L; United States
- 2019–2019 Volkswagen Jetta — 2.0L; United States
- 2021–2024 Volkswagen Jetta — 2.0L; United States
- 2020–2020 Volkswagen Jetta (A7, BU, MQB) — 2.0L; United States
- 2015–2015 Volkswagen Golf — 1.8L; United States
- 2016–2018 Volkswagen Golf (5G, MQB) — 1.8L; United States
Fitment Requirements
Intercooler hoses replace factory part 5Q0145832 & 5Q0145834._x000D_ Throttle body hose replaces factory part 5Q0145838._x000D_ Turbo outlet hose replaces factory part 5Q0145828._x000D_ The turbo outlet pipe does not fit vehicles with the 7 speed DQ381 transmission.
Instructions - apr_mqb_boost_hose_kit.pdf Intercooler hoses replace factory part 5Q0145832 & 5Q0145834. Throttle body hose replaces factory part 5Q0145838. Turbo outlet hose replaces factory part 5Q0145828. The turbo outlet pipe does not fit vehicles with the 7 speed DQ381 transmission.
